In Italian, “Terra Bella” translates to Beautiful Land, which we try and embody in our tile. Terra Bella is a hand-made, high-fired terra cotta tile produced in California. These tiles are designed to be historically accurate to reflect the architectural terra cotta tiles once produced in the United States during the 1920’s. Terra Bella tiles have the versatility of being installed throughout your home, inside and outside, yet durable enough for commercial use.

Handmade Tile

Our Terra Bella 3/4” Pavers are hand cast using the highest quality clays . These tiles are high fired to achieve rich red, orange, and brown color tones as well as a dense, durable body. Terra Bella’s rated for interior and exterior and can also be used in freeze-thaw conditions.

Terra Bella Thin Pressed tiles achieve the same colors as our pavers but in a 1/2” thick body. These pressed tiles can be installed both glazed, unglazed, or a combination of the two.

Our manufacturing process strives to create variation in color, shade, size, and thickness which adds to the hand-made quality of our tile.

Customization Capabilities

Our team has the ability to create custom sizes and shapes upon request. For any customization questions please call Mission Tile West and ask for the Terra Bella Department. 626-799-4595

Field Sizes/Shapes – Hand Cast (3/4″)

Looking for THIN PRESSED (1/2″) options, click here

Sizes

*Due to the hand-made nature of these tiles, they will vary in size and thickness*

2" x 2"

3 ^1/2" x 7 ^1/4"

2 ^5/8" x 2 ^5/8"

3 ^3/4" x 11 ^5/8"

3 ^5/8" x 3 ^5/8"

5 ^1/2" x 11 ^3/8"

5" x 5"

5 ^3/4" x 7 ^3/4"

5 ^1/2" x 5 ^1/2"

7 ^7/8" x 16 ^5/8"

7 ^7/8" x 7 ^7/8"

11 ^3/8" x 16 ^1/4"

9 ^1/2" x 9 ^1/2"

11 ^3/8" x 20"

11 ^3/8" x 11 ^3/8"

18" x 24 ^1/4"

14 ^1/4" x 14 ^1/4"

16" x 16"

Shapes

*Due to the hand-made nature of these tiles, they will vary in size and thickness*

5" Hex

3 ^5/8" x 7 ^1/2" Picket

8" Hex

3" x 11" Picket

16" Hex

5 ^3/8" x 14 ^3/4" Picket

7 ^7/8" Octagon (No Dot)

*7 ^7/8" Octagon (+2" Dot)

Ratio: 1 octagon to 1 dot

3 ^5/8" x 7 ^1/2" Picket (+3^5/8" Square)

Ratio: 2 pickets to 1 square

11 ^3/8" Octagon (No Dot)

*11 ^3/8" Octagon (+3^5/8" Dot)

Ratio: 1 octagon to 1 dot

3" x 11" Picket (+7^7/8" Square)

Ratio: 2 pickets to 1 square

8" Riviera

5 ^3/8" x 14 ^3/4" Picket (+9^1/2" Square)

Ratio: 2 pickets to 1 square

8" x 11" San Felipe

9 ^1/2" x 5 ^1/2" Diamond

8" Riviera + 8" x 11" San Felipe

Ratio: 1 riviera to 1 san felipe

8" Star & Cross

9" x 9" Scallop

12" Star & Cross

Ratio: 1 star to 1 cross

Finishings – Hand Cast (3/4″)

Looking for THIN PRESSED (1/2″) options, click here

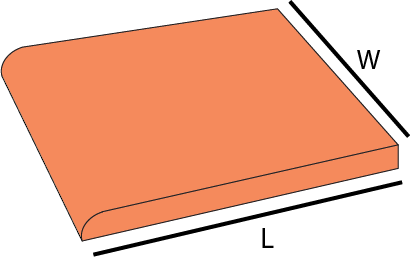

Bullnose

5 ^1/2" x 11 ^3/8" - SBN (on 11^3/8" Side)

7 ^7/8" x 7 ^7/8" - SBN

11 ^3/8" x 11 ^3/8" - SBN

11 ^3/8" x 11 ^3/8" - DBN (Double)

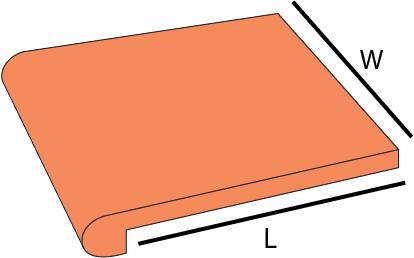

Stair Tread

11 ^3/8" x 11 ^3/8" - Stair Tread

11 ^3/8" W x 16" L - Stair Tread

16" x 16" - Stair Tread

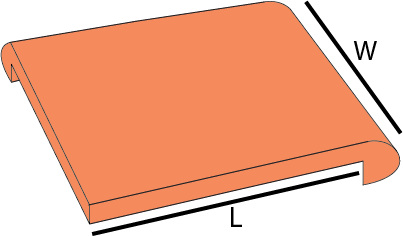

L & W based off inside dimensions

11 ^3/8" x 11 ^3/8" - Grooved Stair Tread

11 ^3/8" W x 16" L - Grooved Stair Tread

L & W based off inside dimensions

11 ^3/8" x 11 ^3/8" - Double Stair Tread

11 ^3/8" W x 16" L - Double Stair Tread

16" x 16" - Double Stair Tread

11 ^3/8" x 11 ^3/8" - Grooved Double Stair Tread

11 ^3/8" W x 16" L - Grooved Double Stair Tread

*Specify Left or Right for 11^3/8" x 16"

L & W based off inside dimensions

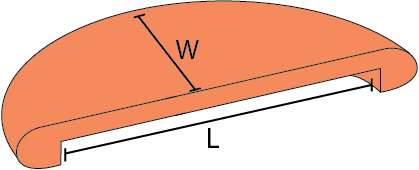

10 ^1/2" W x 20 ^3/4" L - Stair Tread Half Circle

12" W x 24" L - Stair Tread Half Circle

*Used with stair treads to finish the bottom step of a stairway

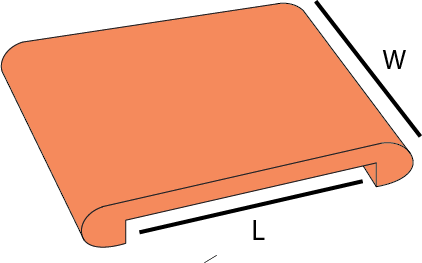

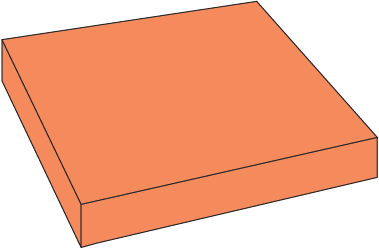

Wall Caps

11 ^3/8" x 11 ^3/8" - Rounded Edge Wall Cap

11 ^3/8" W x 16" L - Rounded Edge Wall Cap

8 ^5/8" x 11 ^3/4" - Wall Caps (2" thick)

10 ^1/2" x 10 ^1/2" - Wall Caps (2" thick)

12" x 12" - Wall Caps (2" thick)

14" x 14" - Wall Caps (2" thick)

Vents & Relief Tiles

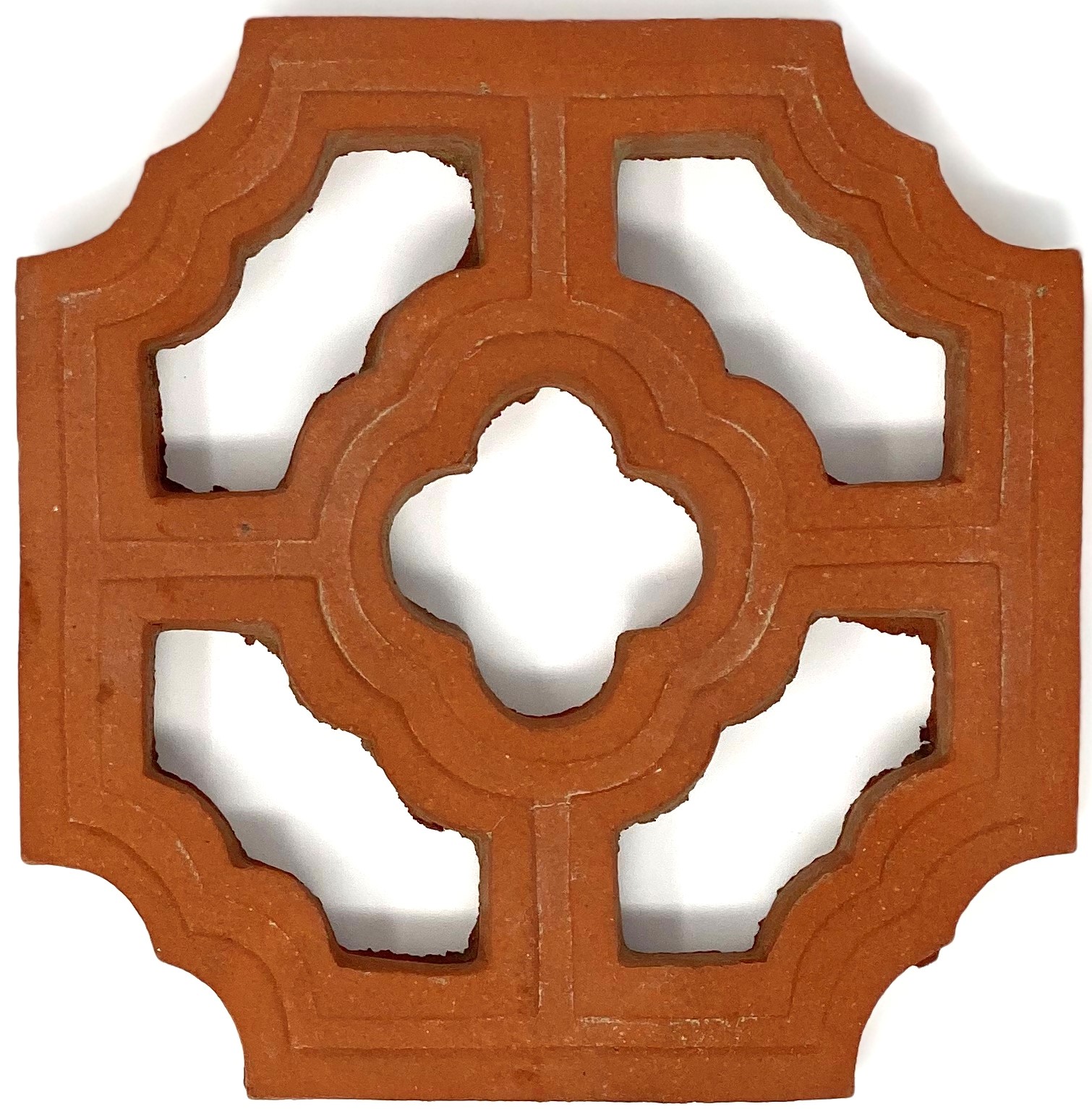

6" Vent - Single Sided

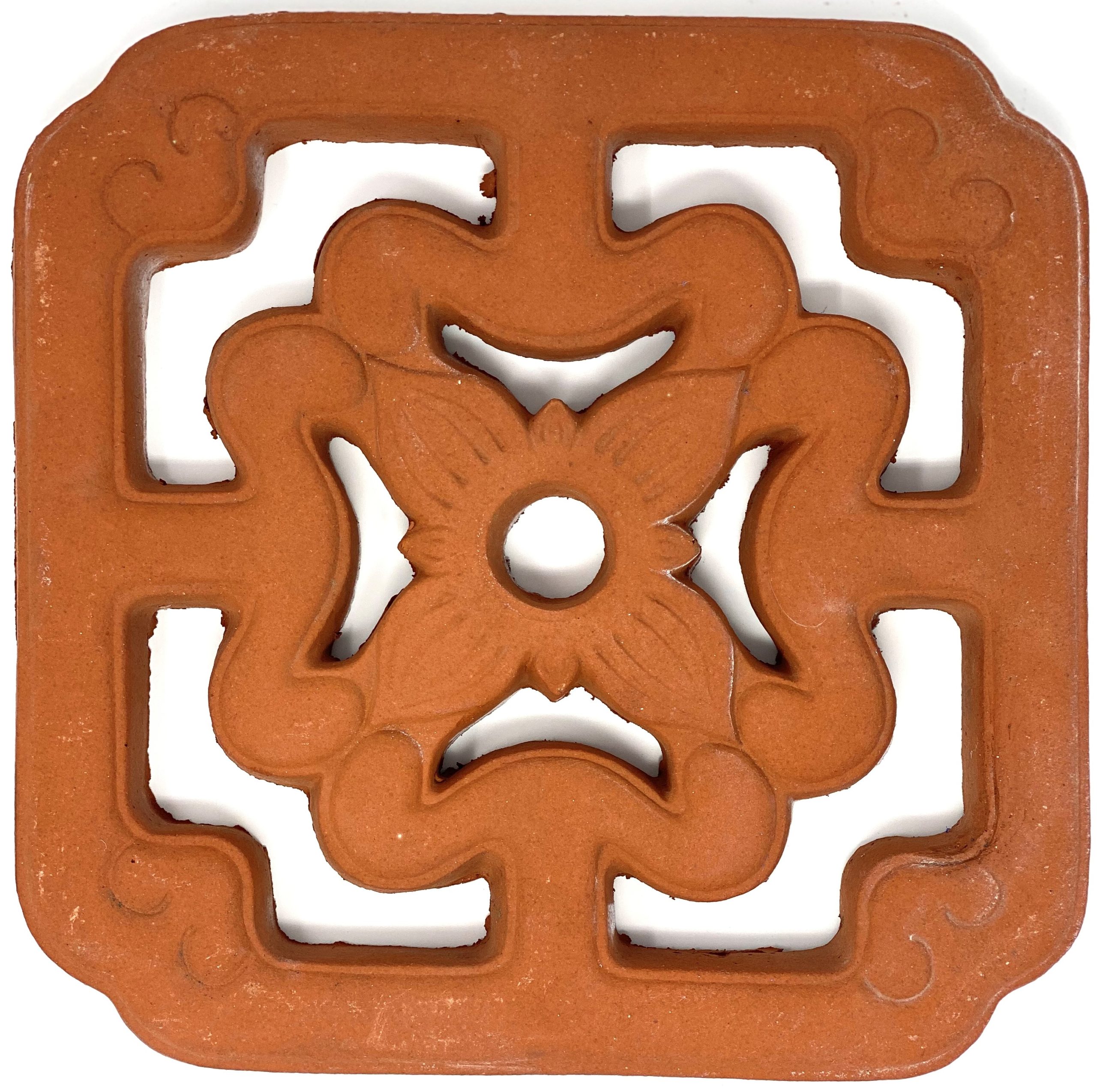

12" Vent - Single Sided

12" Vent - Double Sided

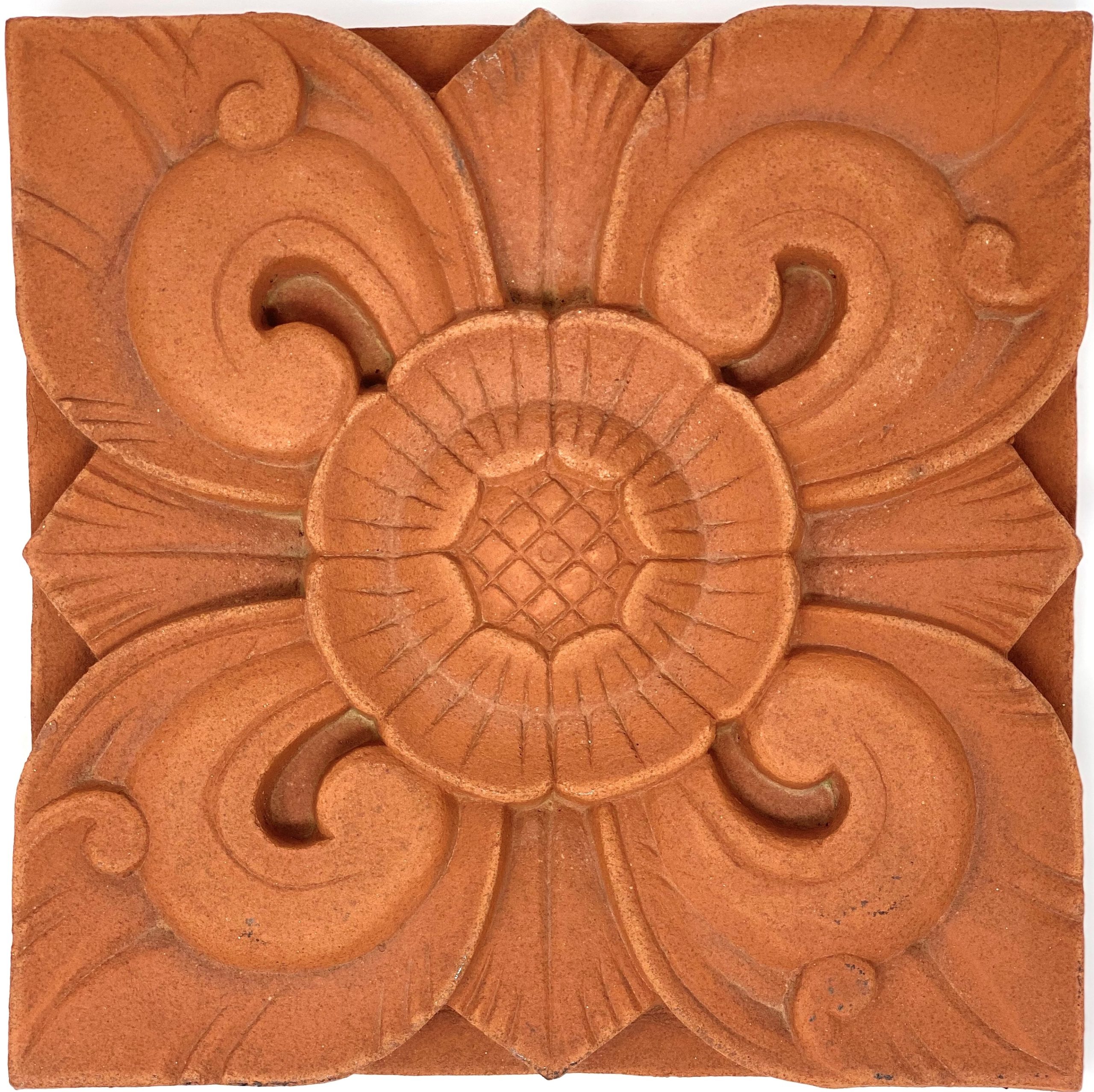

10 ^1/2" x 10 ^1/2" Lotus Flower

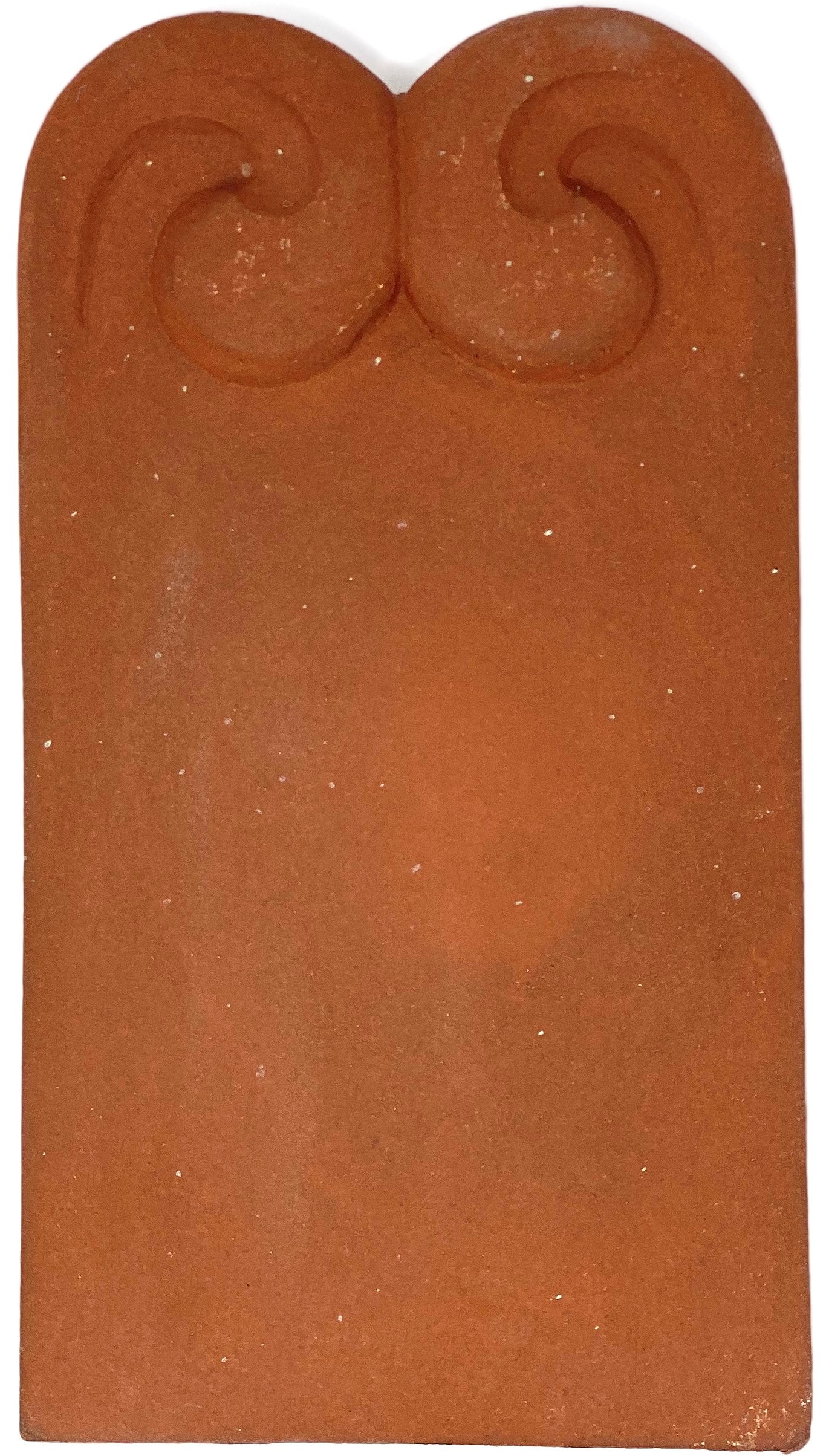

5 ^1/4" x 9 ^1/2" Garden Border

Decorative – Hand Cast (3/4″)

Looking for THIN PRESSED (1/2″) options, click here

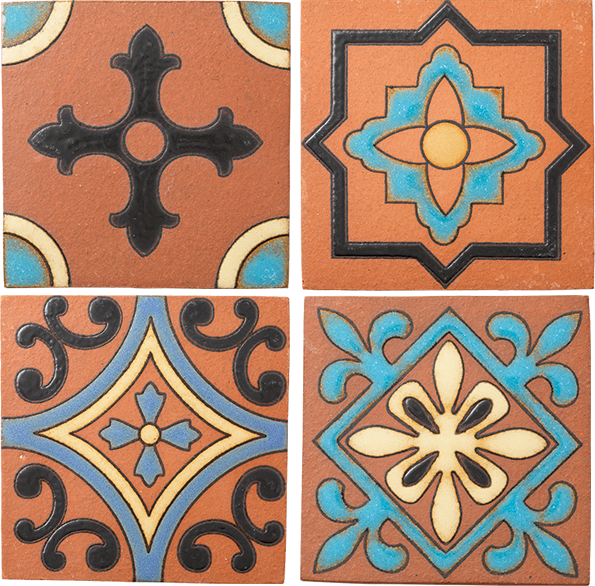

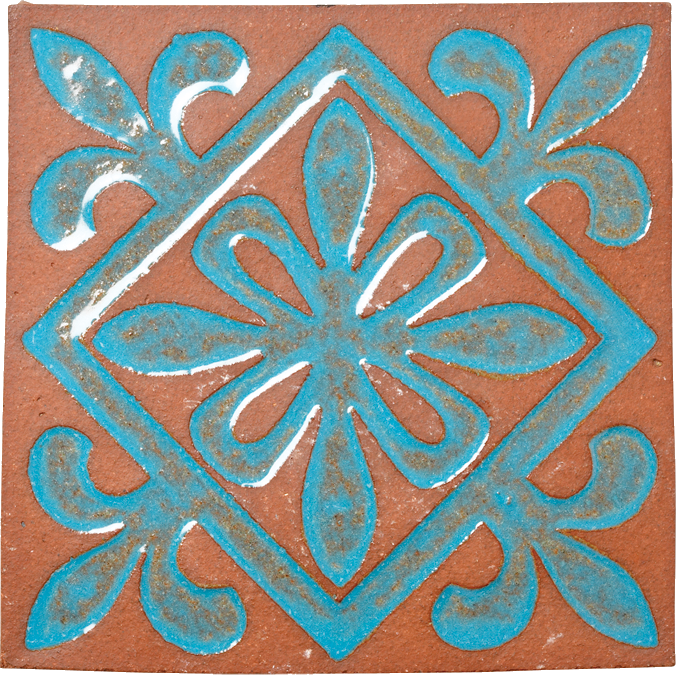

Black Line Decos

Stocked in 3-5/8" x 3-5/8"

Available Sizes

2" x 2"

2 ^5/8" x 2 ^5/8"

3 ^5/8" x 3 ^5/8"

5" x 5"

5 ^1/2" x 5 ^1/2"

5 ^1/2" x 11 ^3/8"

7 ^7/8" x 7 ^7/8"

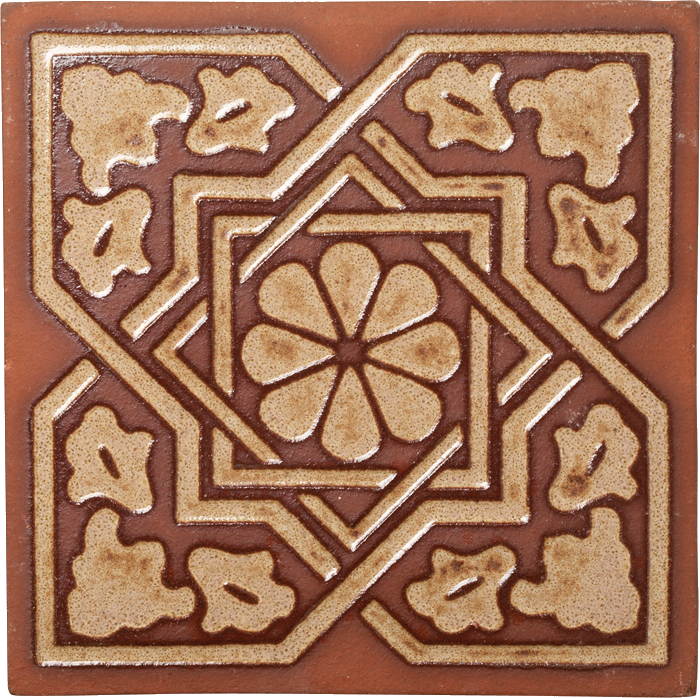

In Laid Decos

Cross Deco

2 ^5/8" x 2 ^5/8"

3 ^5/8" x 3 ^5/8"

5 ^1/2" x 5 ^1/2"

7 ^7/8" x 7 ^7/8"

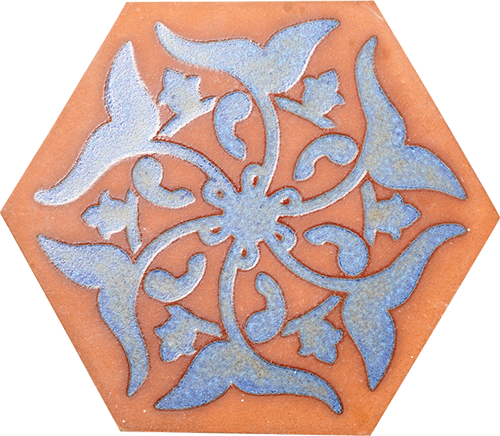

Hexagon Deco

8"

Fleur-de-lis Deco

5 ^1/2" x 5 ^1/2"

Field Sizes/Shapes – Thin Pressed (1/2″)

Looking for HAND CAST (3/4″) options, click here

Sizes

*Due to the hand-made nature of these tiles, they will vary in size and thickness*

1 ^7/8" x 1 ^7/8"

1 ^7/8" x 3 ^7/8"

2 ^7/8" x 2 ^7/8"

1 ^7/8" x 6"

3 ^7/8" x 3 ^7/8"

1 ^7/8" x 7 ^7/8"

6" x 6"

1 ^7/8" x 11 ^7/8"

8" x 8"

2 ^7/8" x 6"

12" x 12"

2 ^7/8" x 8 ^7/8"

3 ^7/8" x 7 ^7/8"

3 ^7/8" x 11 ^7/8"

6" x 12"

Shapes

*Due to the hand-made nature of these tiles, they will vary in size and thickness*

2 ^3/16" Hex

6" x 6 ^1/4" Riviera

3" Hex

8" x 8 ^1/4" Riviera

4" Hex

6" x 10 ^1/4" Diamond

5" Hex

3" x 9 ^1/4" Picket

8" Hex

12" Octagon

(use 3 ^7/8" Dot)

12" Hex

5 ^5/8" x 5 ^5/8" Star & Cross

Finishings – Thin Pressed (1/2″)

Looking for HAND CAST (3/4″) options, click here

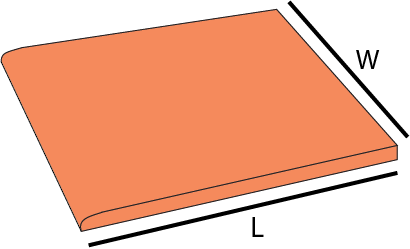

Bullnose

5 ^7/8" x 11 ^7/8" - SBN (on 11 ^7/8" Side)

11 ^7/8" x 11 ^7/8" - SBN

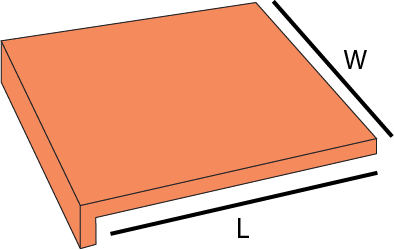

Square Edge Stair Tread

11 ^3/8" W x 12" L - Square Edge Stair Tread

16" W x 14" L - Square Edge Stair Tread

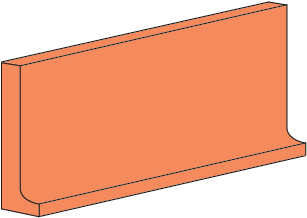

Cove Base

6 ^1/4" x 12 ^1/8" - Cove Base

Decorative – Thin Pressed (1/2″)

Looking for HAND CAST (3/4″) options, click here

In Laid Decos

0, 1, 2, 3, 4, 5, 6, 7, 8, 9

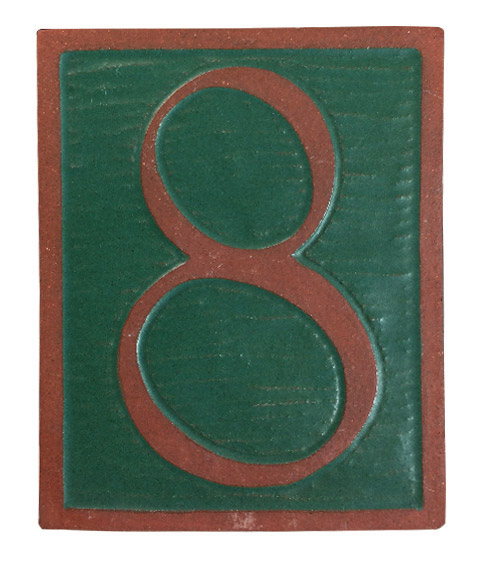

4" x 5" - Address Deco

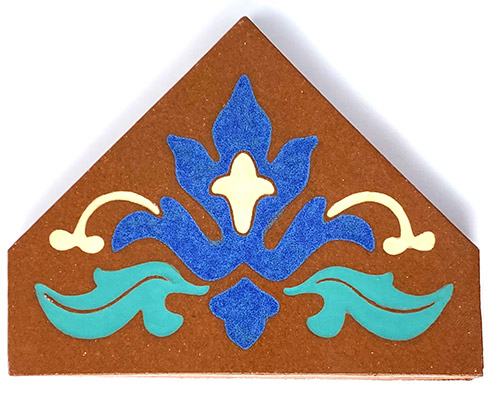

4 ^3/8" T x 5 ^5/8" W - 5 Sided Pyramid

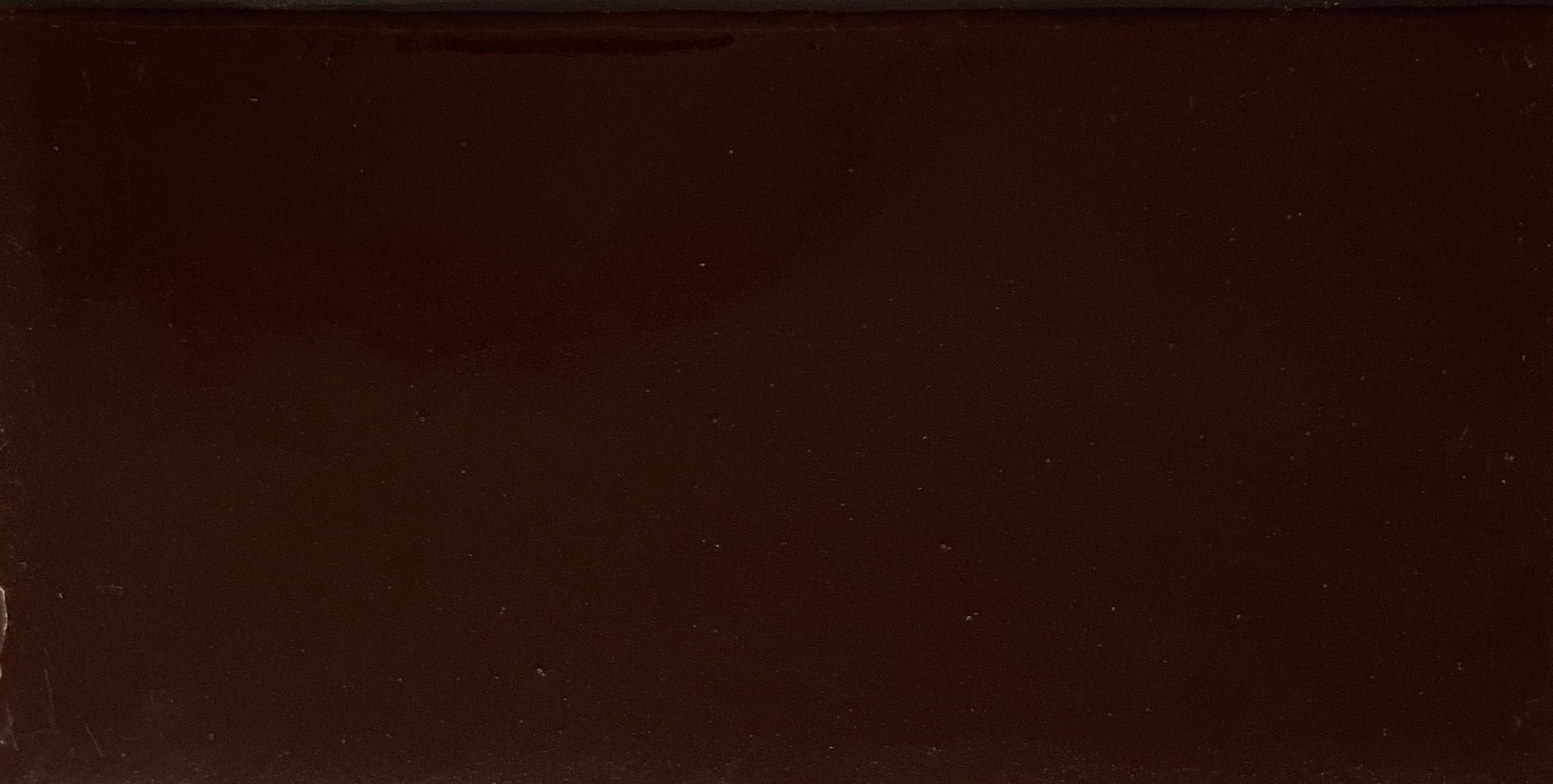

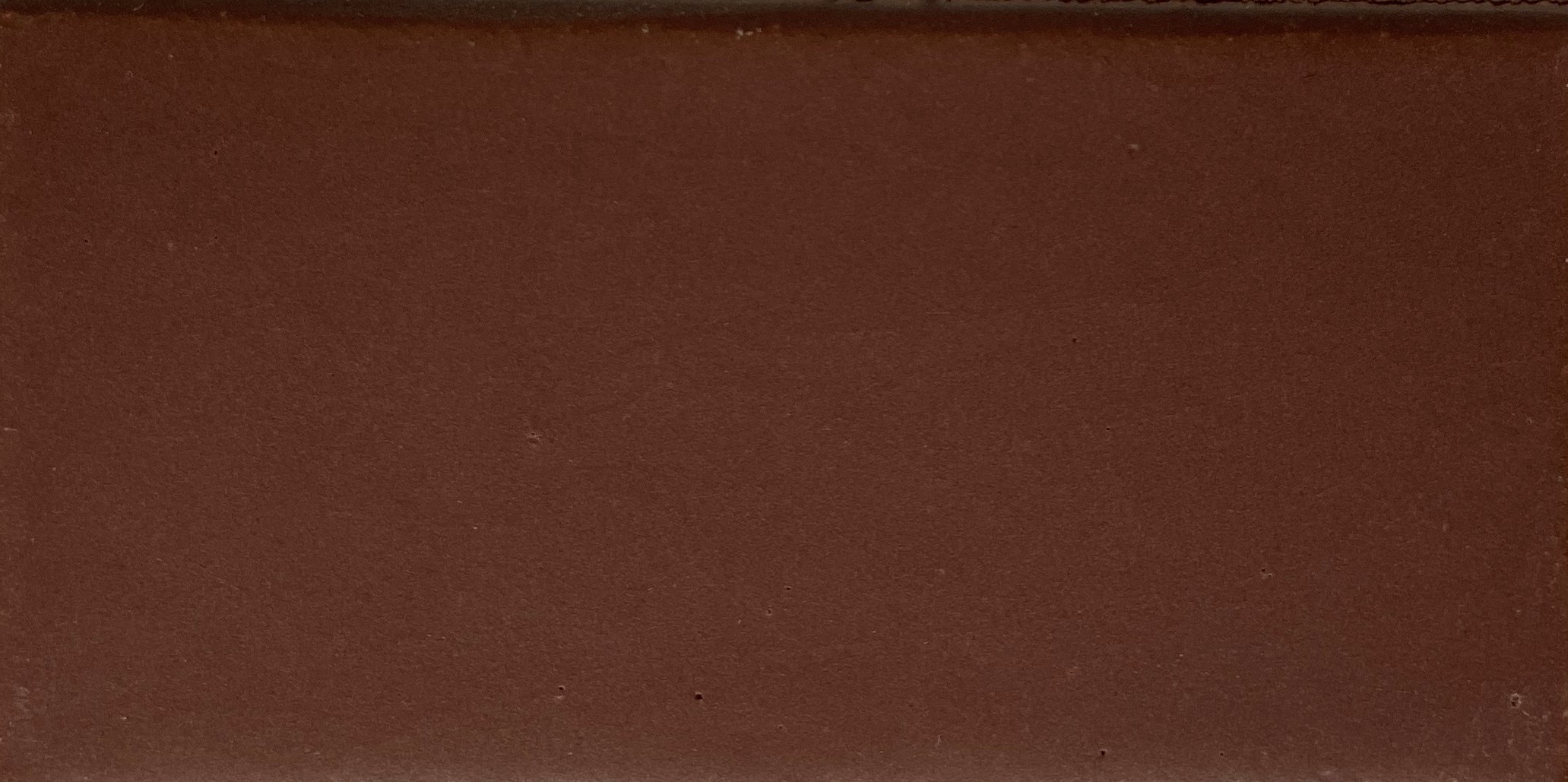

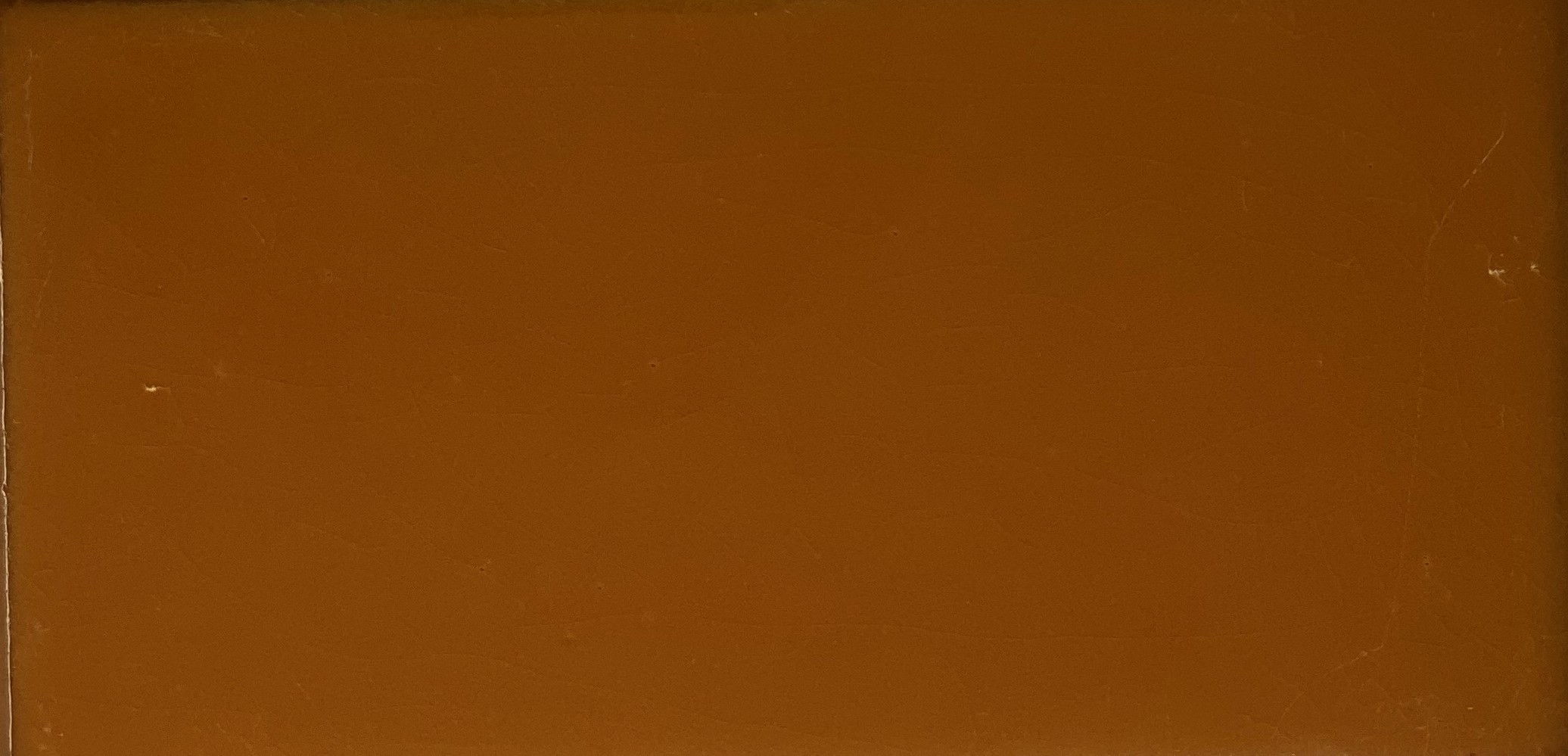

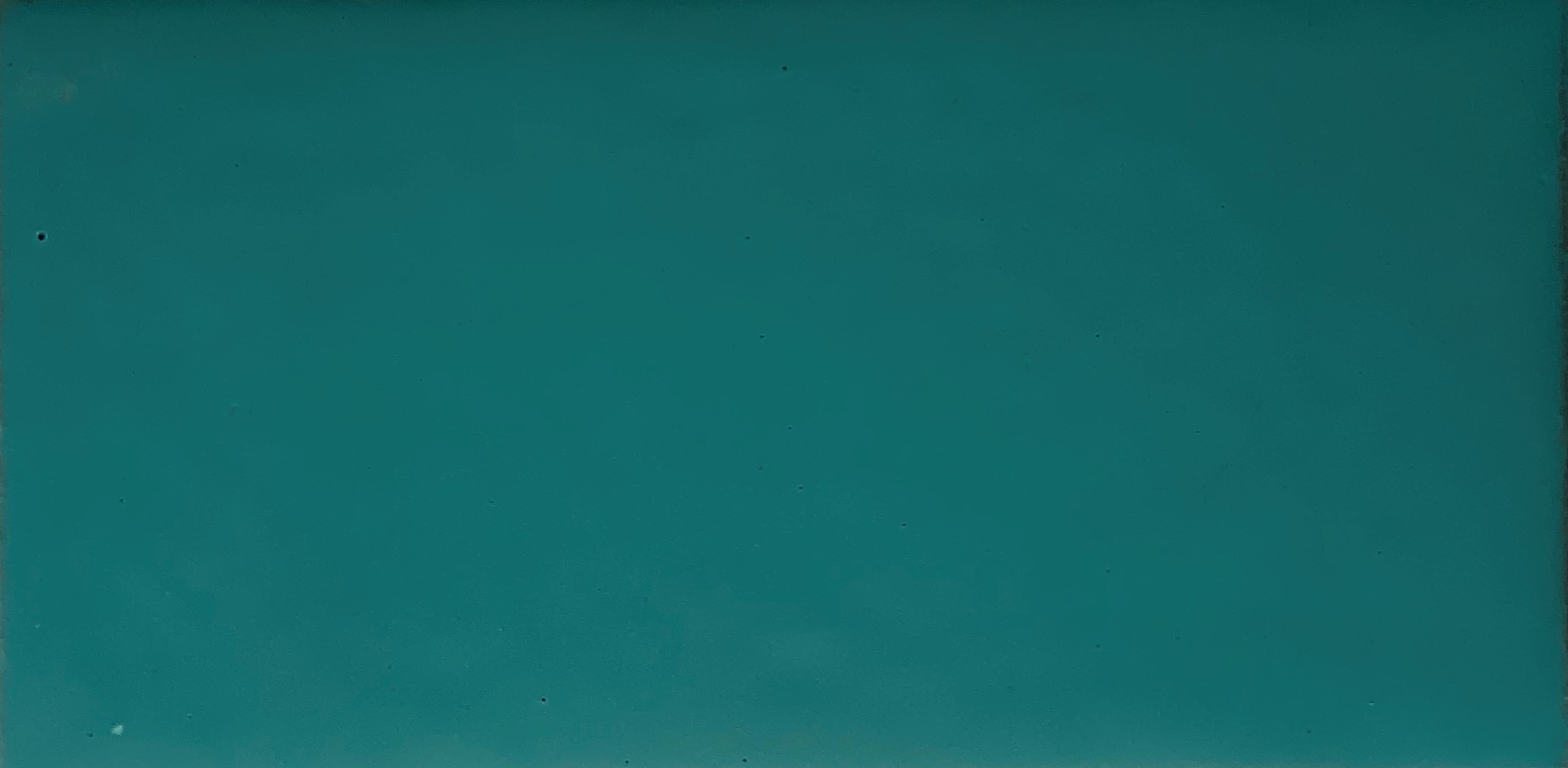

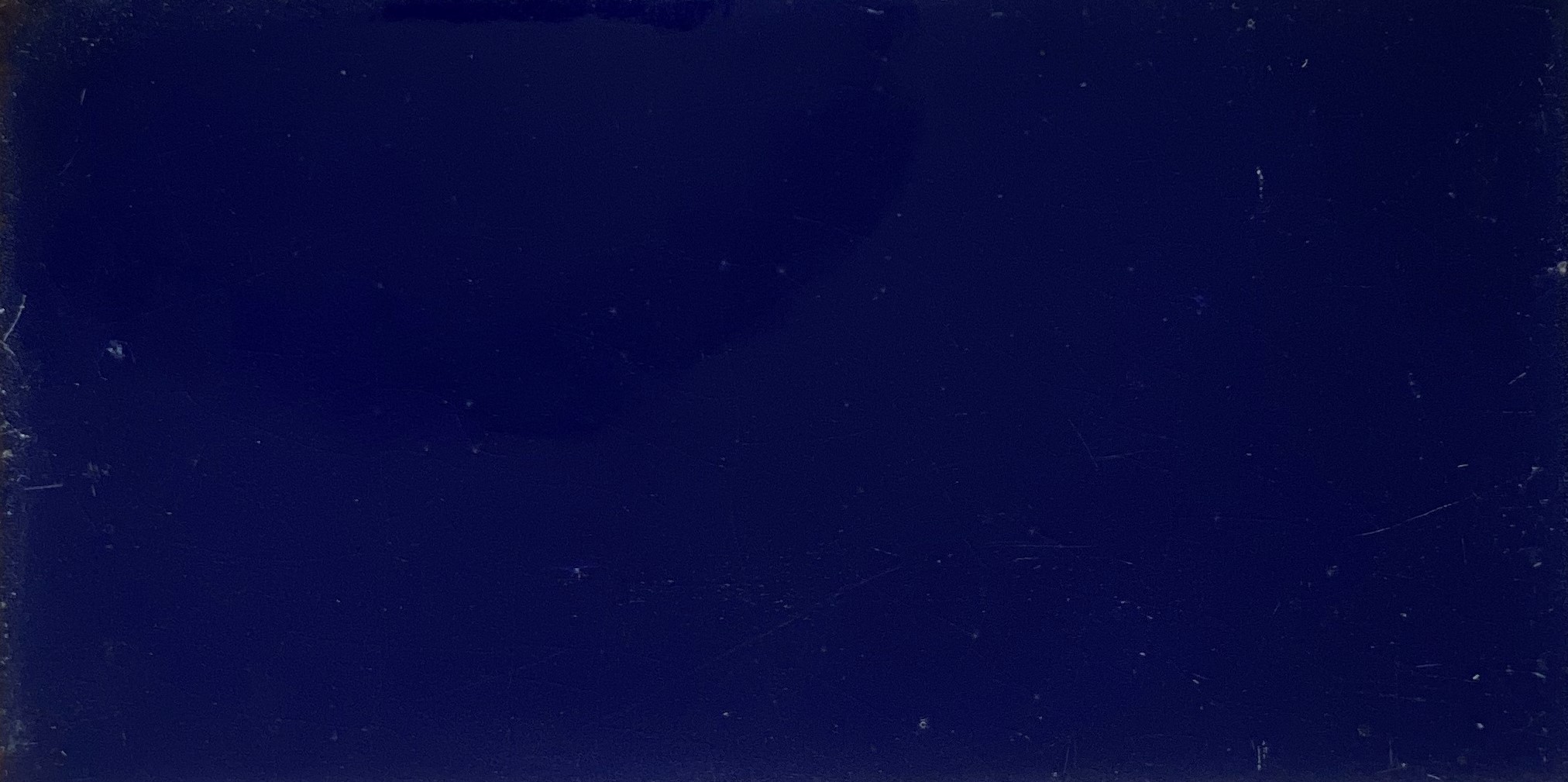

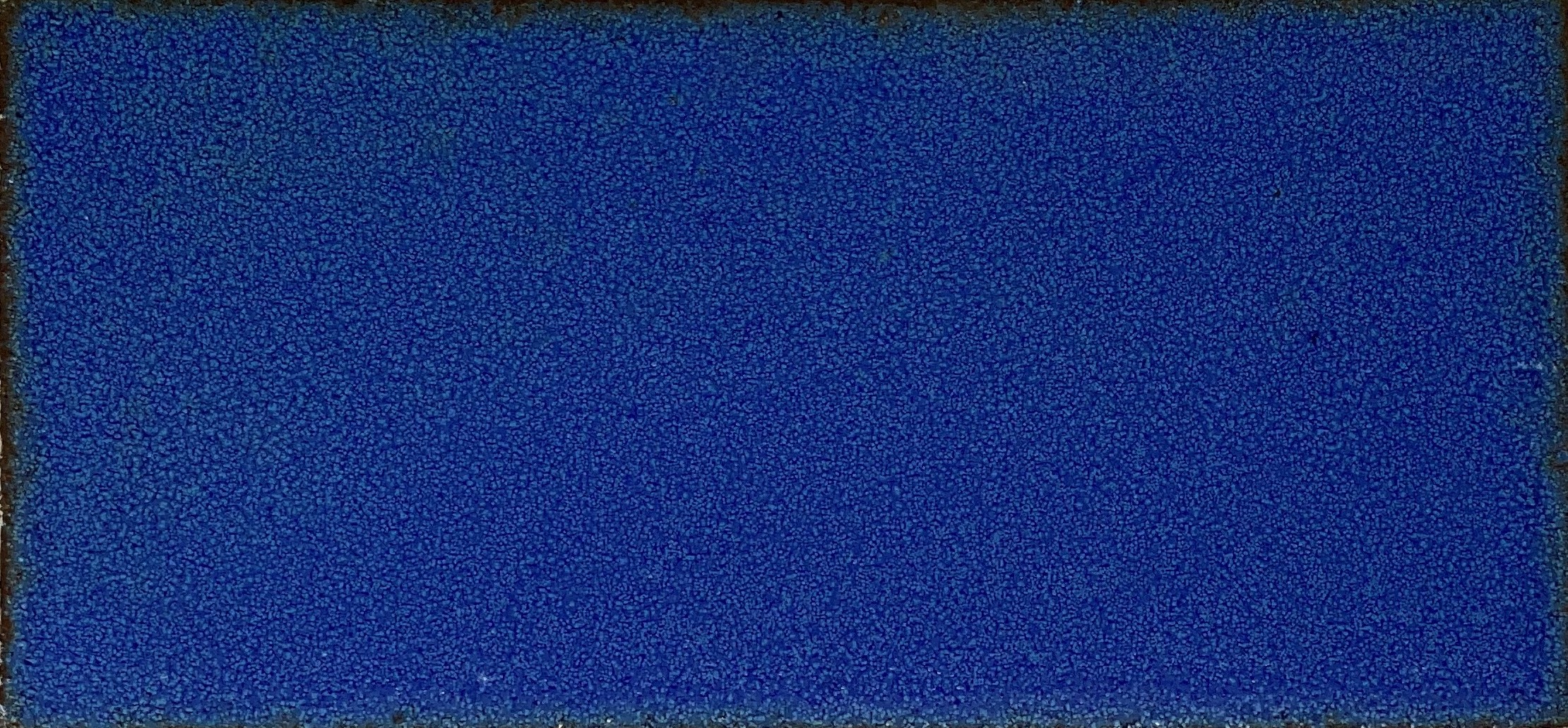

Colors – Hand Cast (3/4″) & Thin Pressed (1/2″)

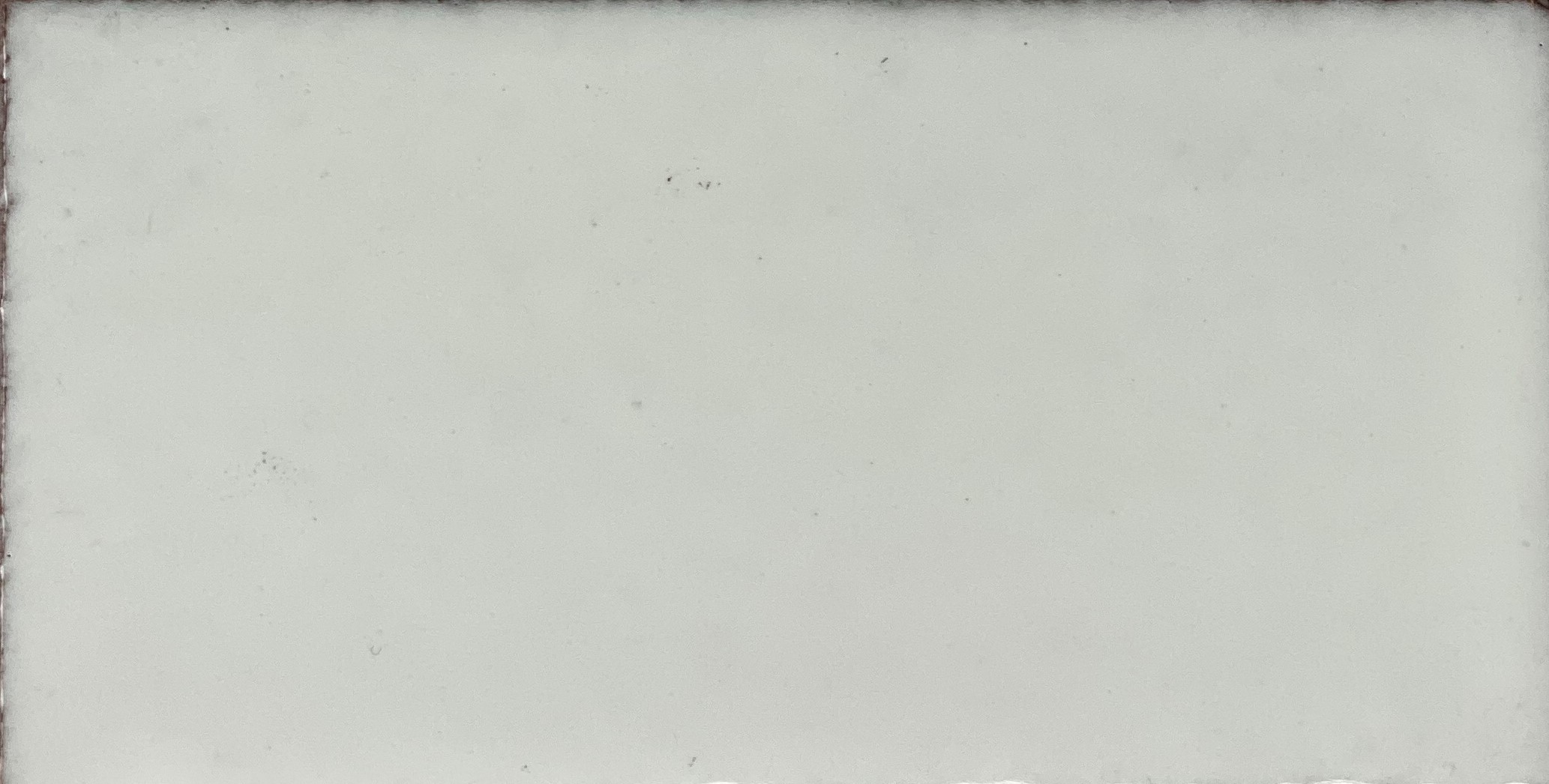

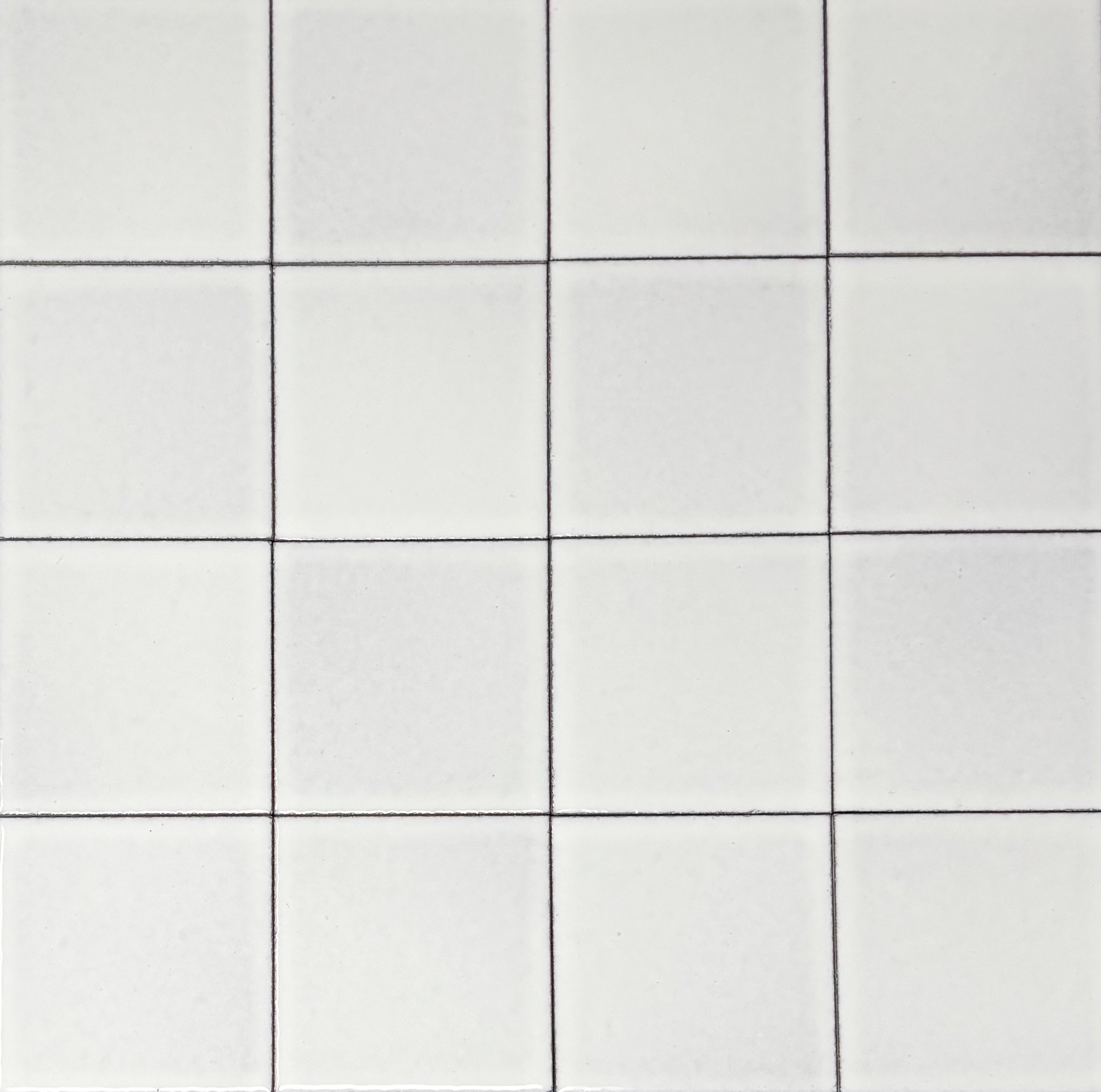

MT-1

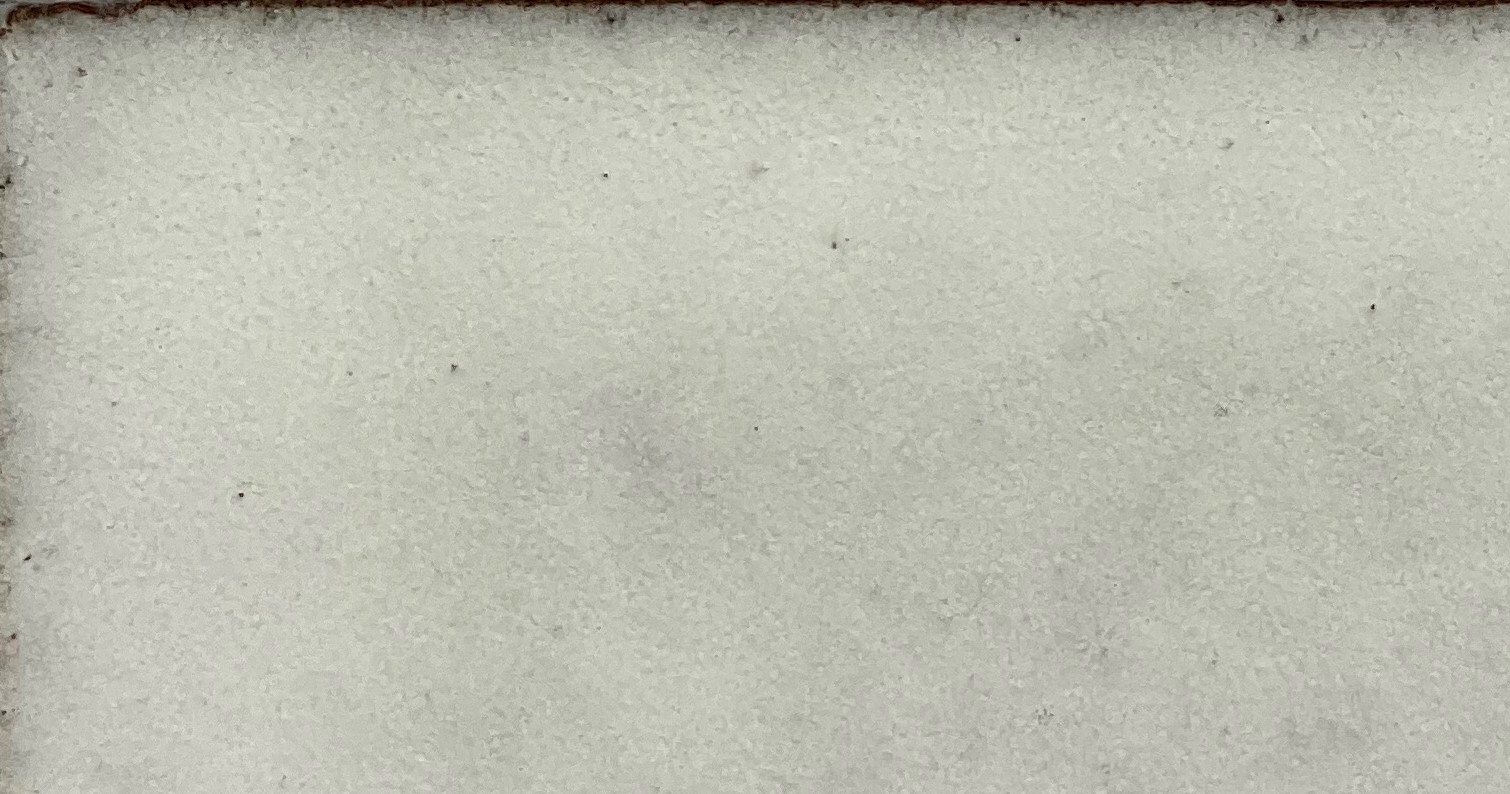

MT-2

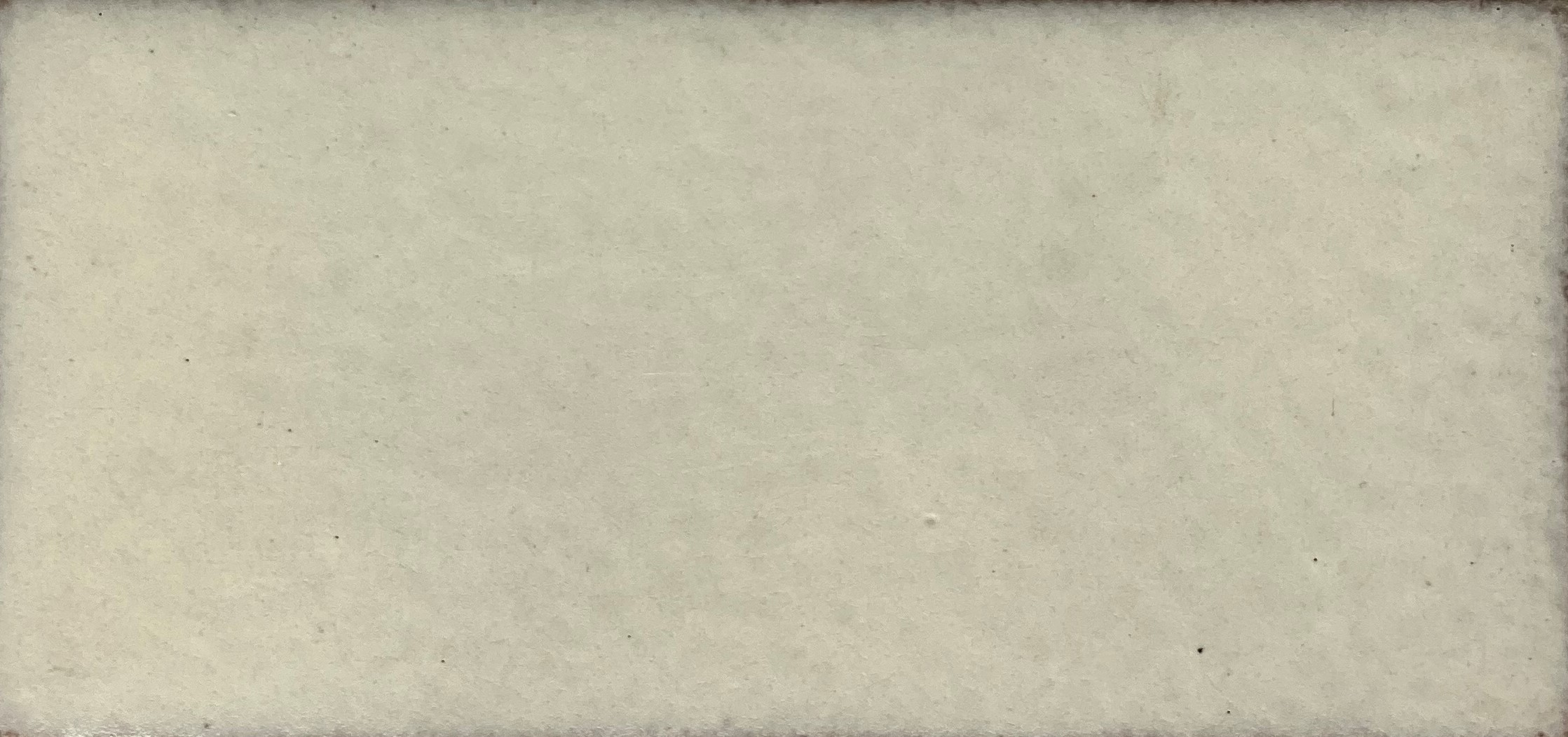

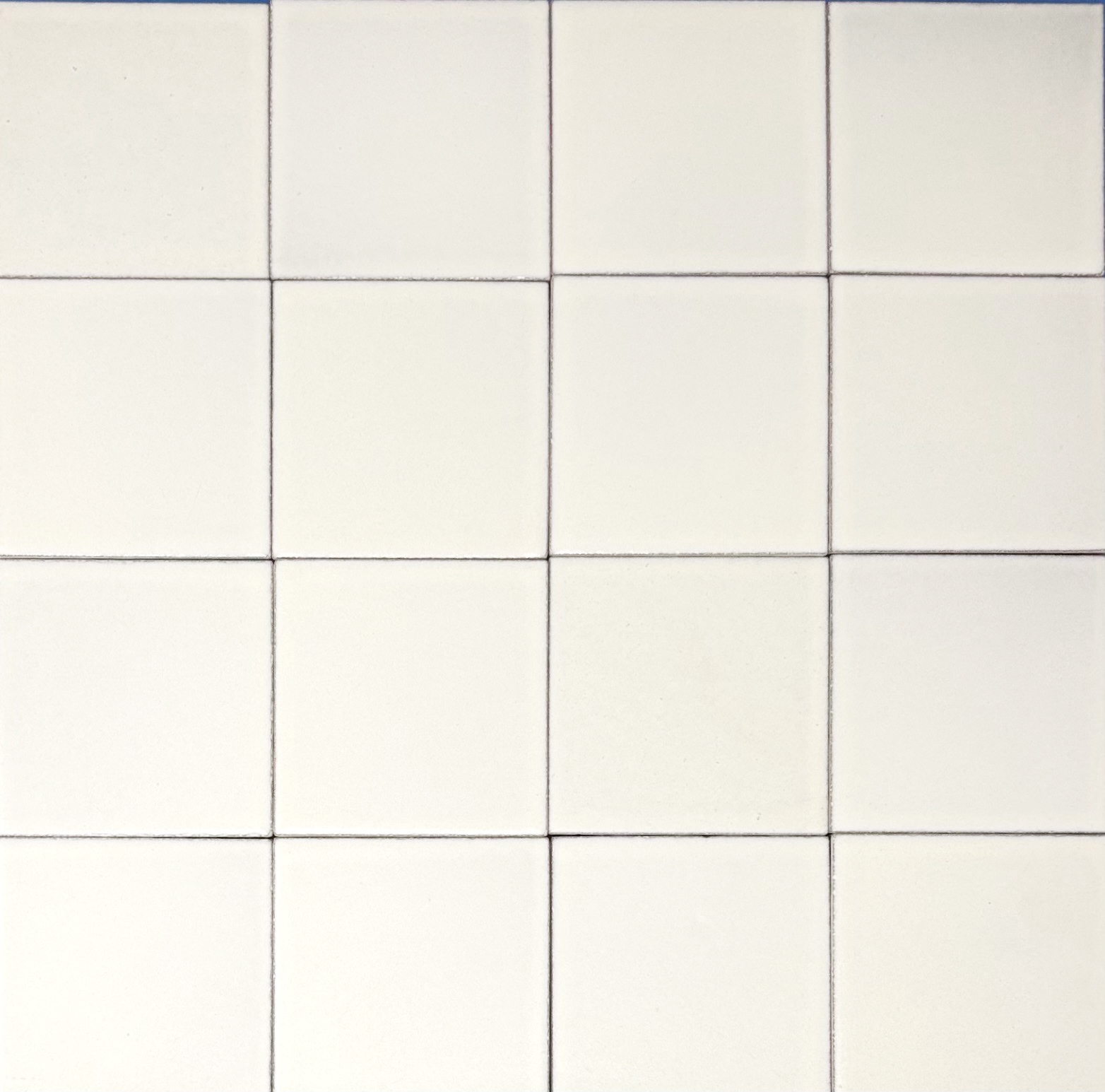

MT-3

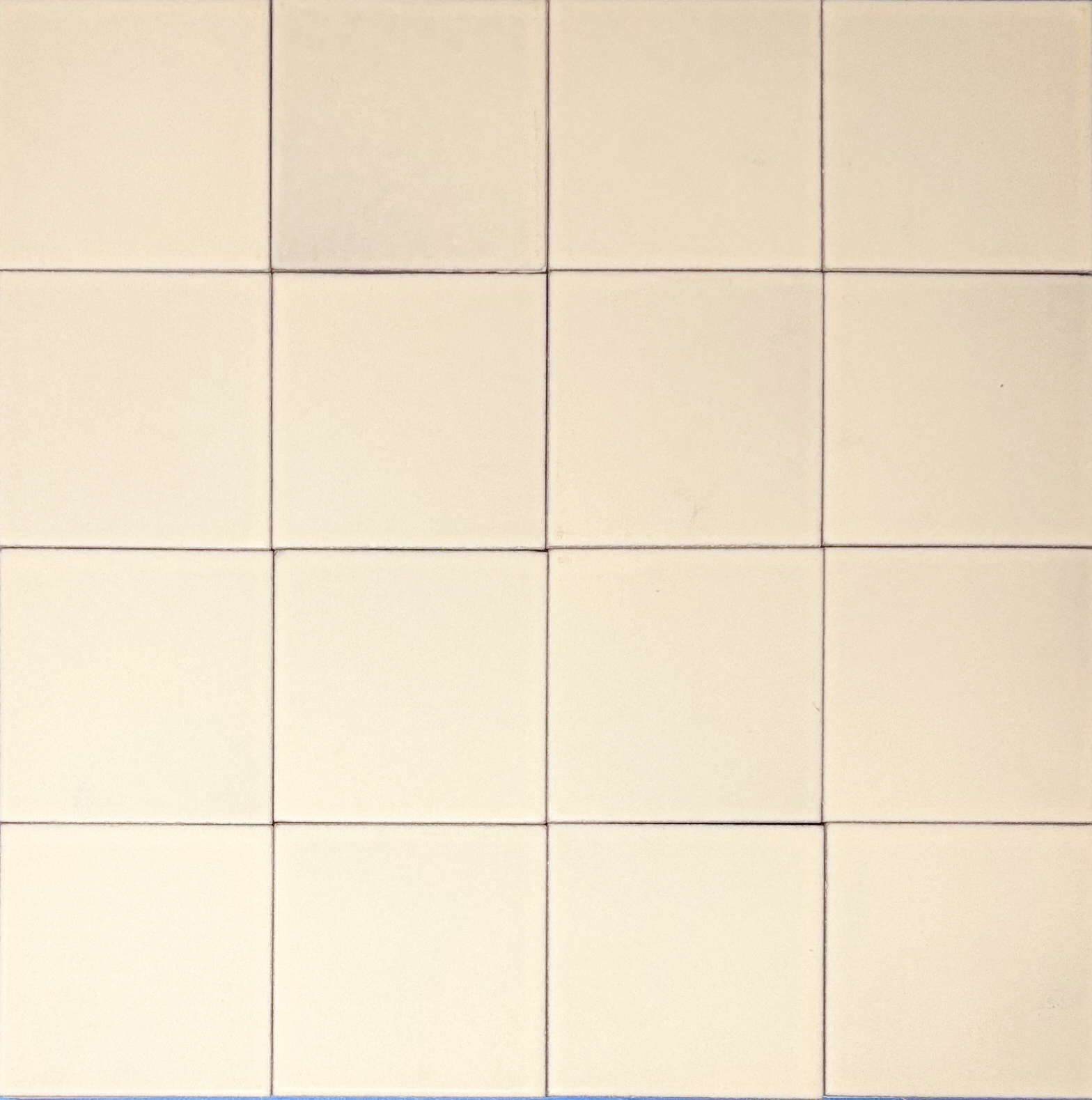

MT-4

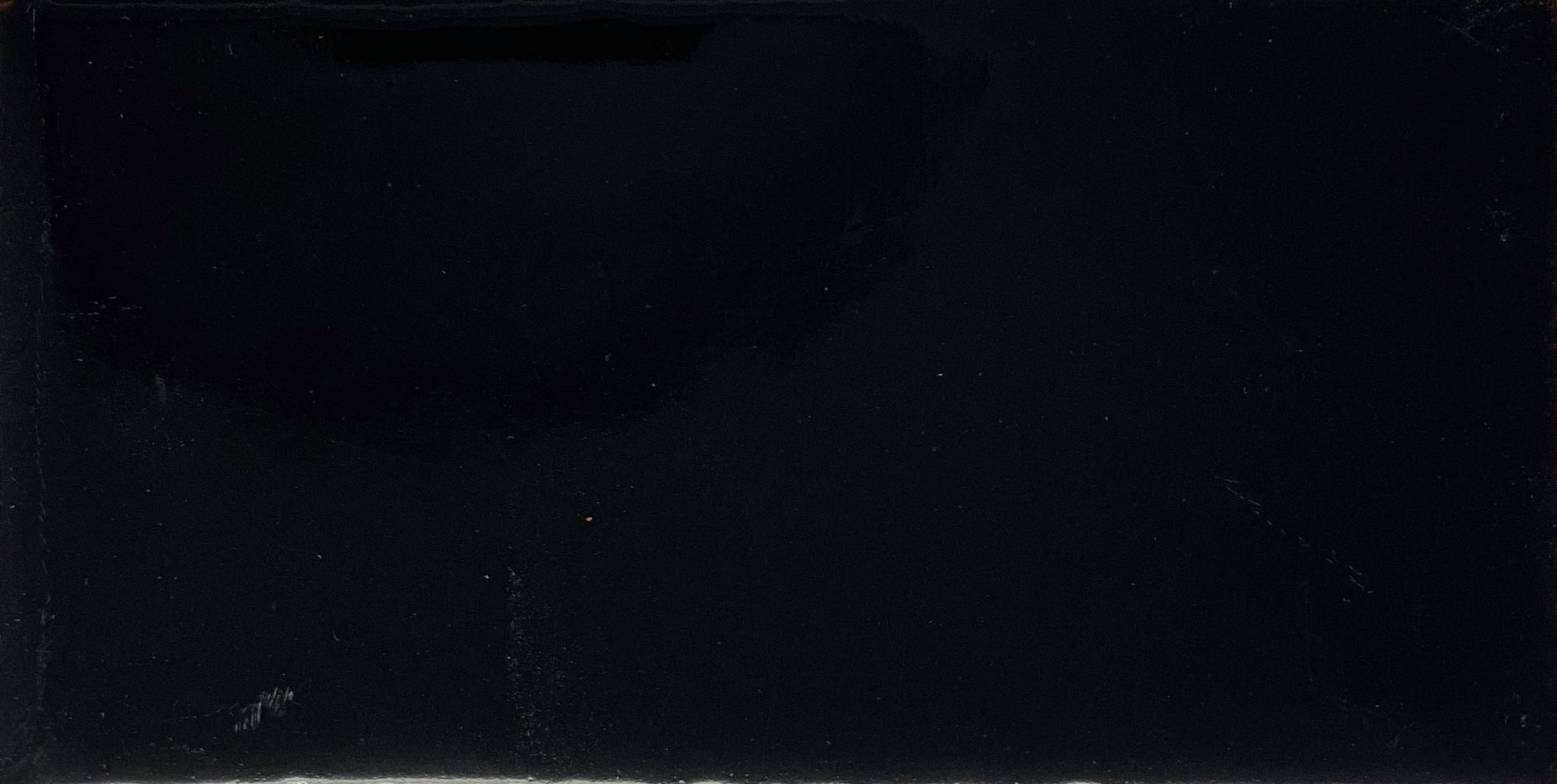

MT-5

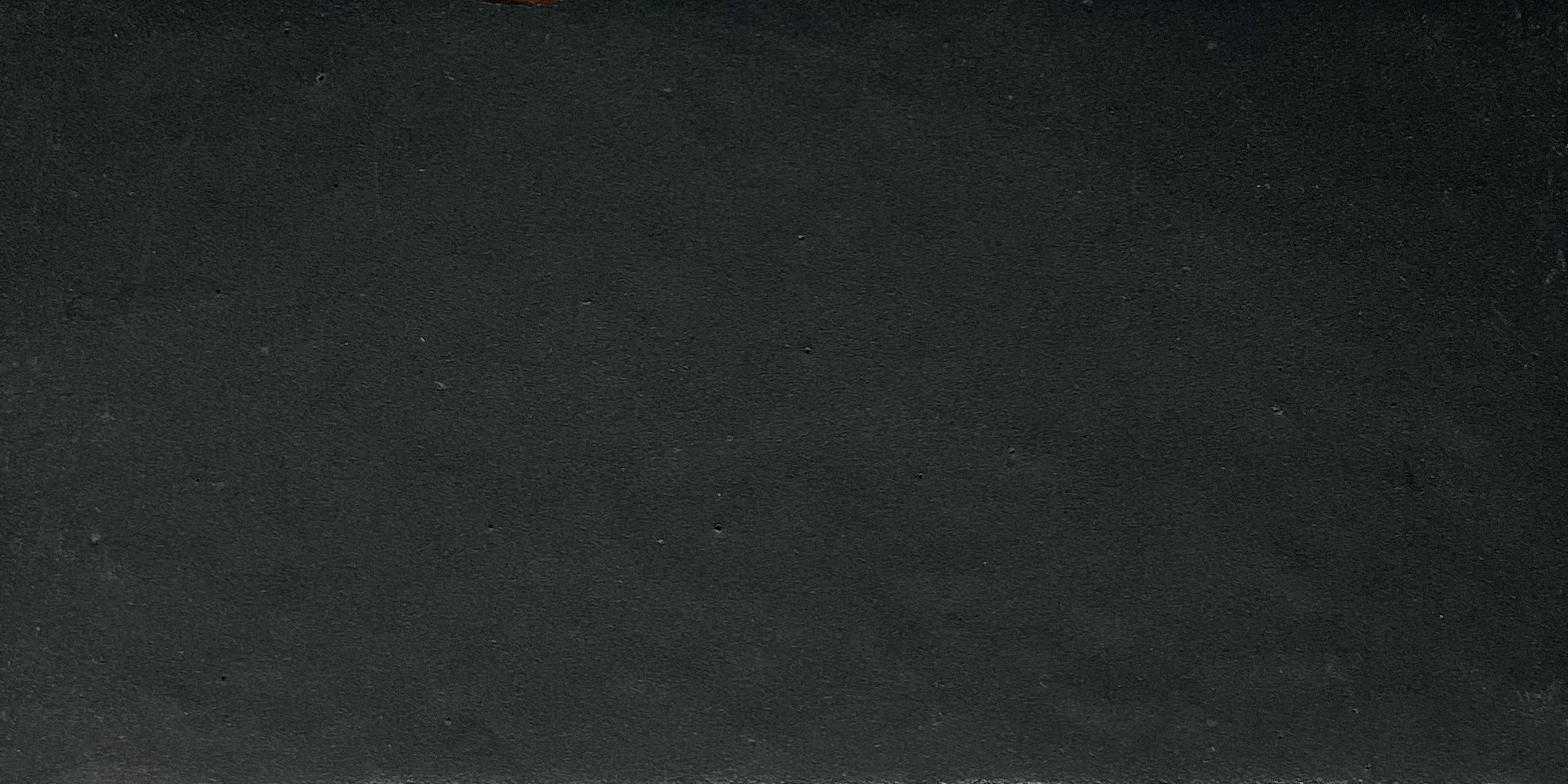

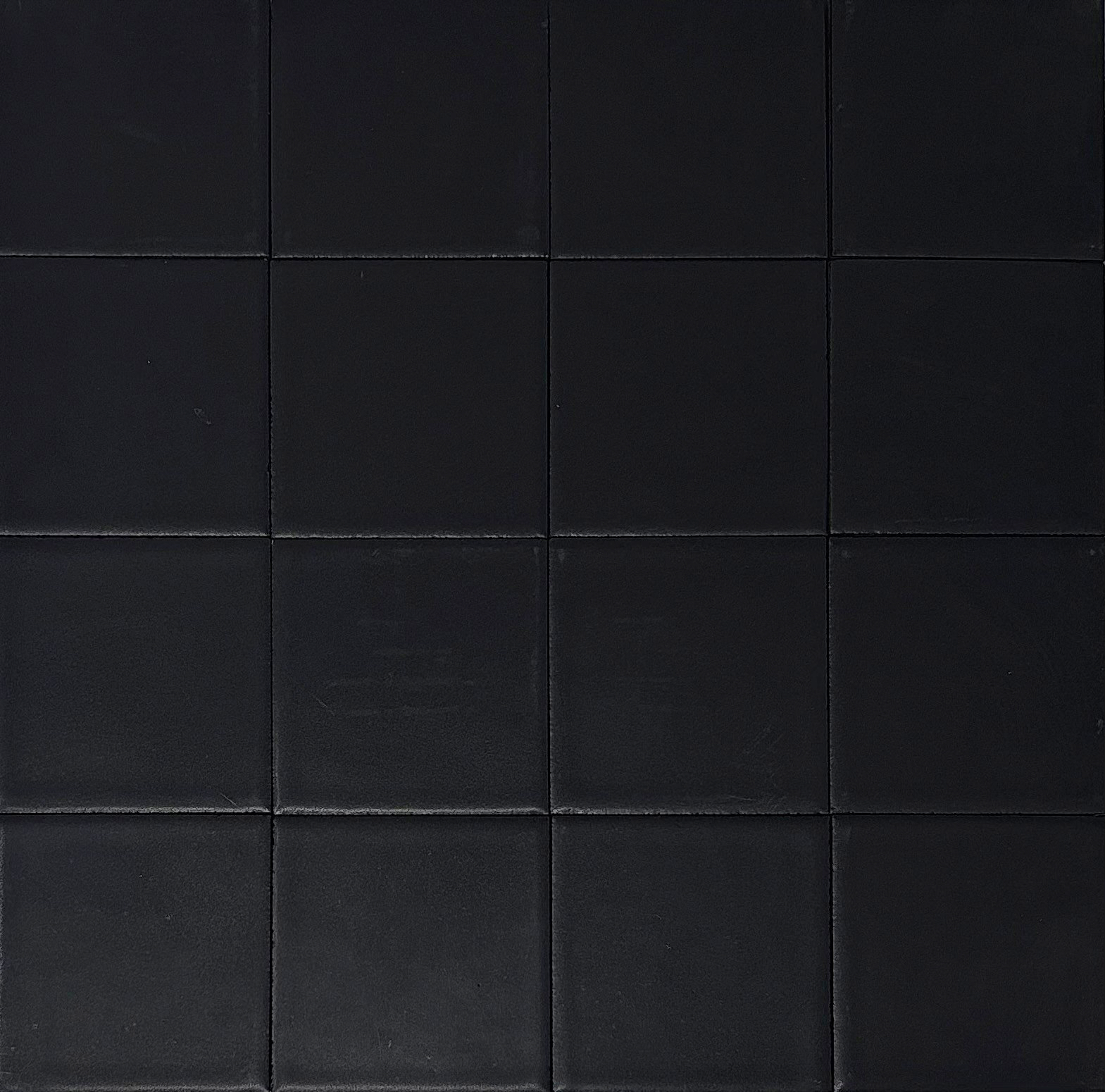

MT-6

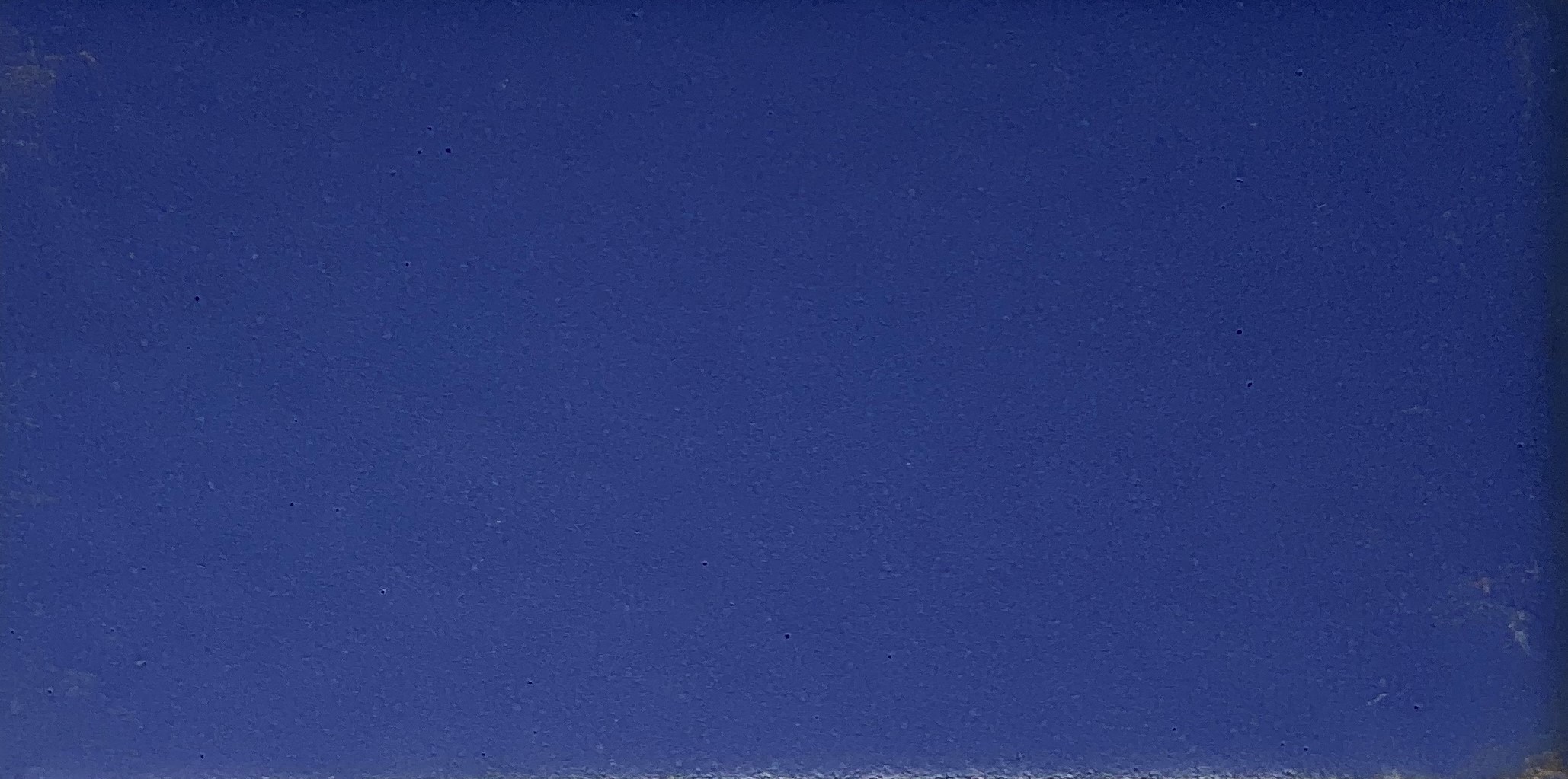

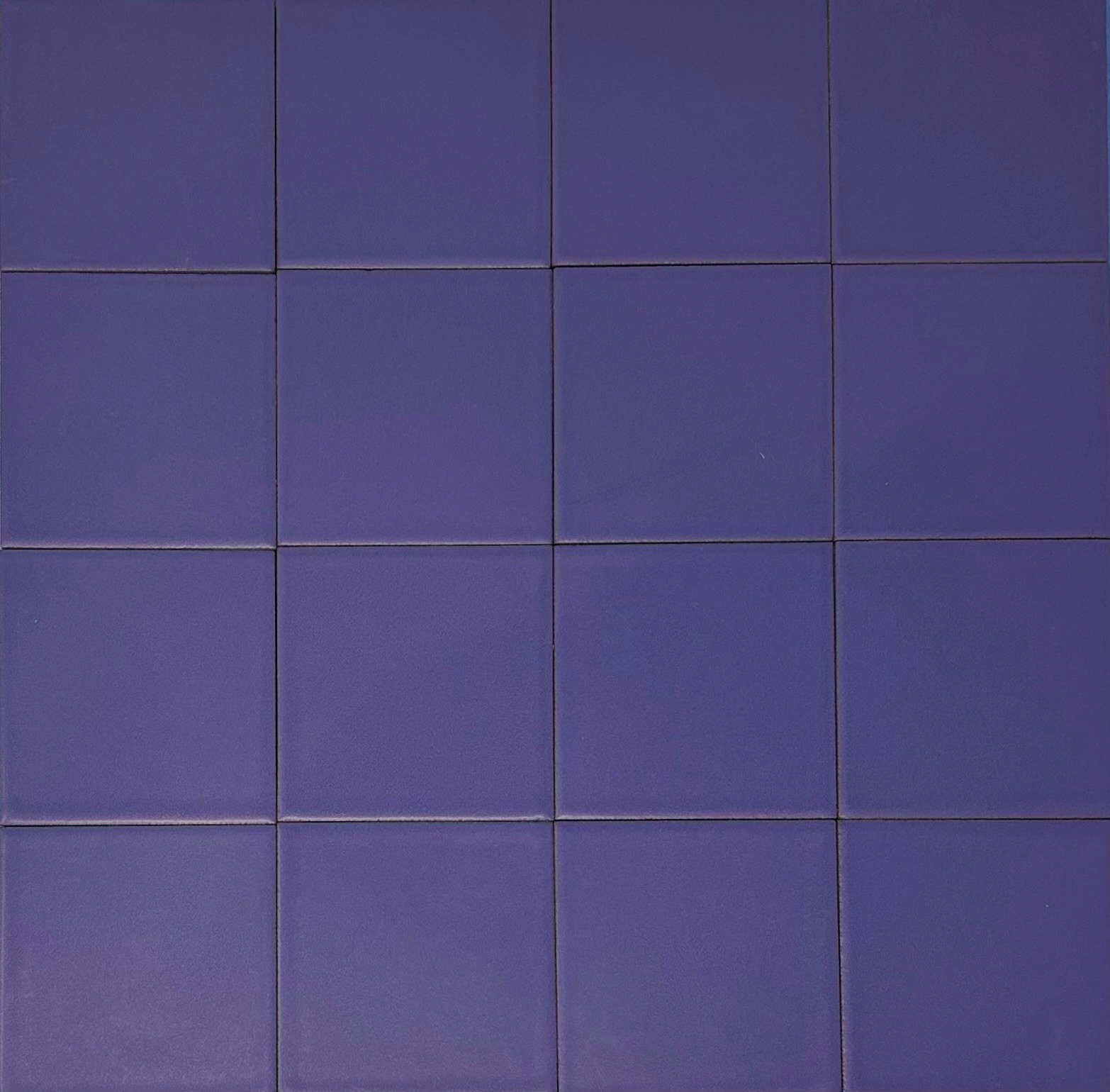

MT-7

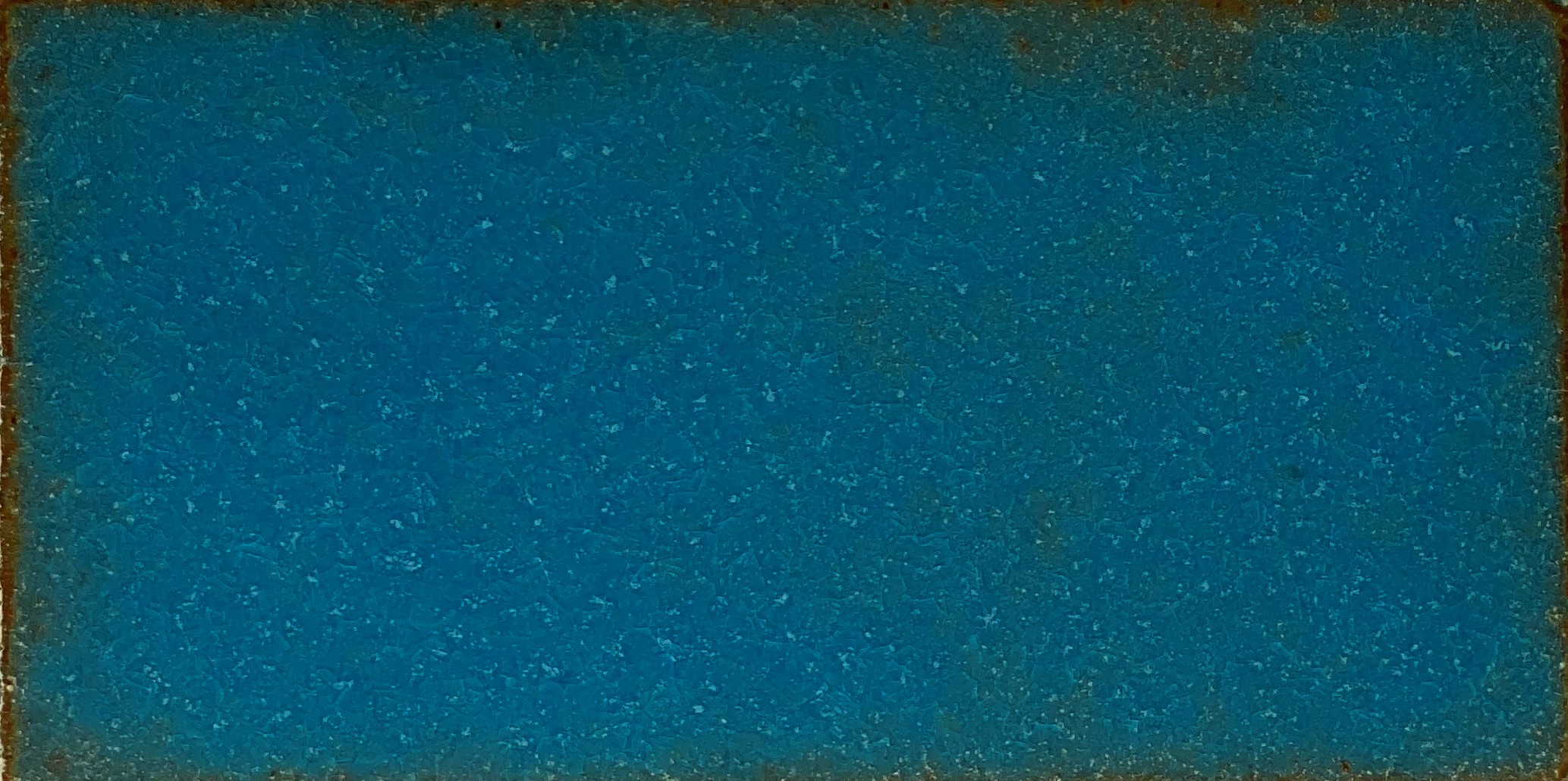

MT-8

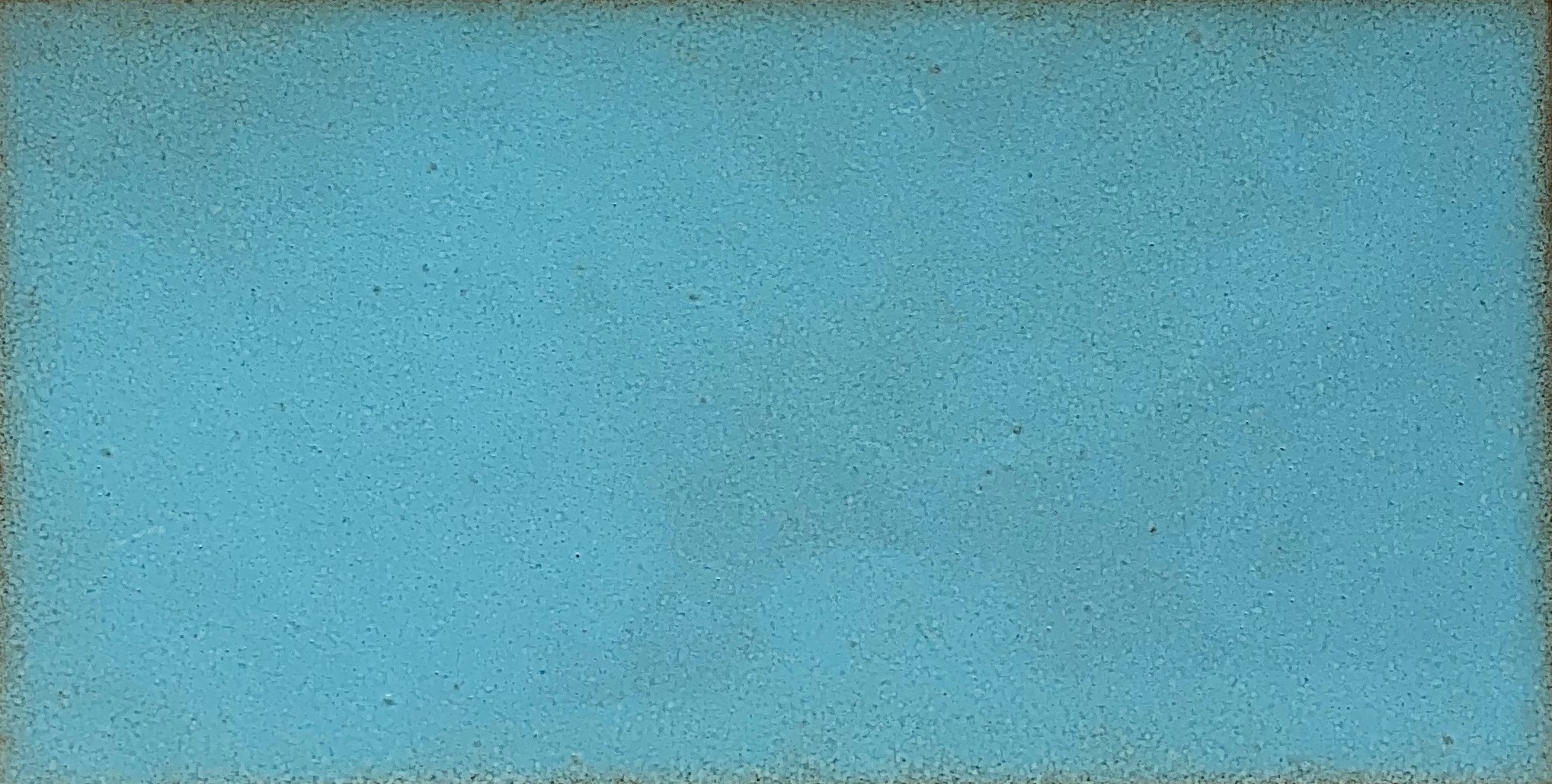

MT-9

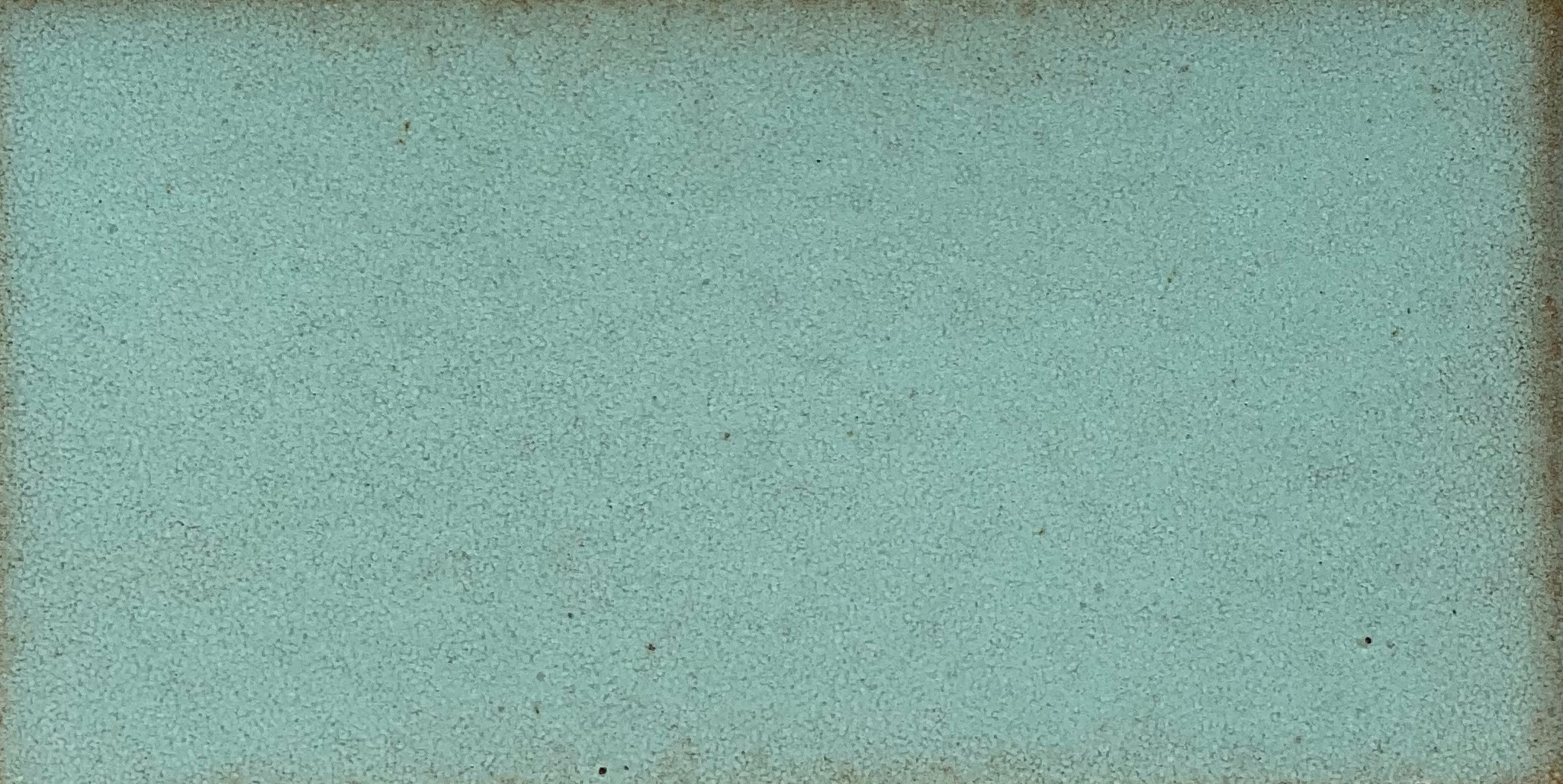

MT-10

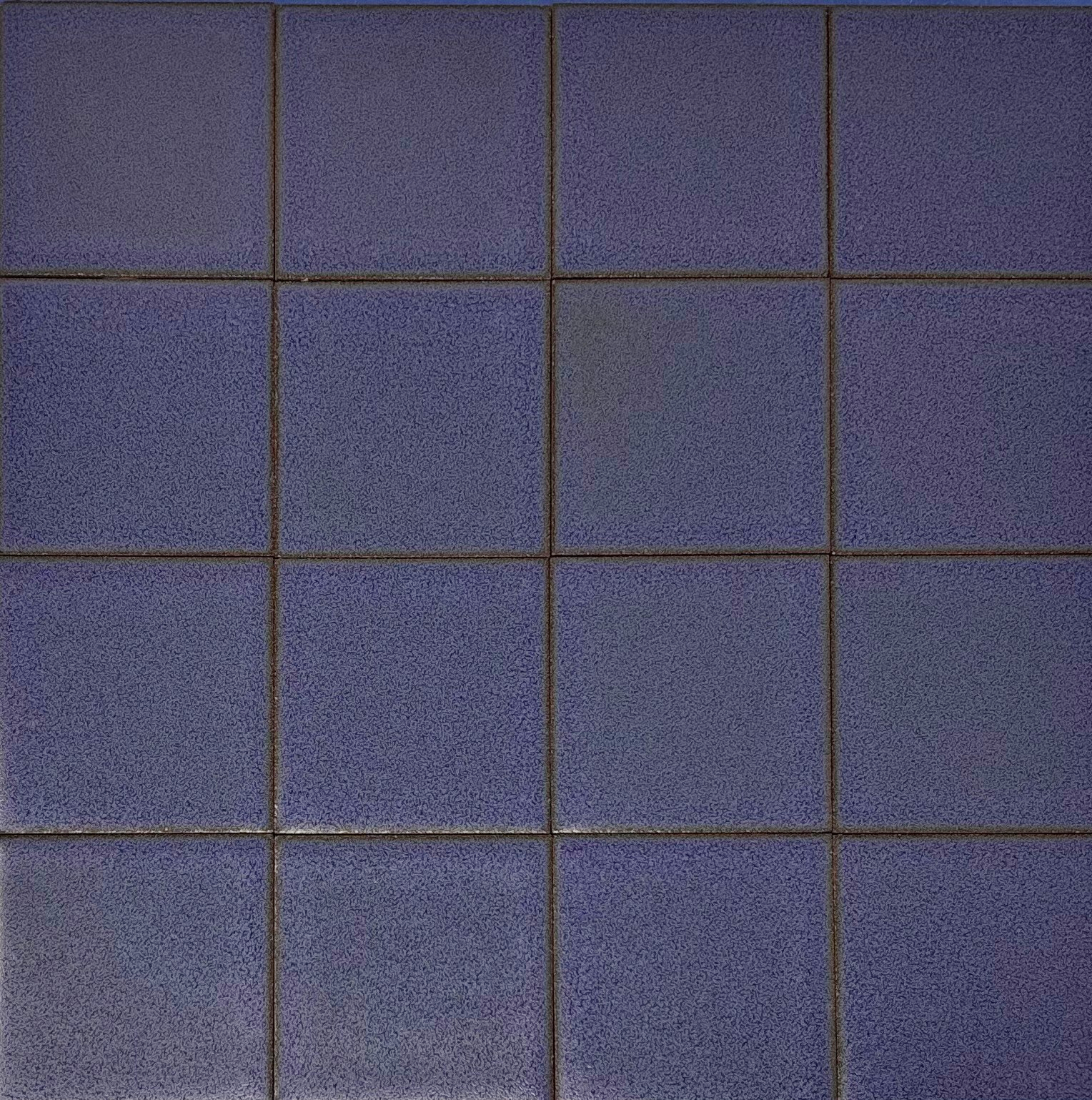

MT-11

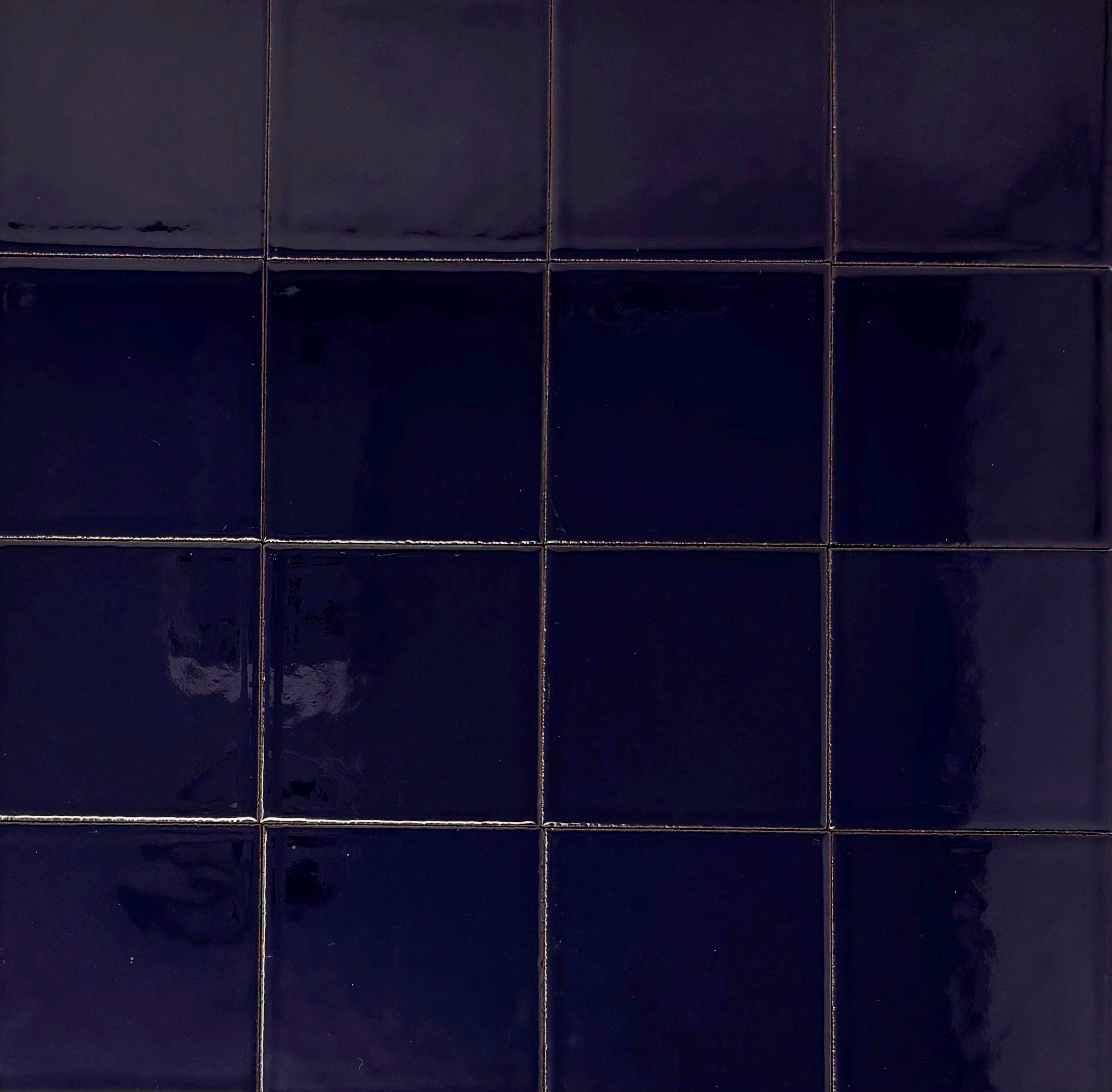

MT-12

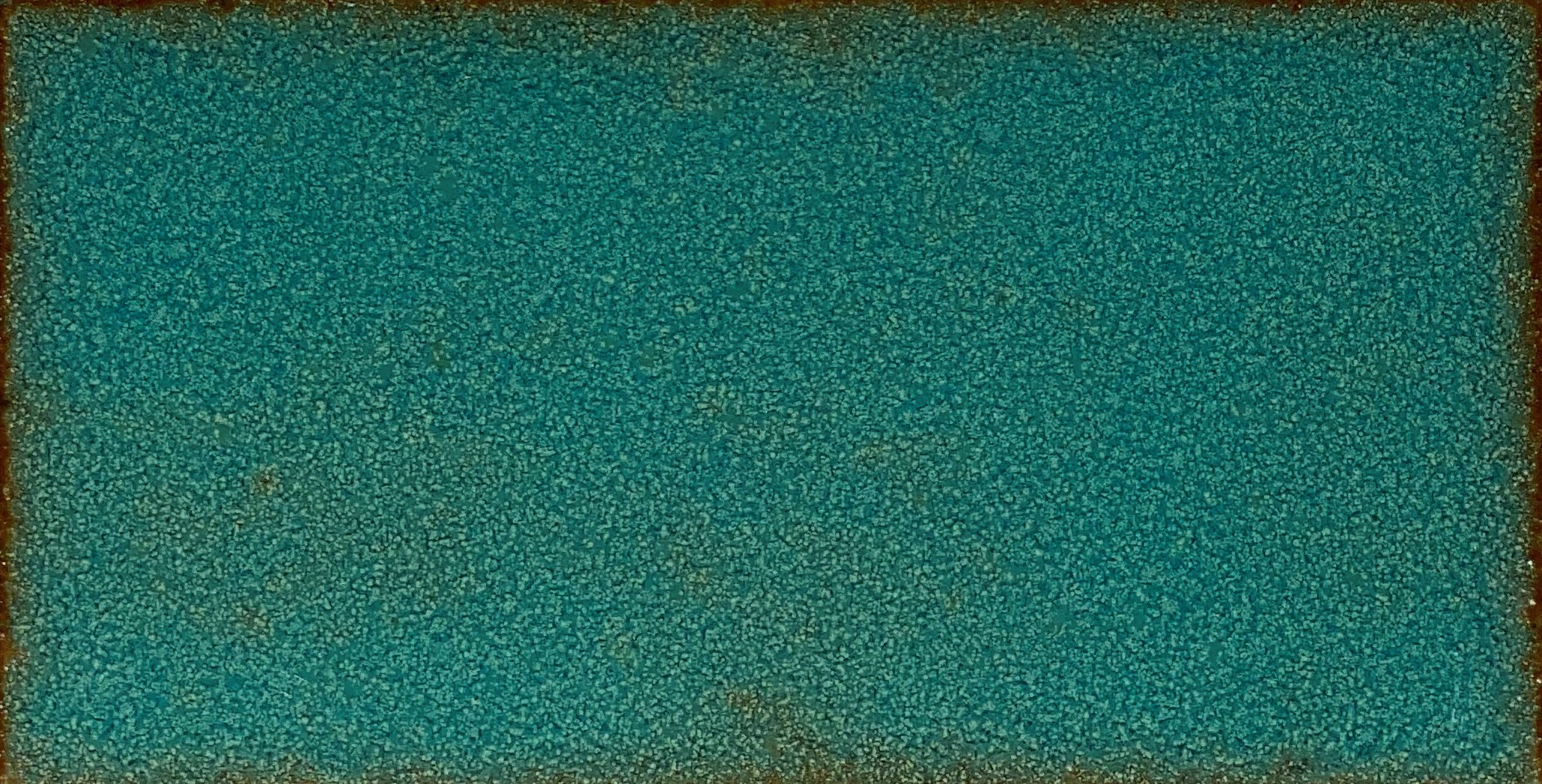

MT-13

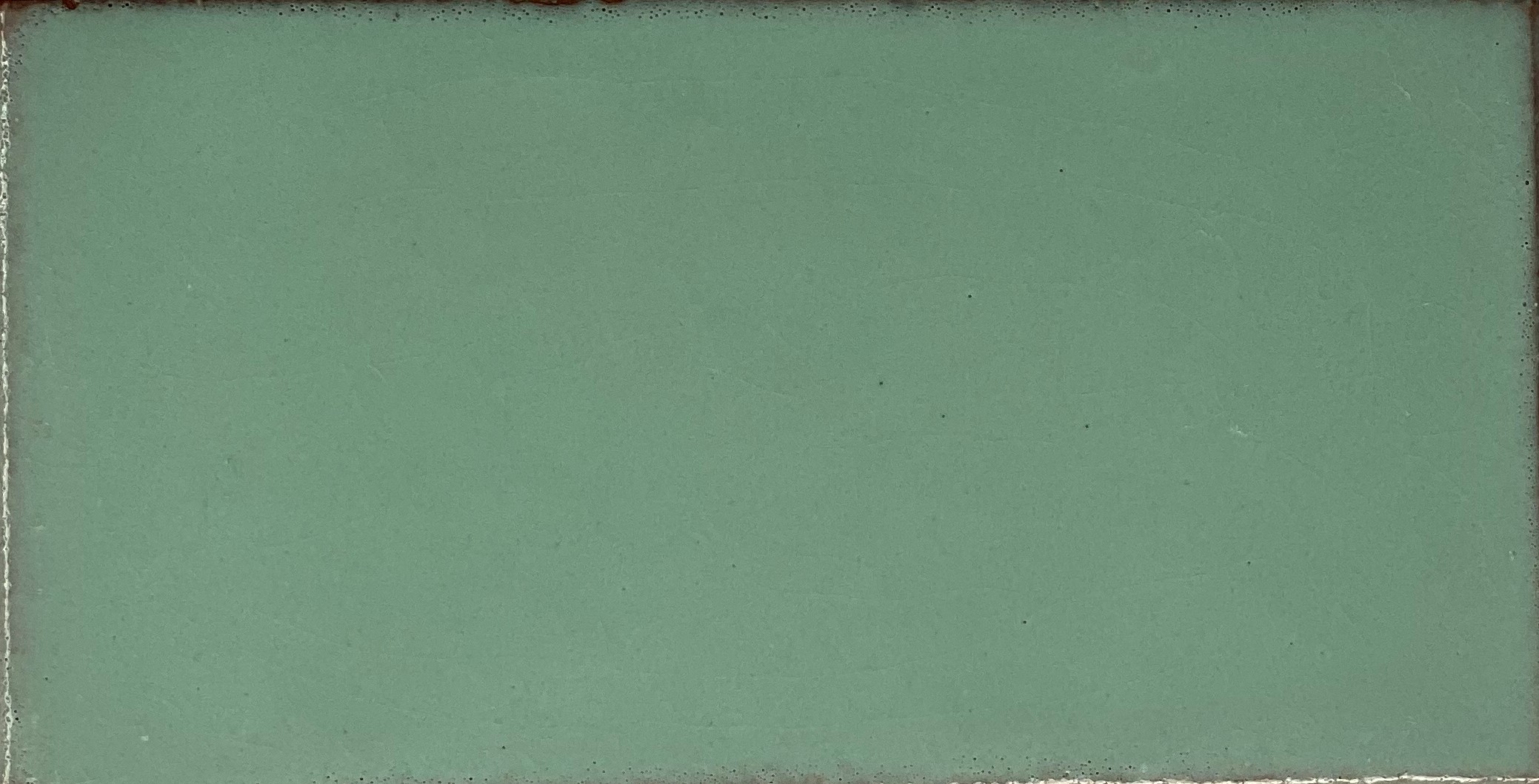

MT-14

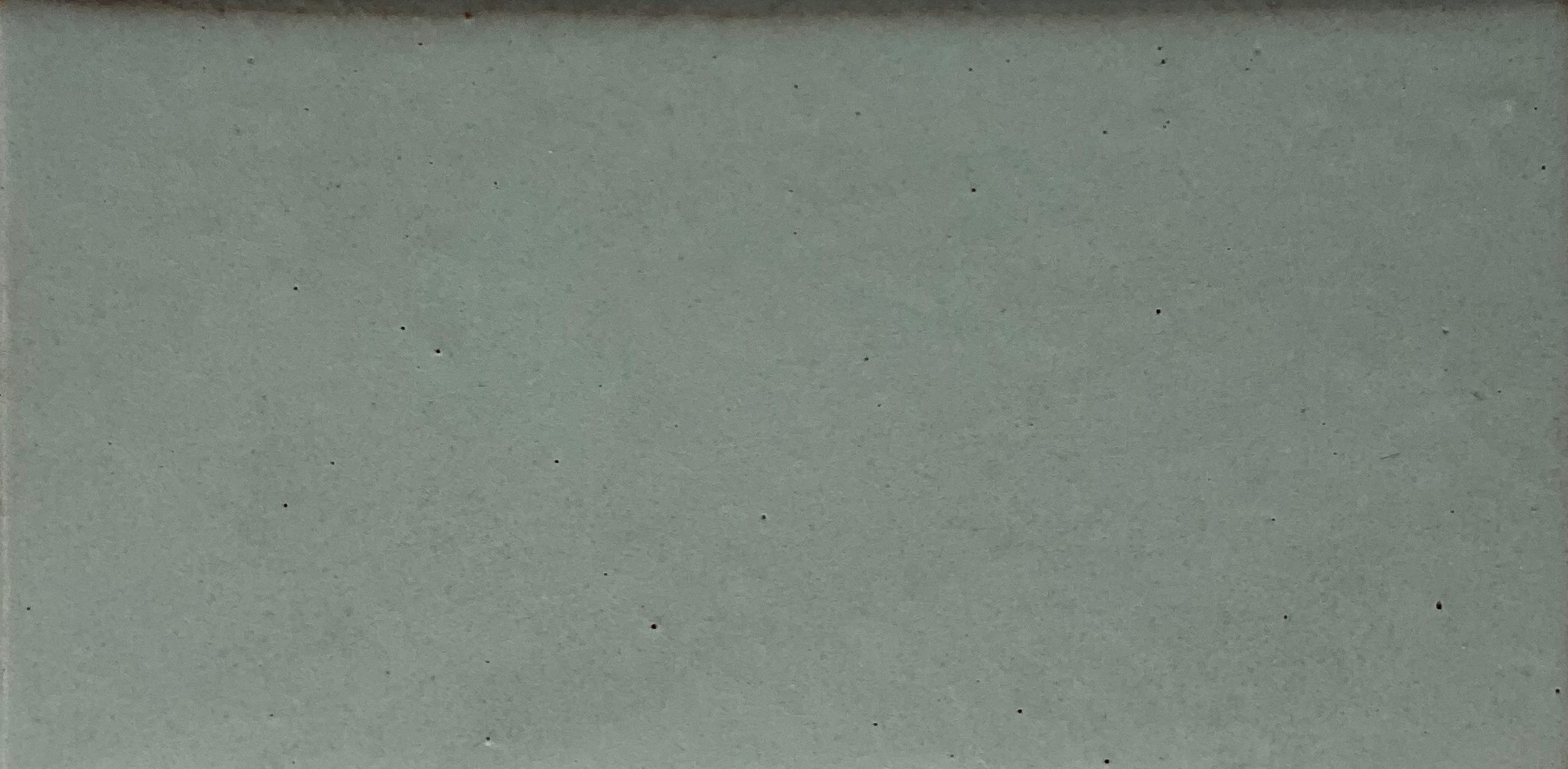

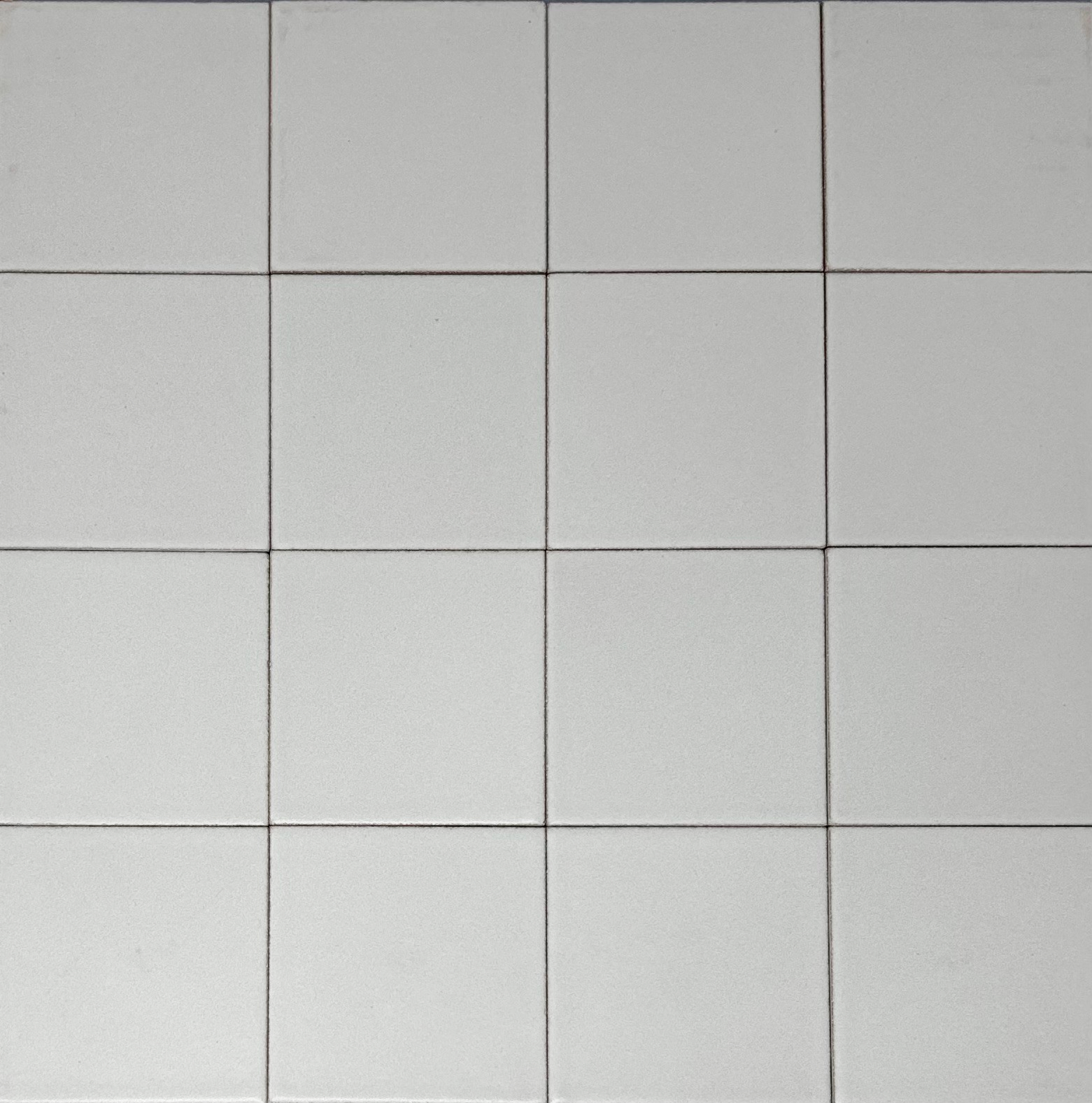

MT-15

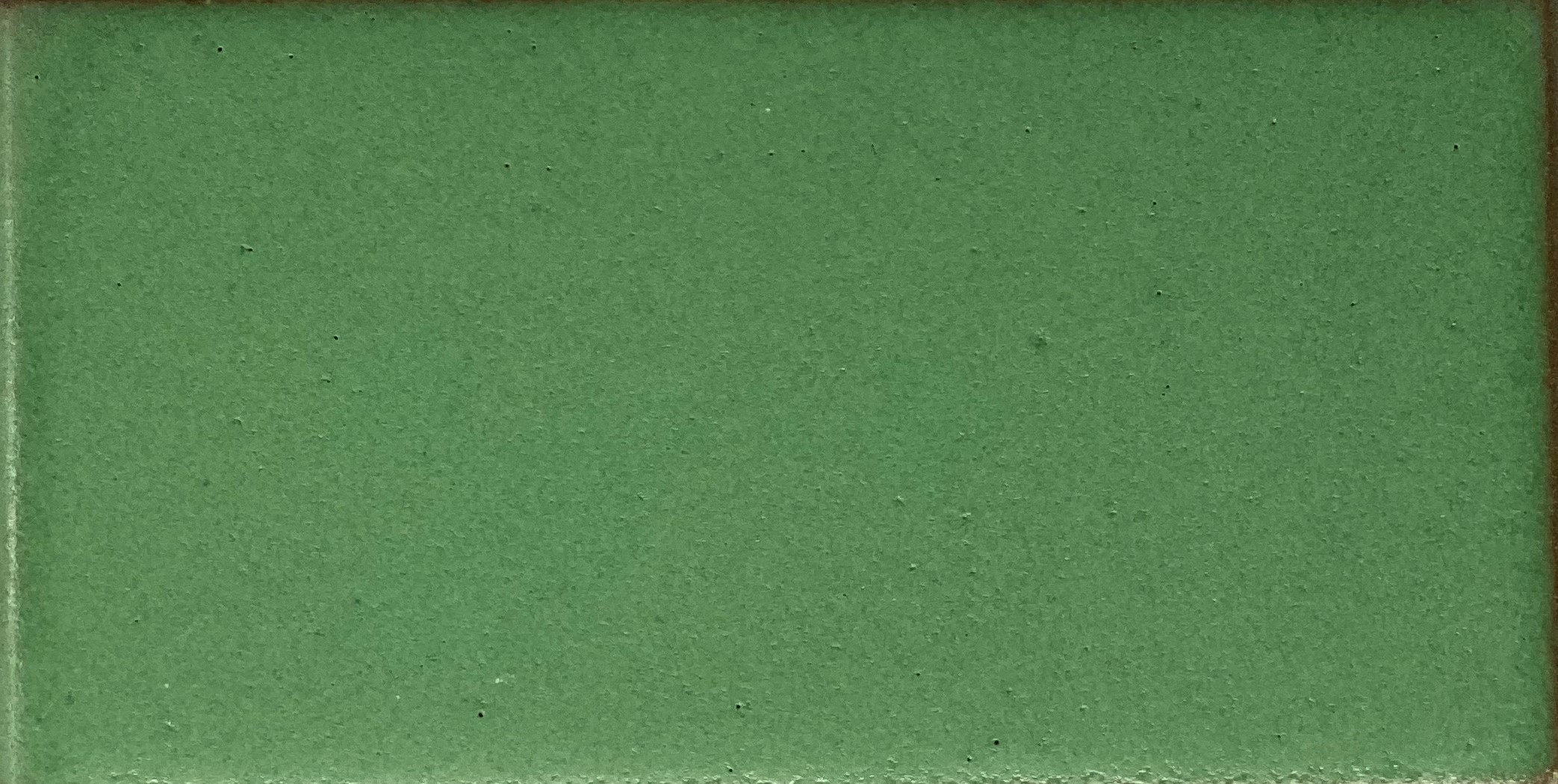

MT-16

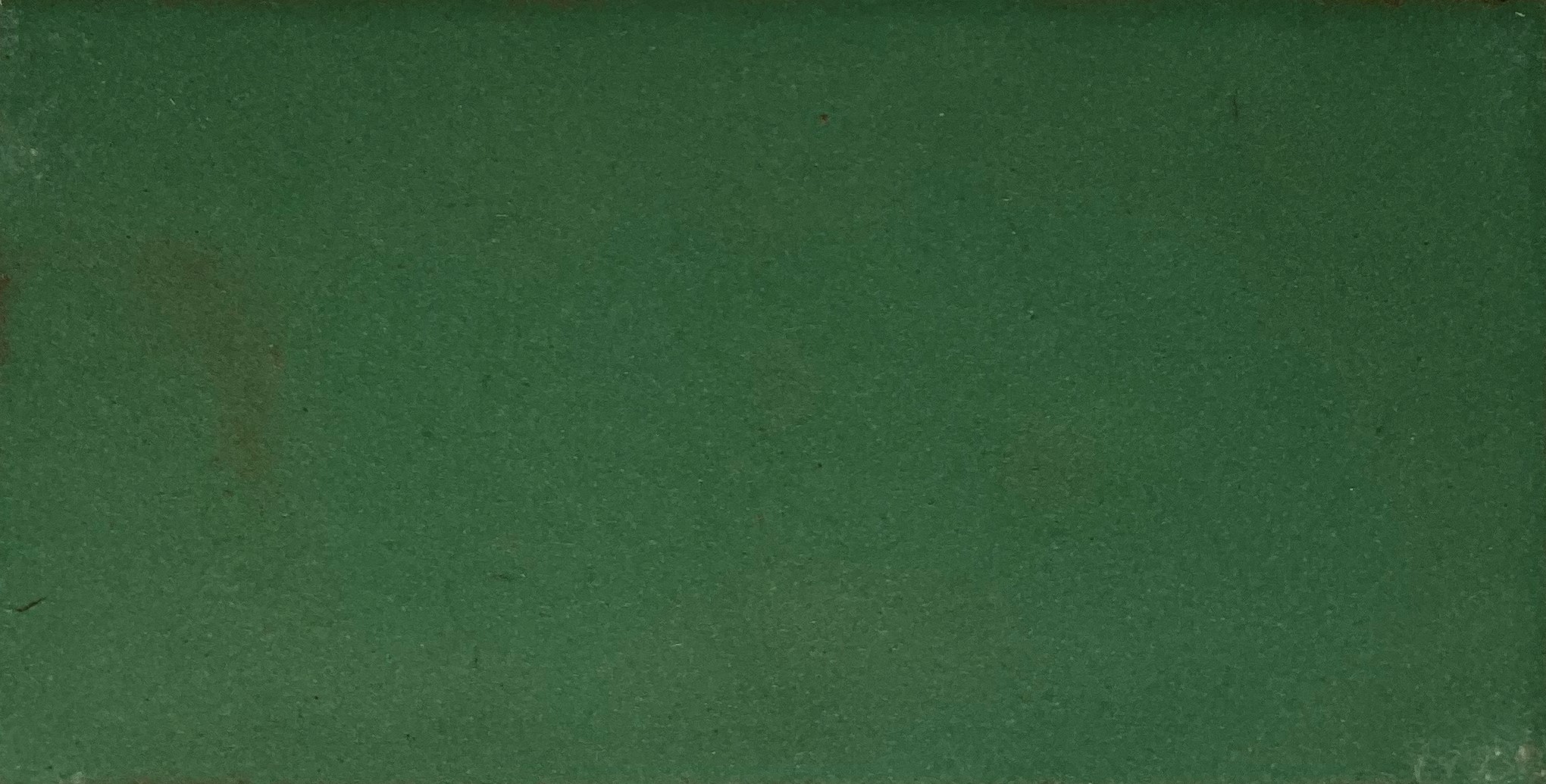

MT-17

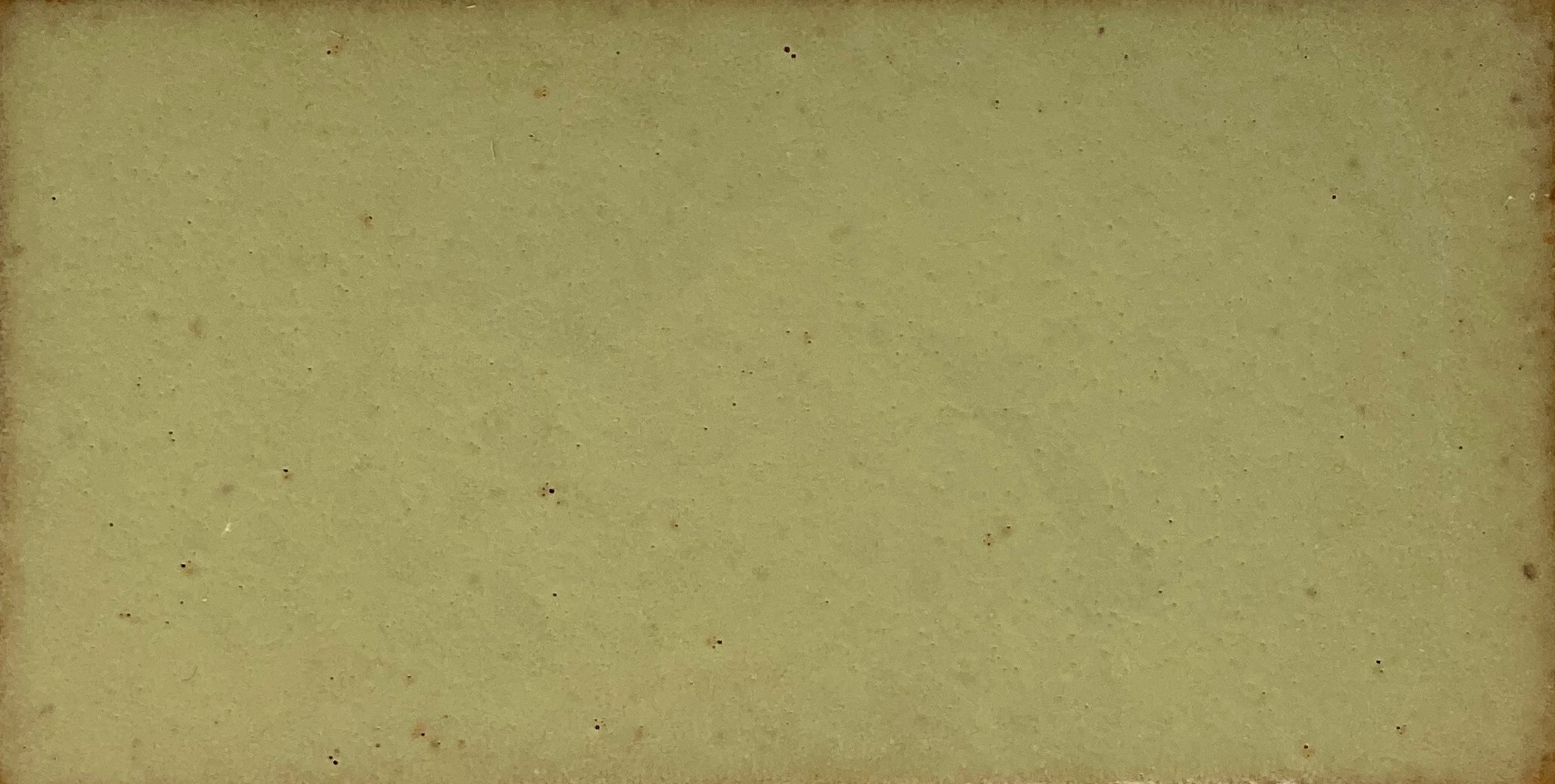

MT-18

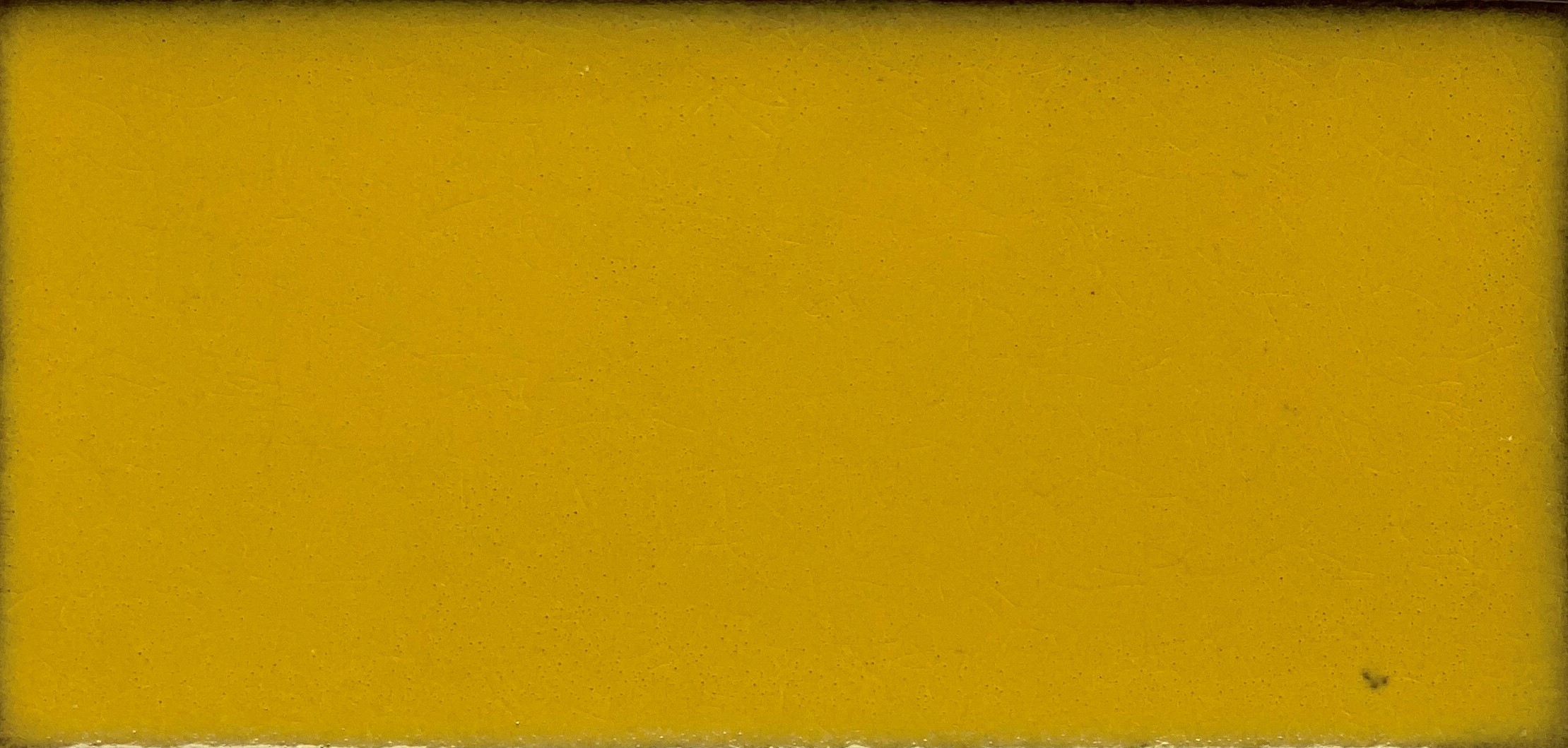

MT-19

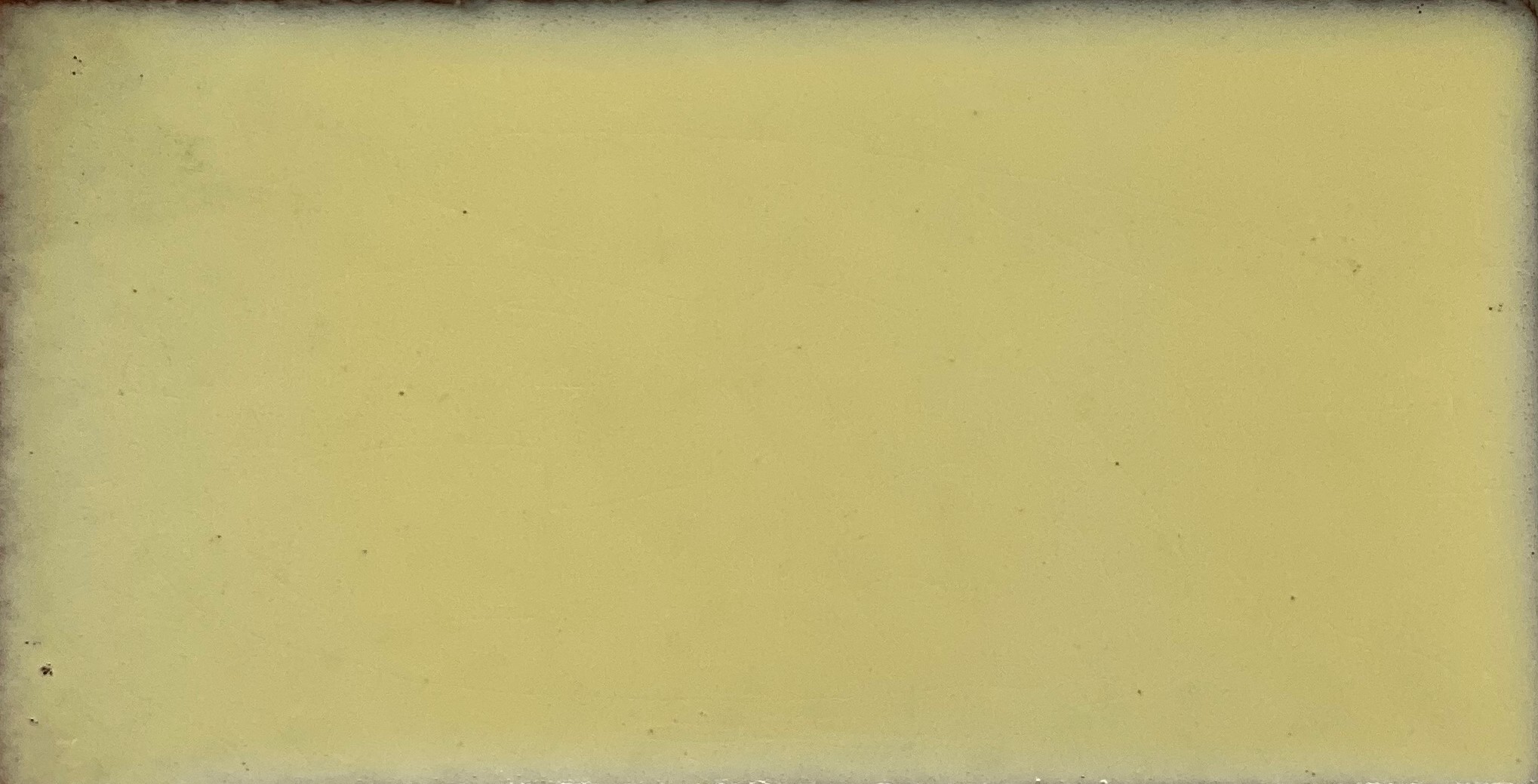

MT-20

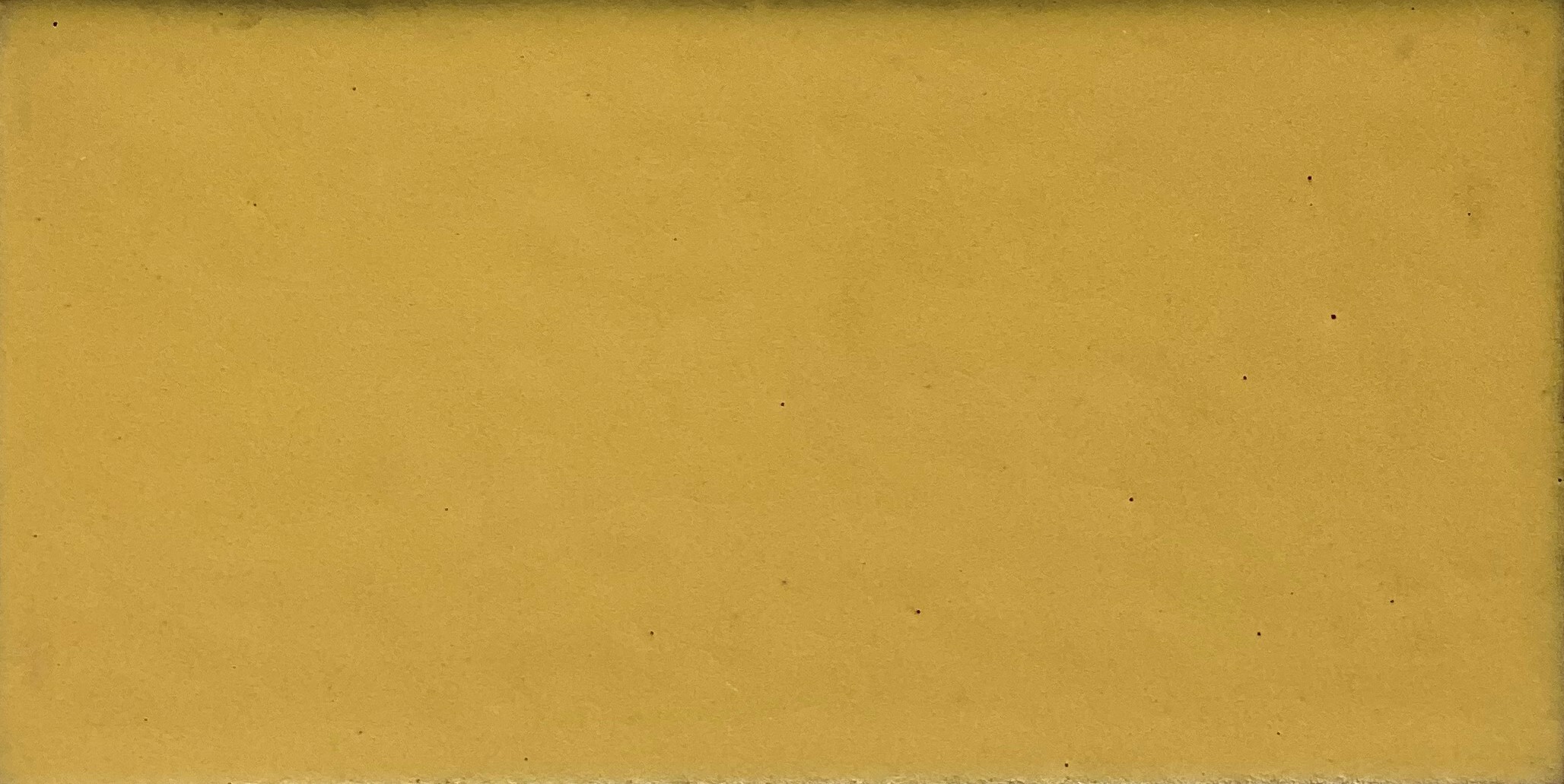

MT-21

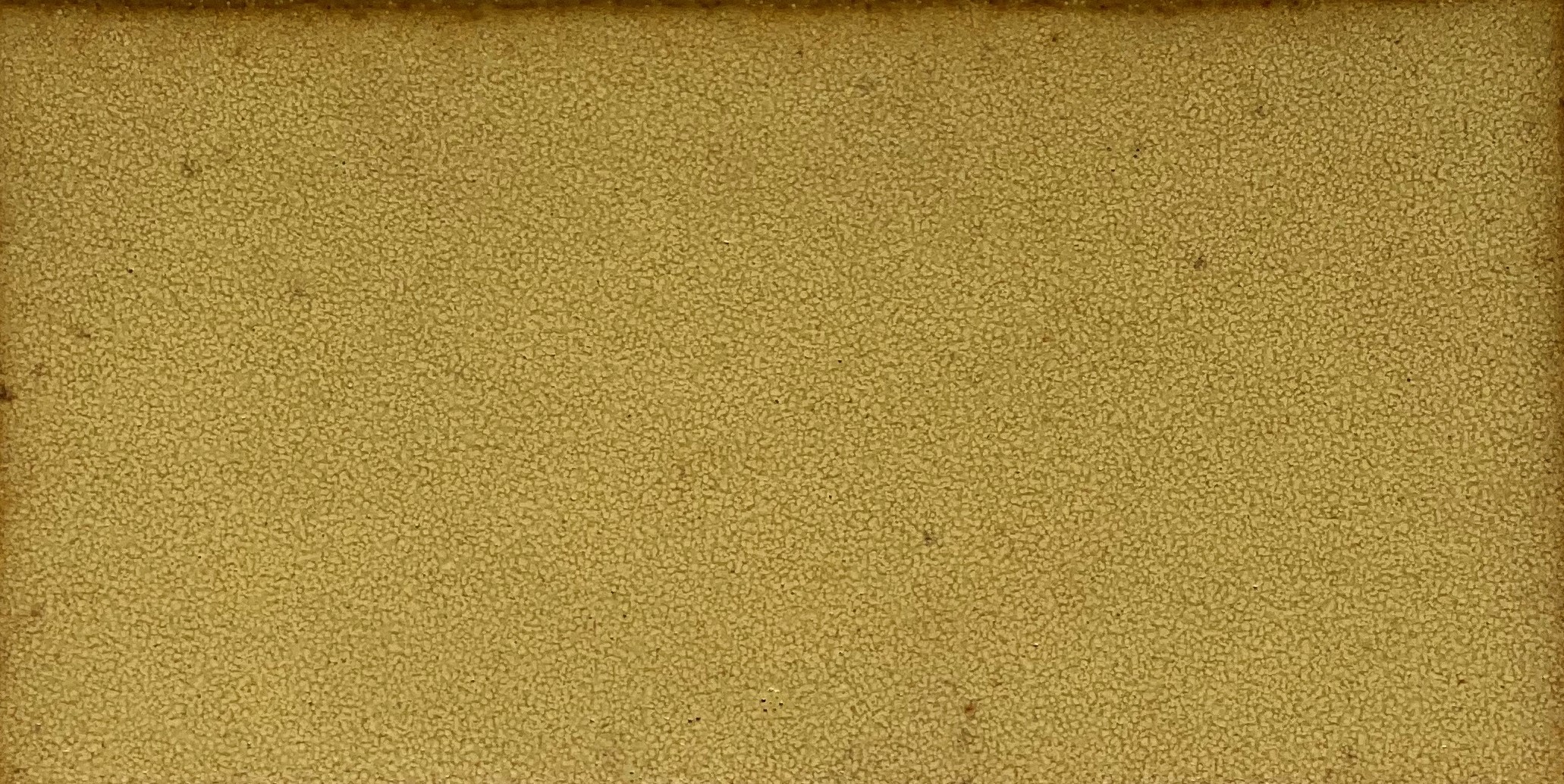

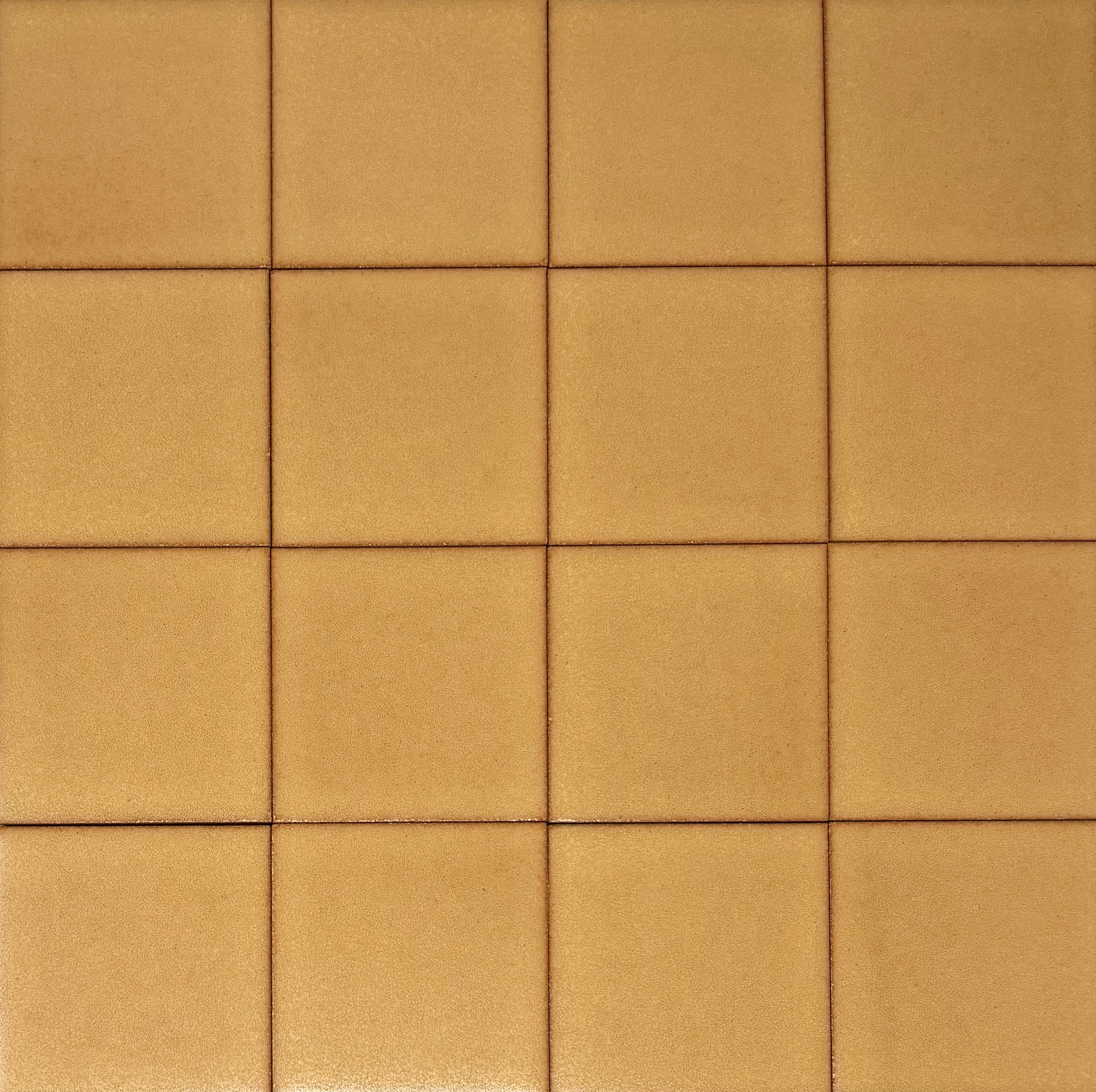

MT-22

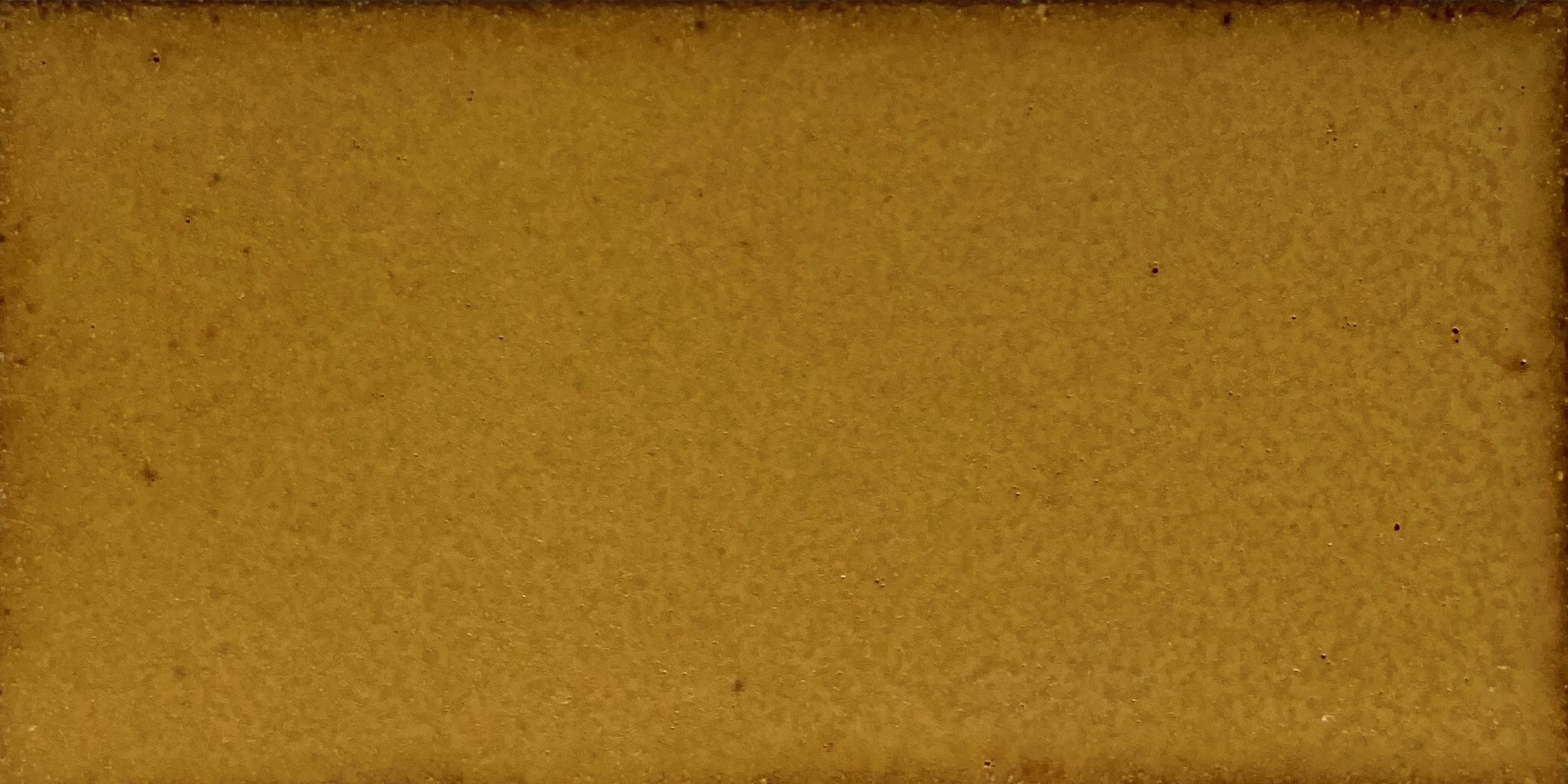

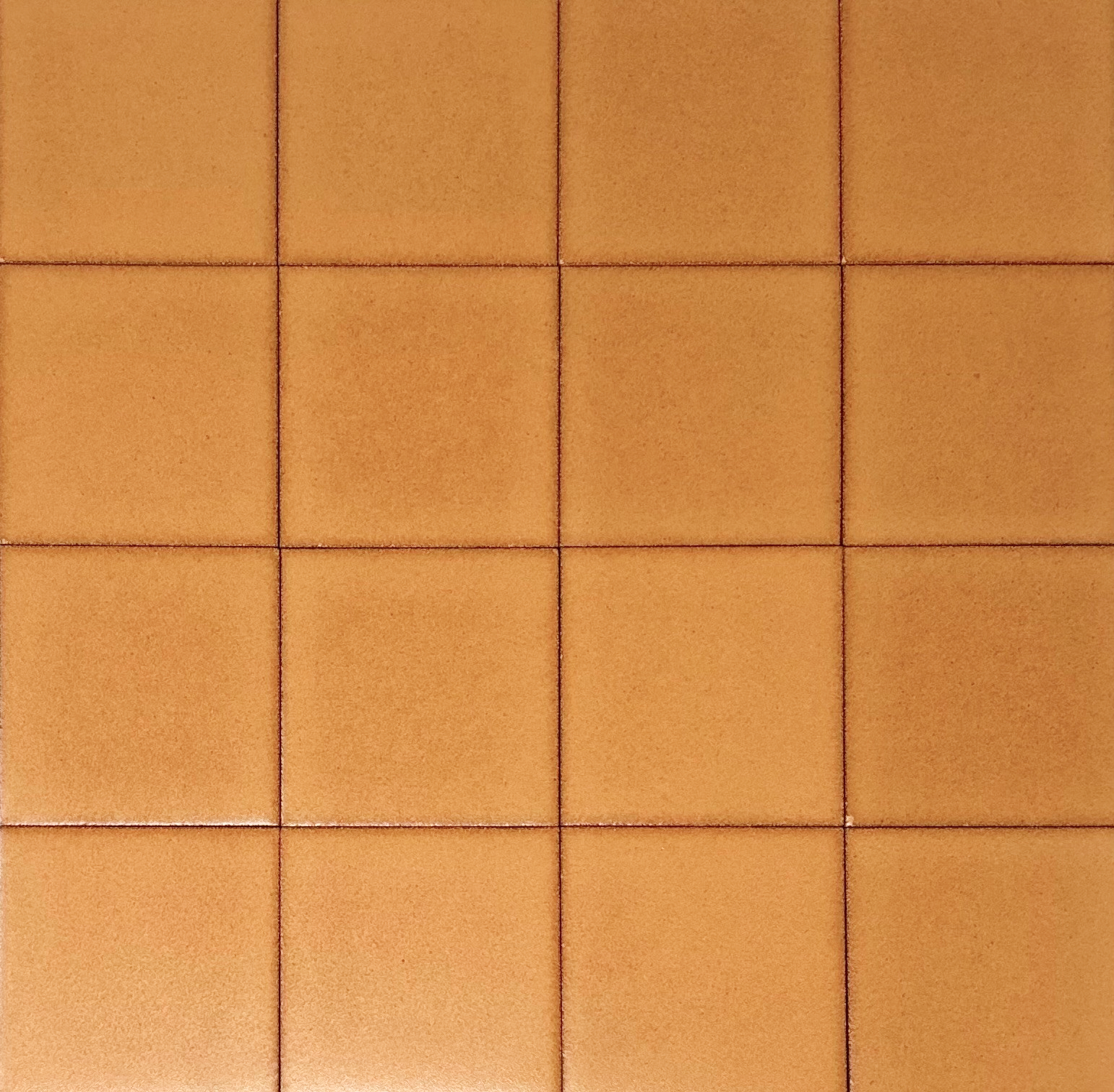

MT-23

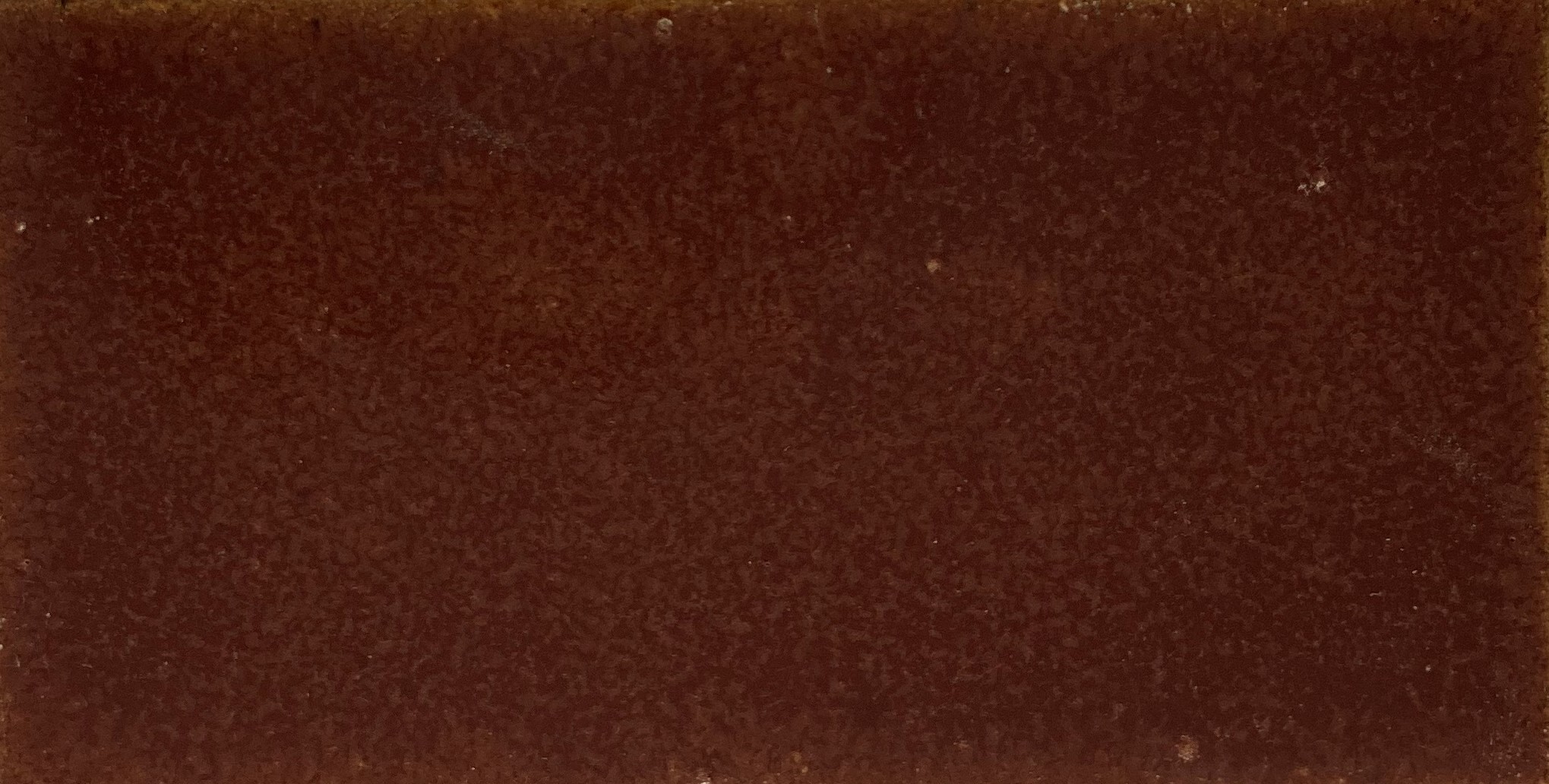

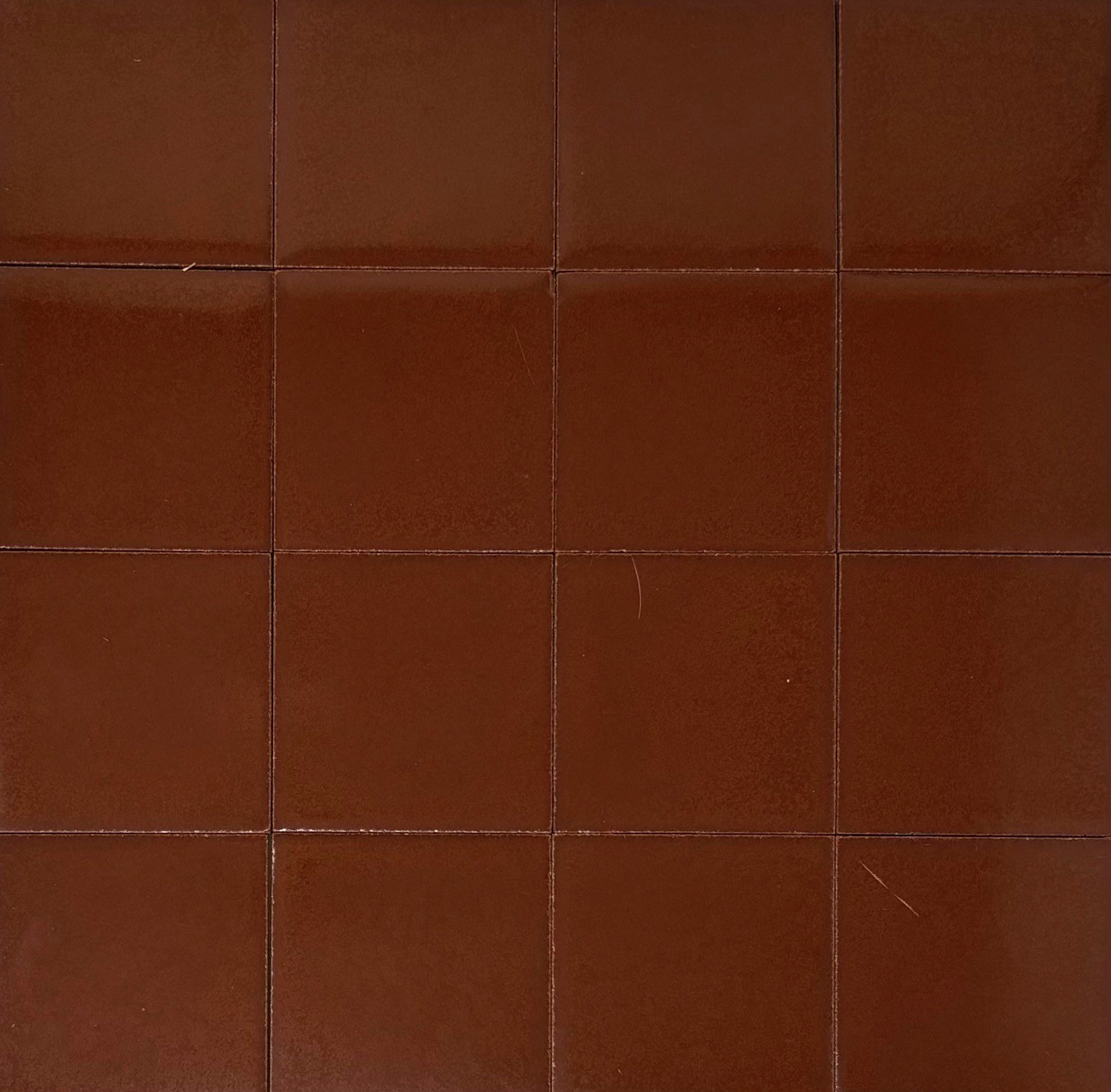

MT-24

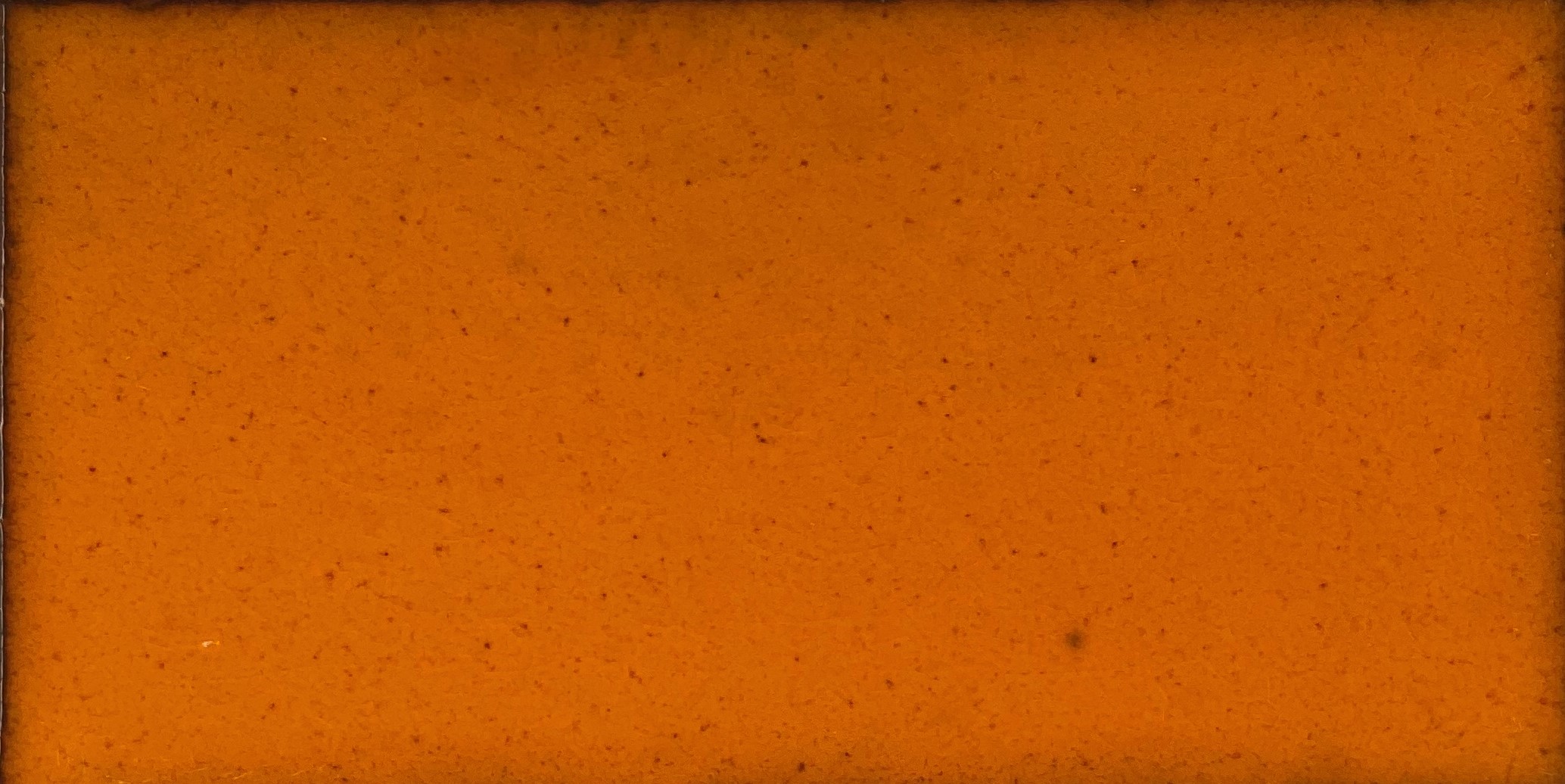

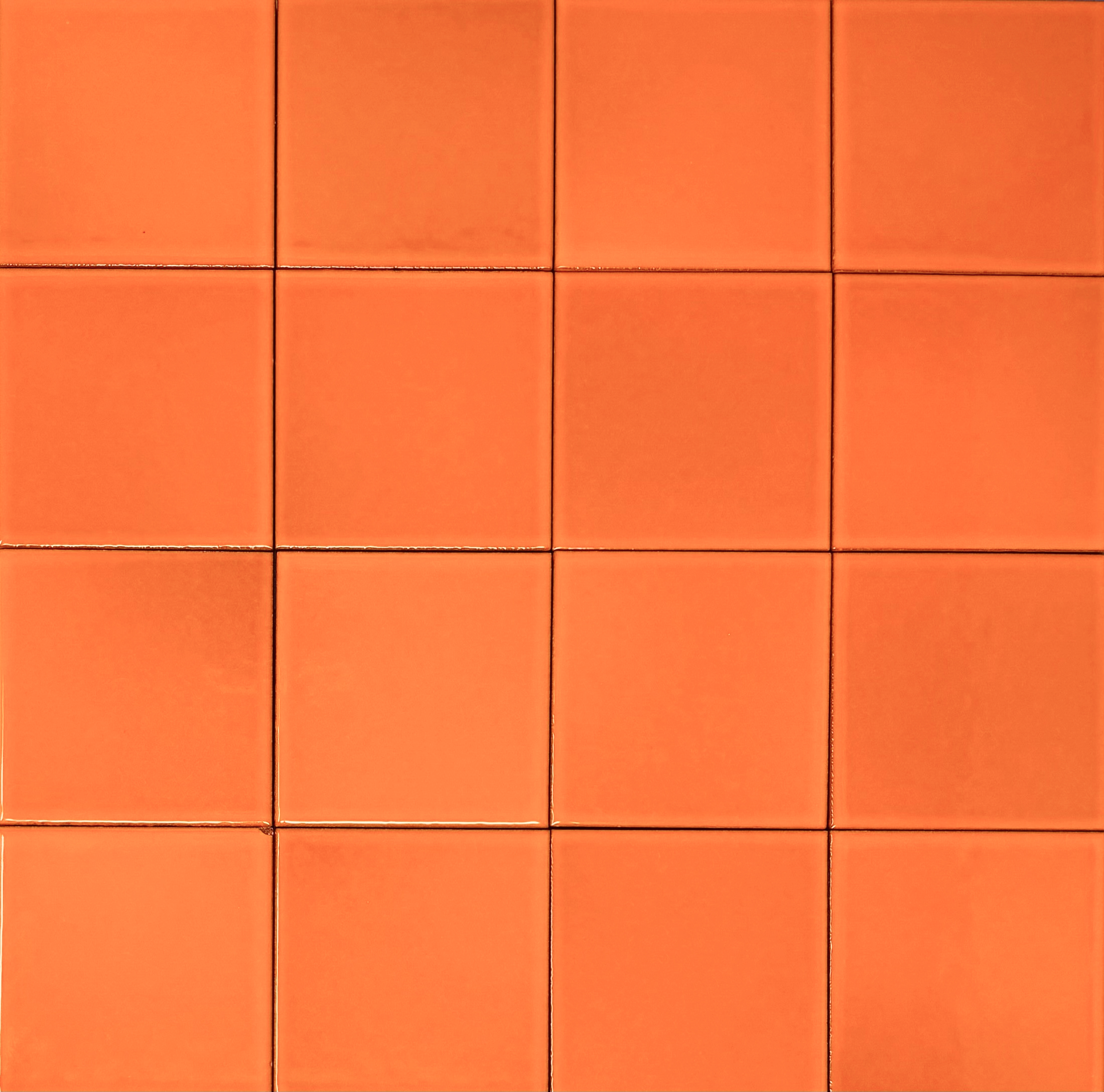

MT-25

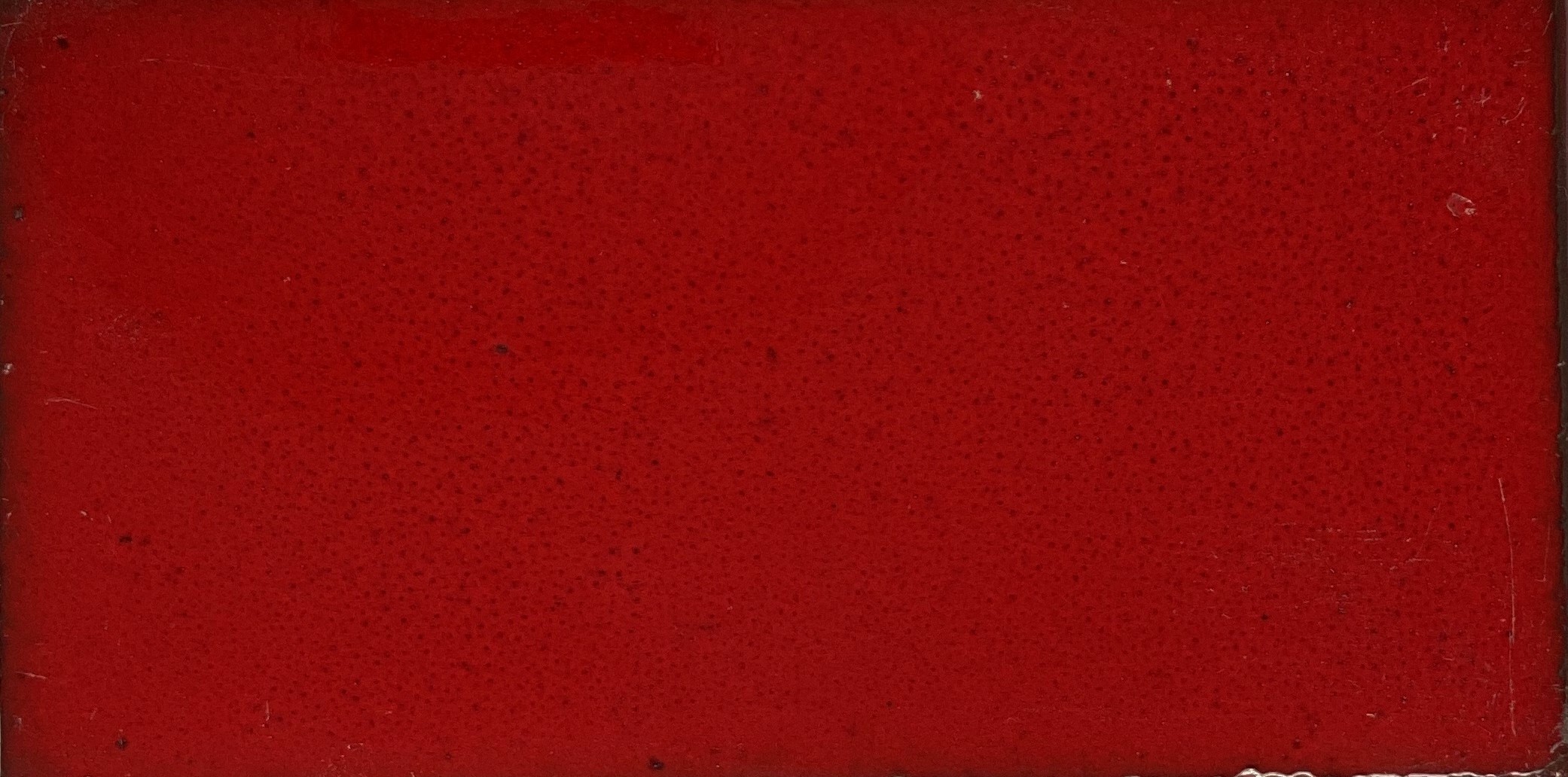

MT-26

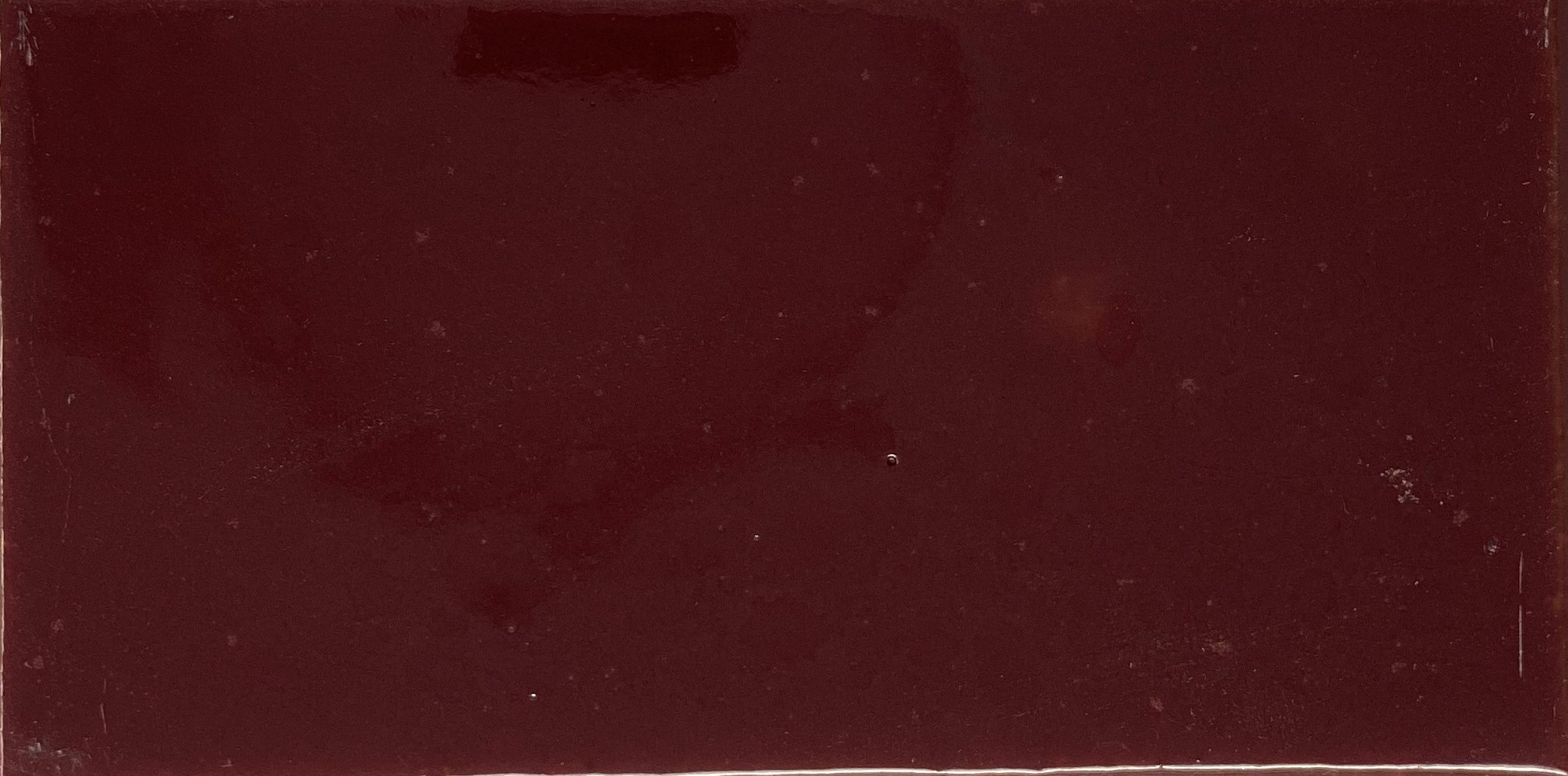

MT-27

MT-28

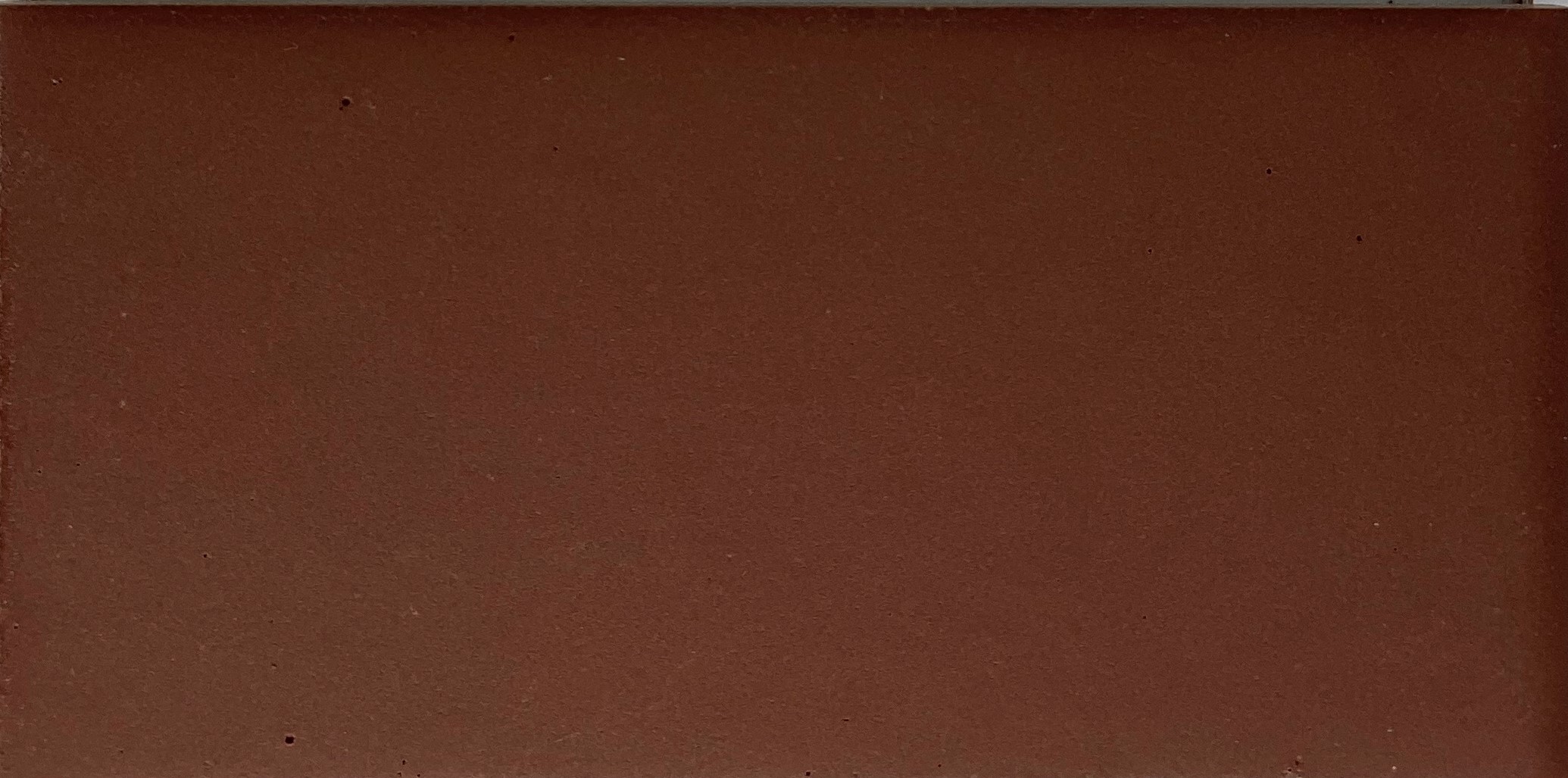

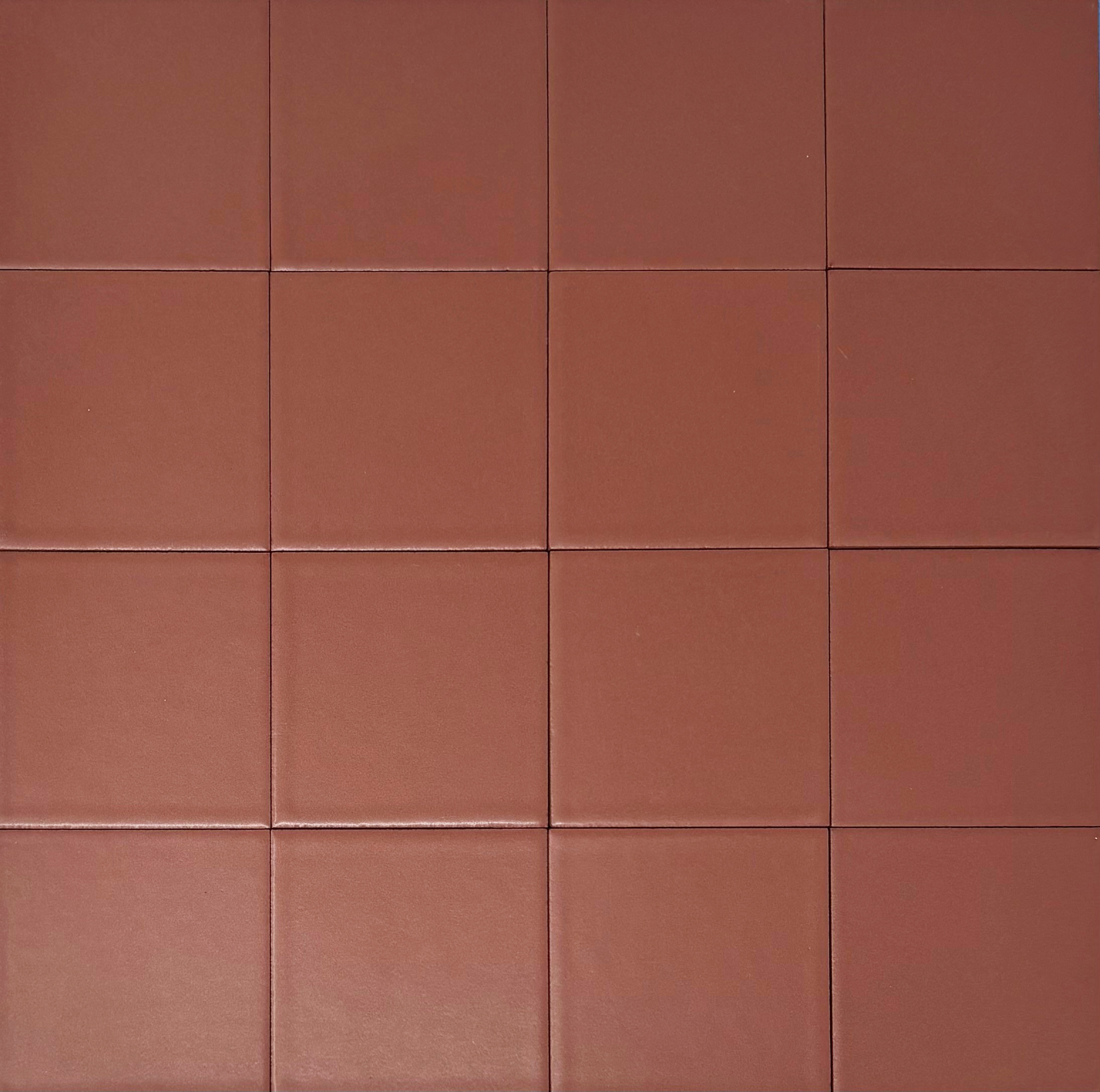

MT-29

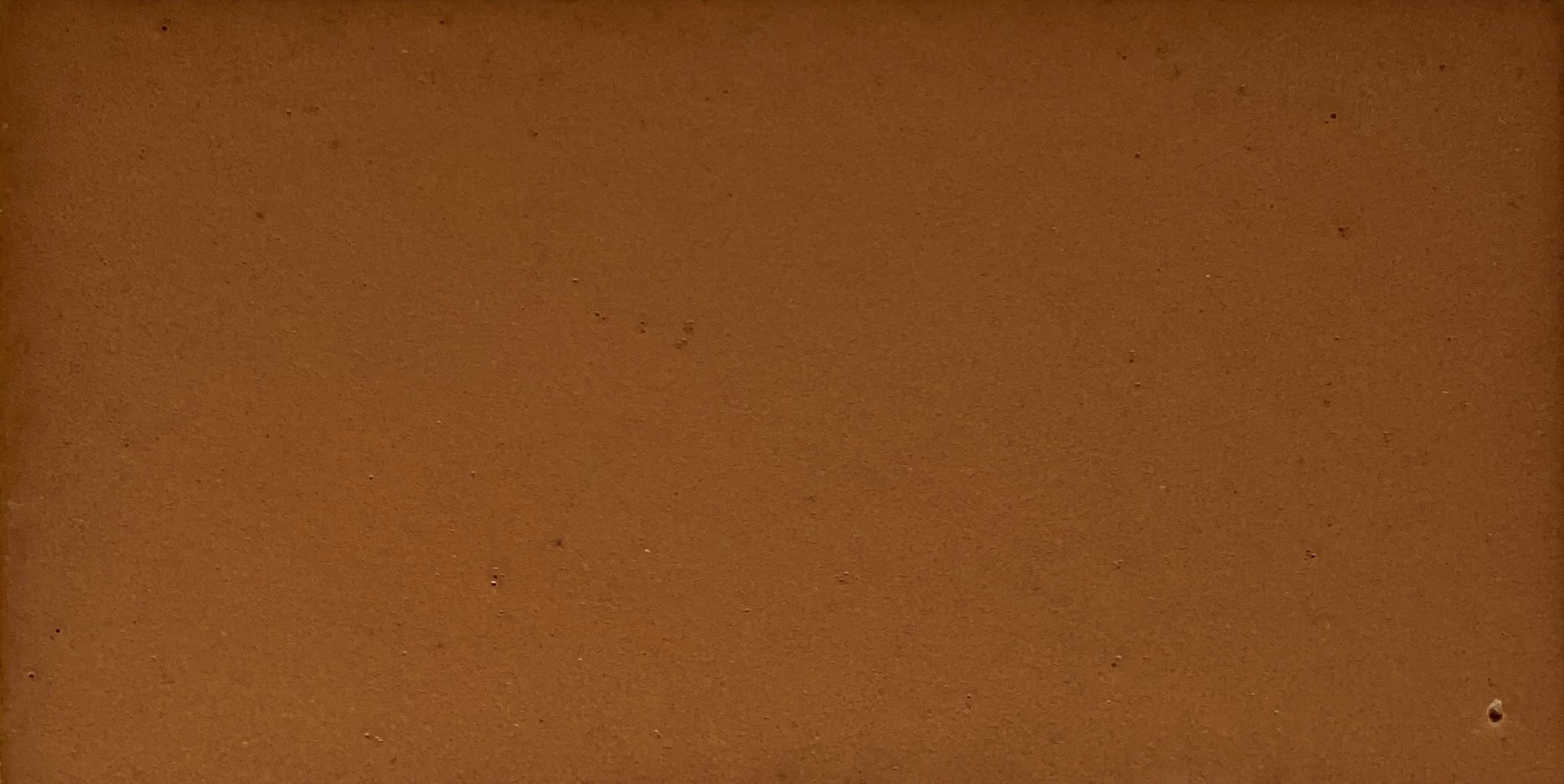

MT-30

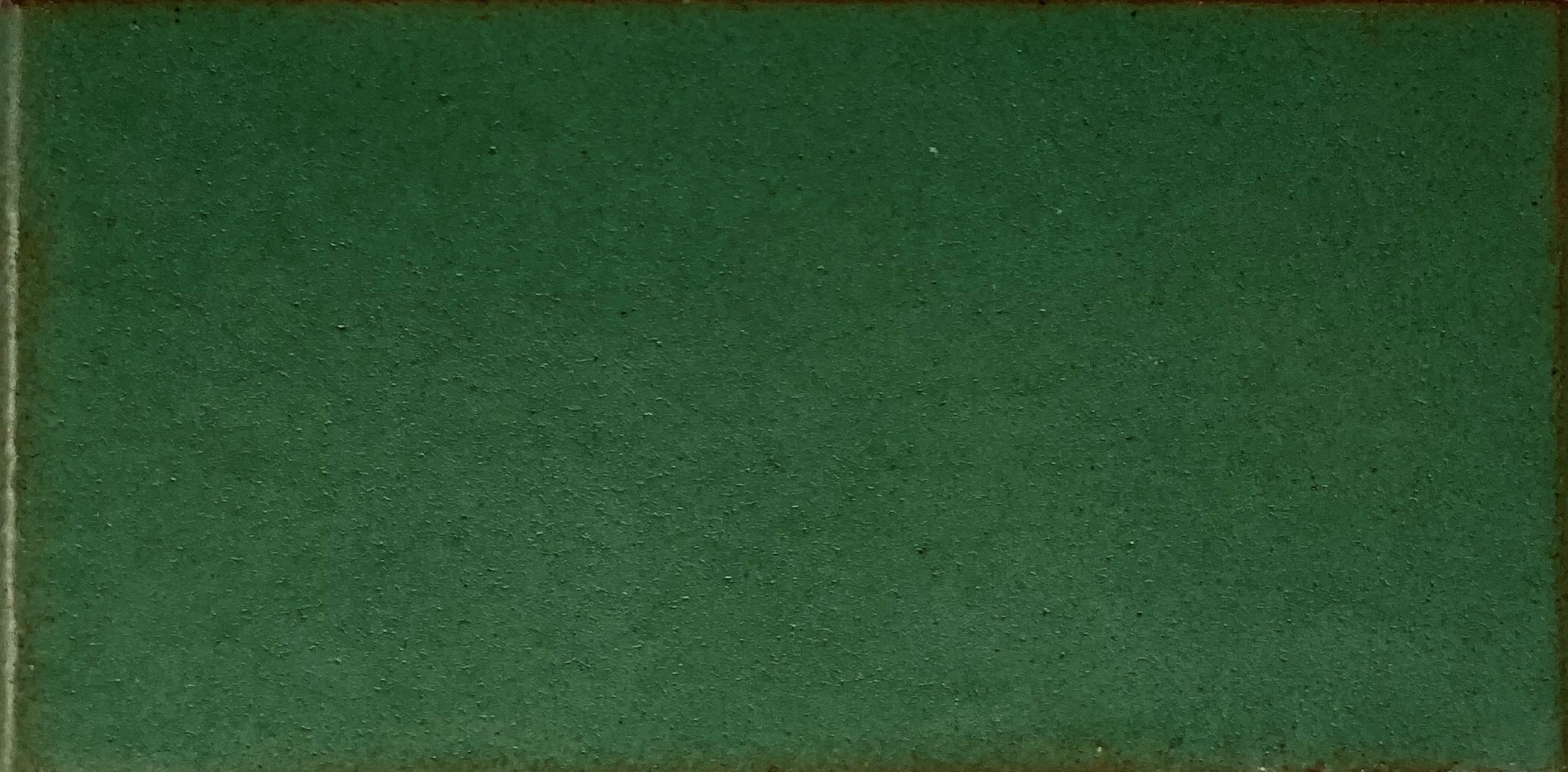

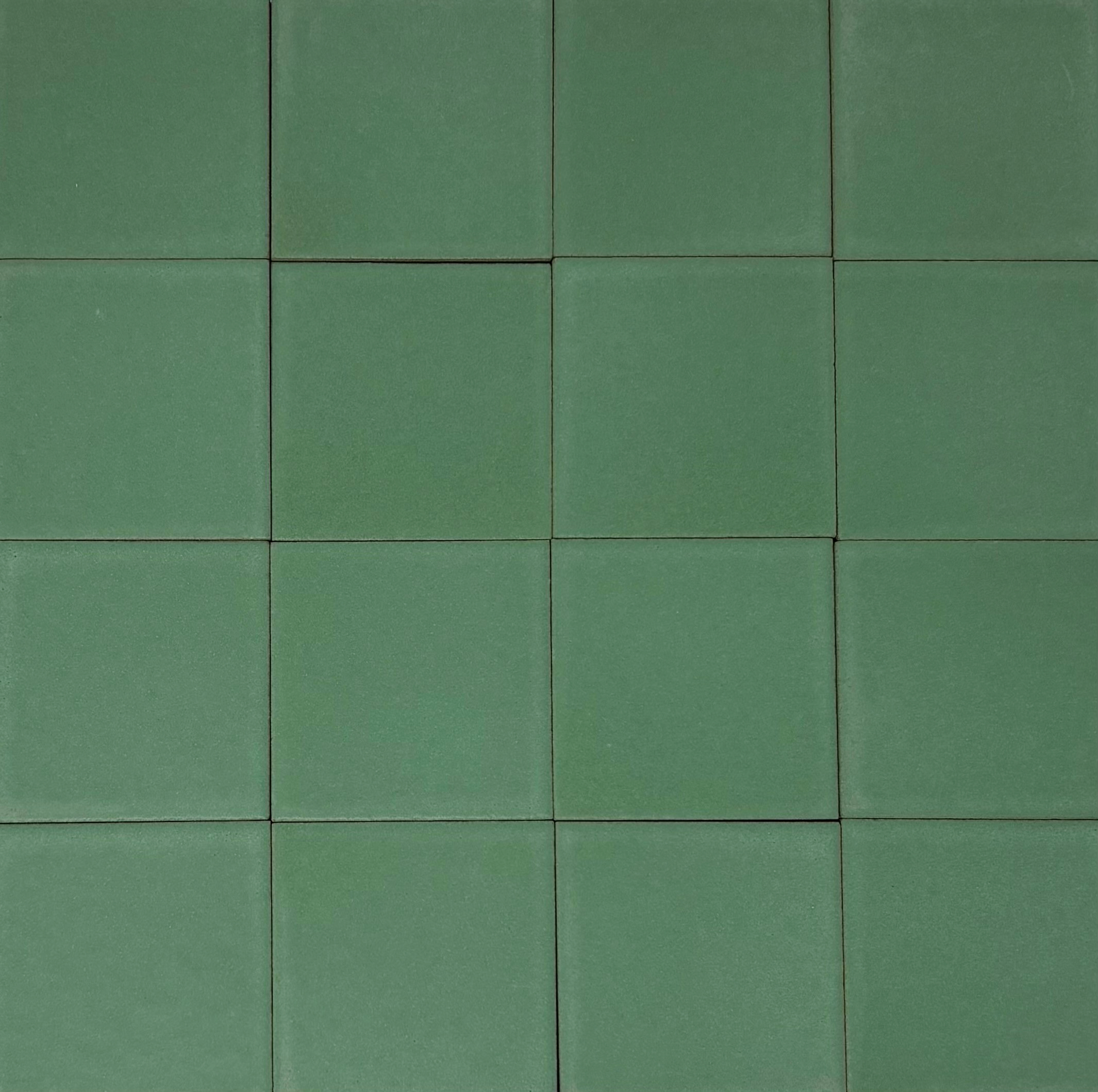

MT-31

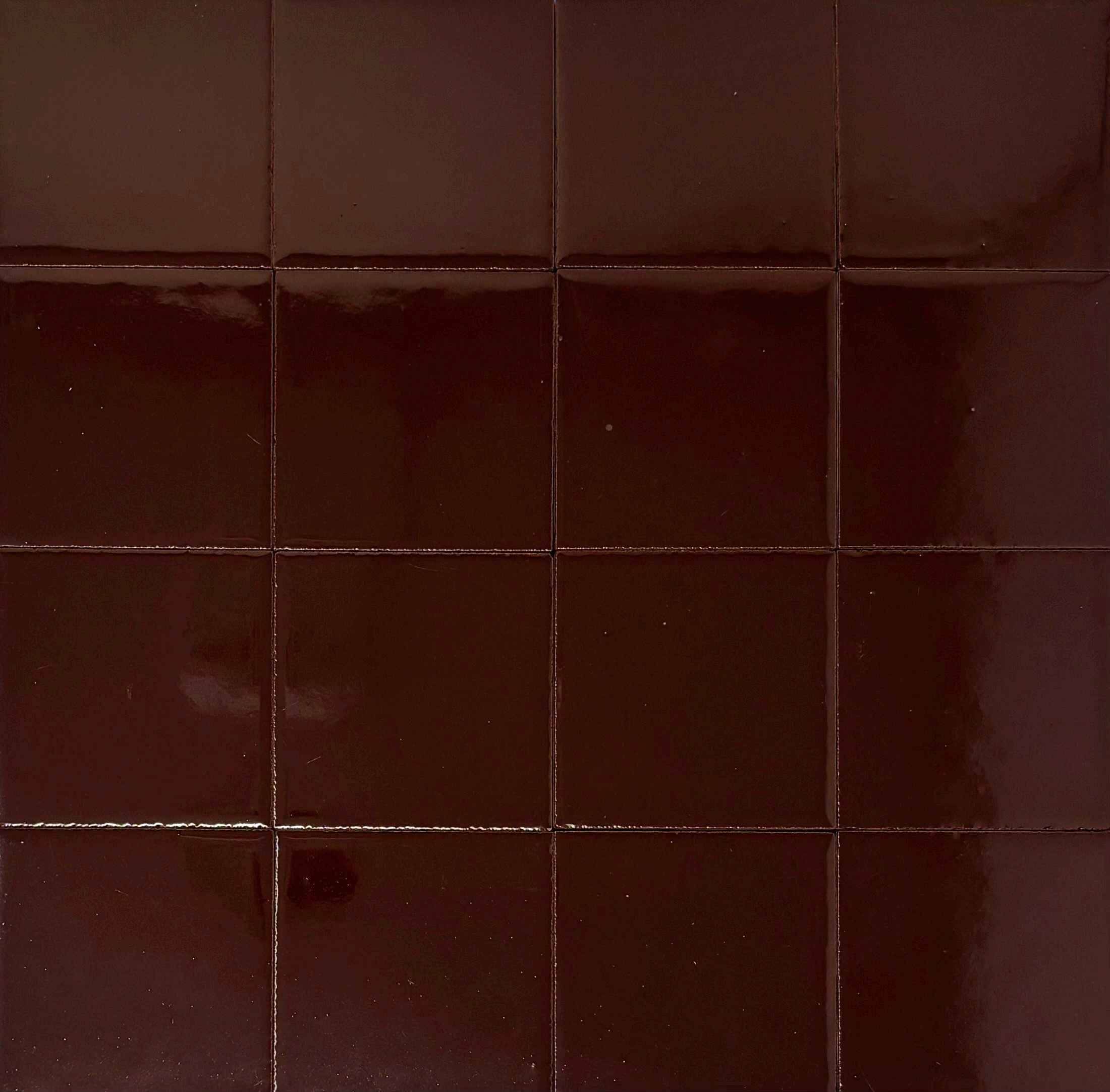

MT-32

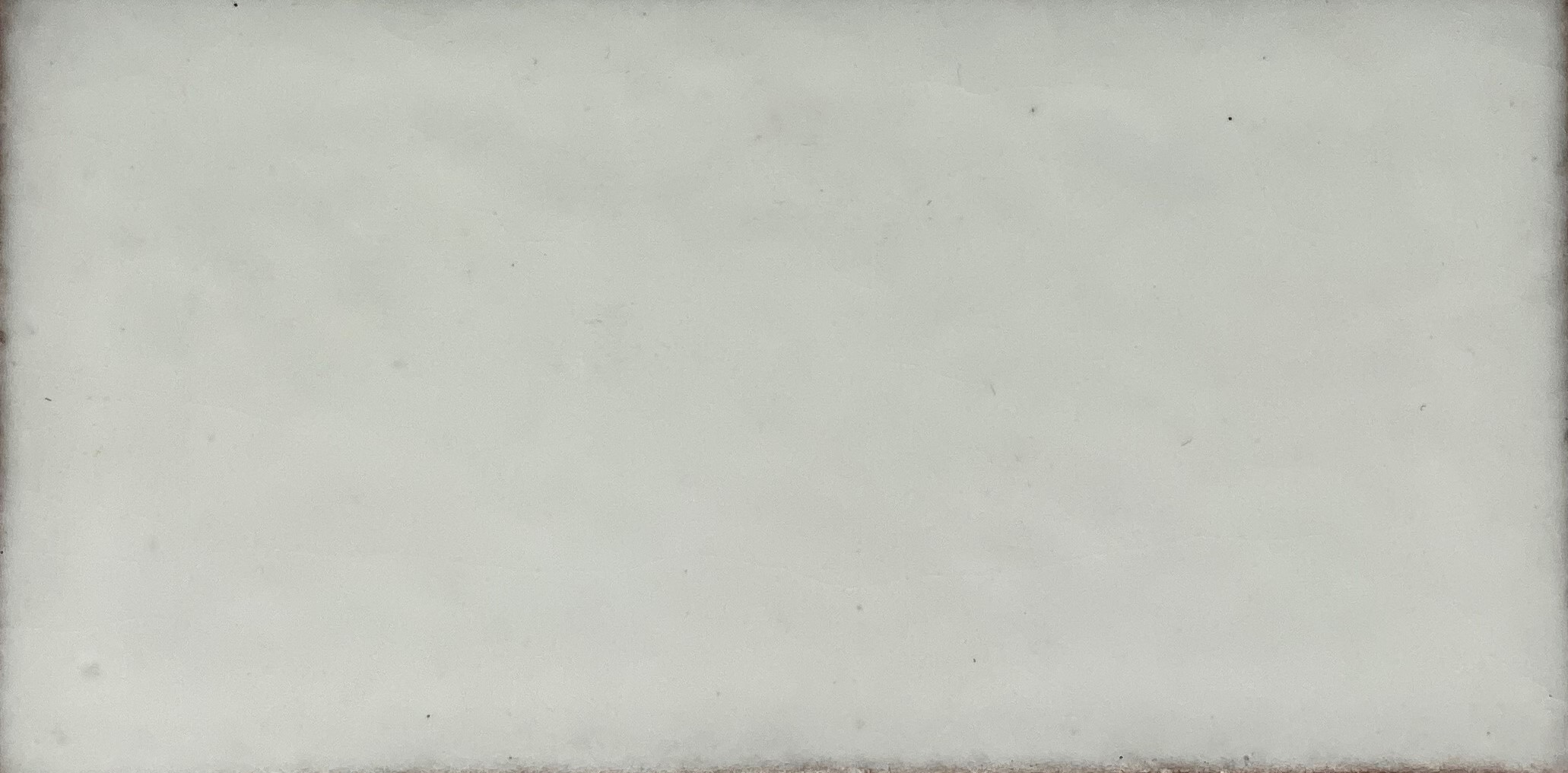

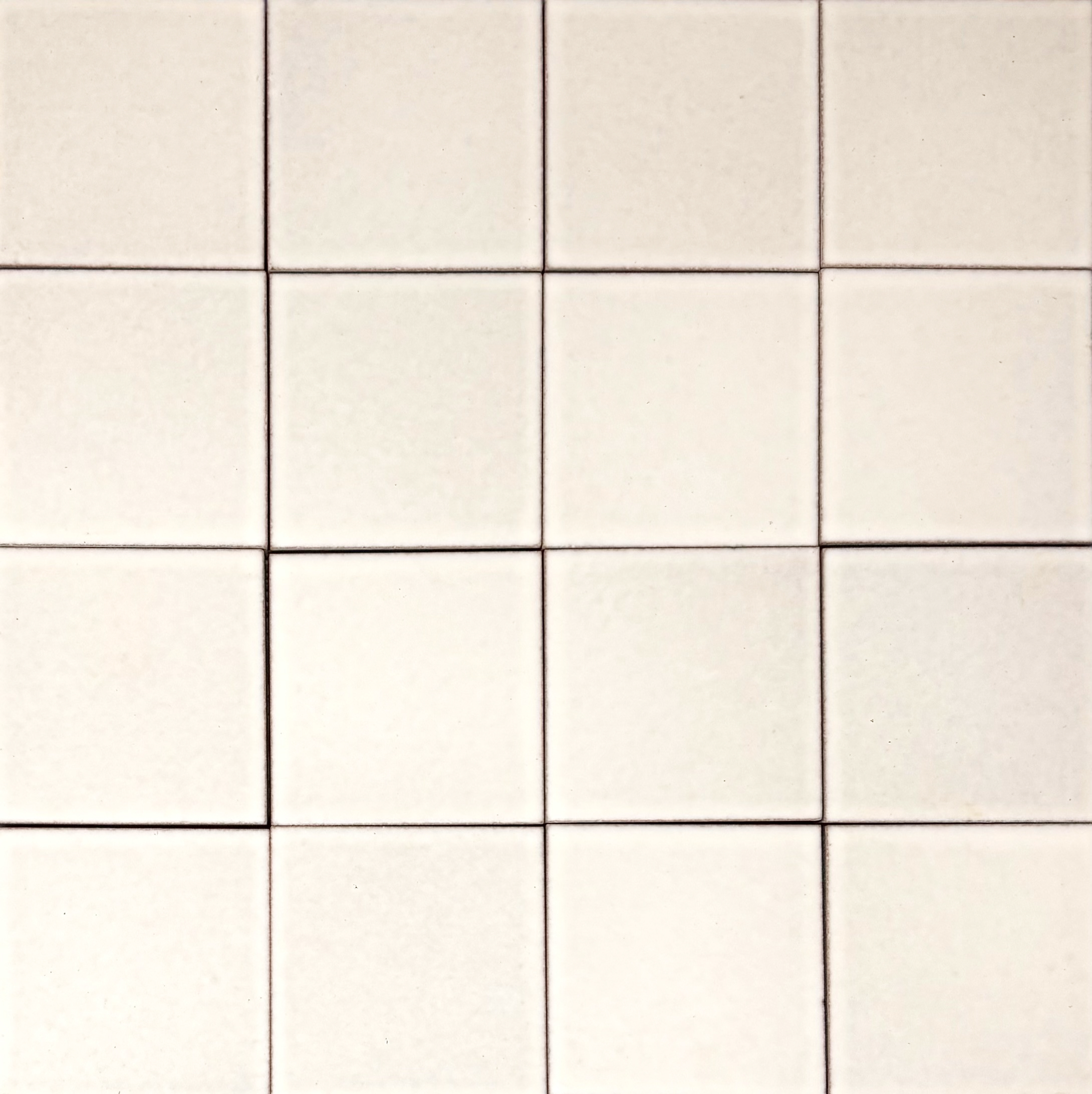

MT-33

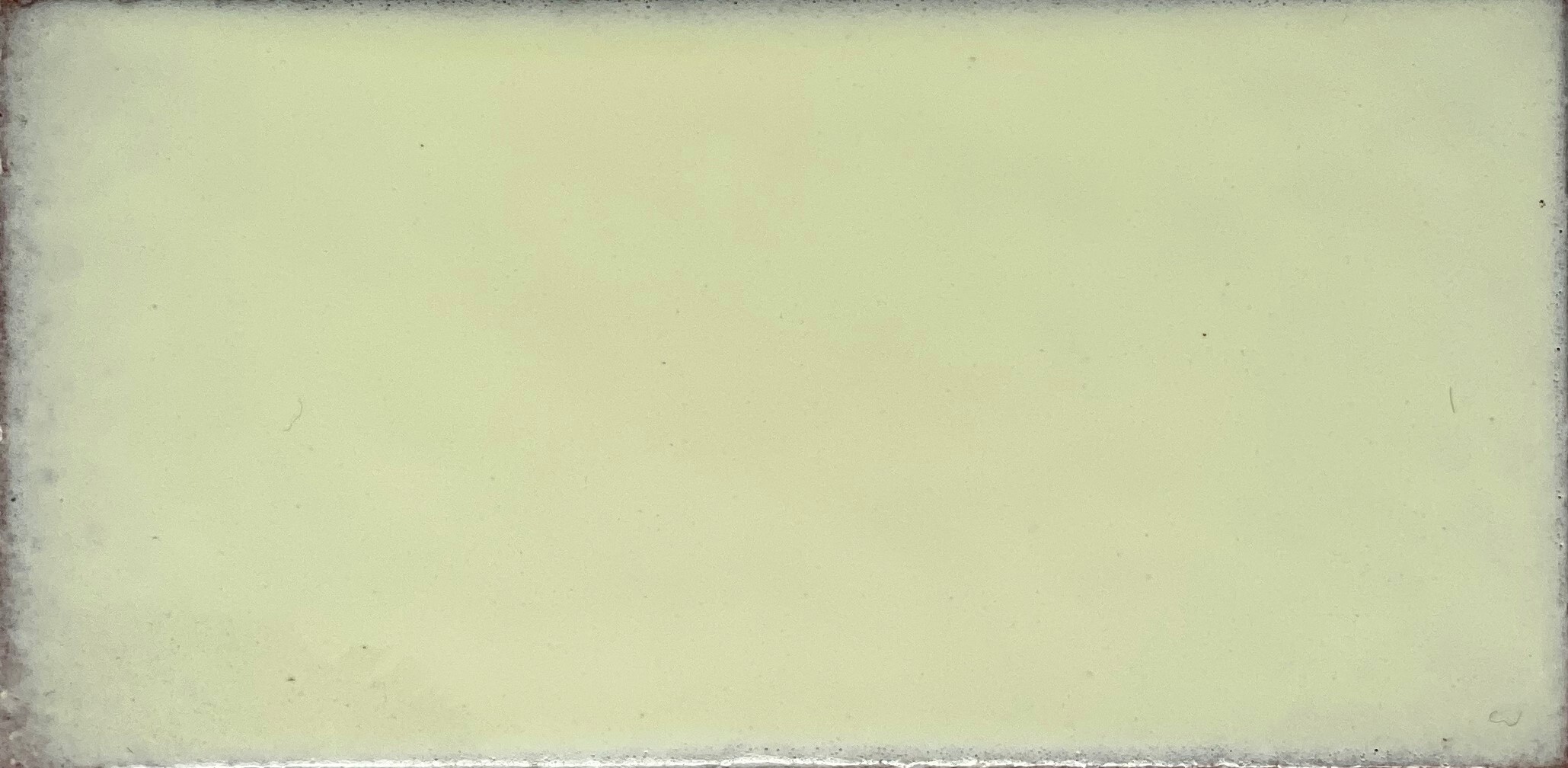

MT-34

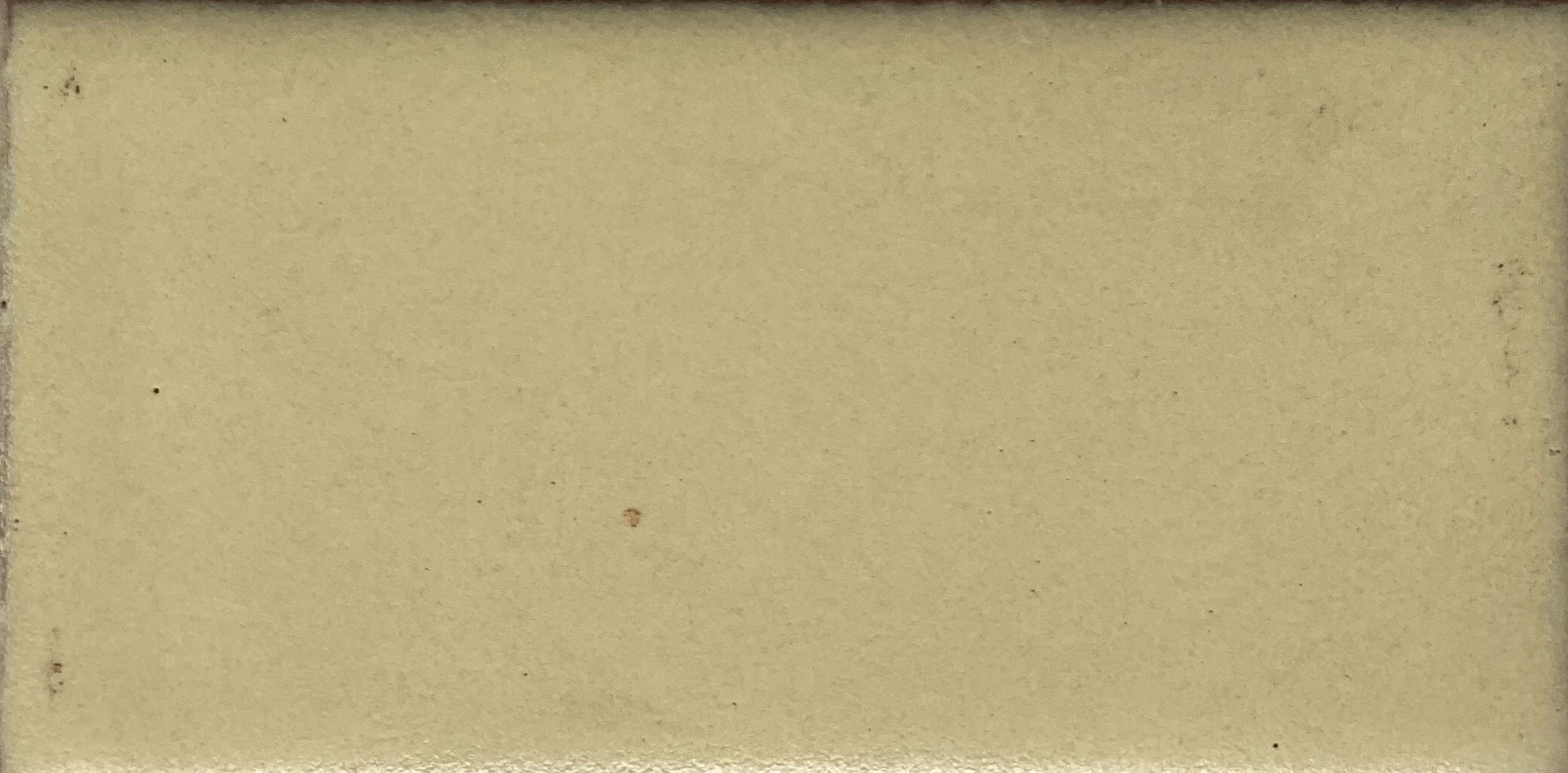

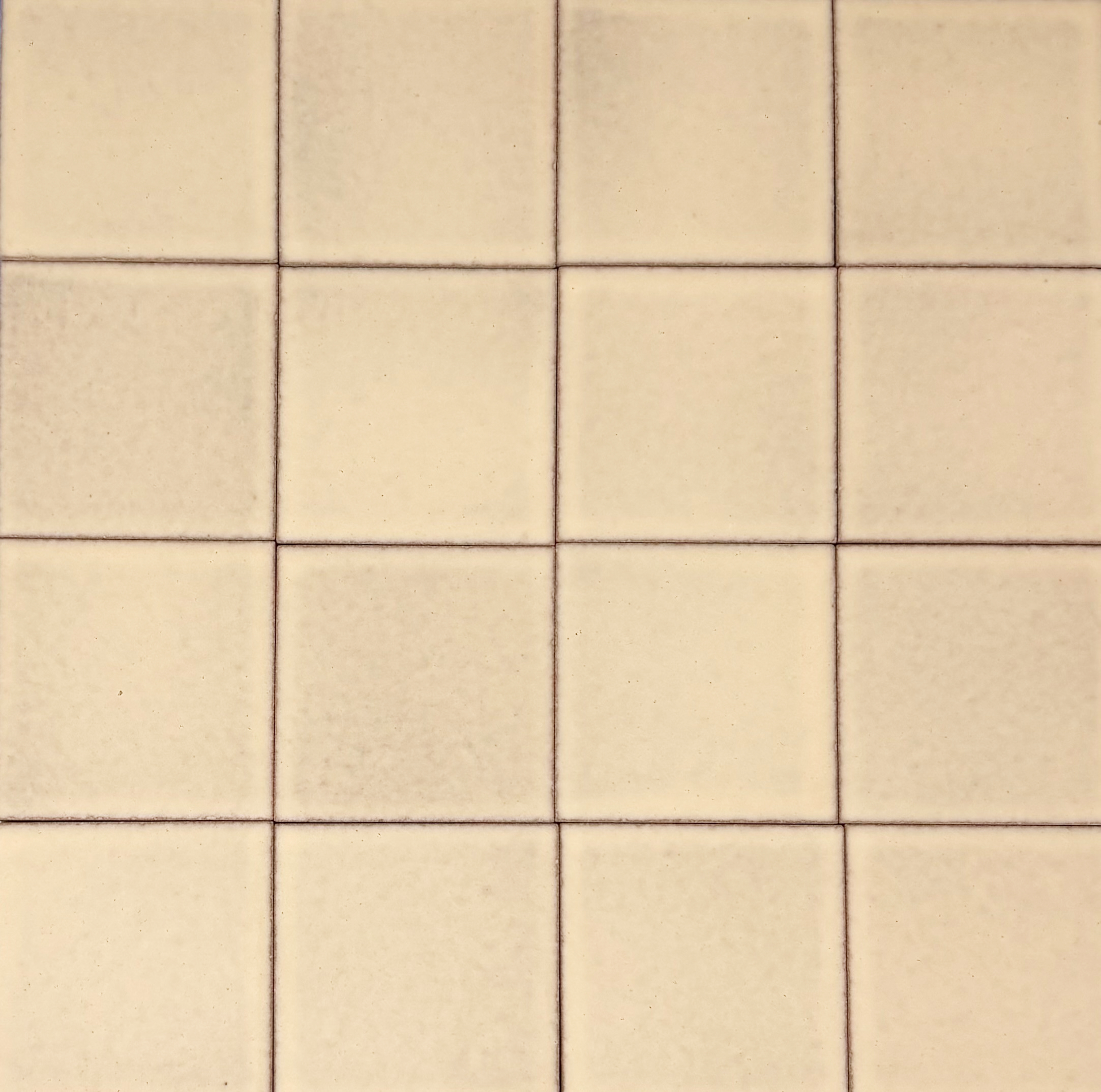

MT-35

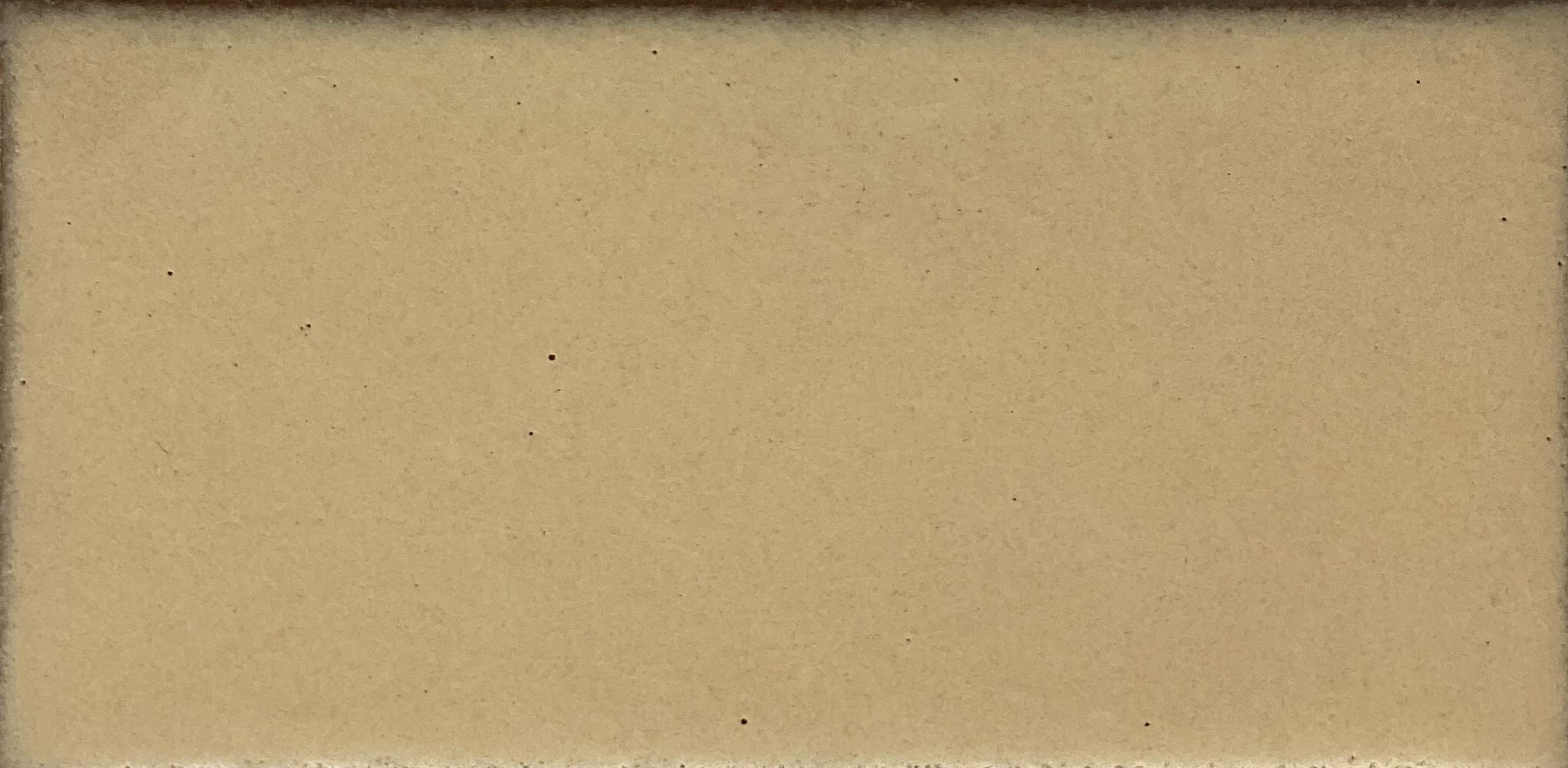

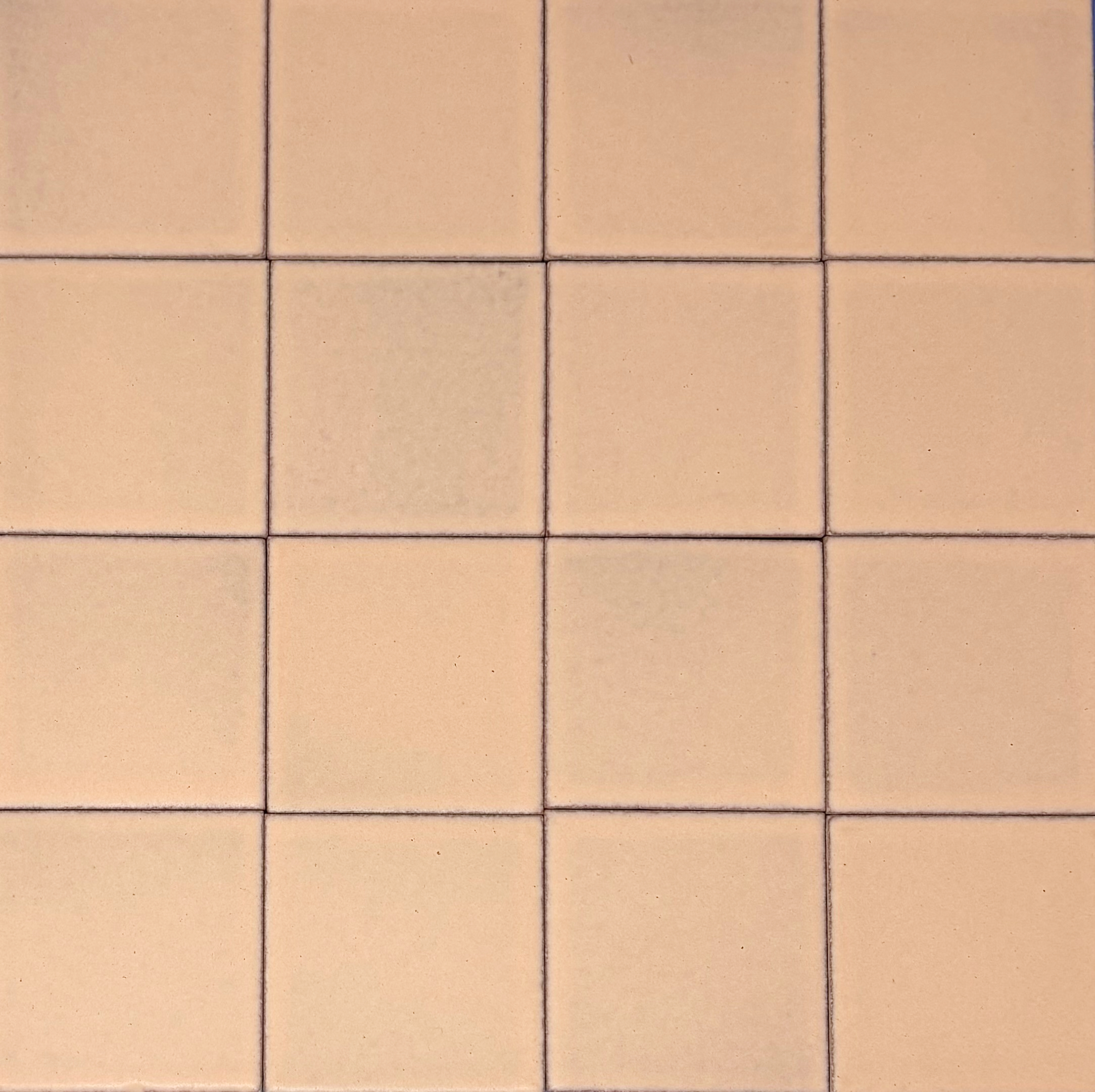

MT-36

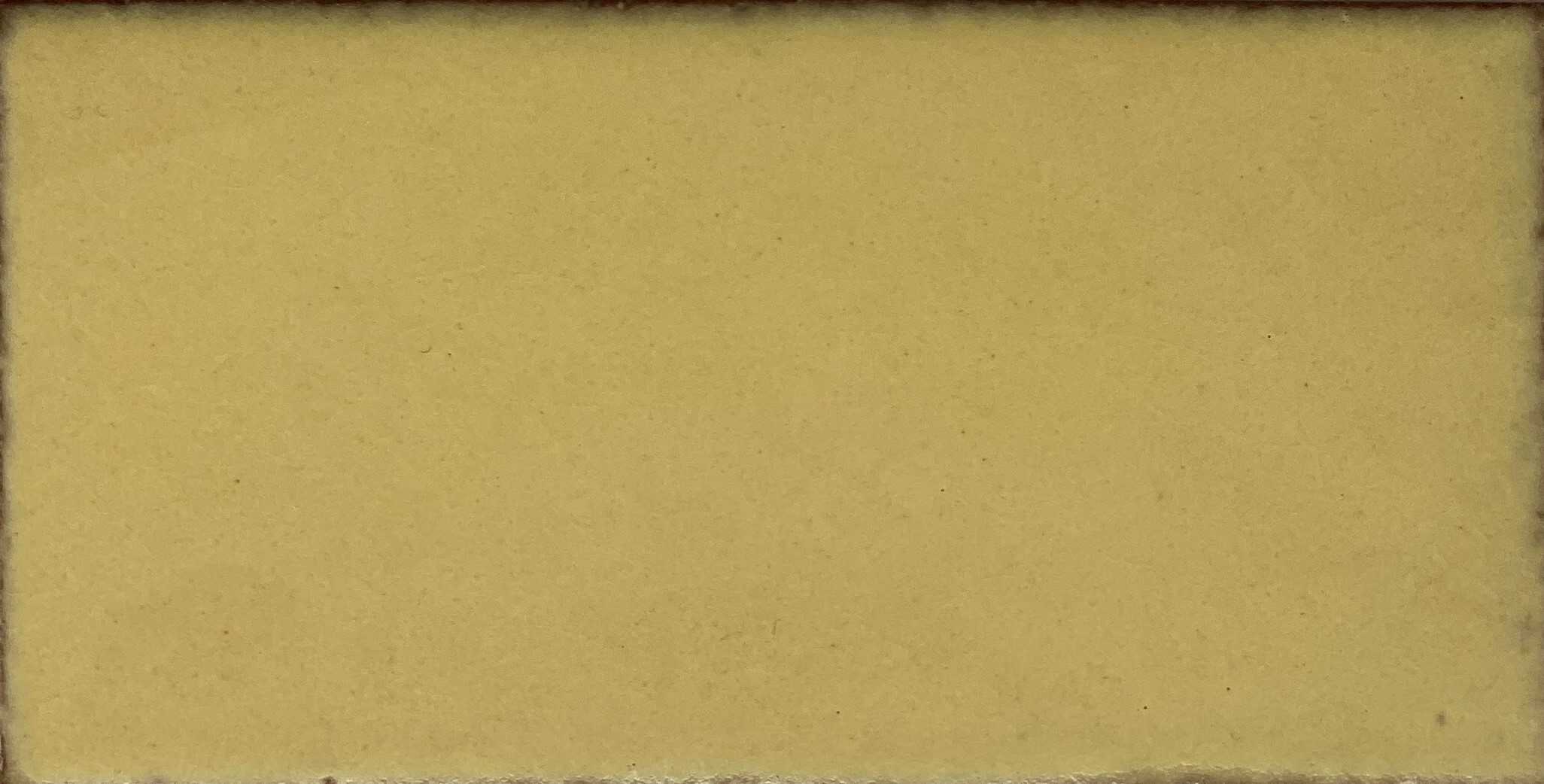

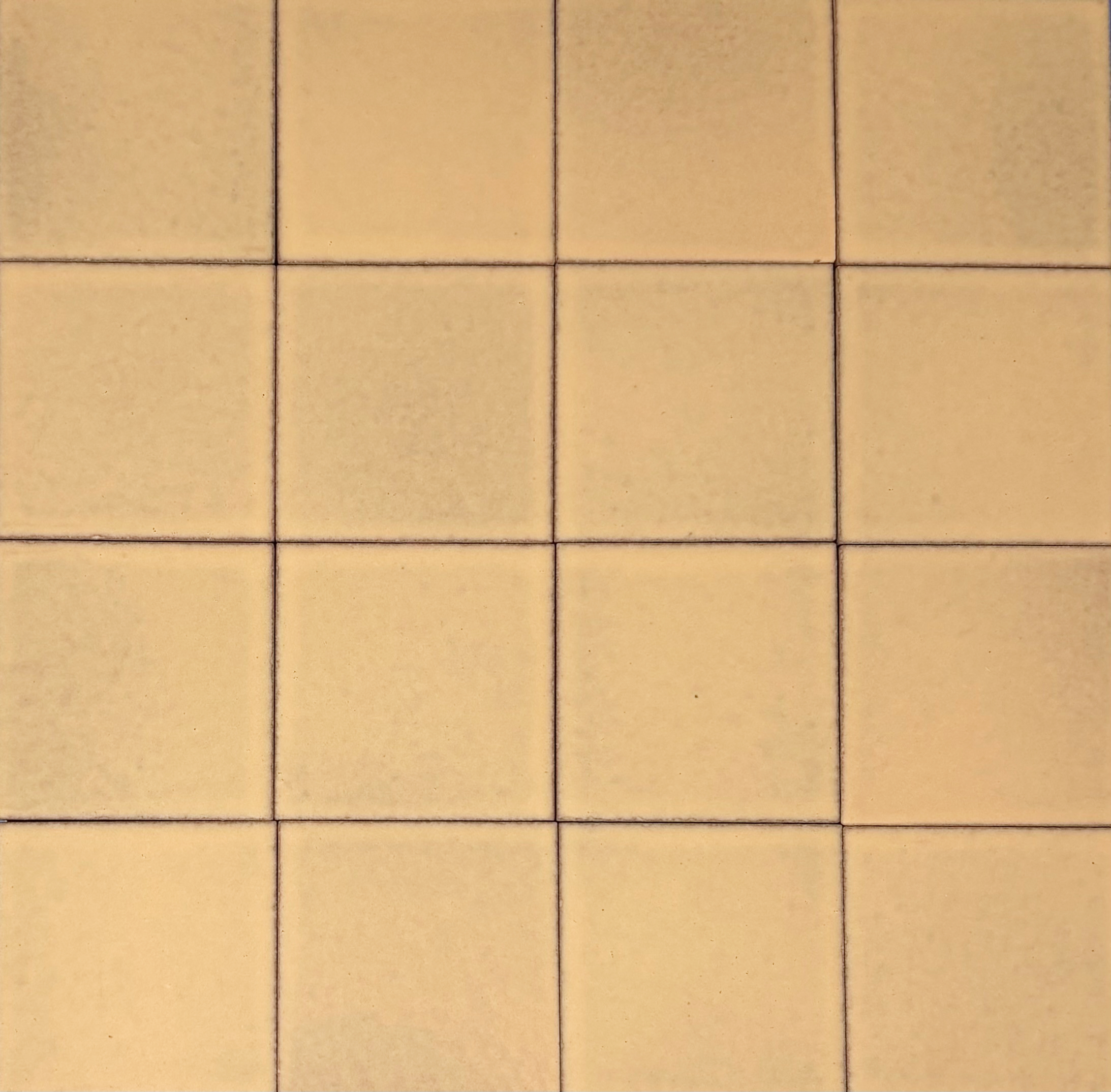

MT-37

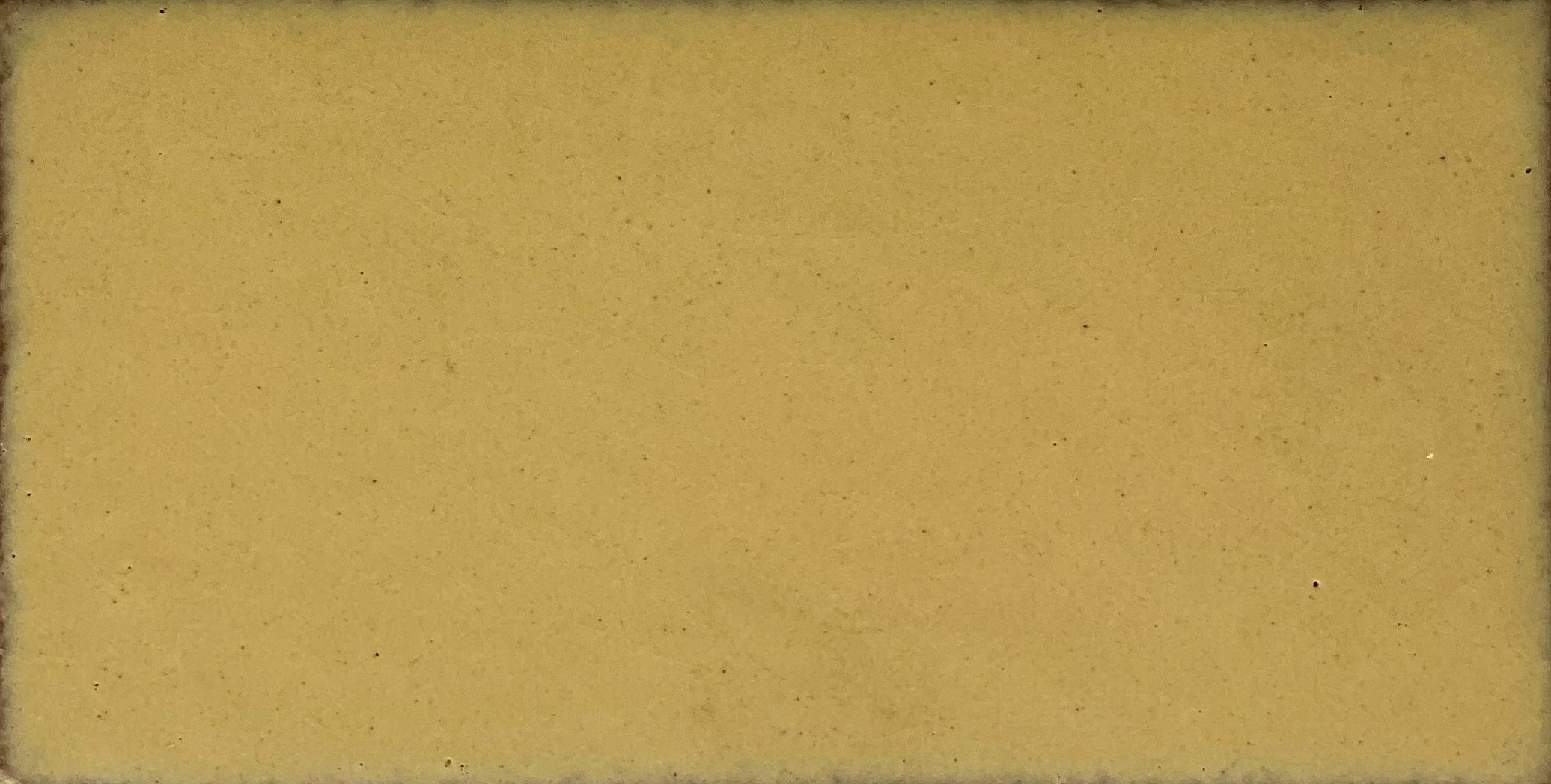

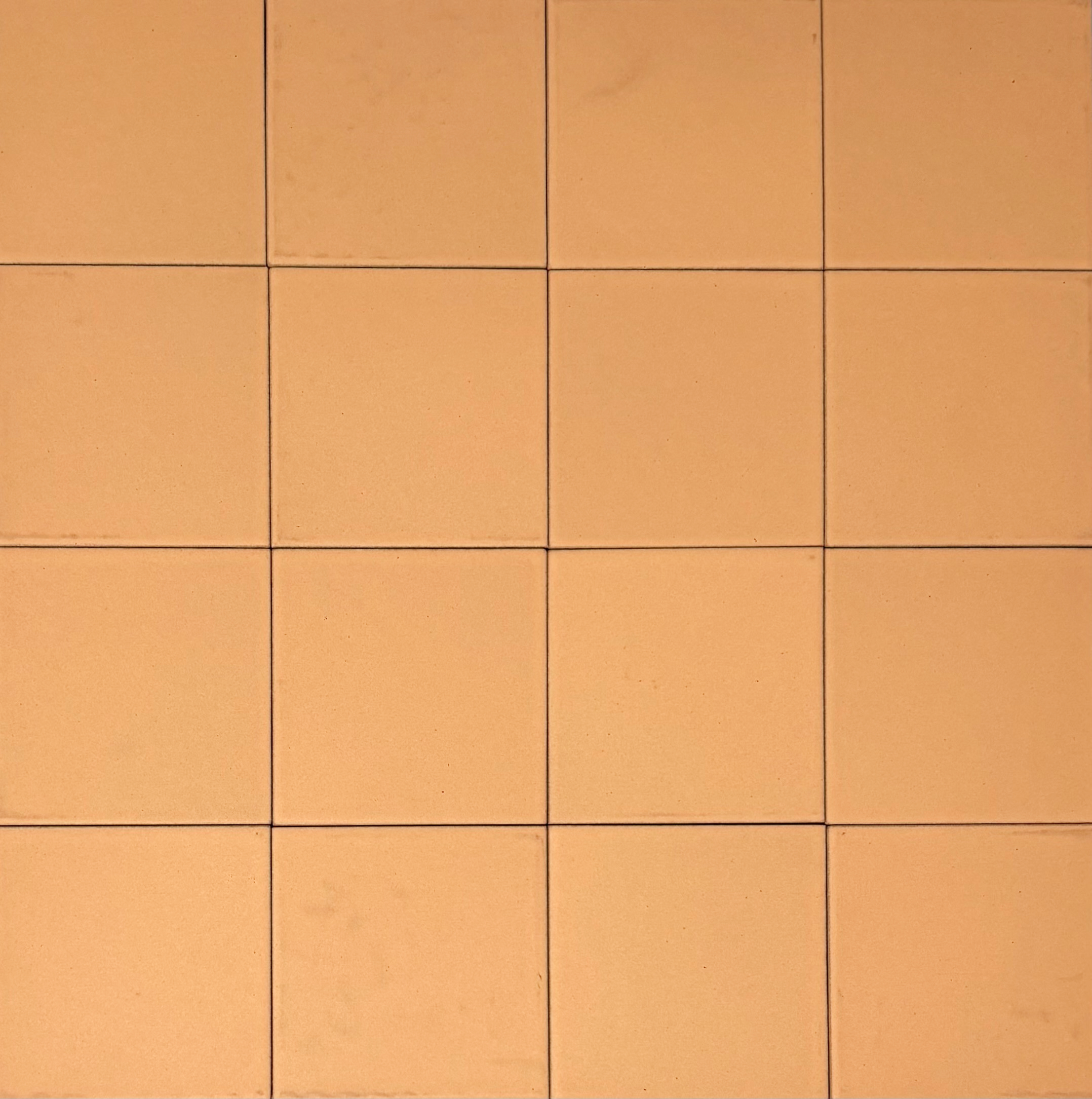

MT-38

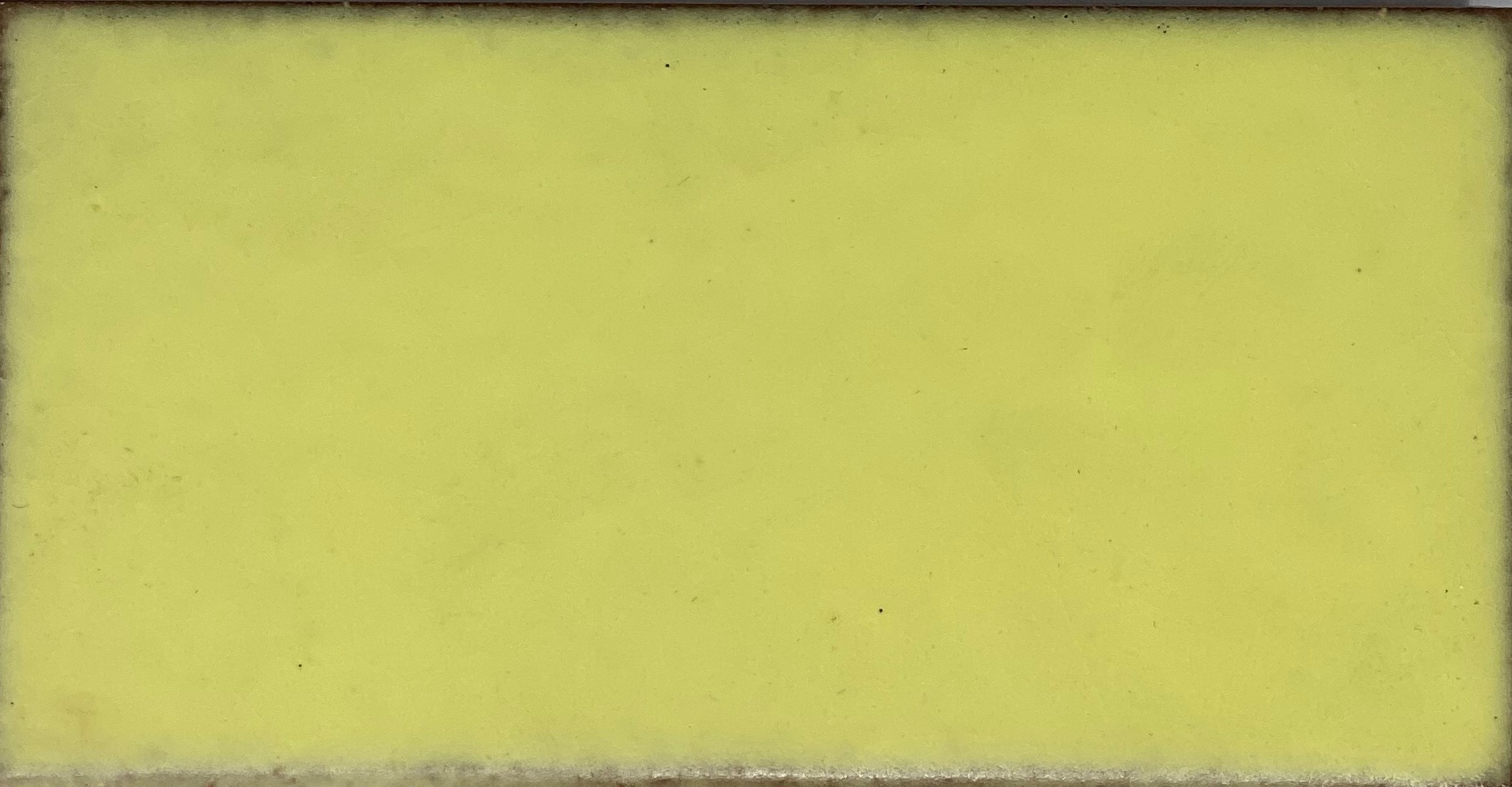

MT-39

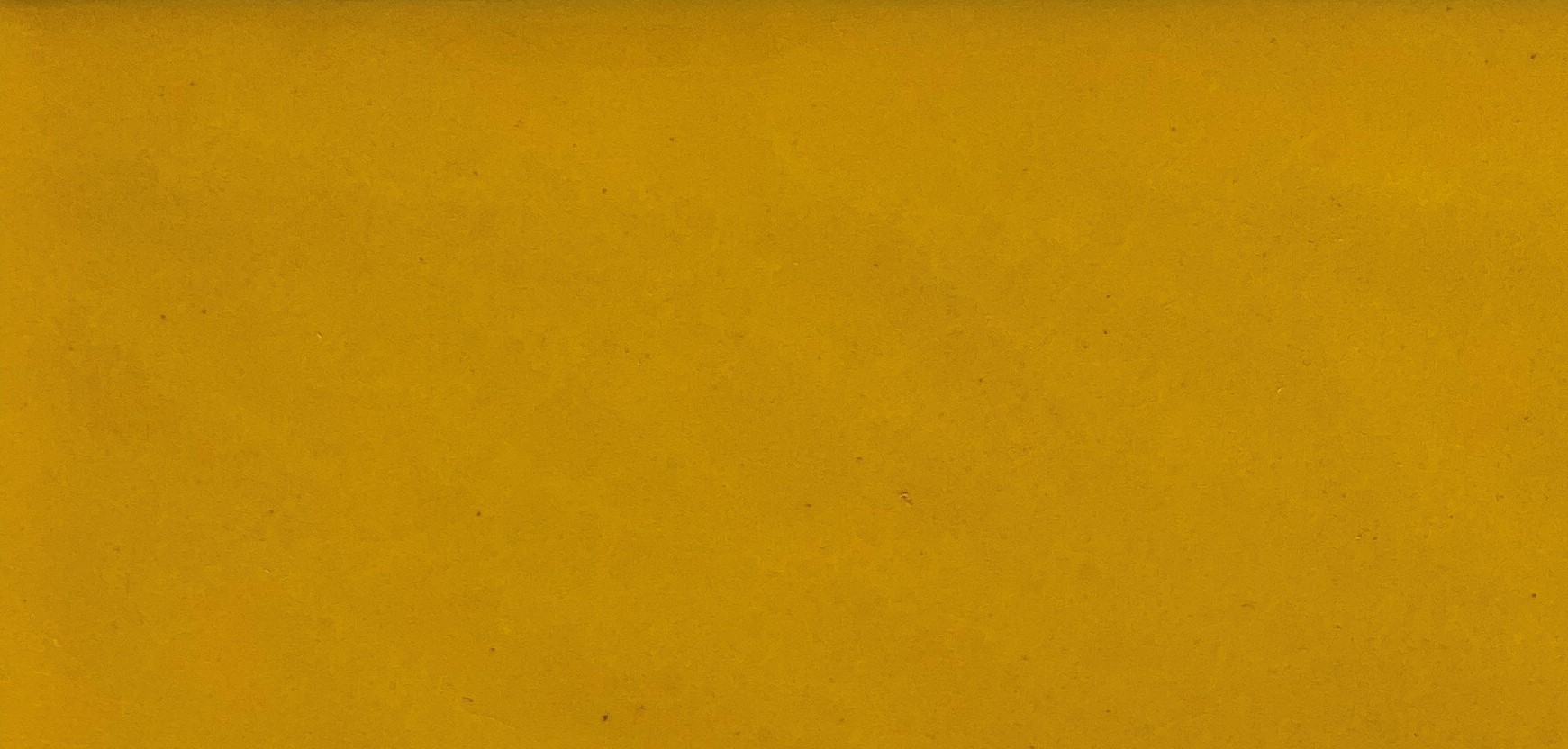

MT-40

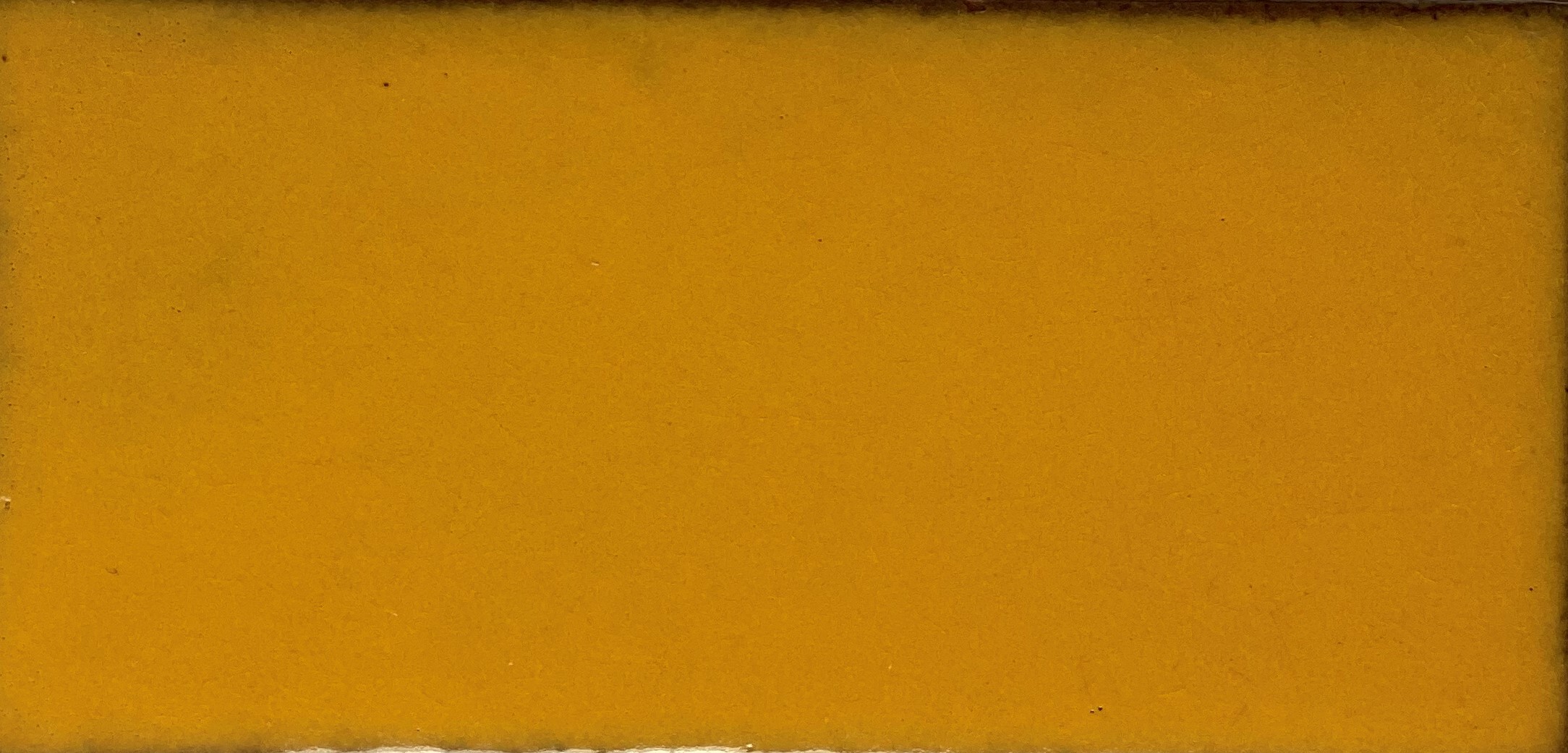

MT-41

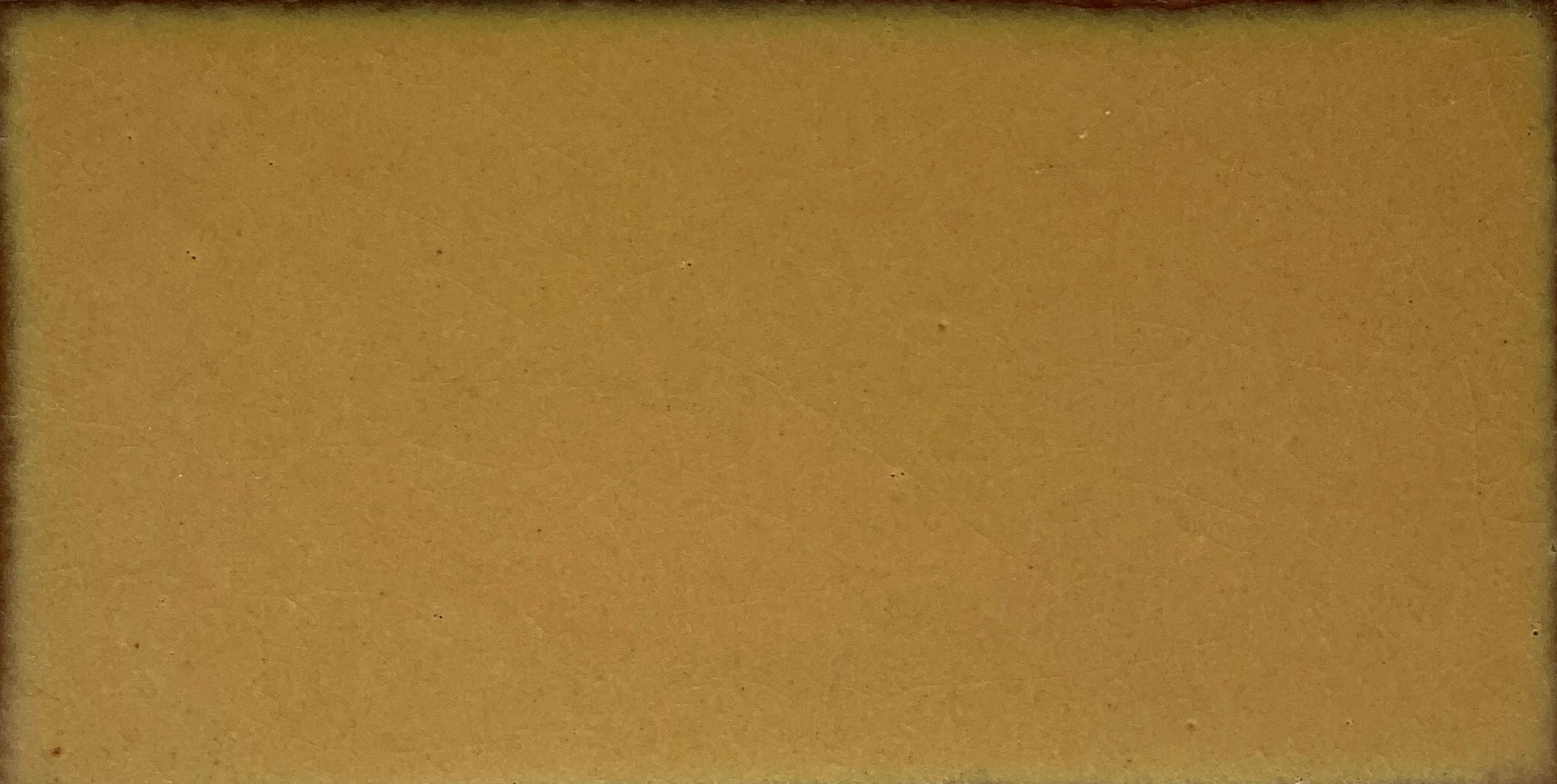

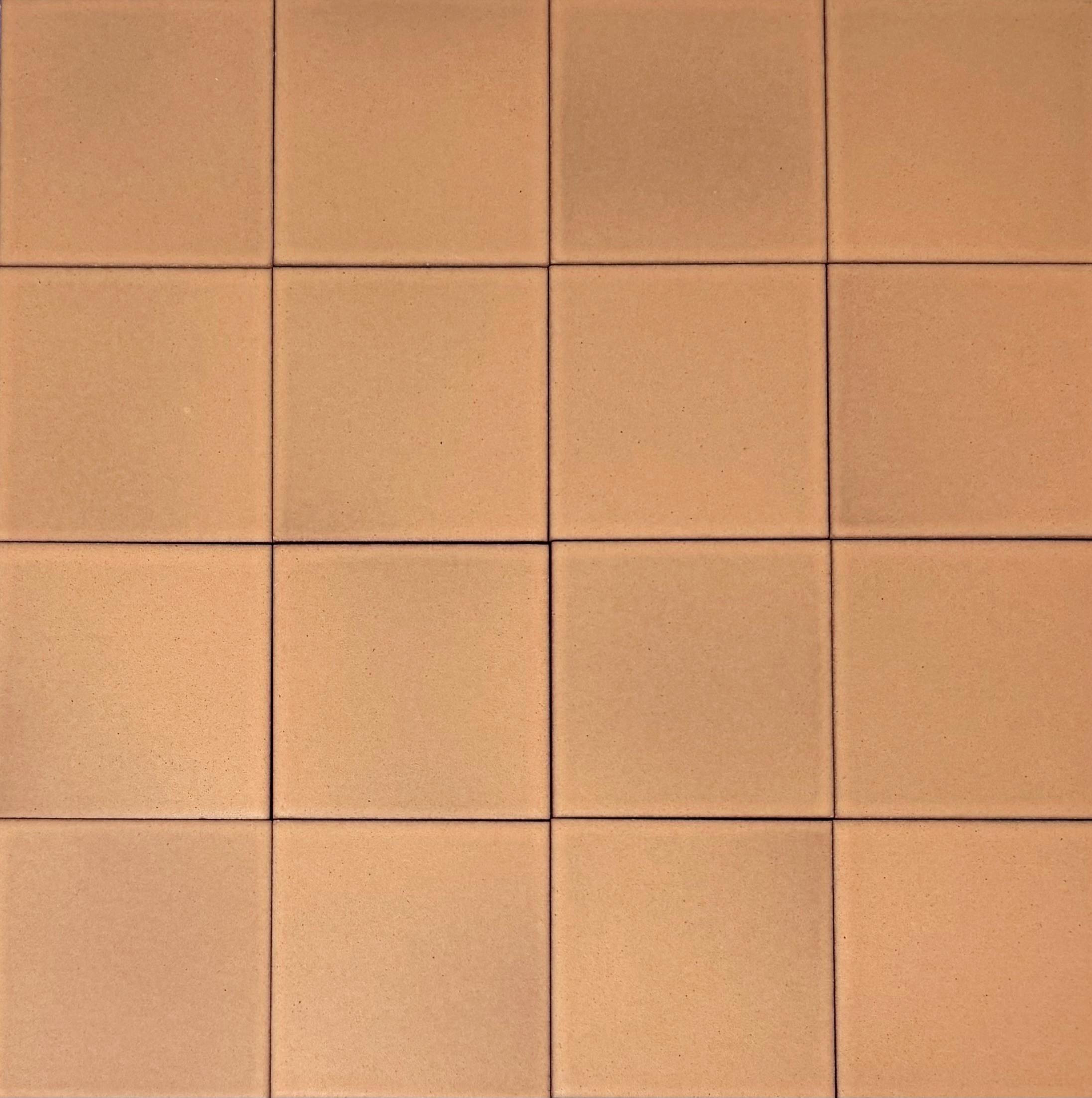

MT-42

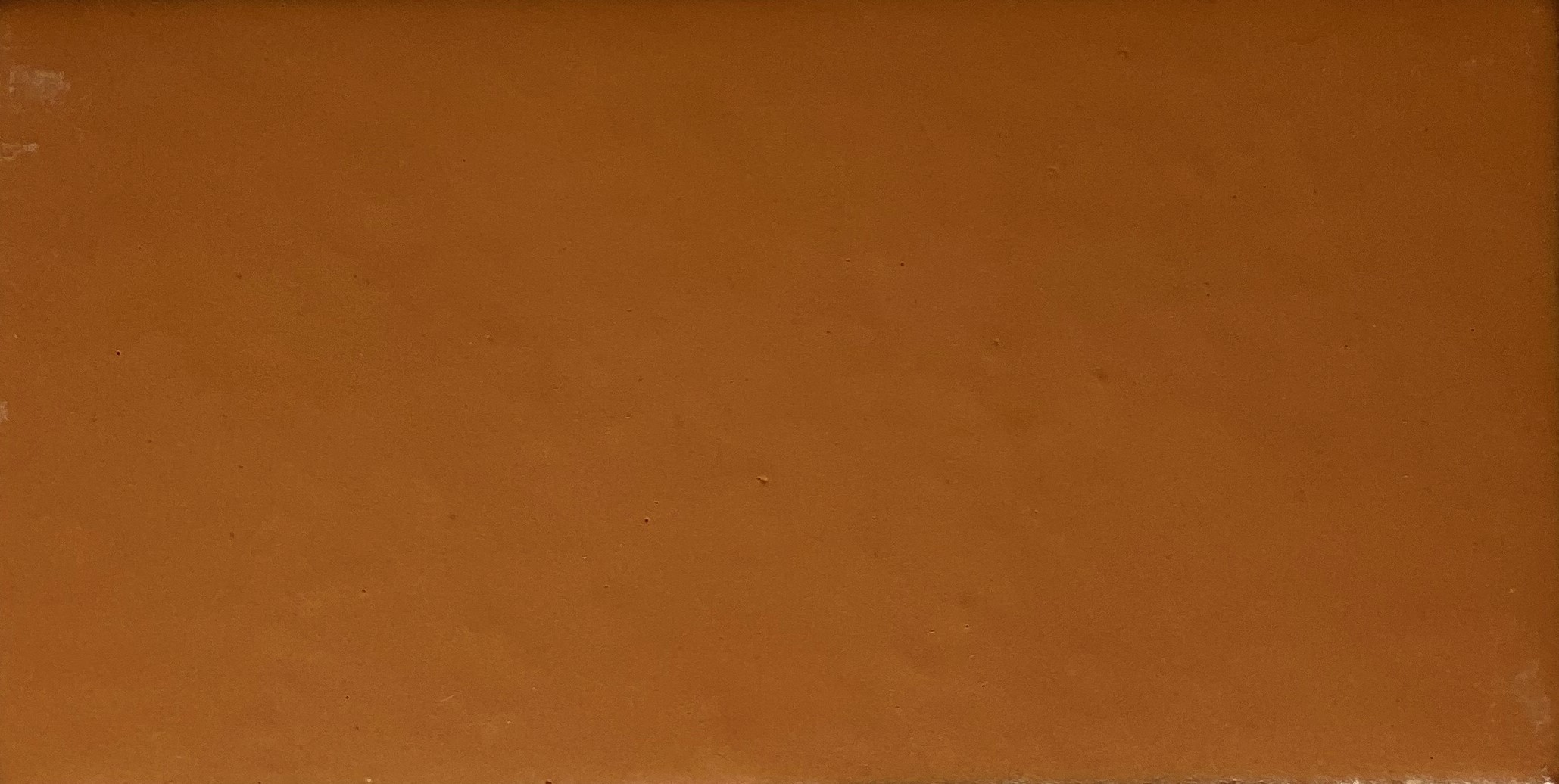

MT-43

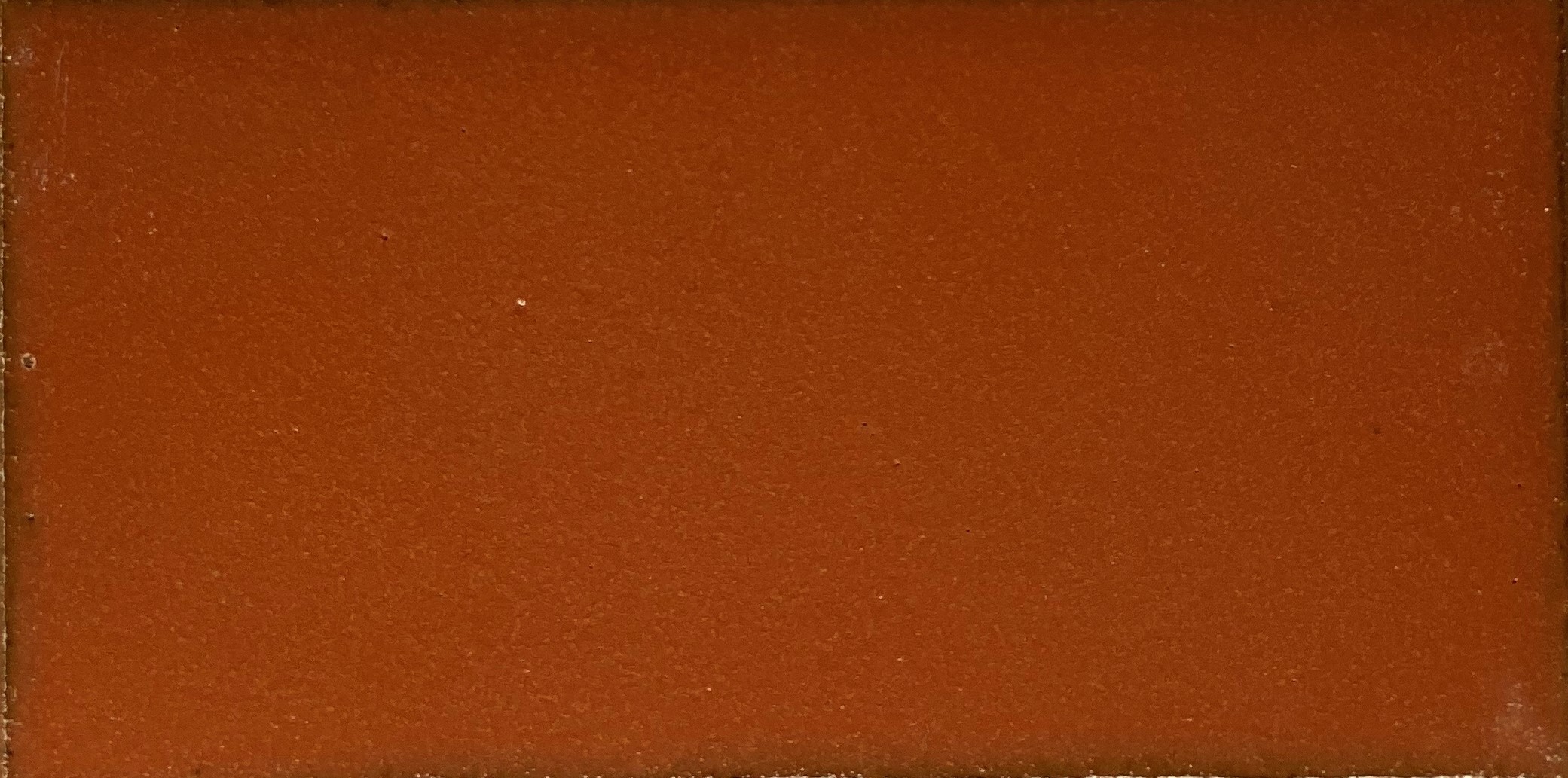

MT-44

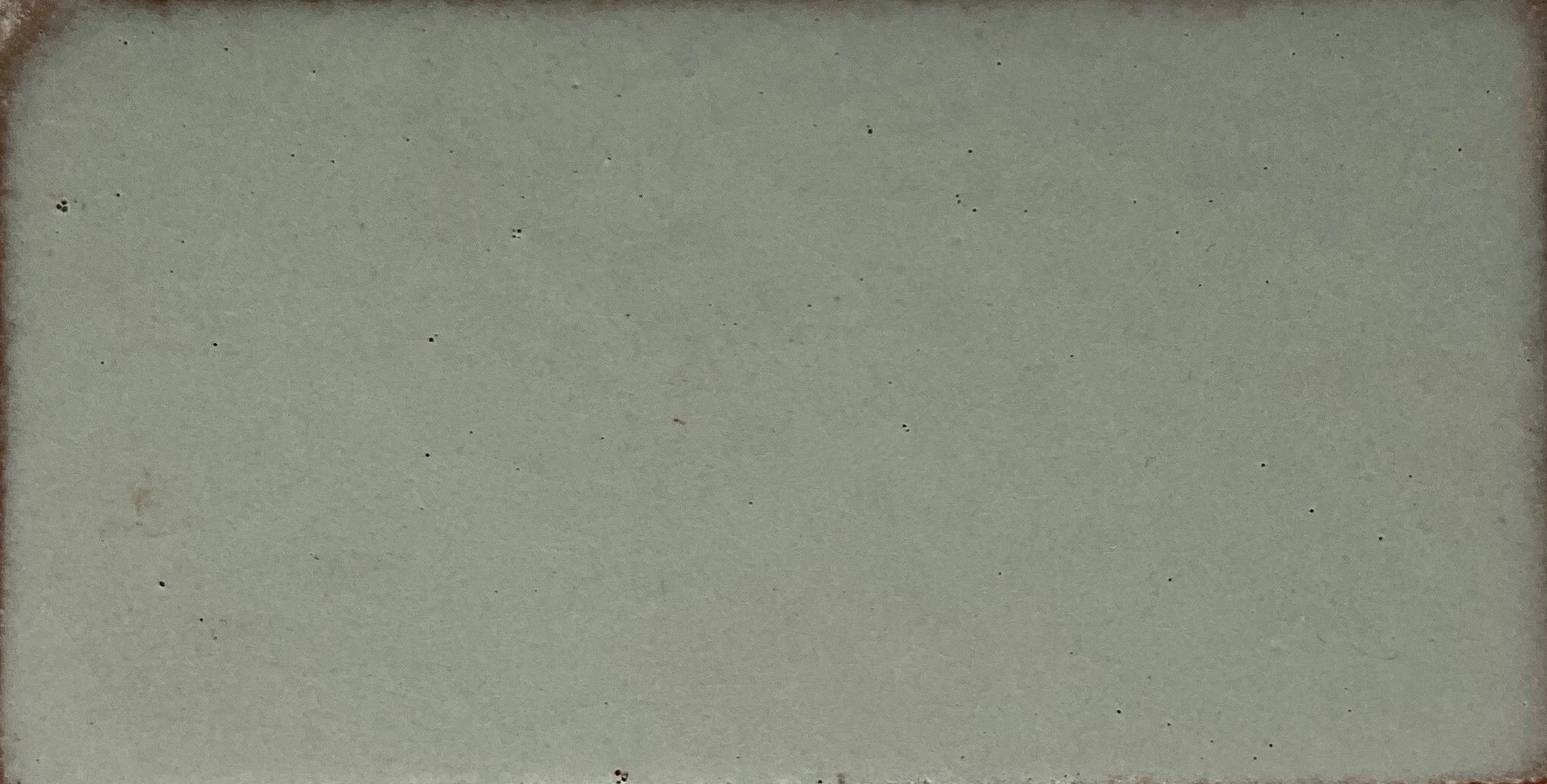

MT-45

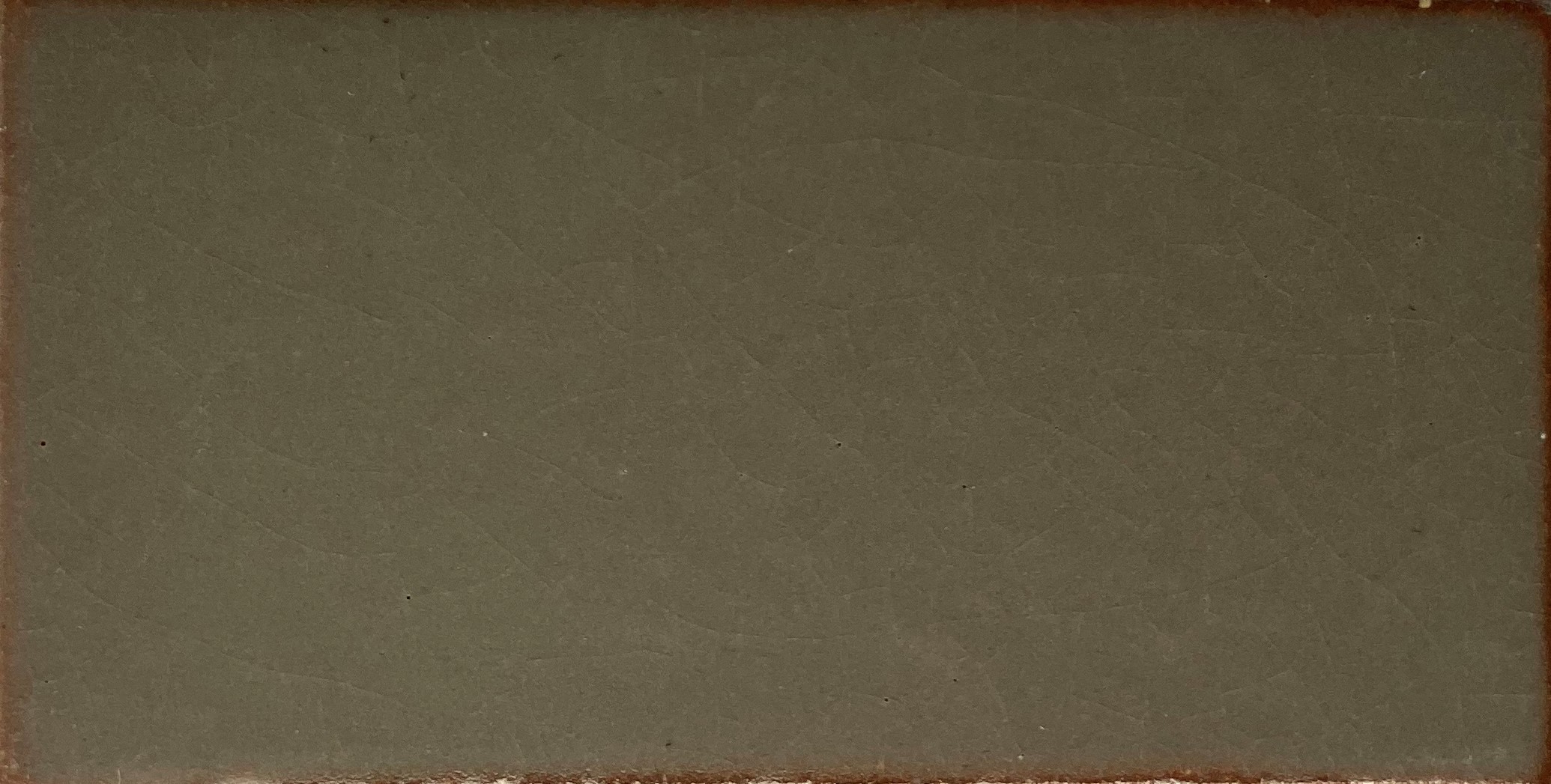

MT-46

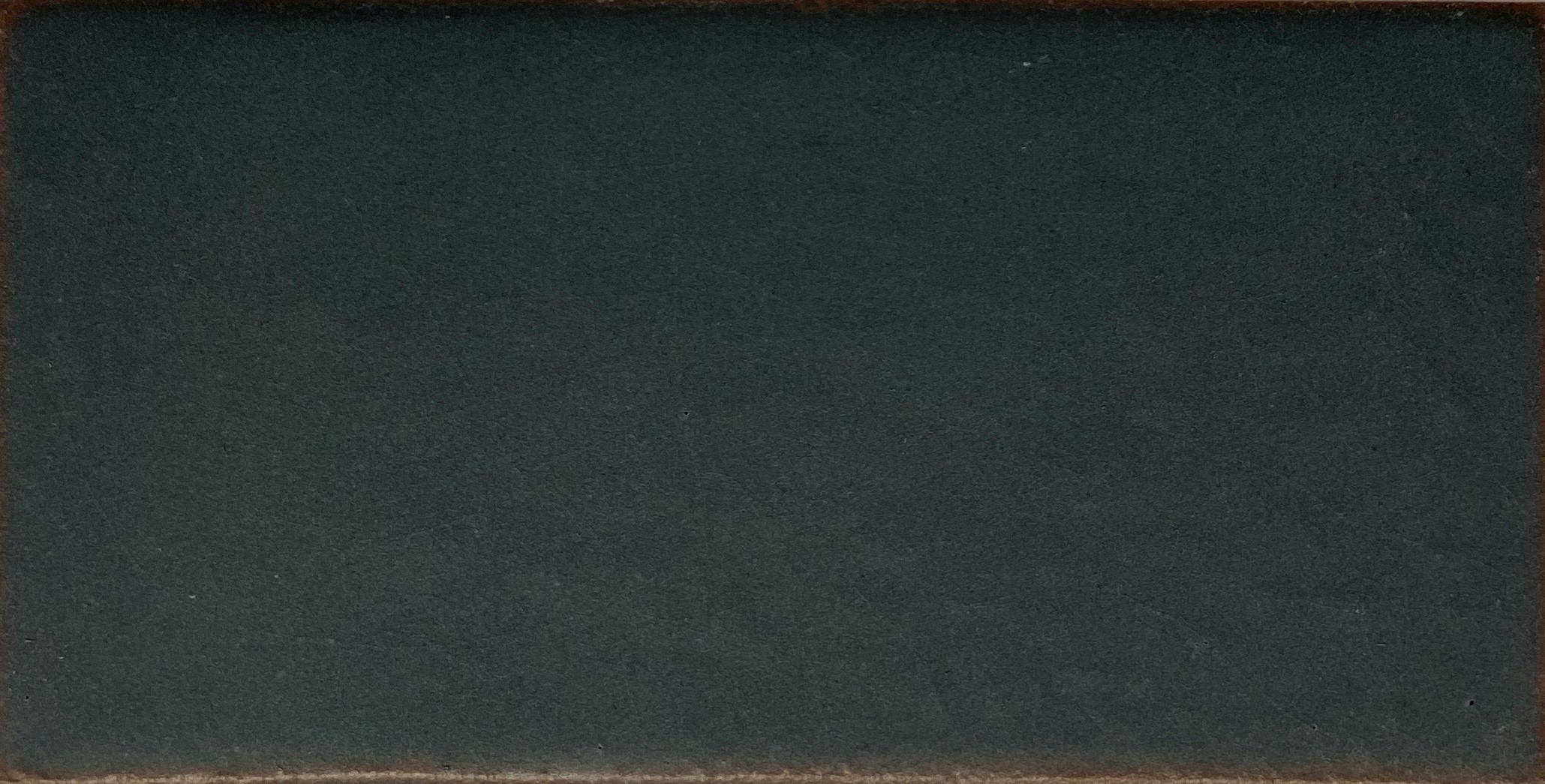

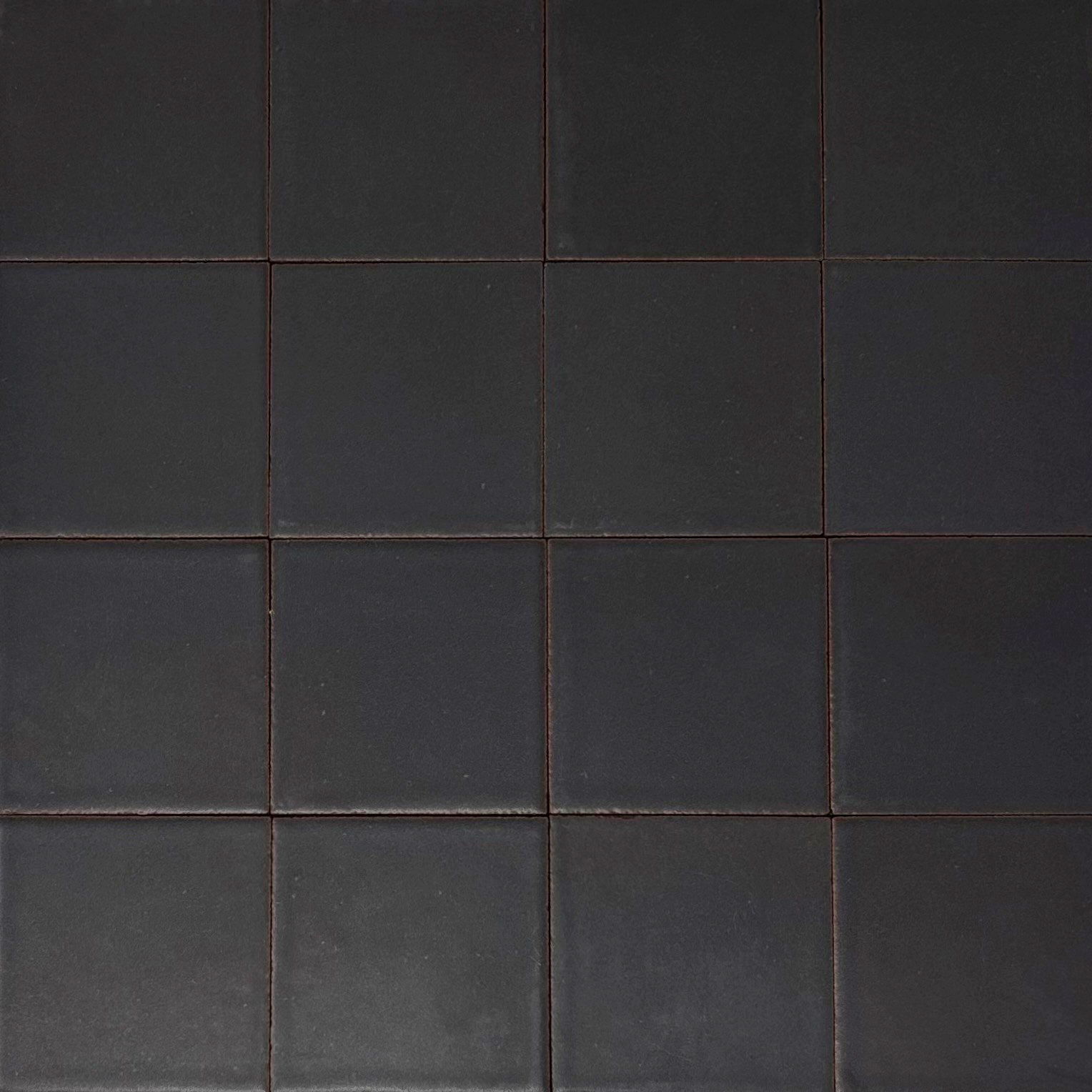

MT-47

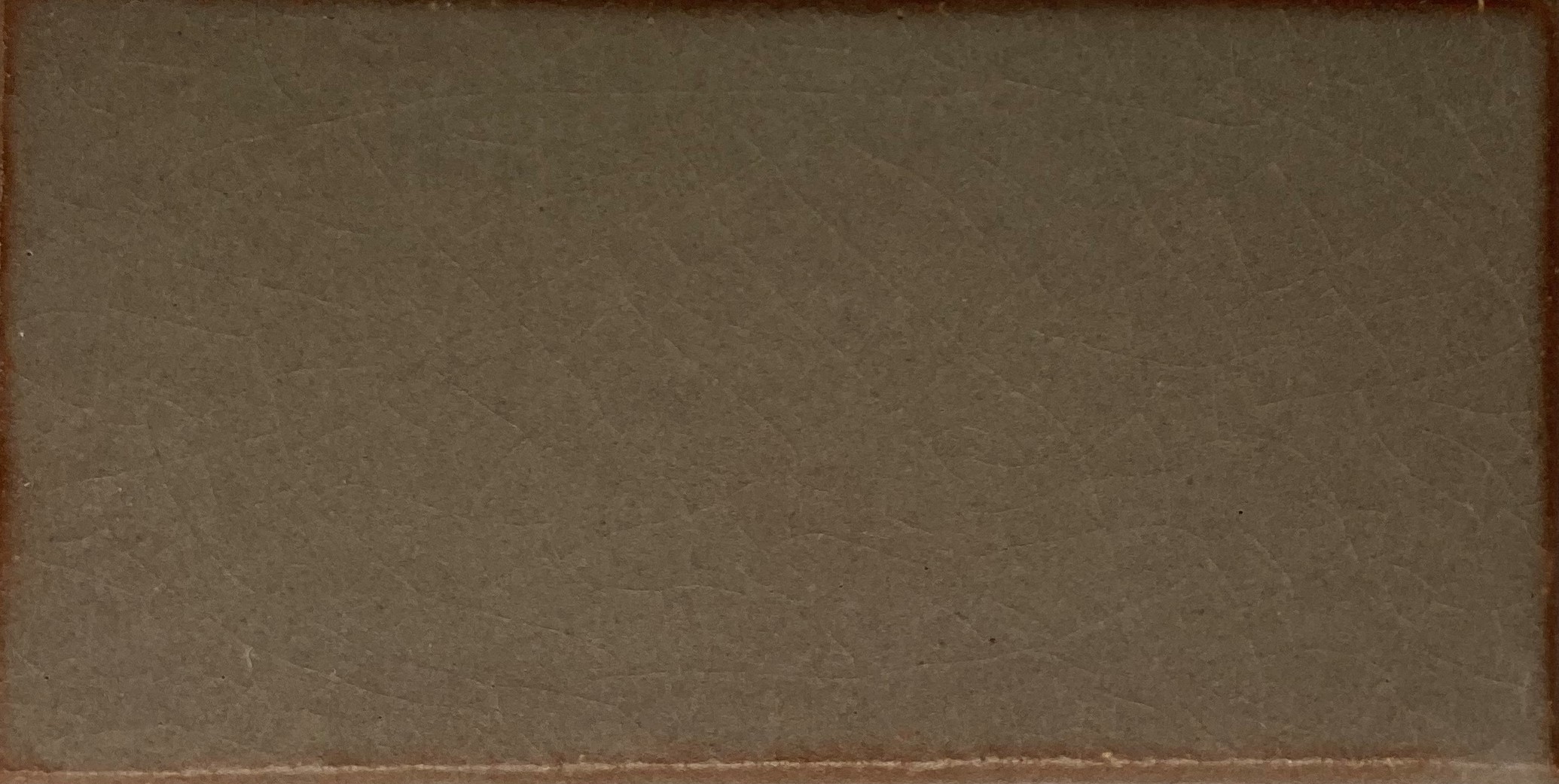

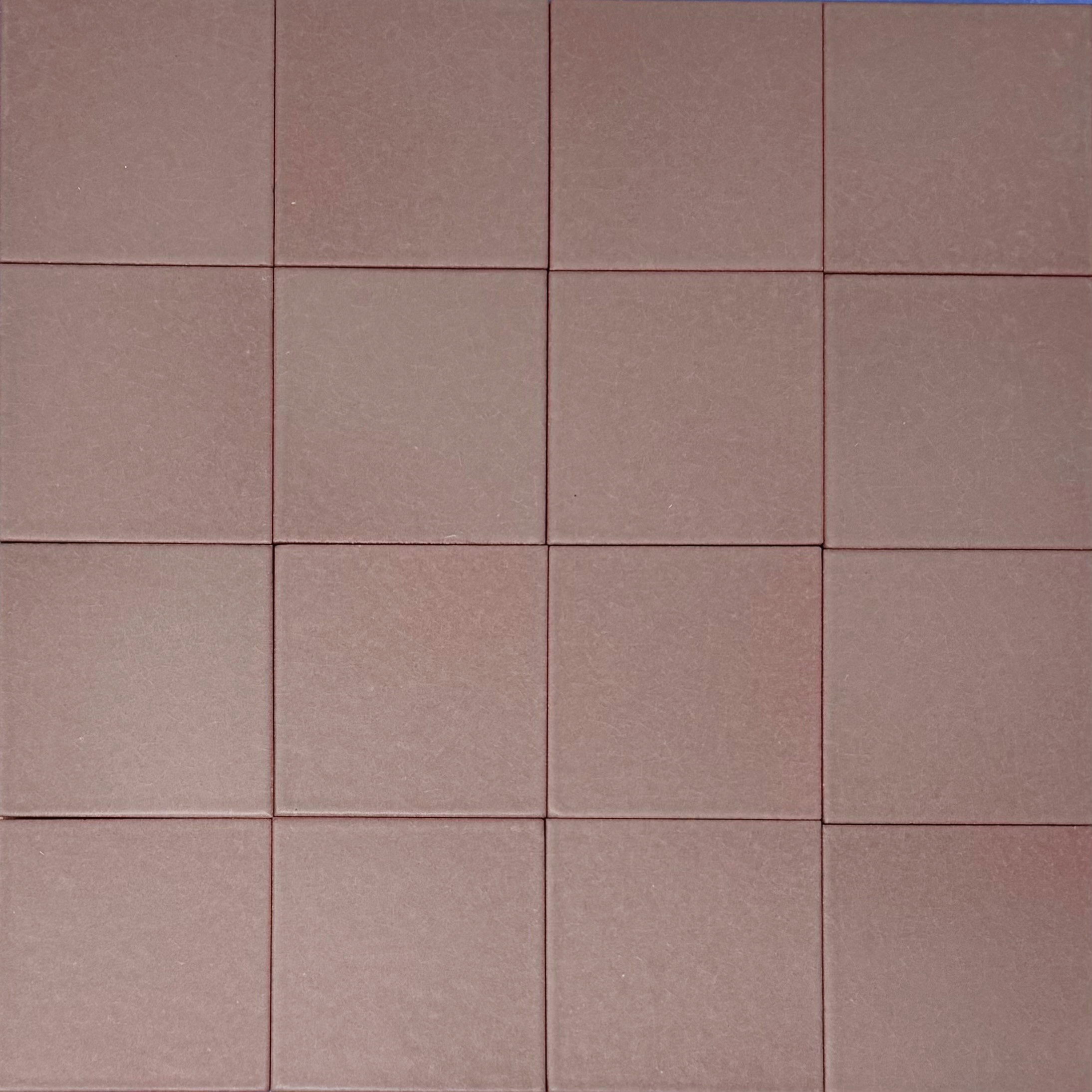

MT-48

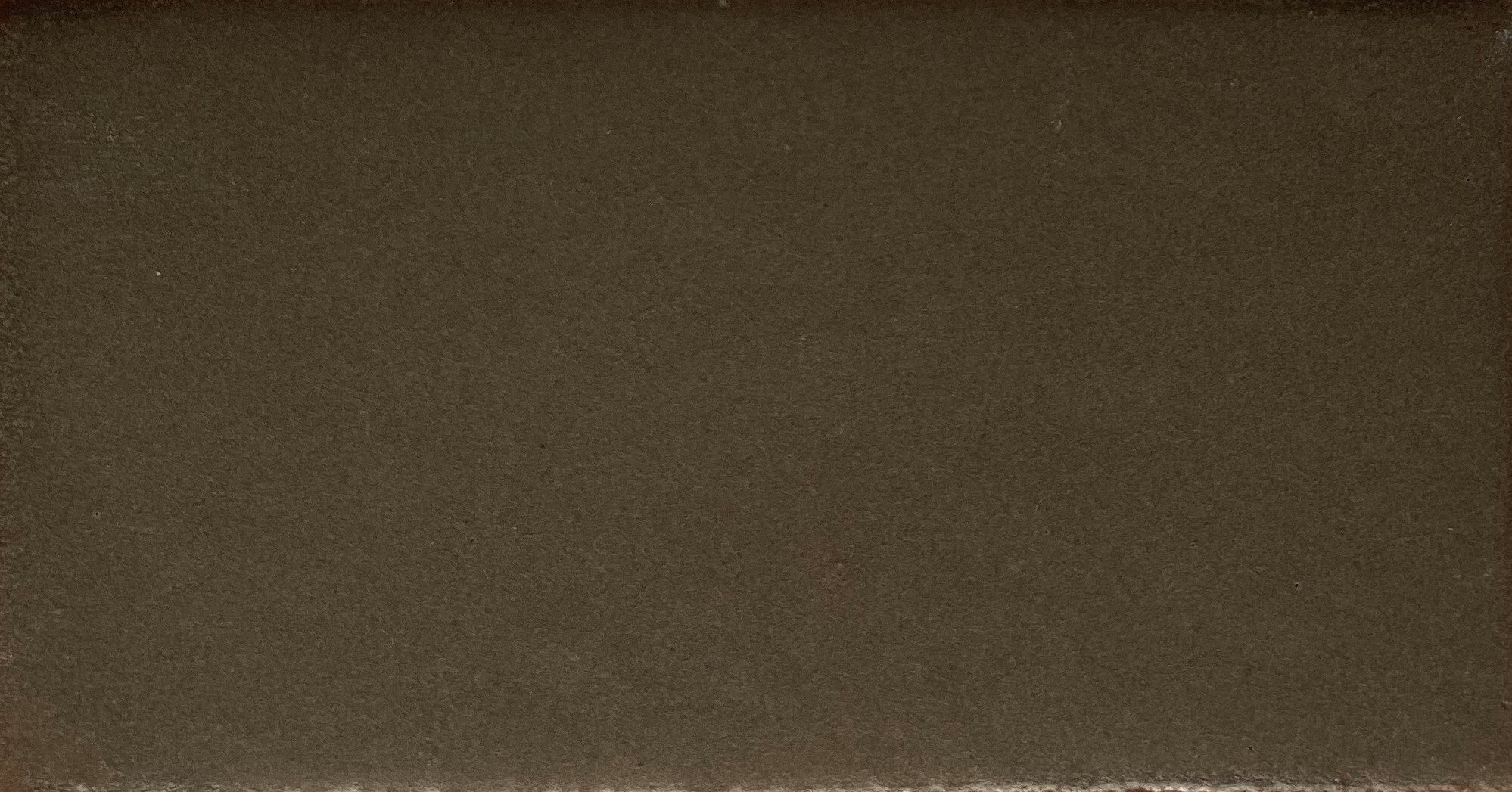

MT-49

MT-50

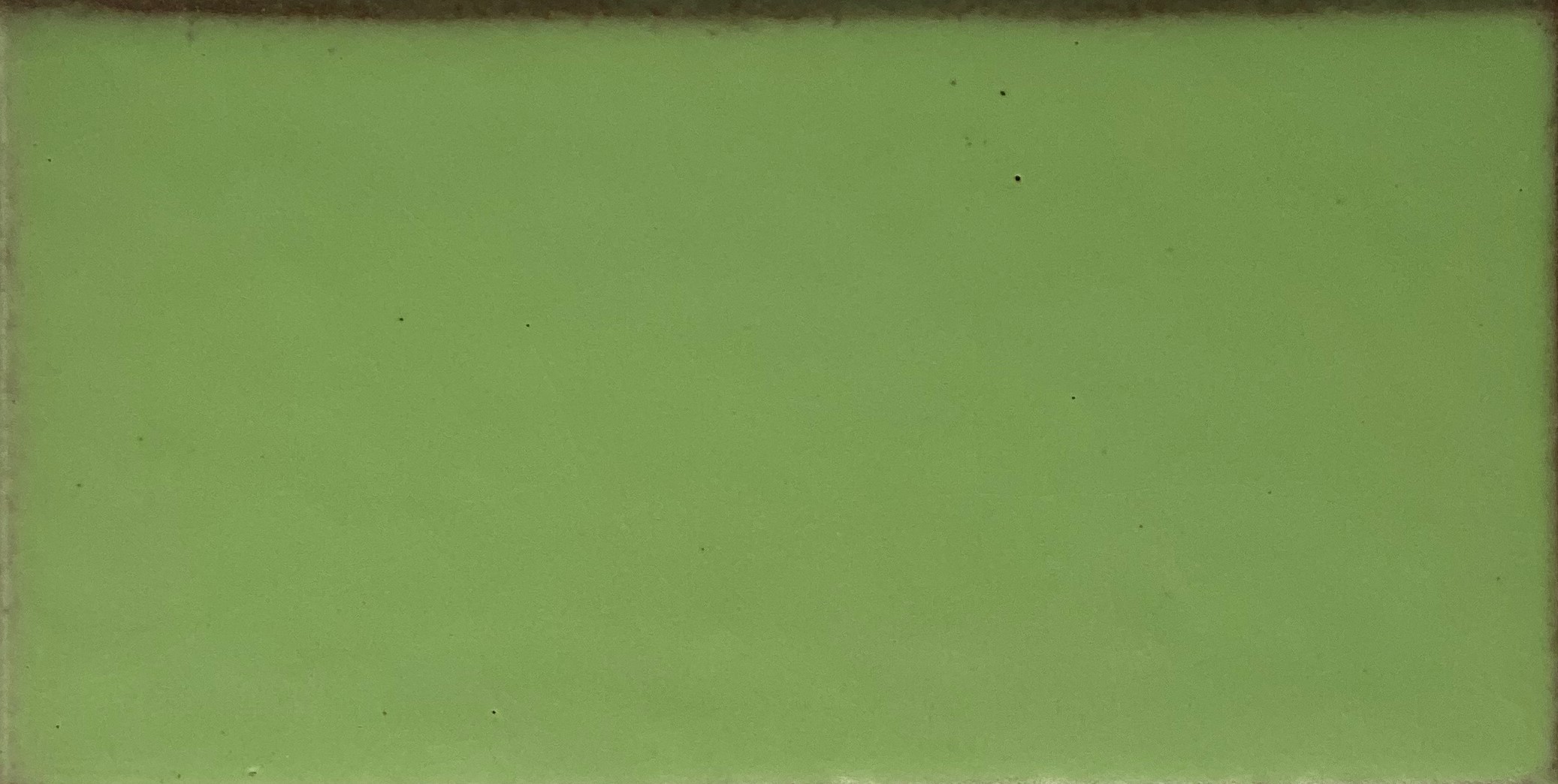

MT-51

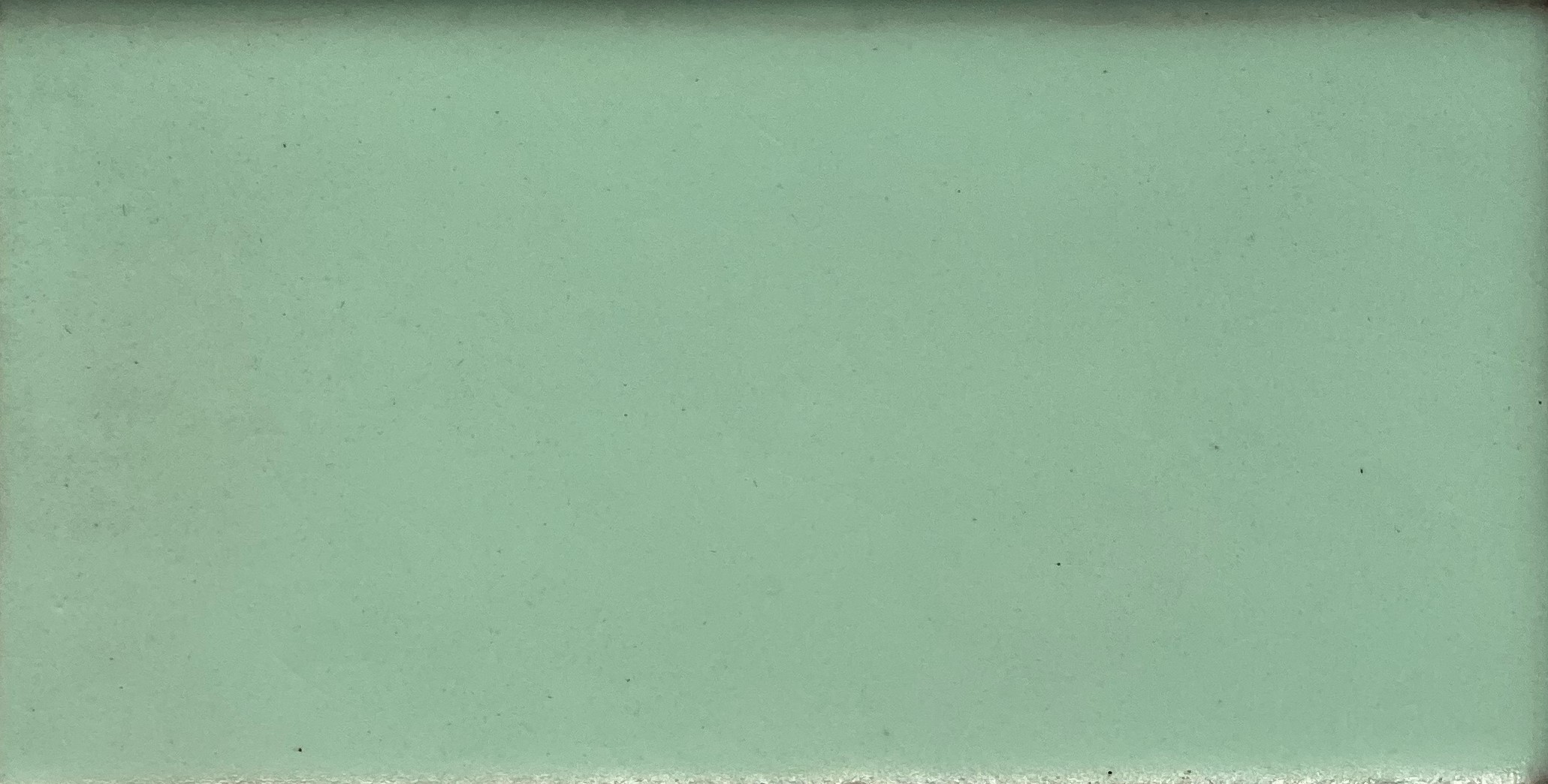

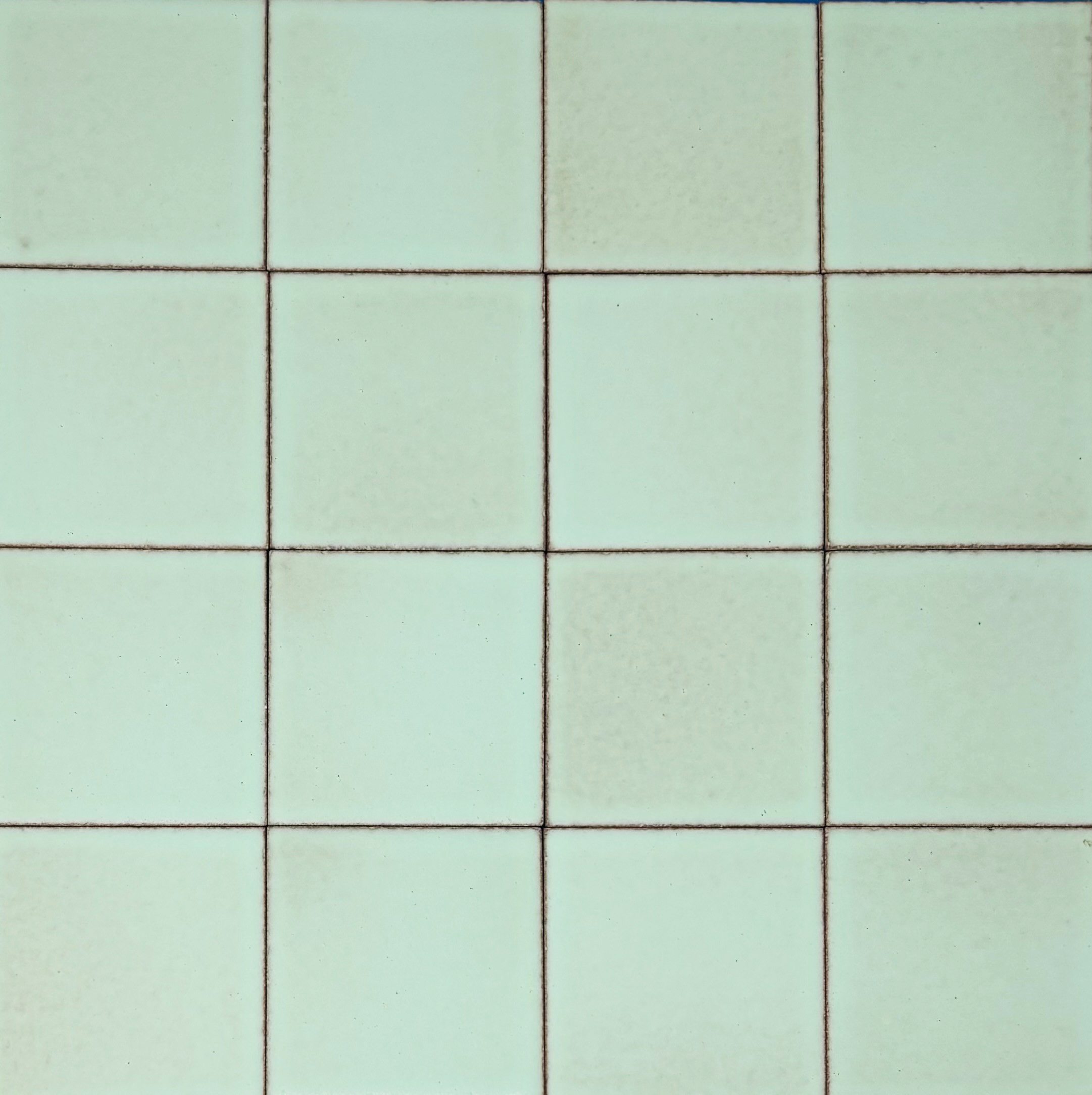

MT-52

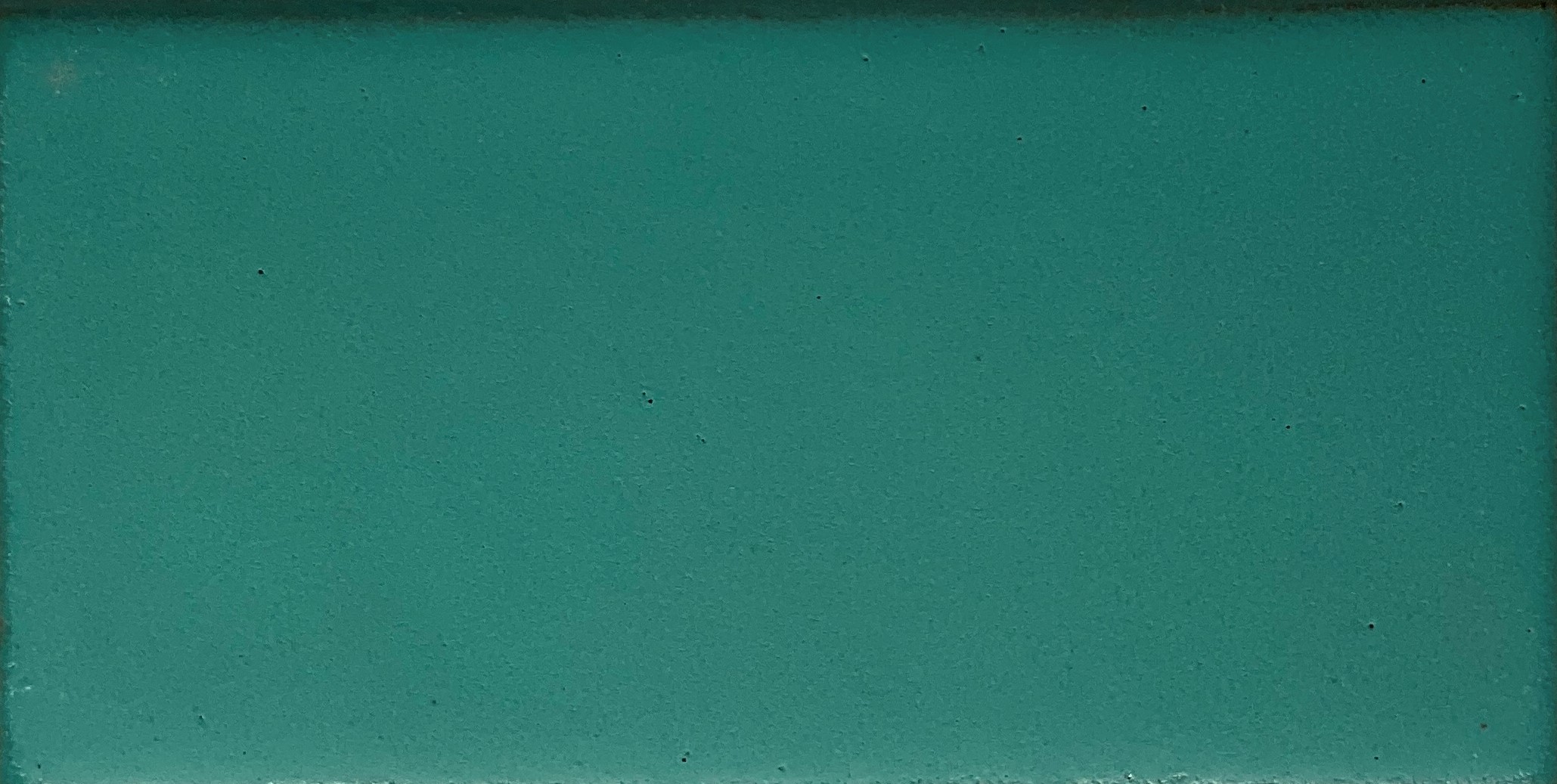

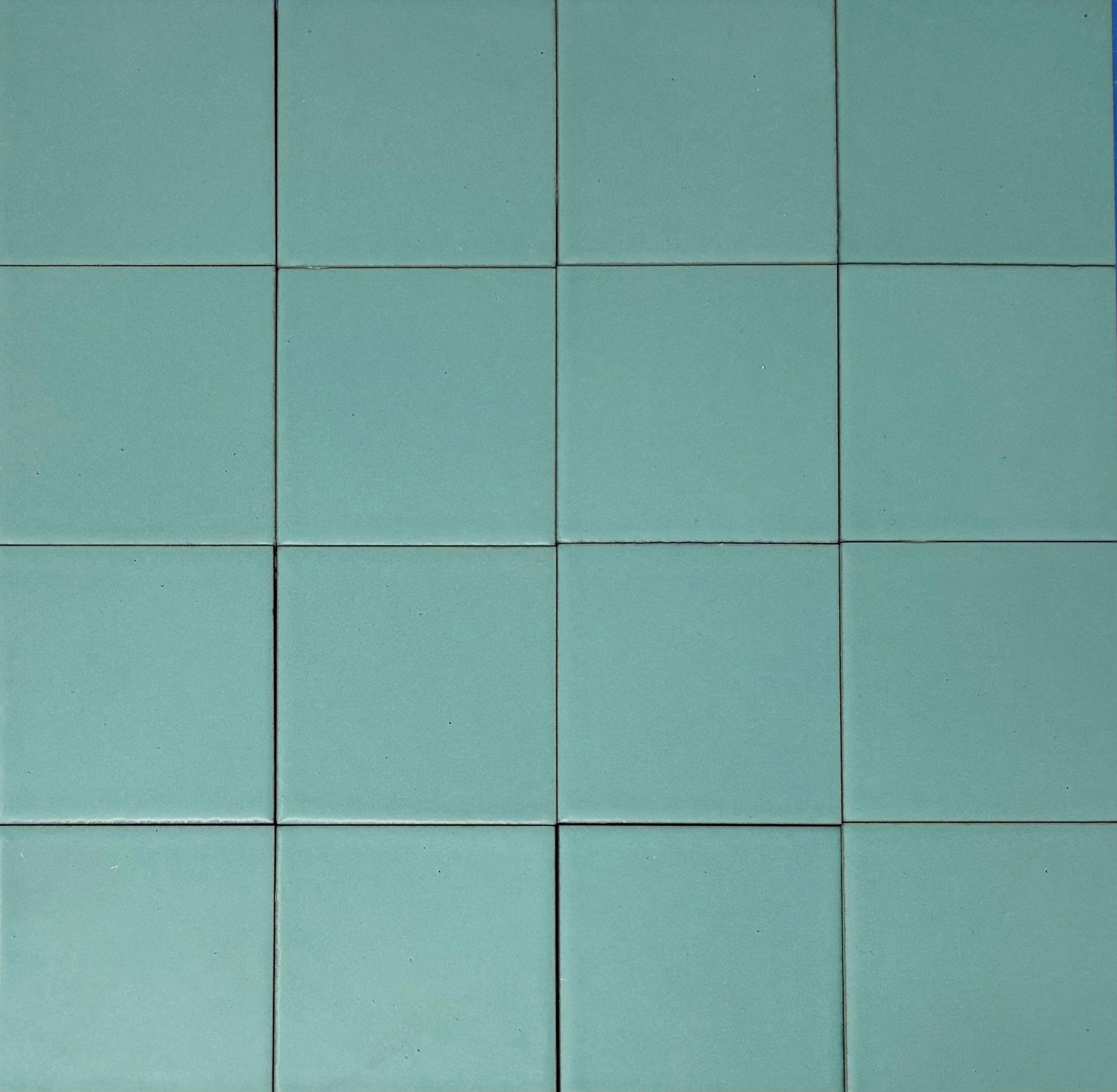

MT-53

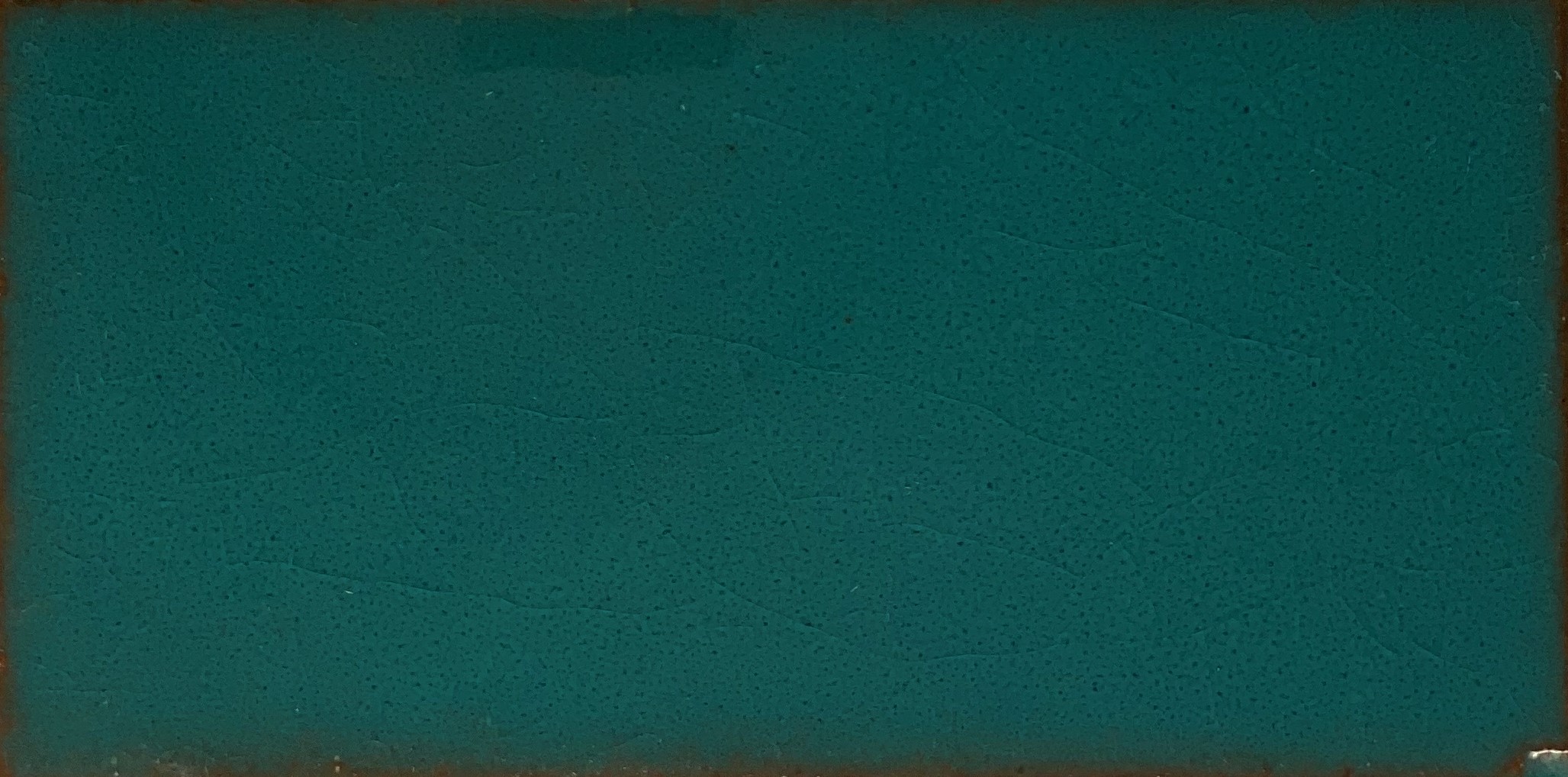

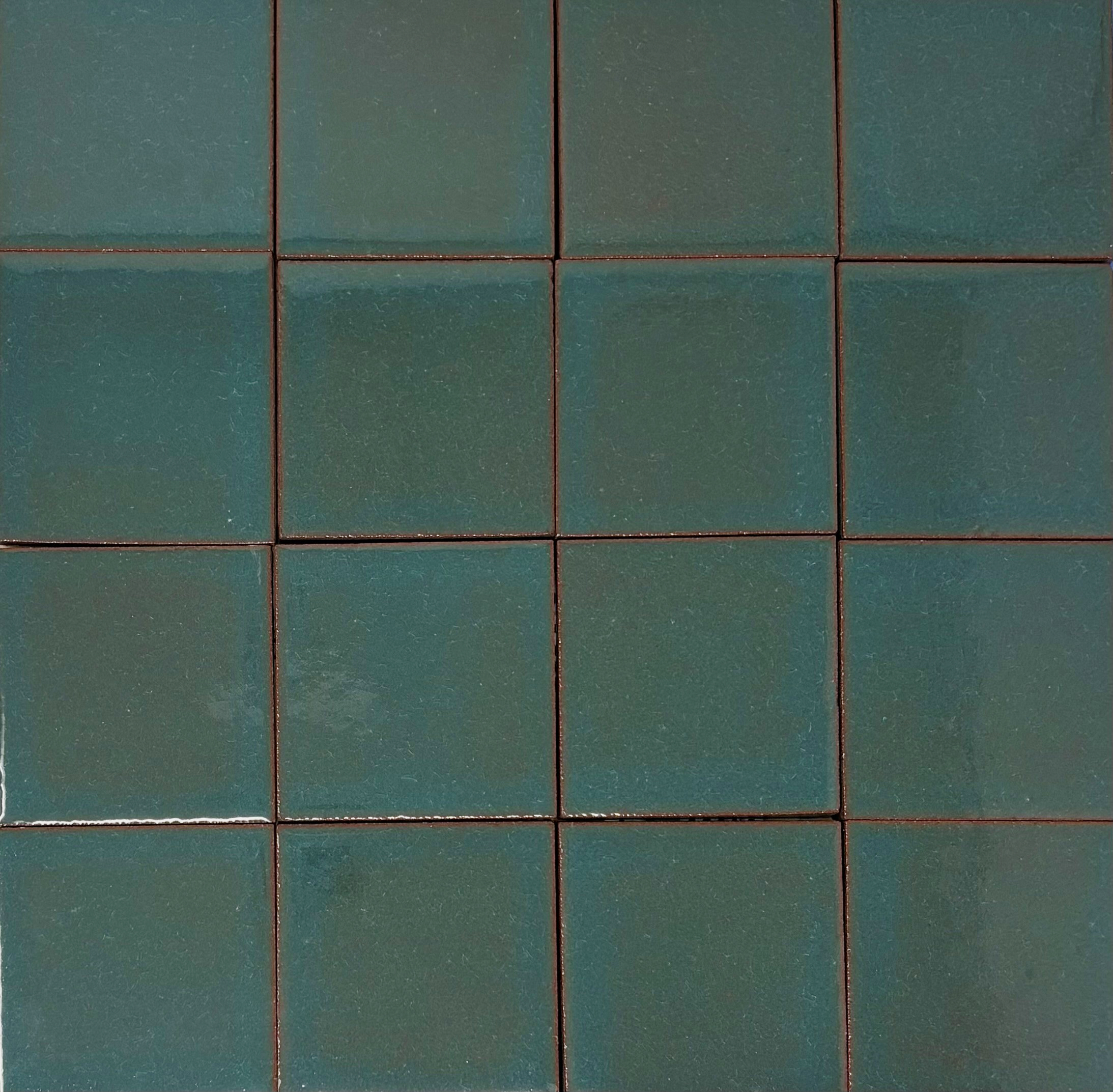

MT-54

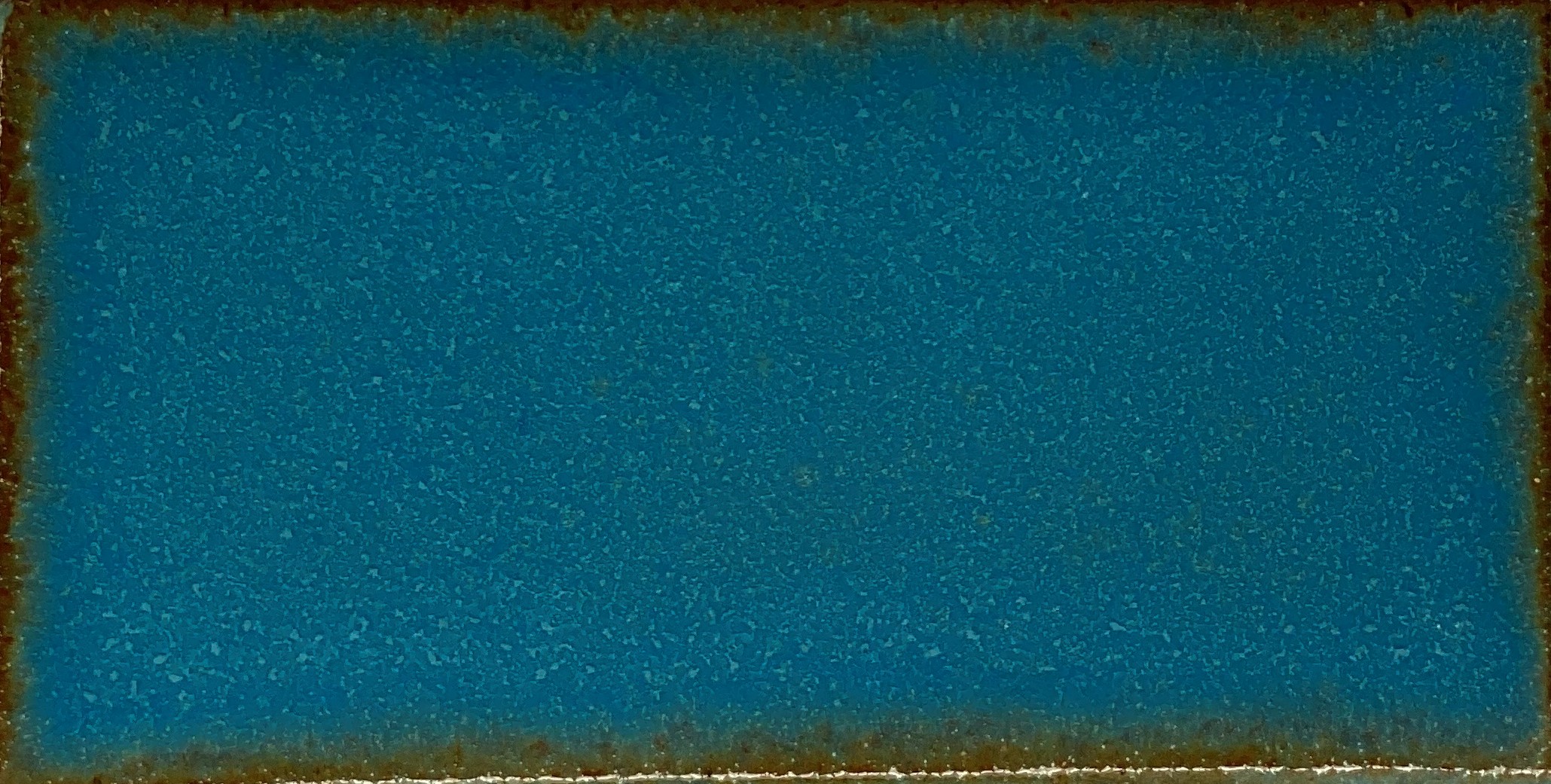

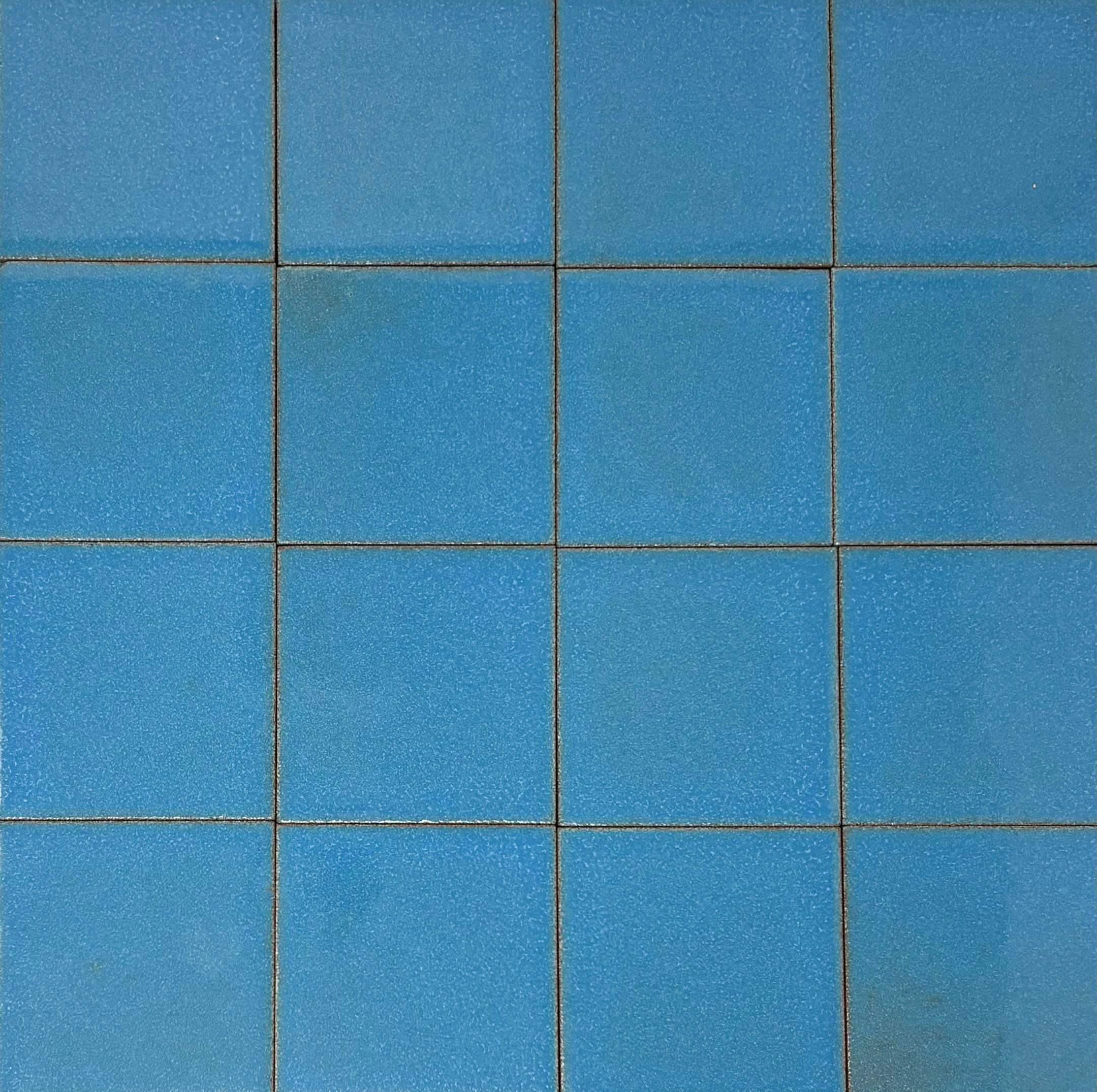

MT-55

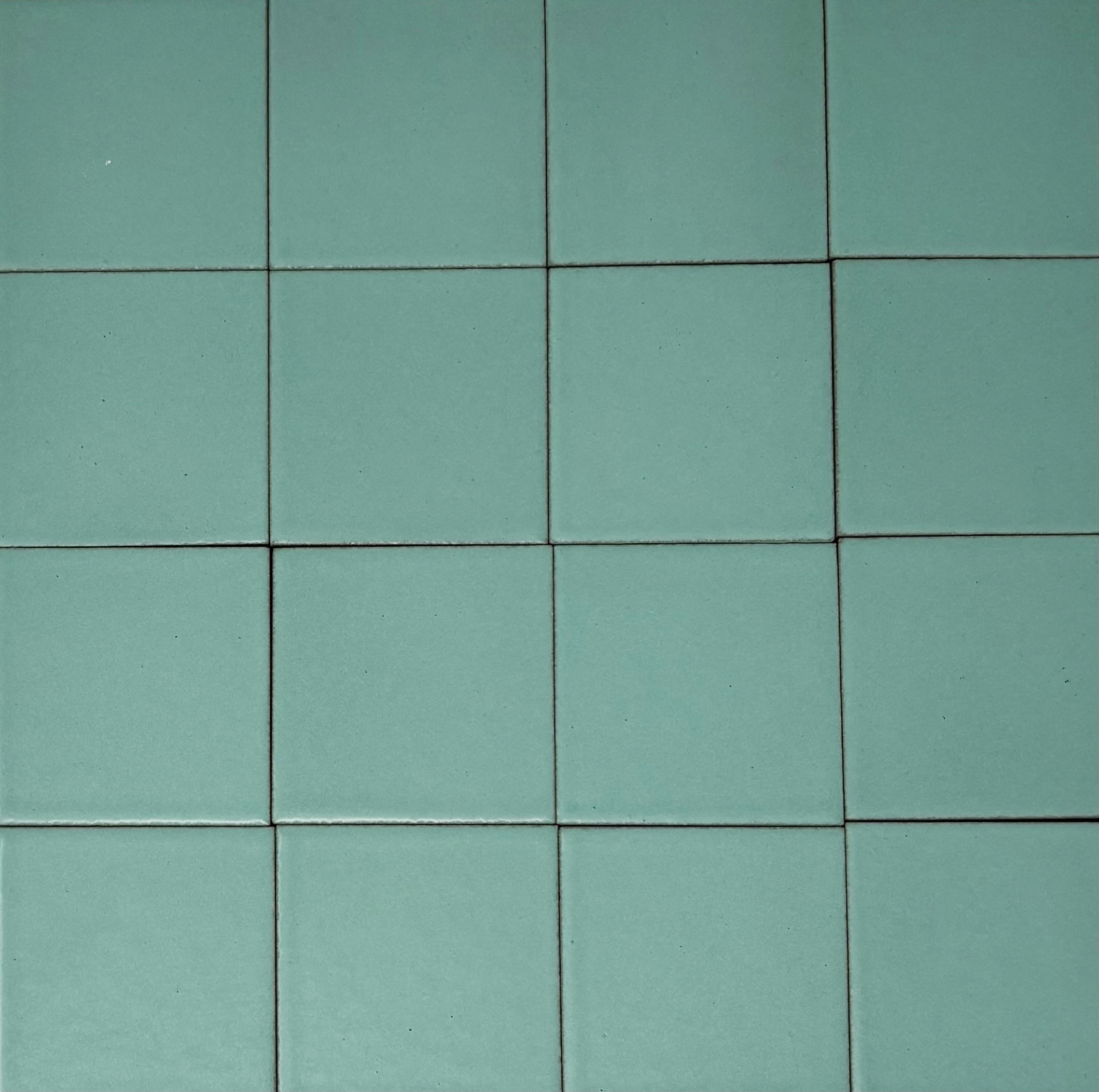

MT-56

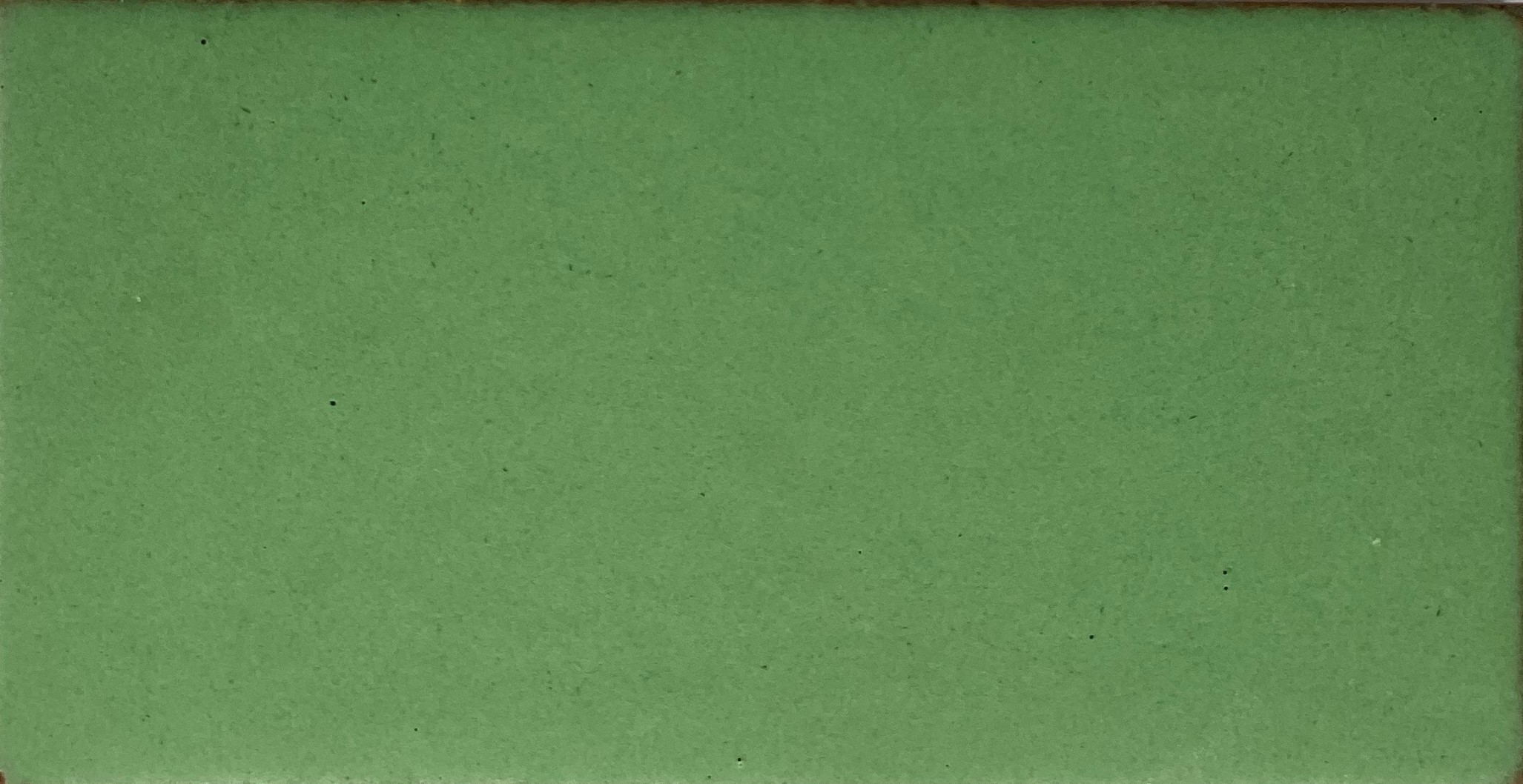

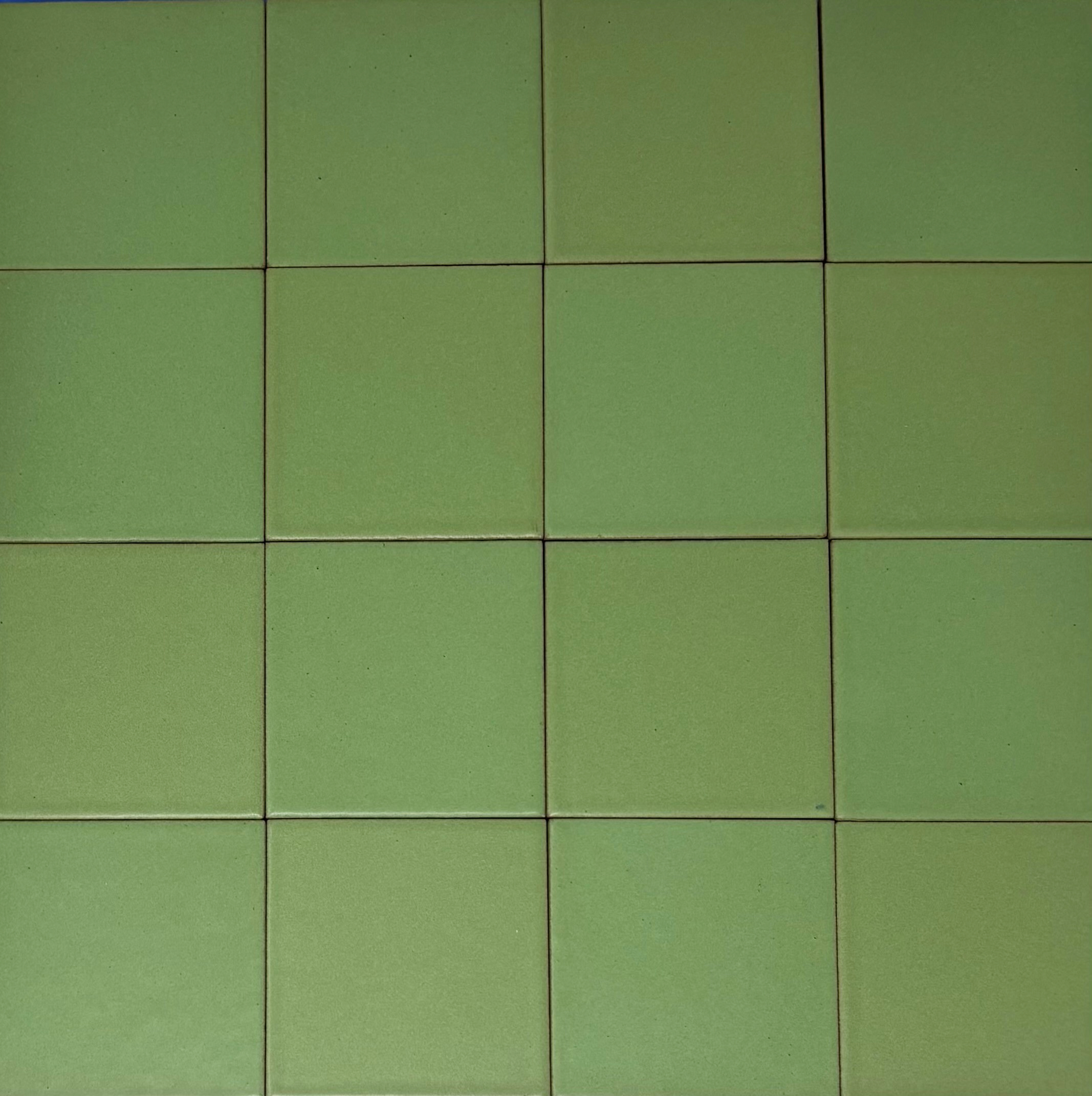

MT-57

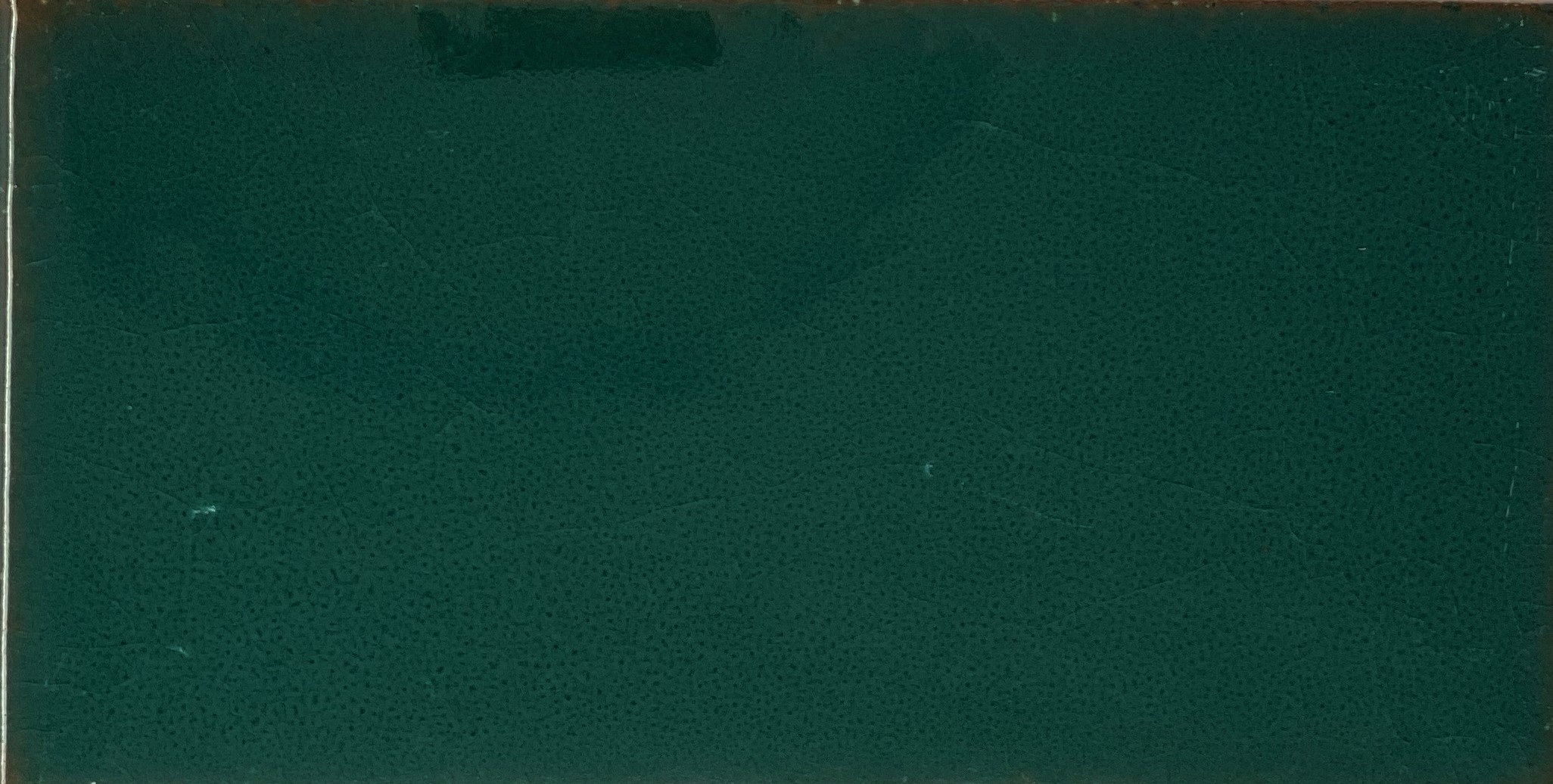

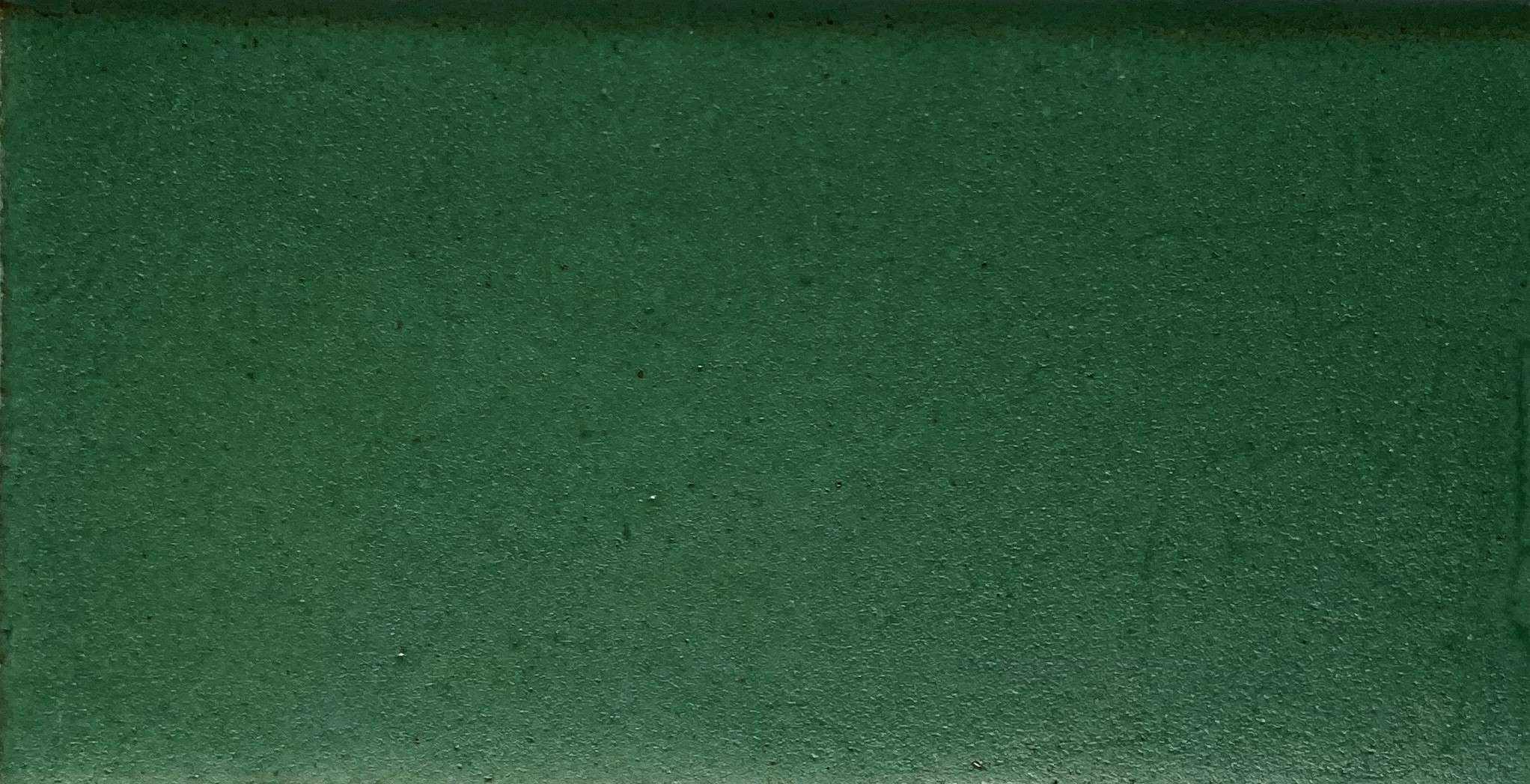

MT-58

MT-59

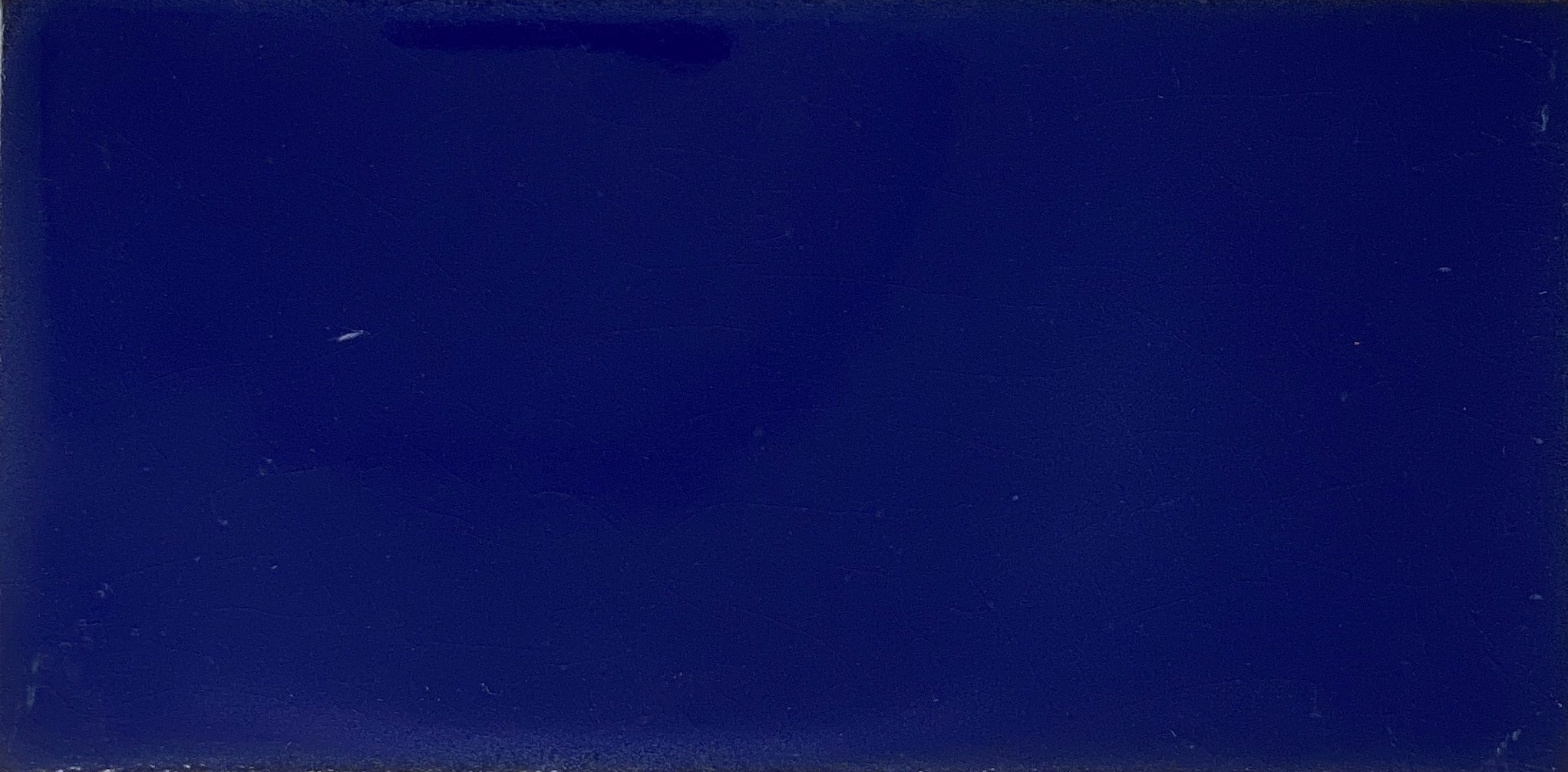

MT-60

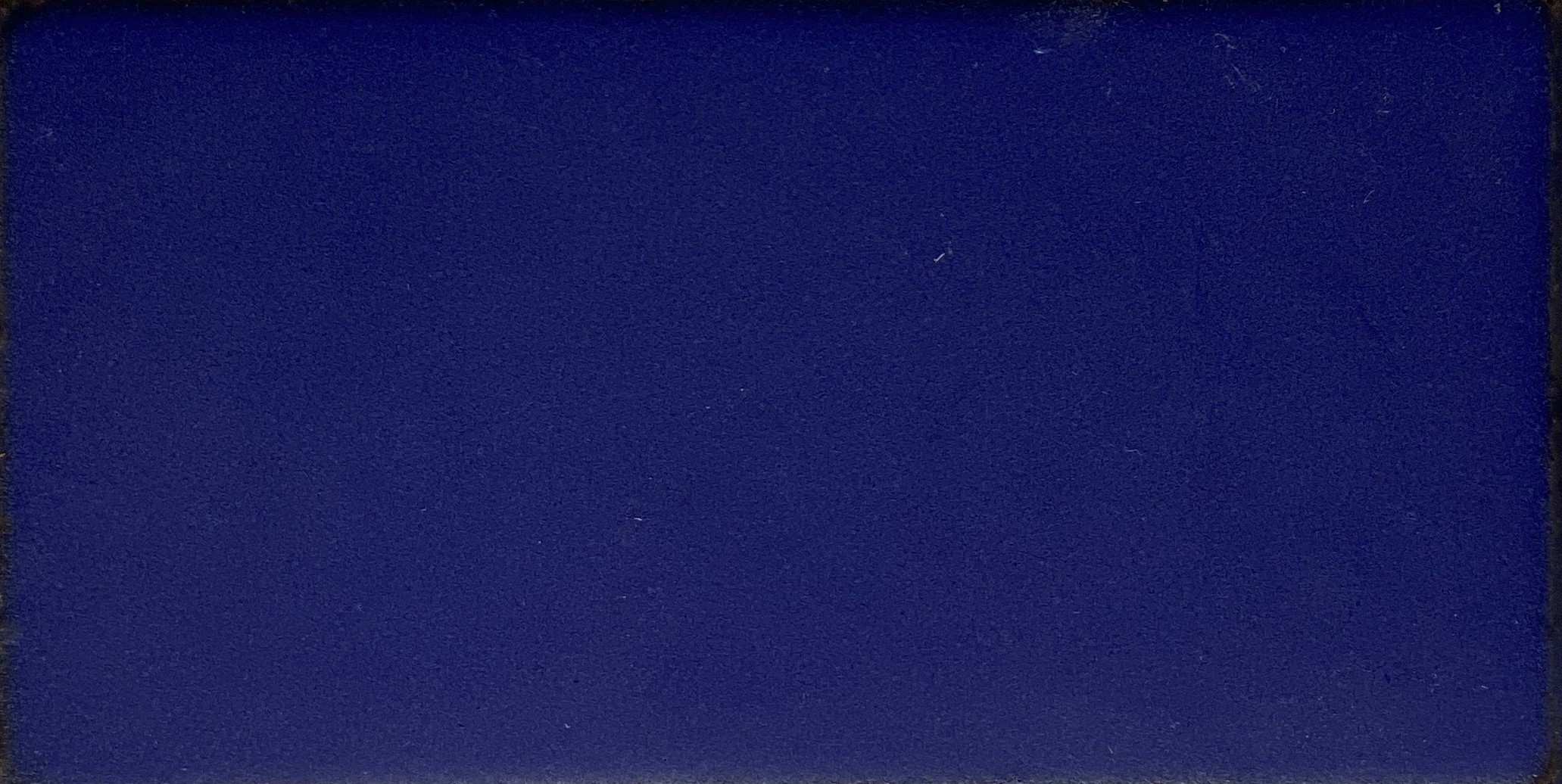

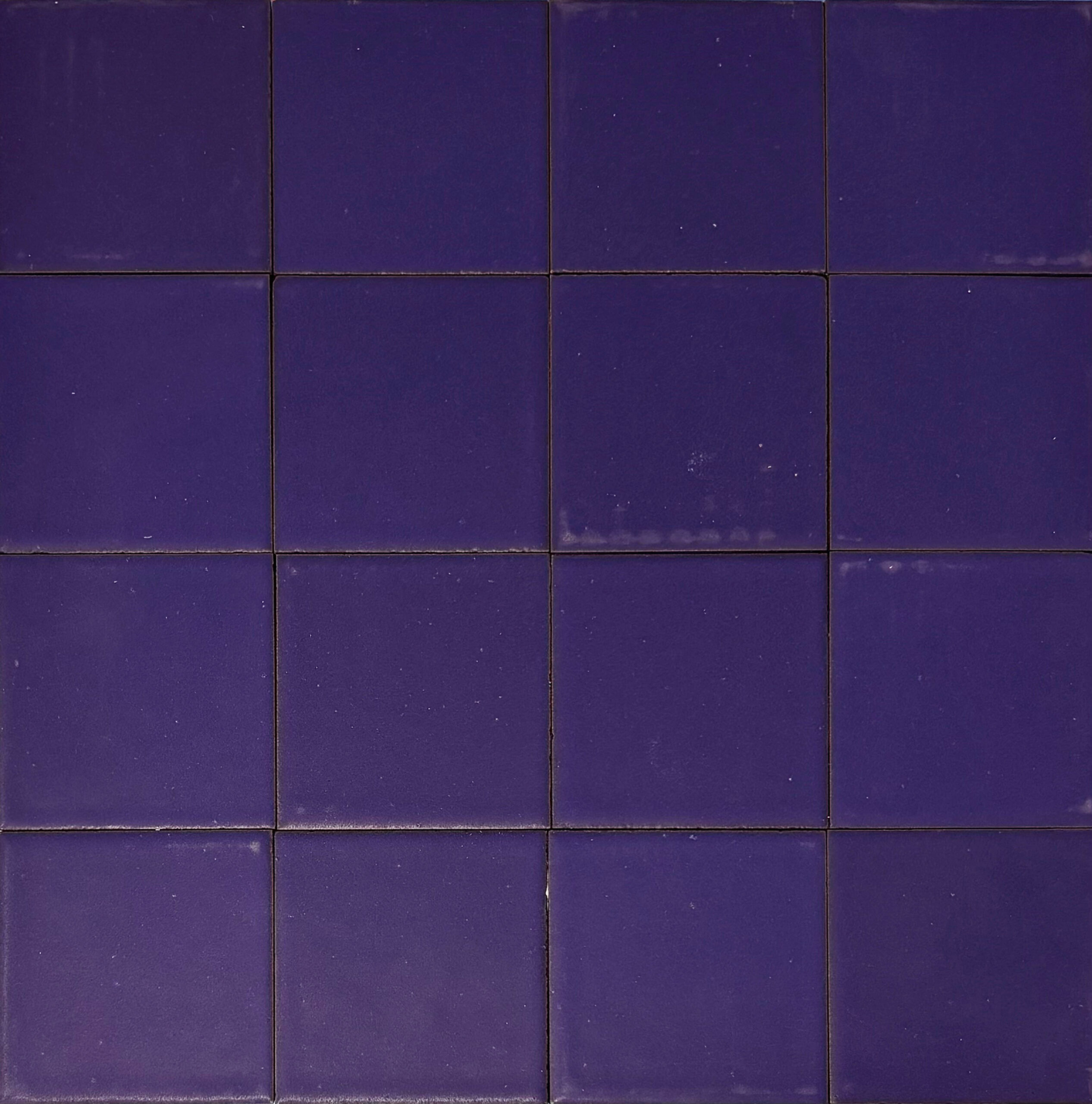

MT-62

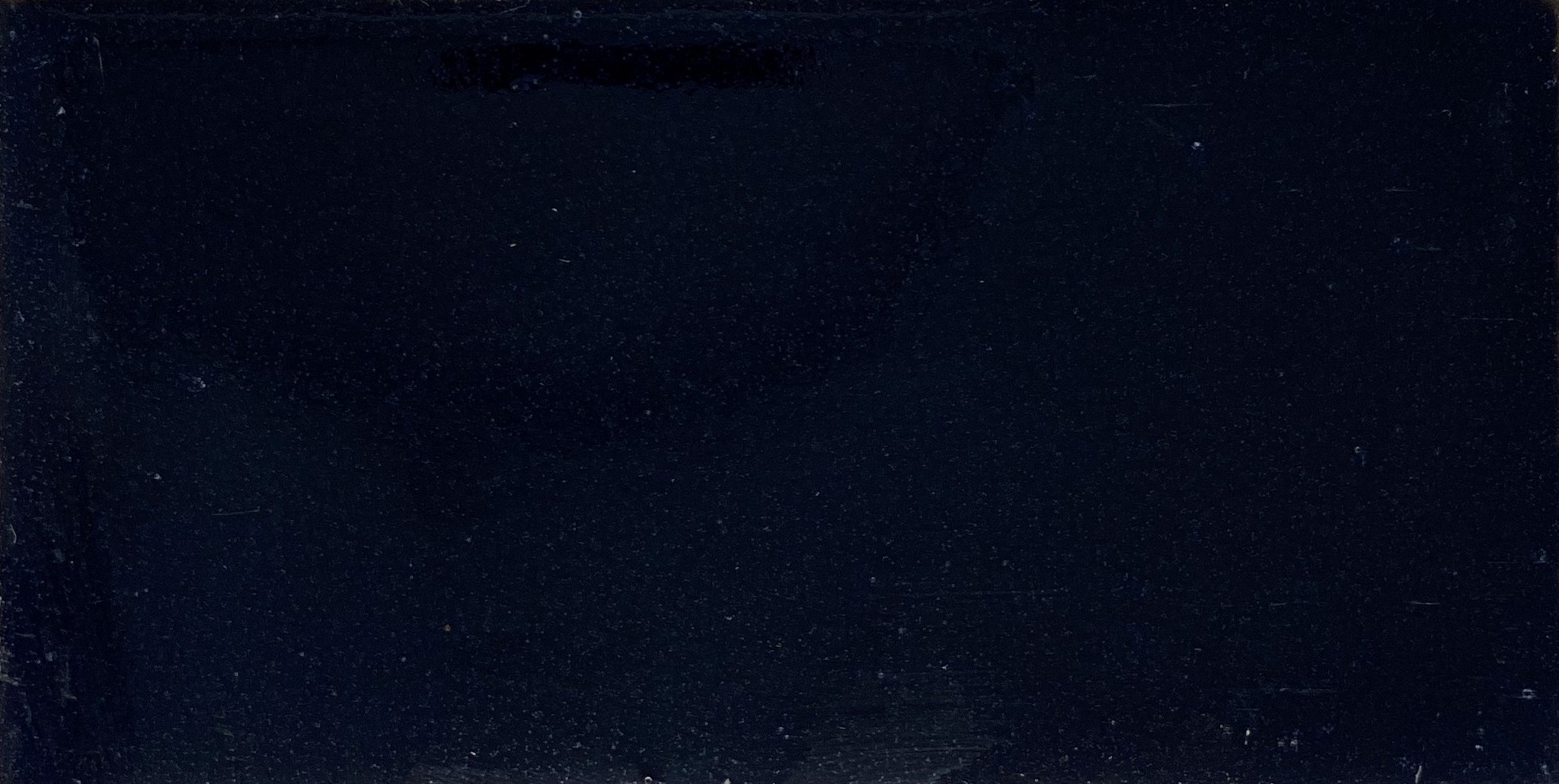

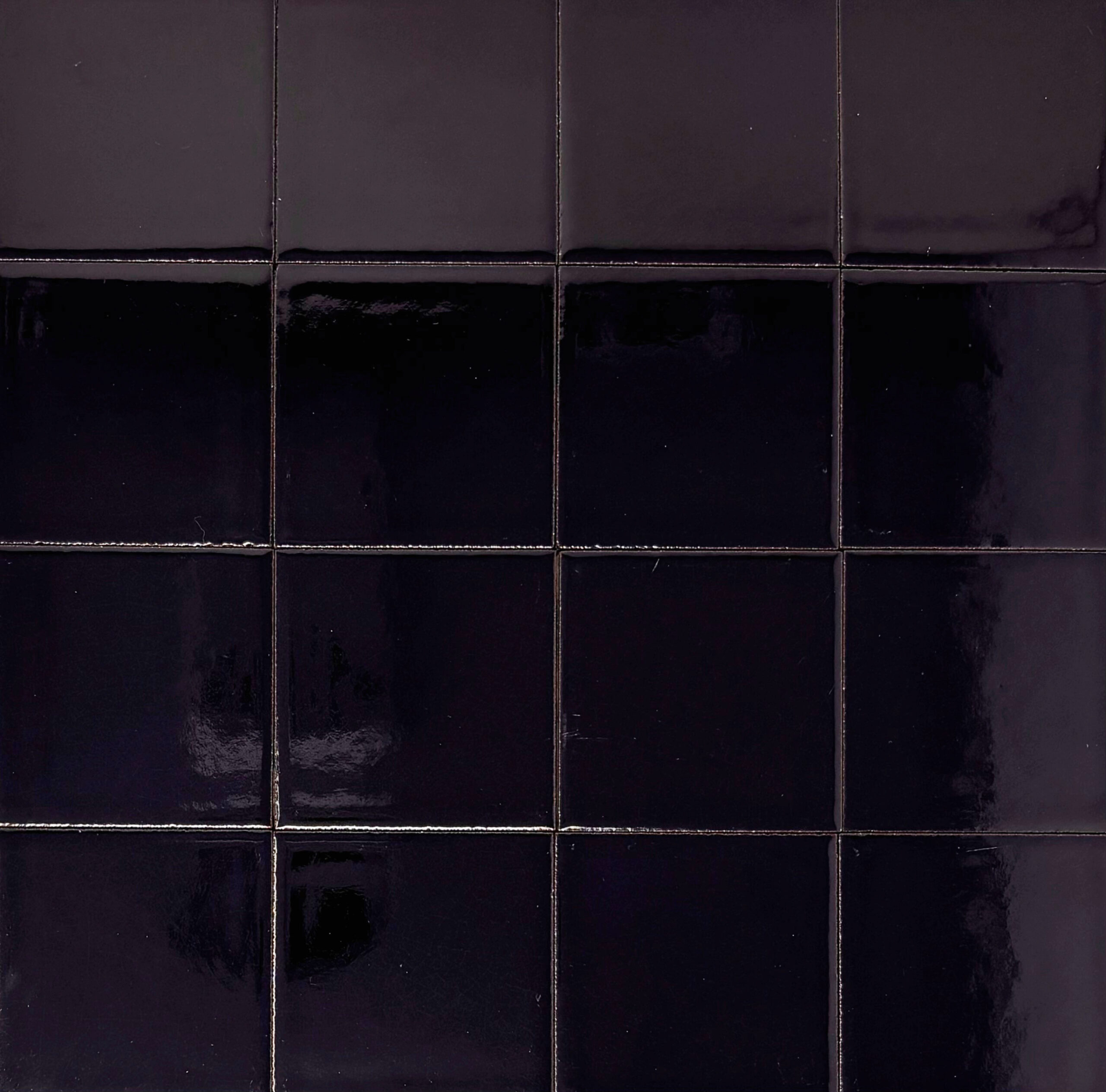

MT-63

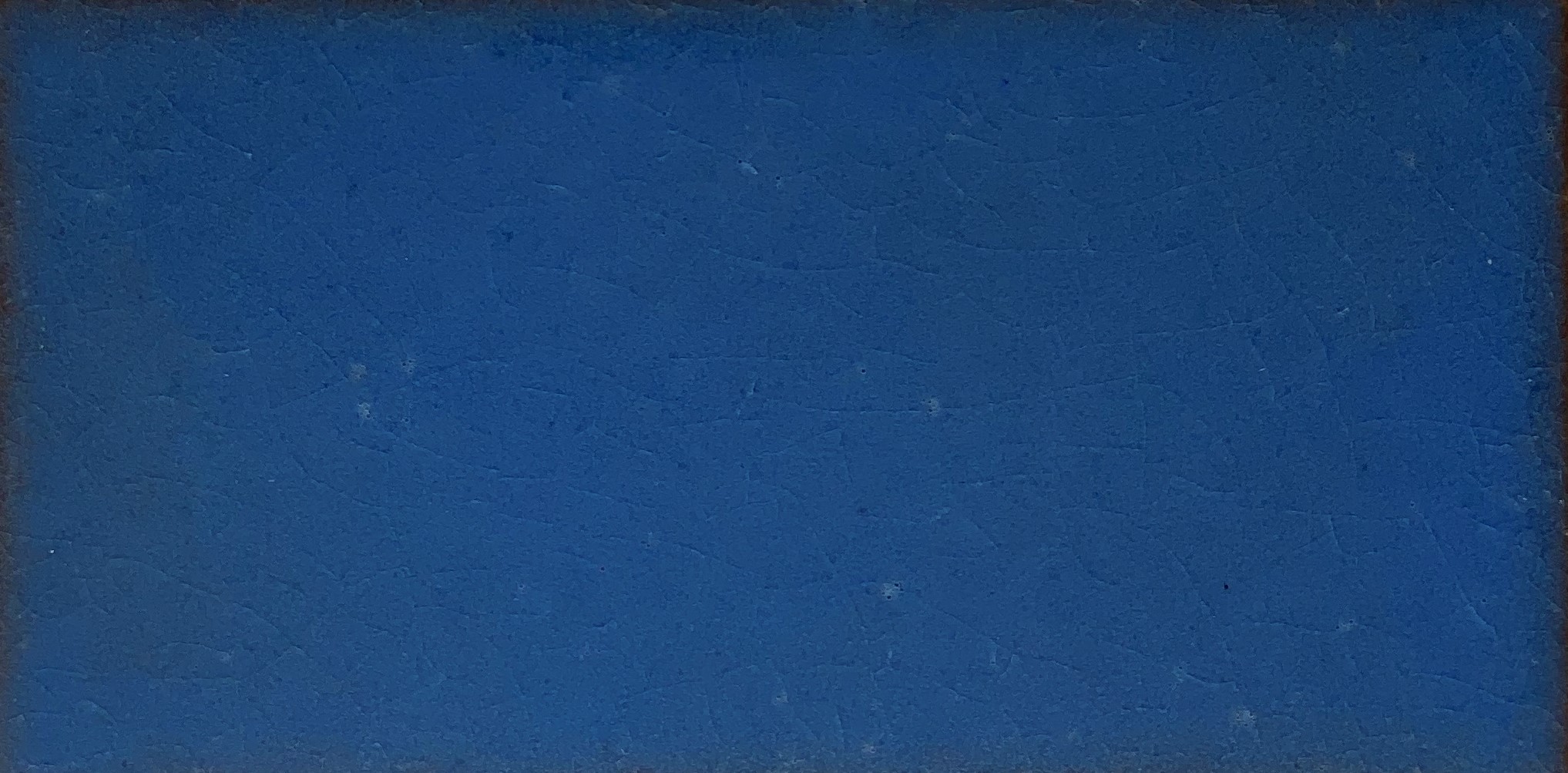

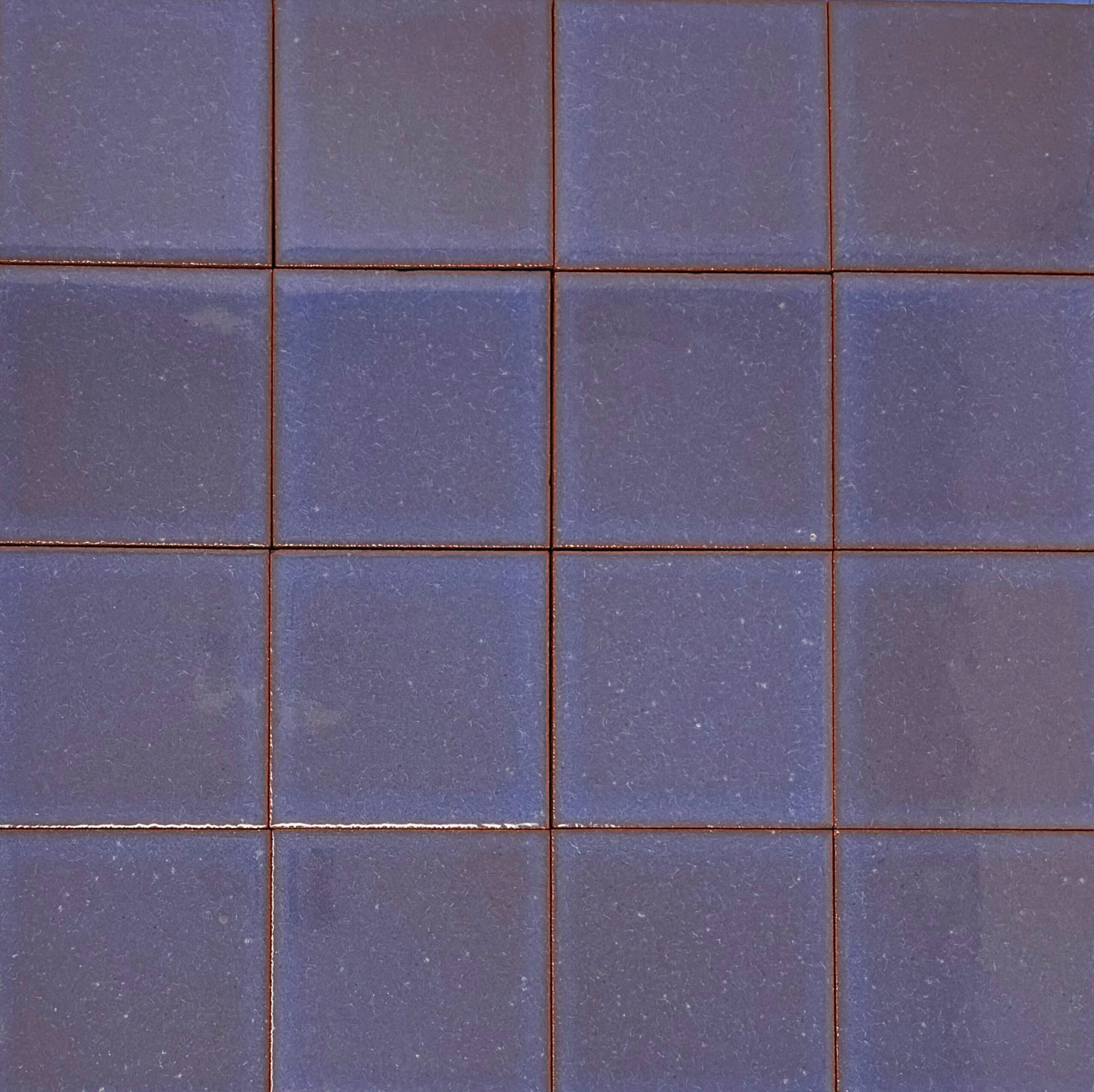

MT-64

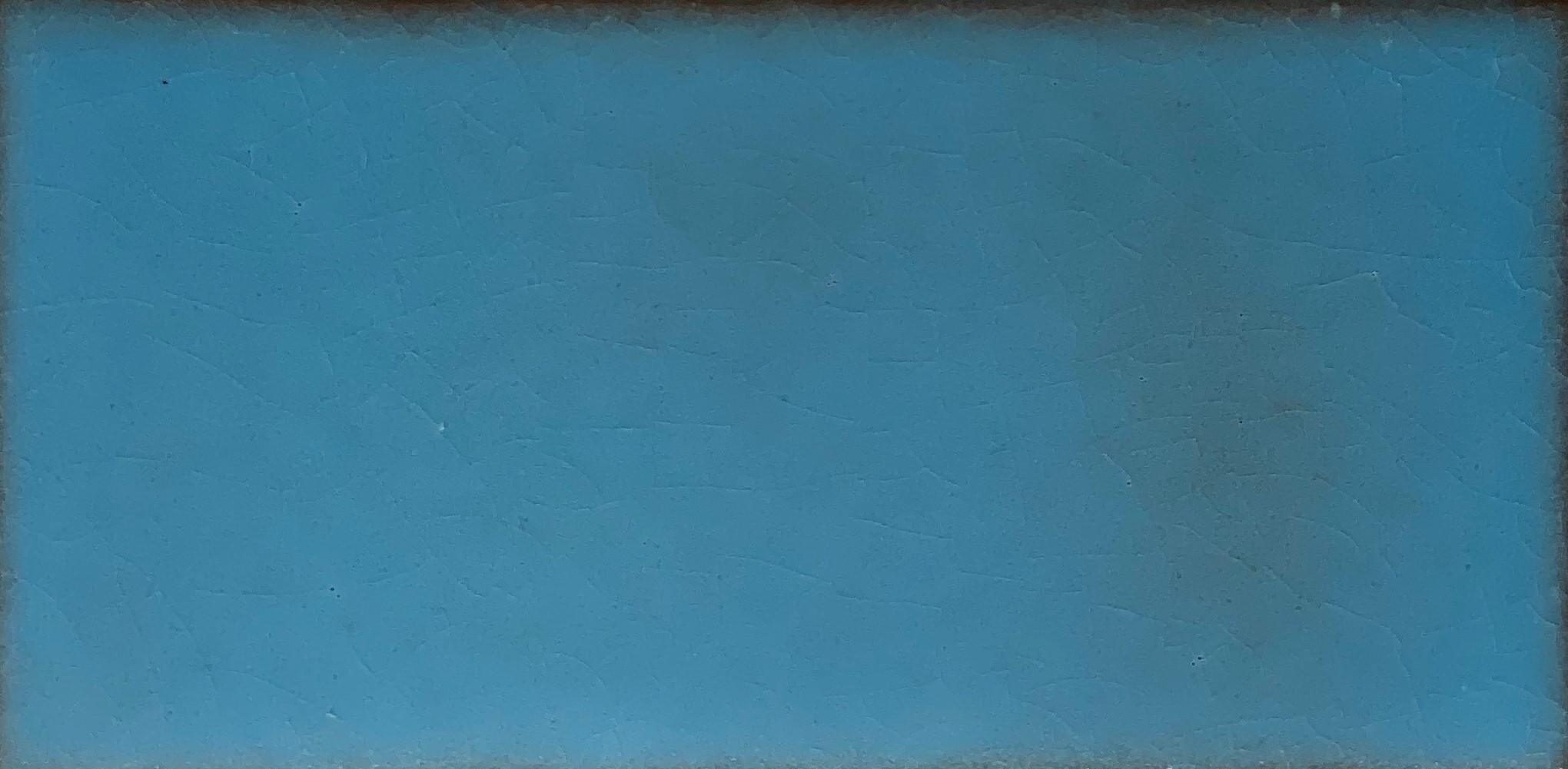

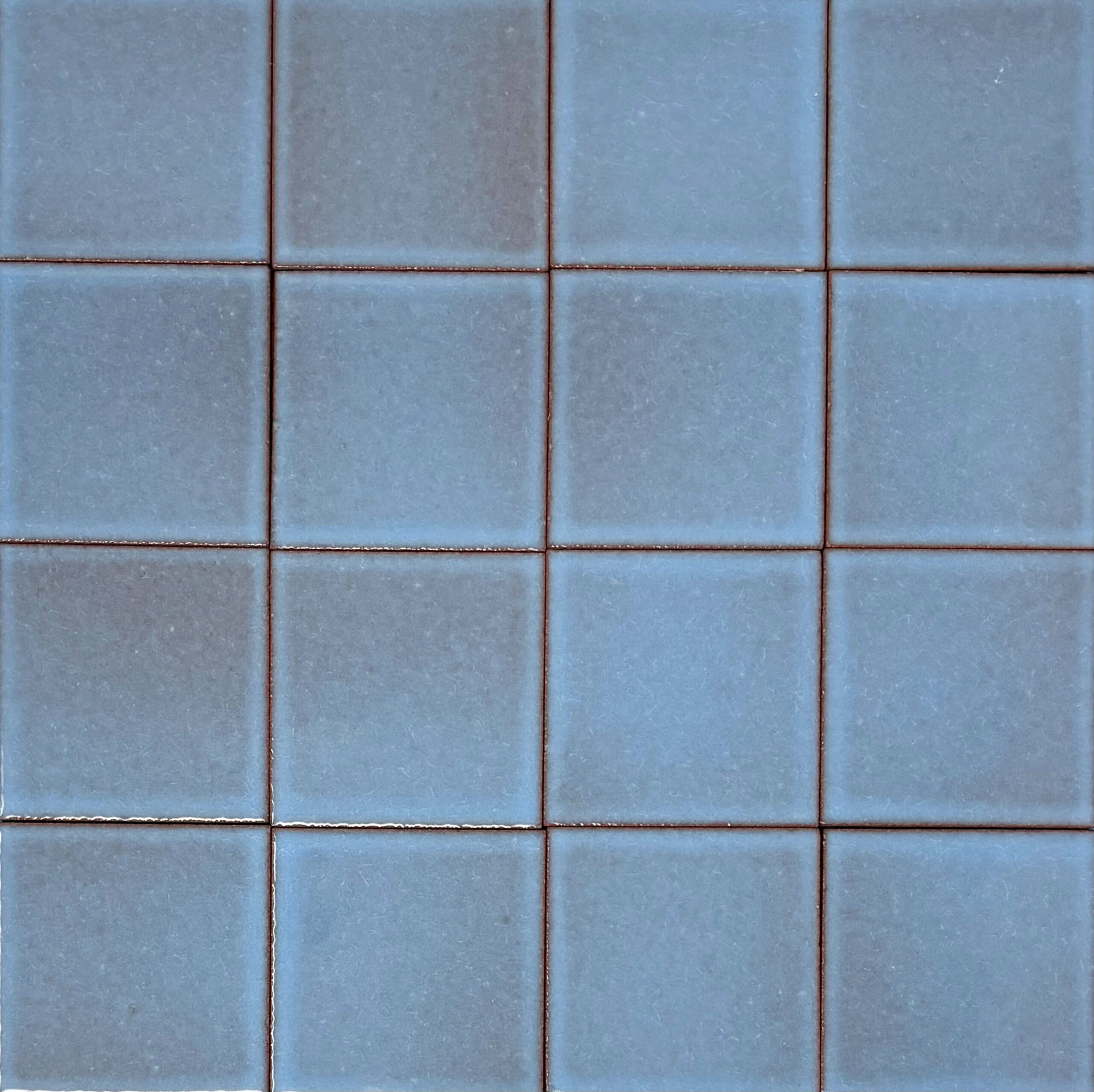

MT-65

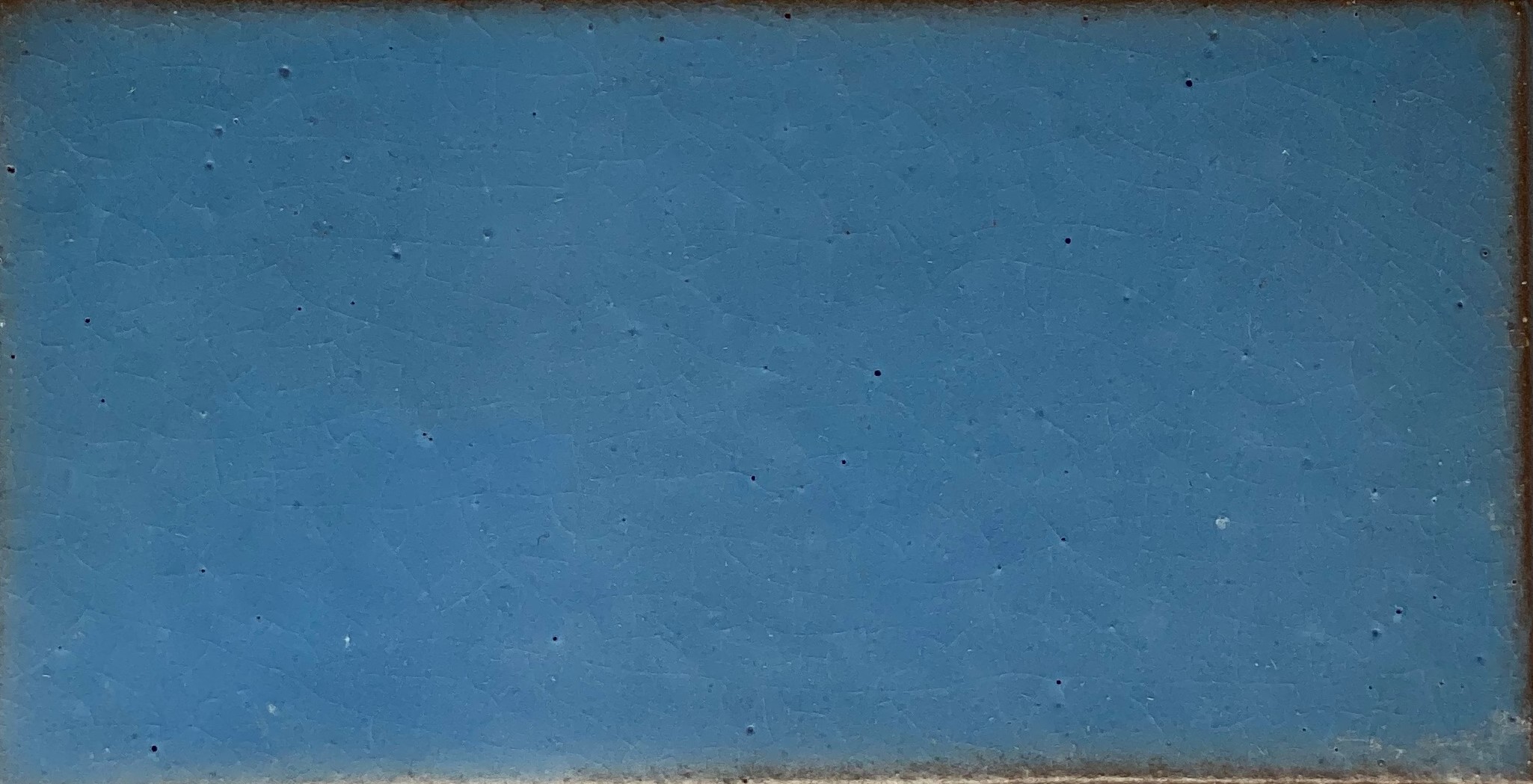

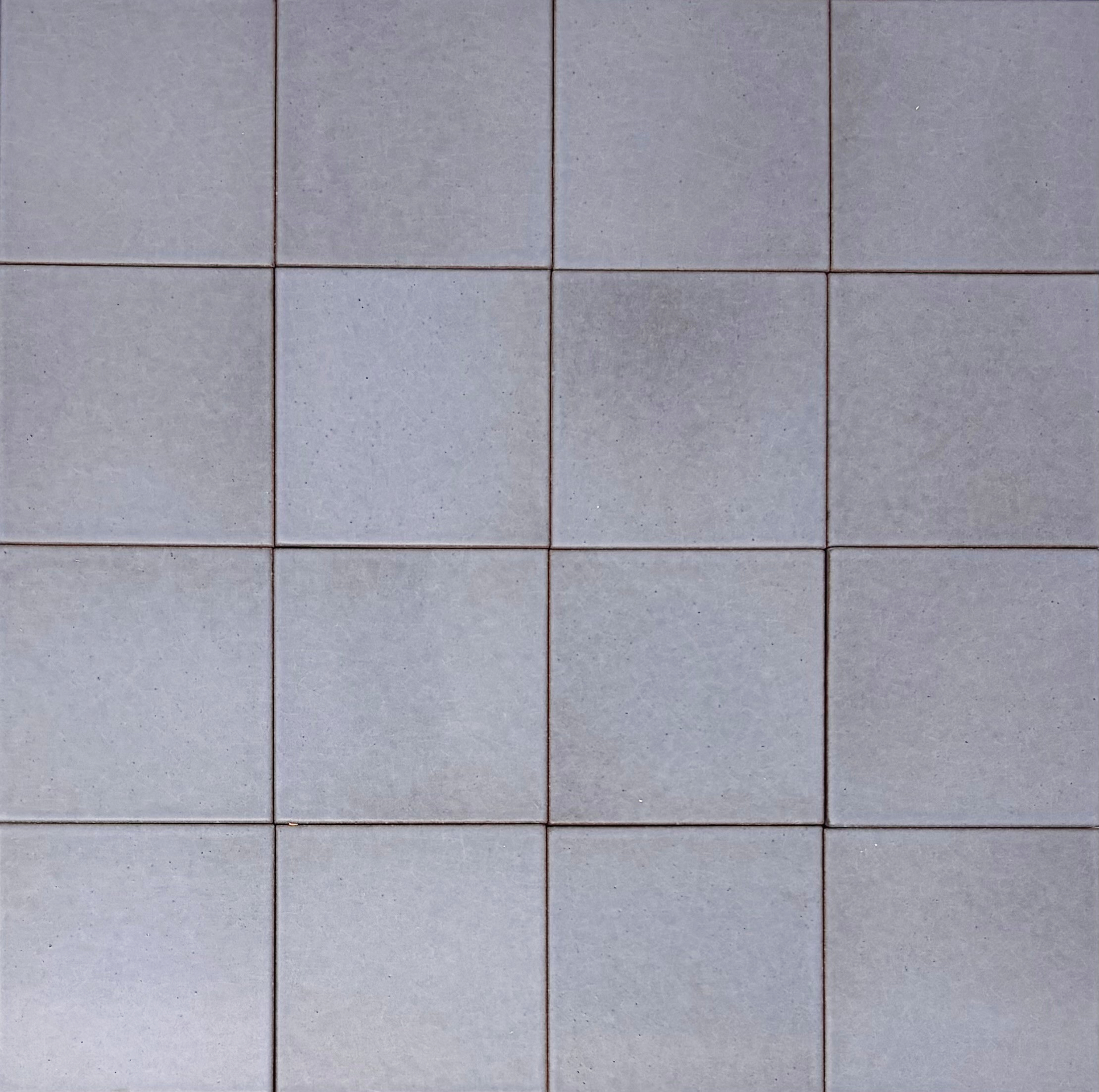

MT-66

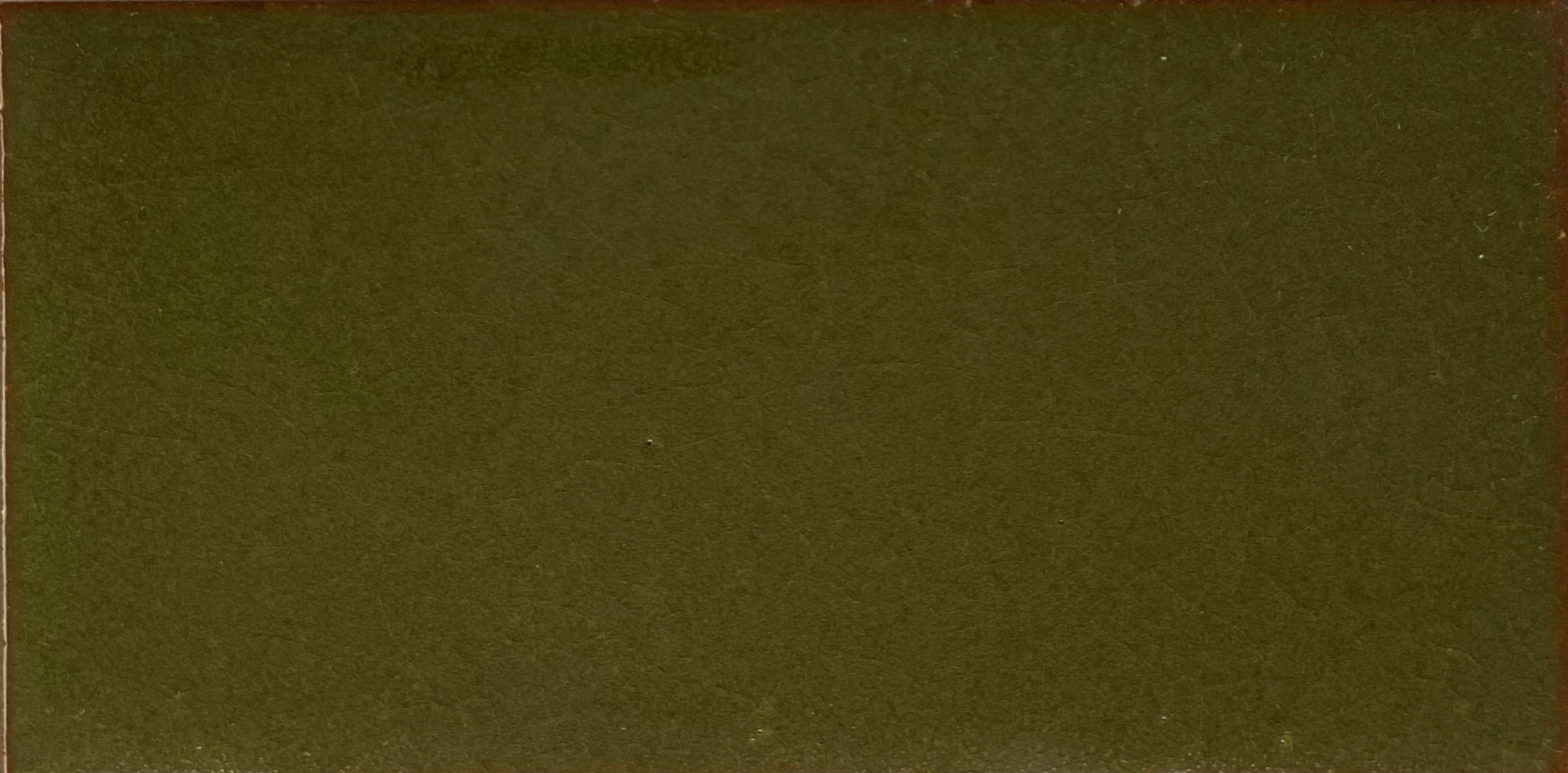

MT-67

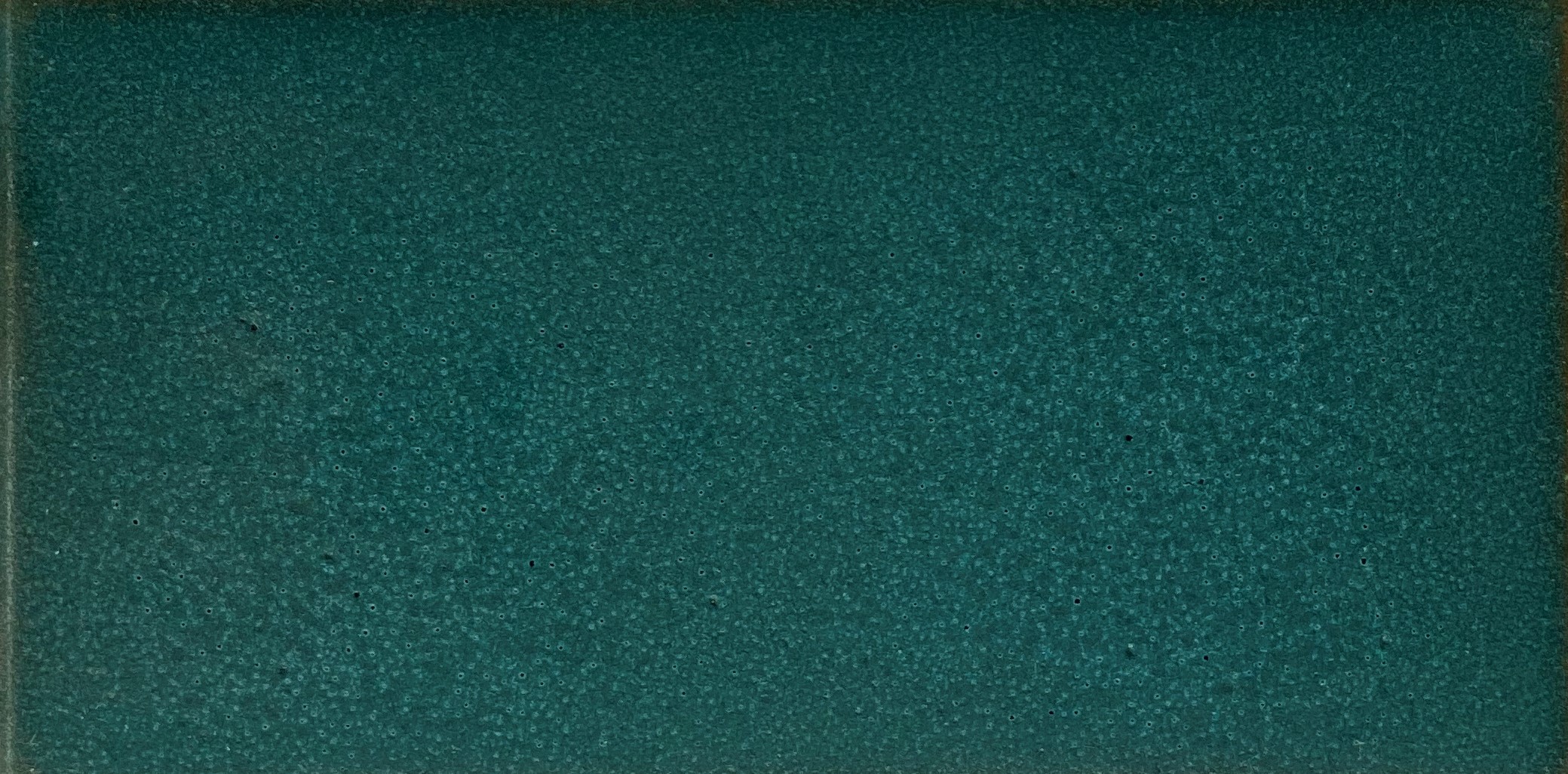

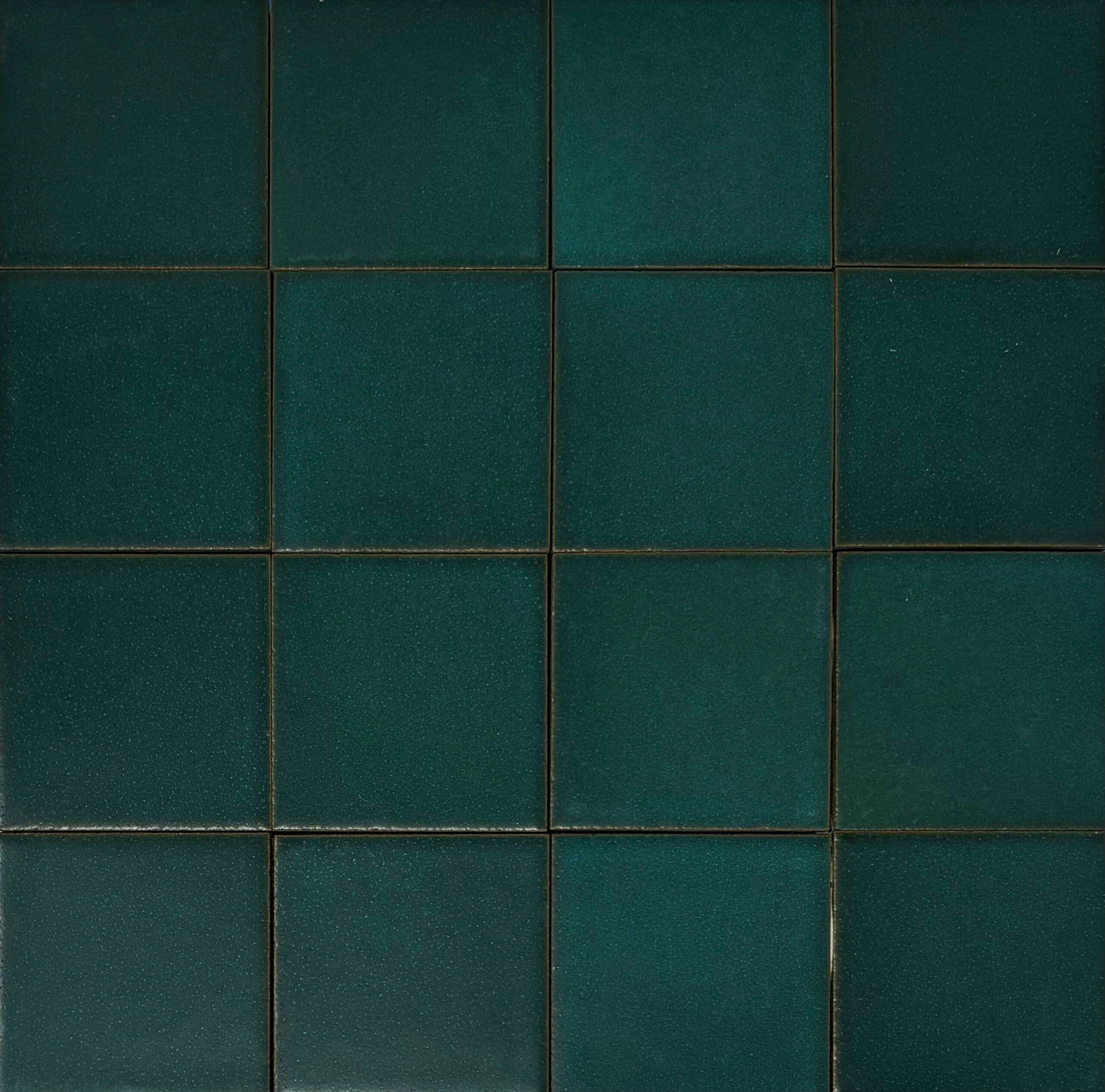

MT-68

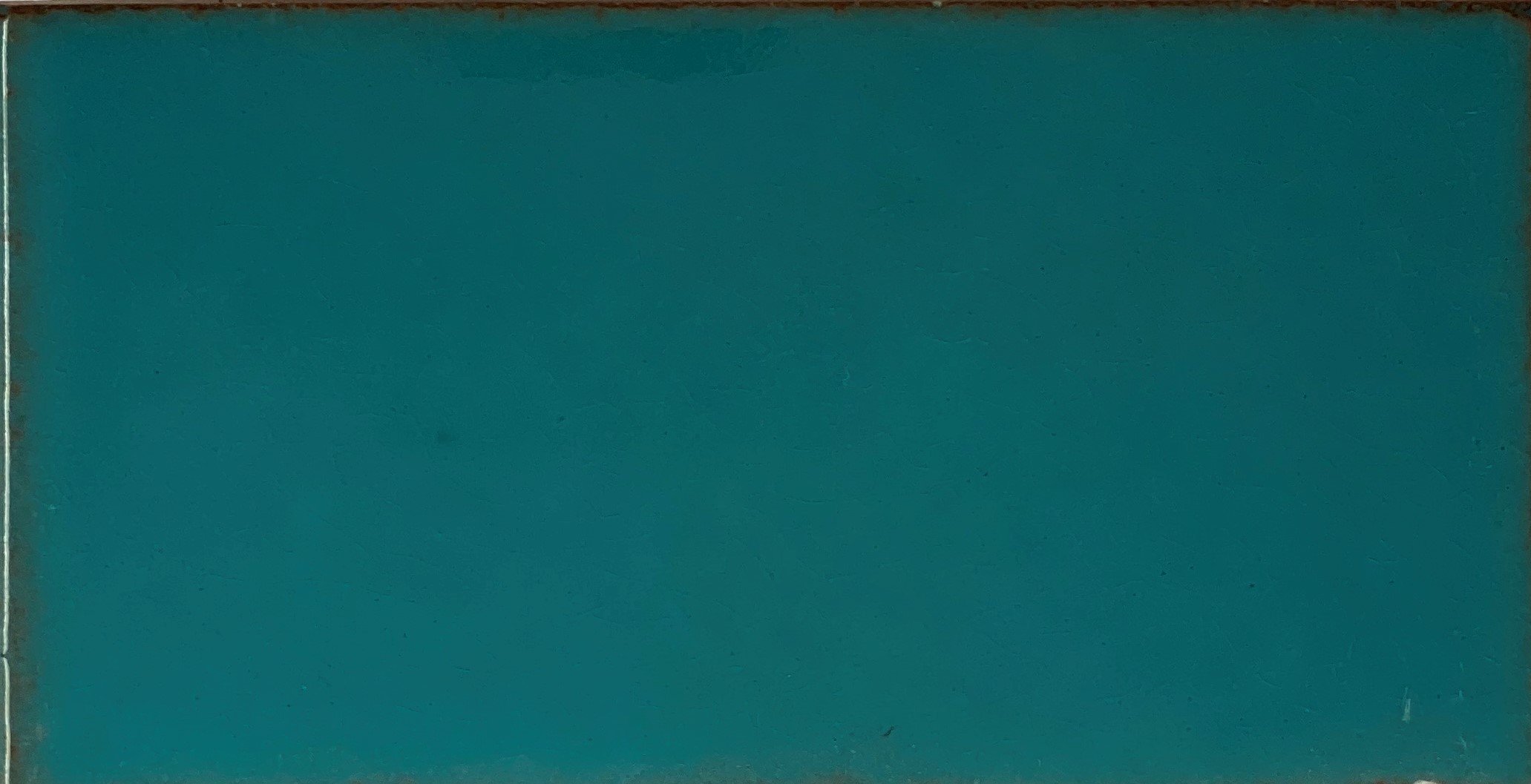

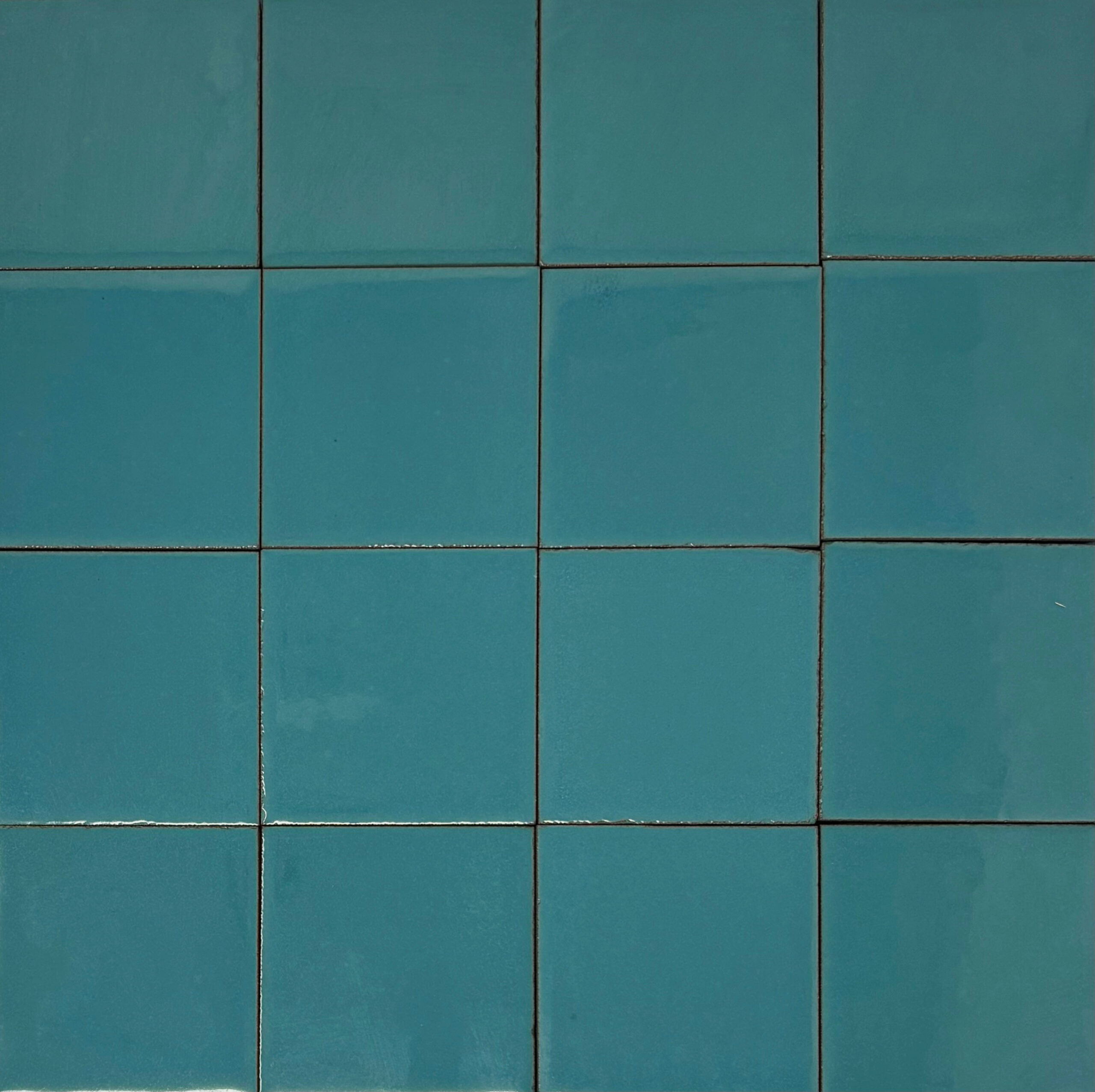

MT-69

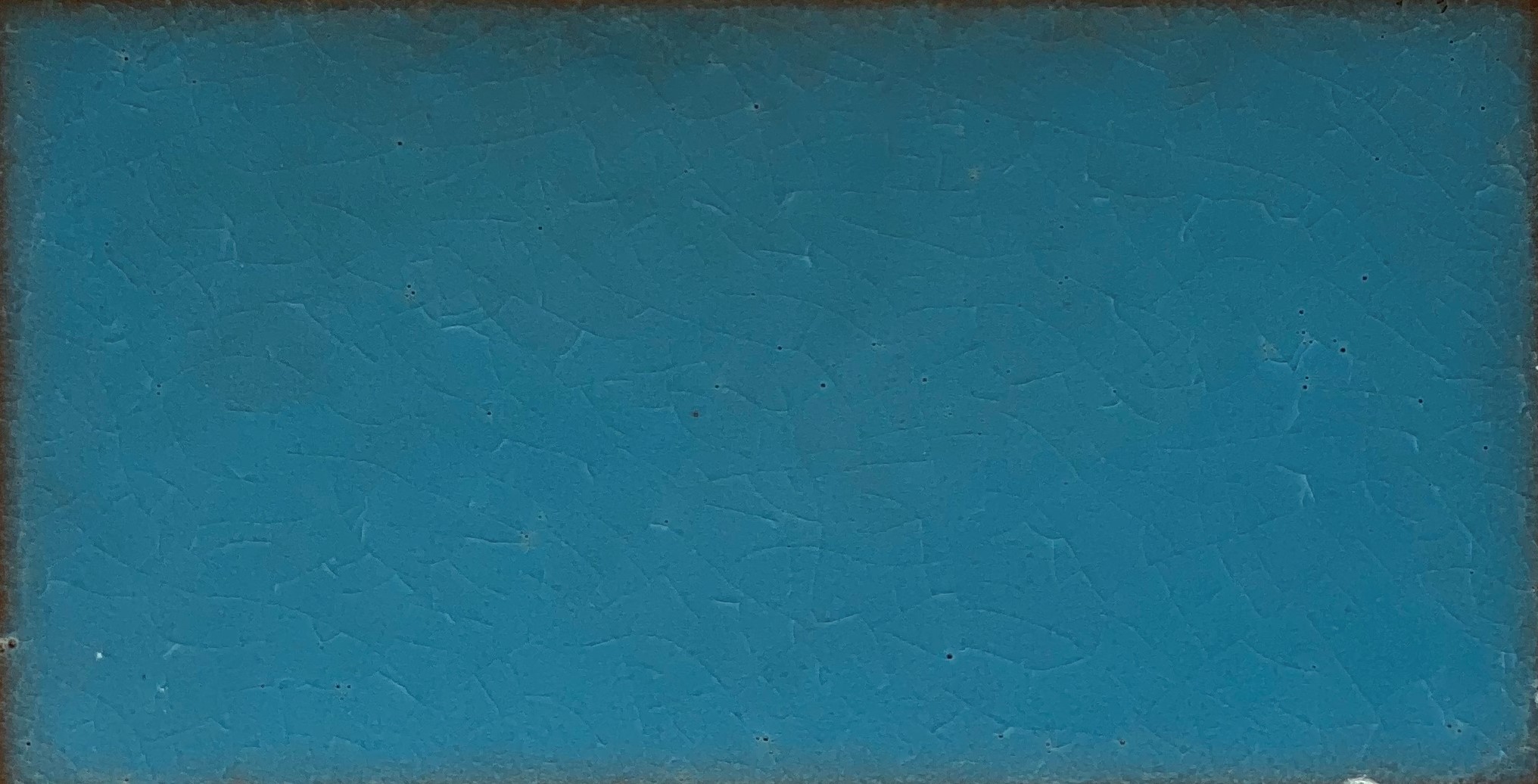

MT-70

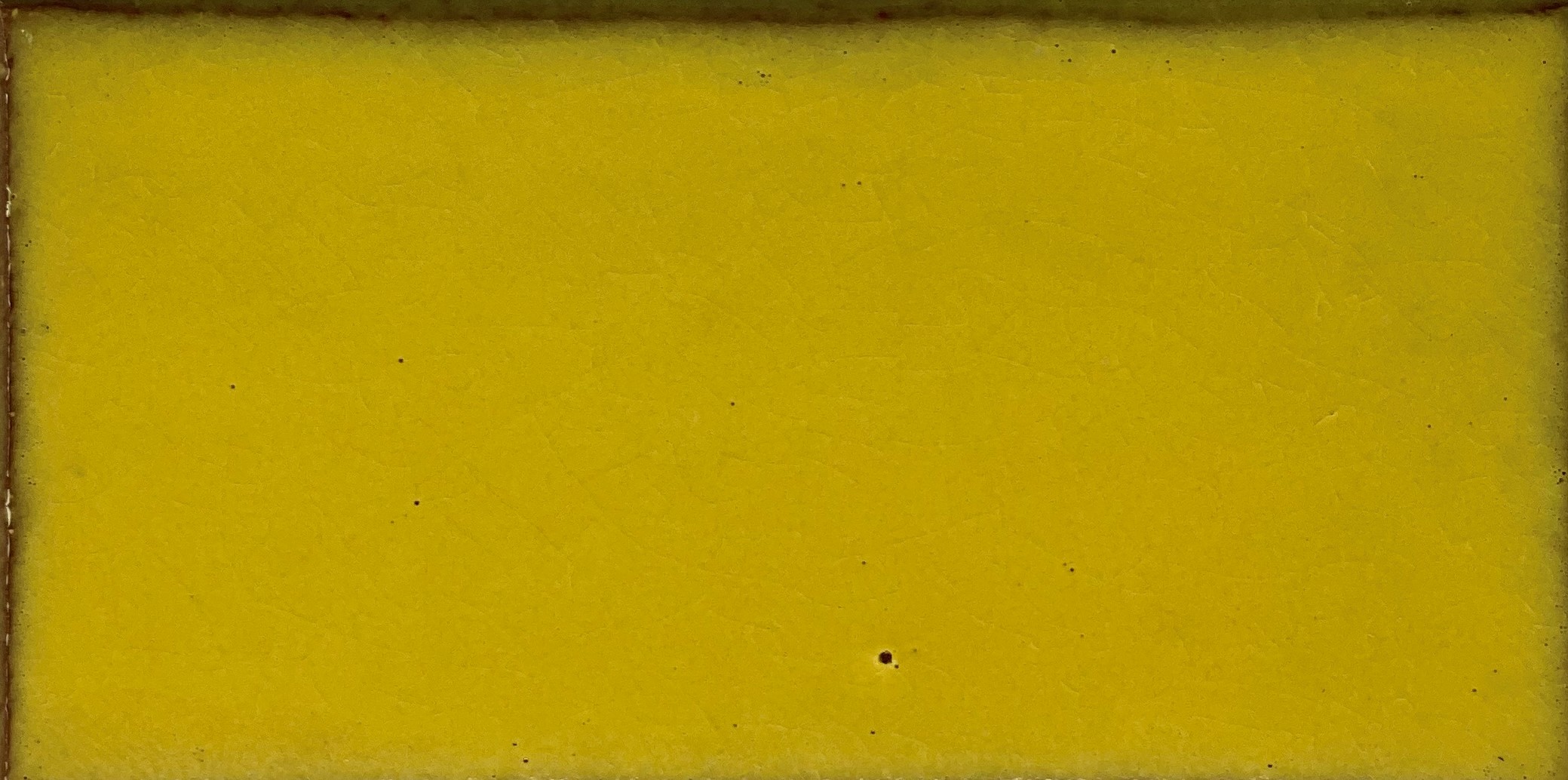

MT-71

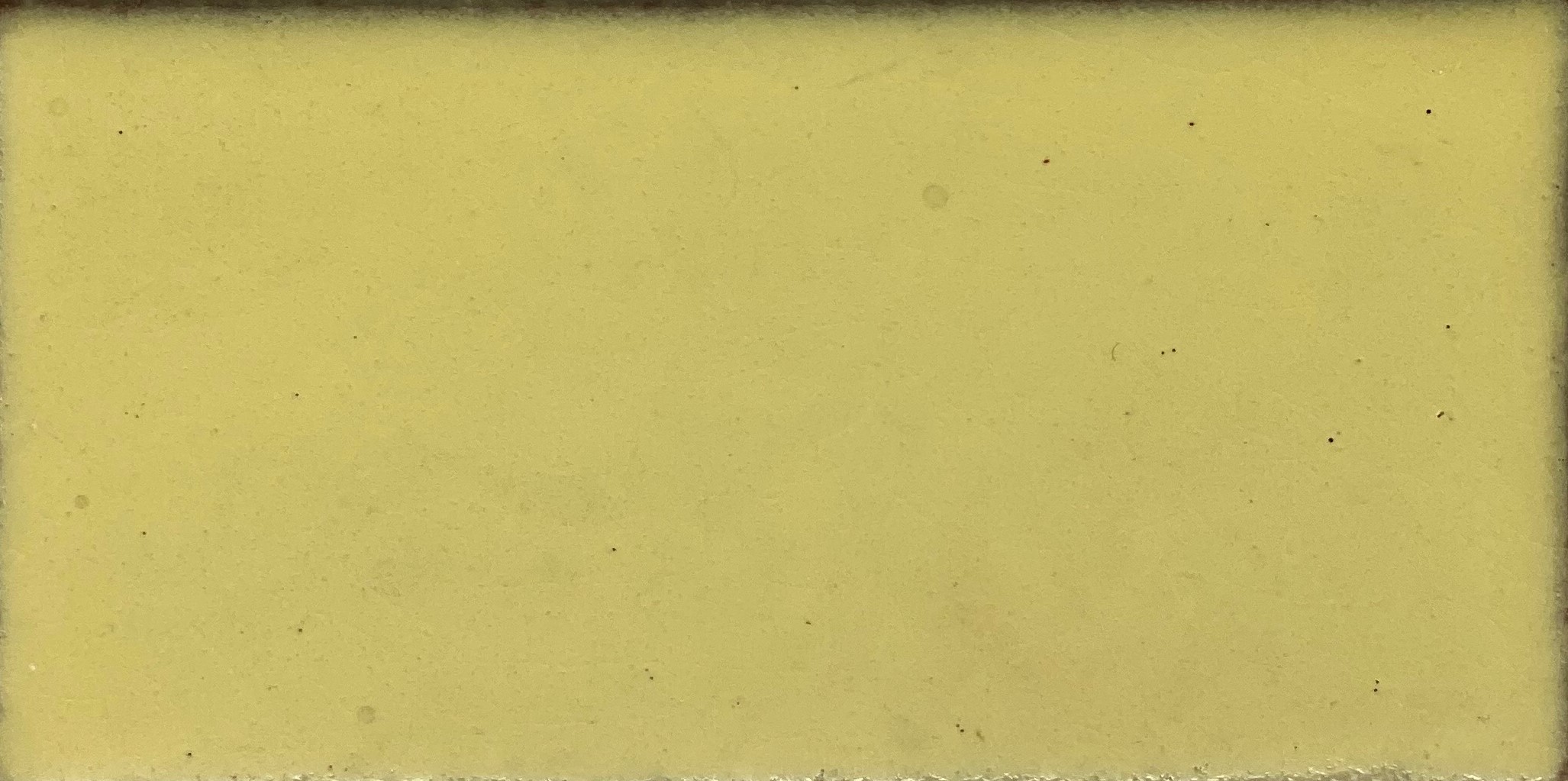

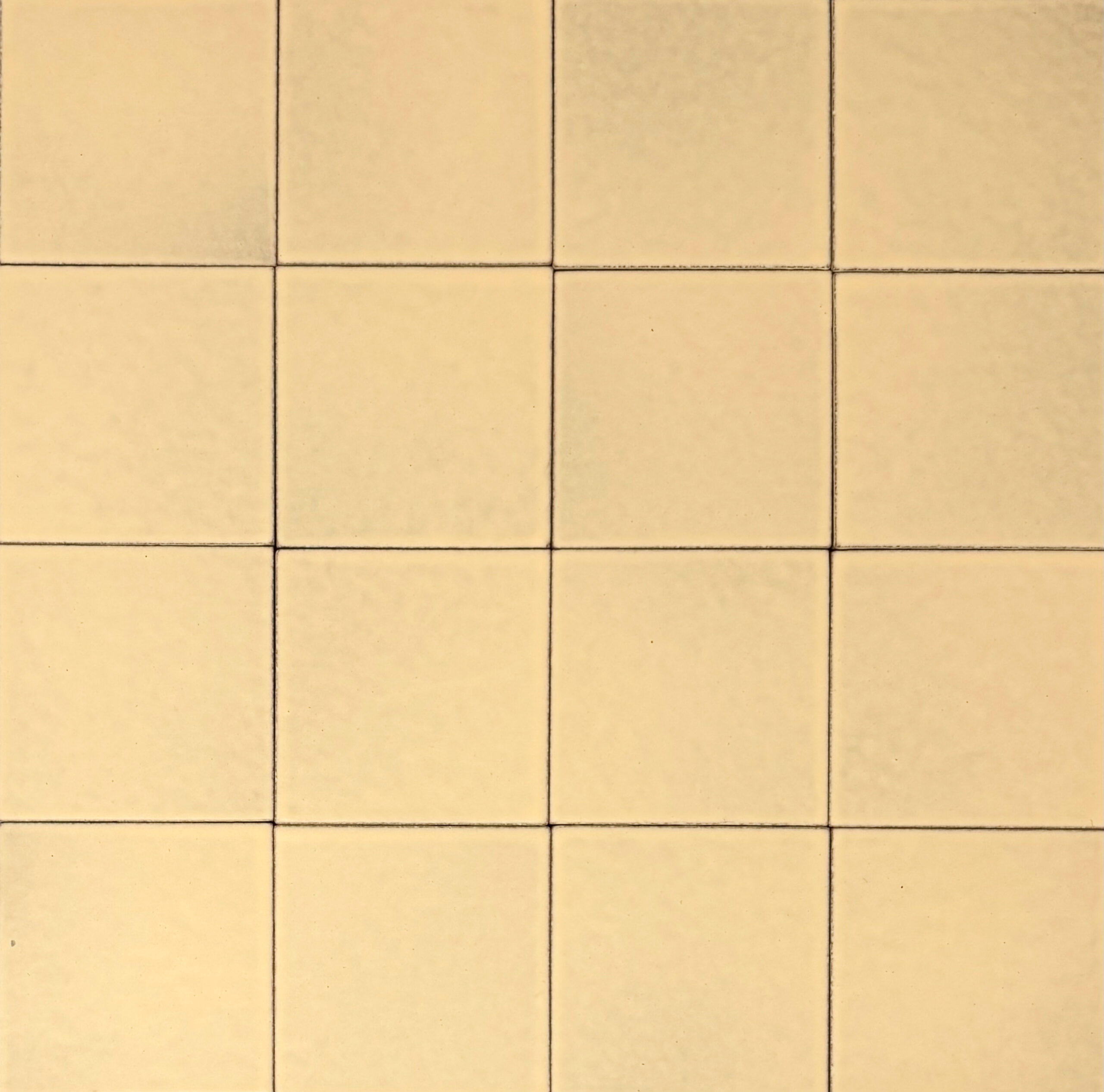

MT-72

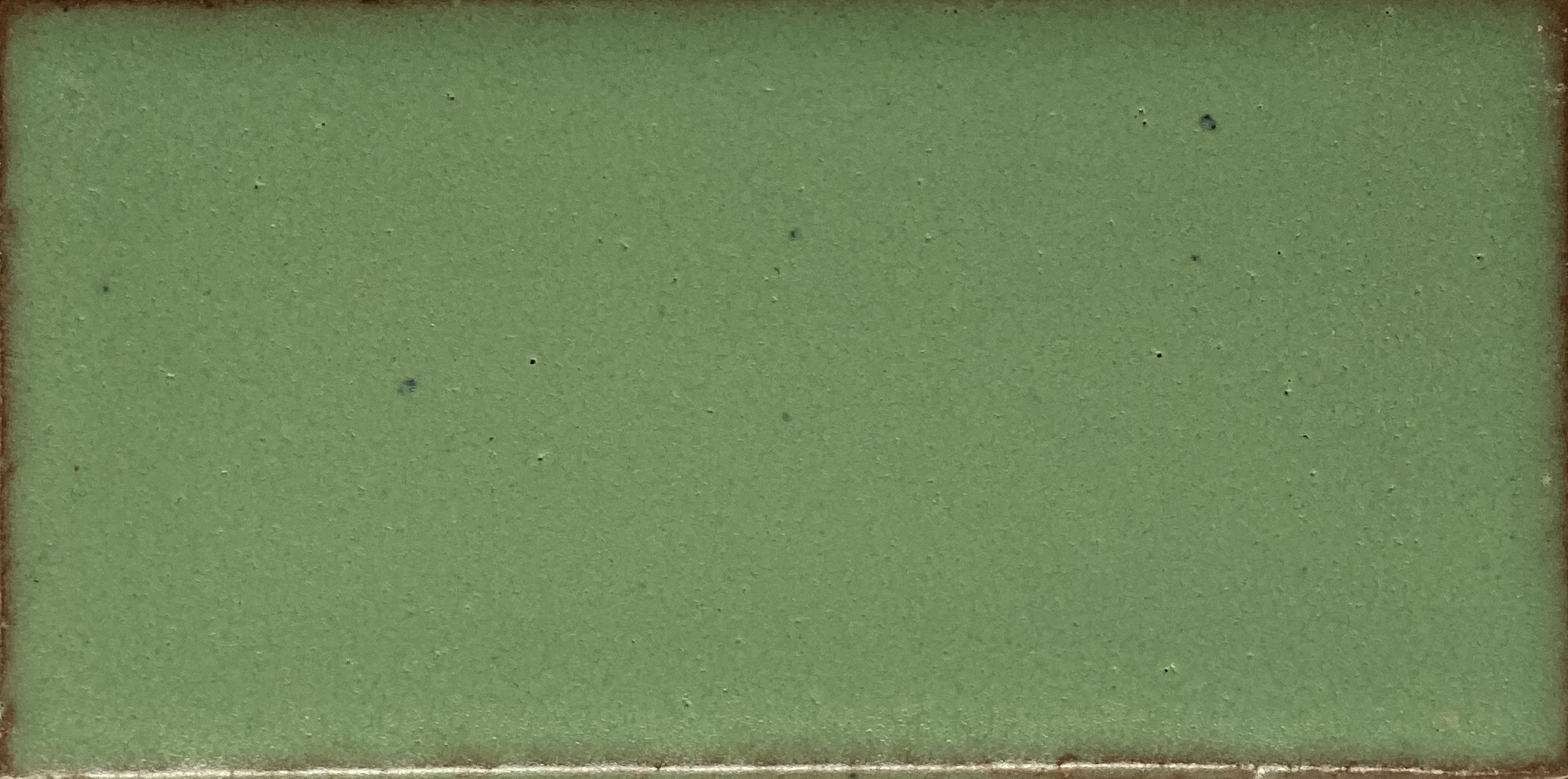

MT-73

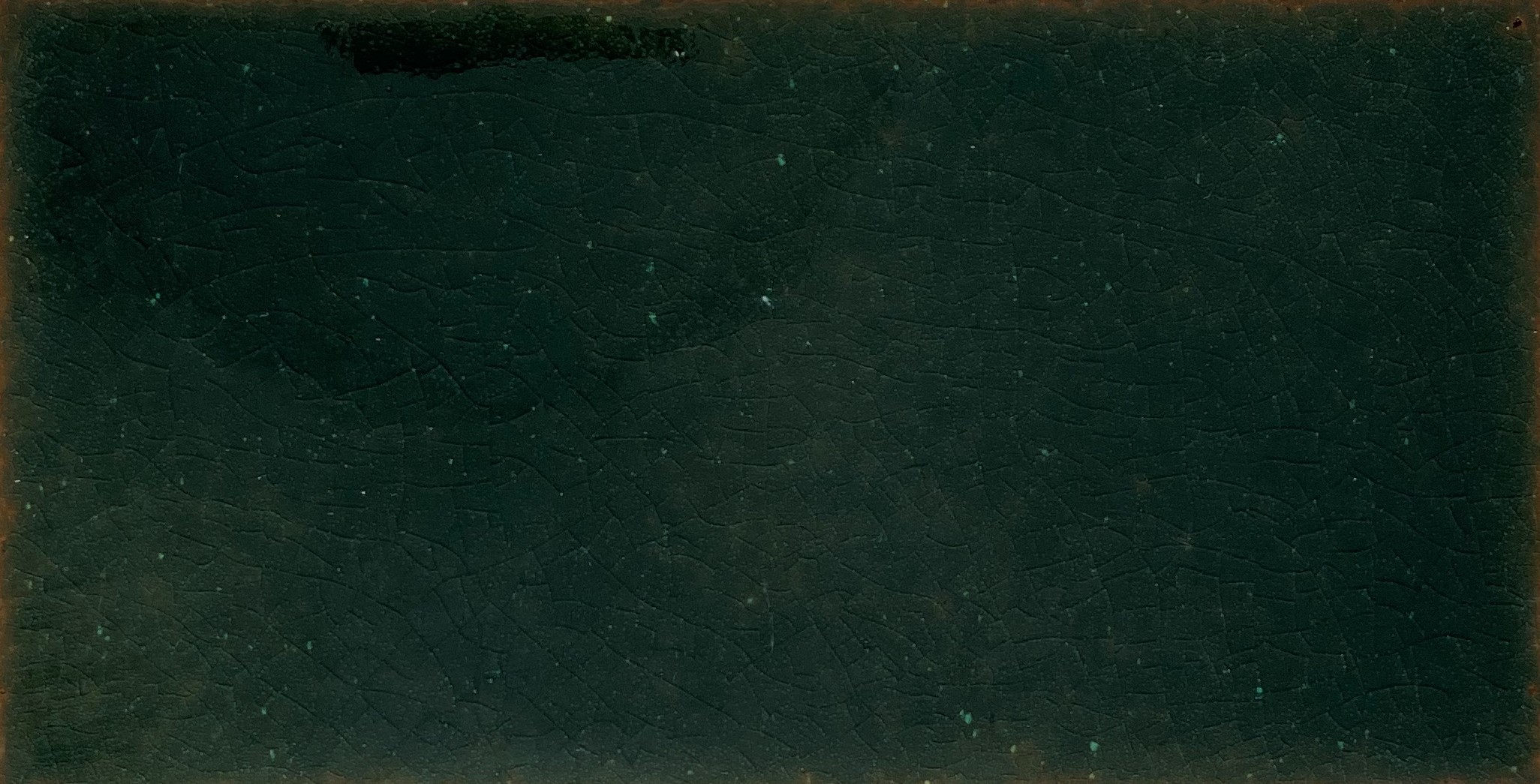

MT-74

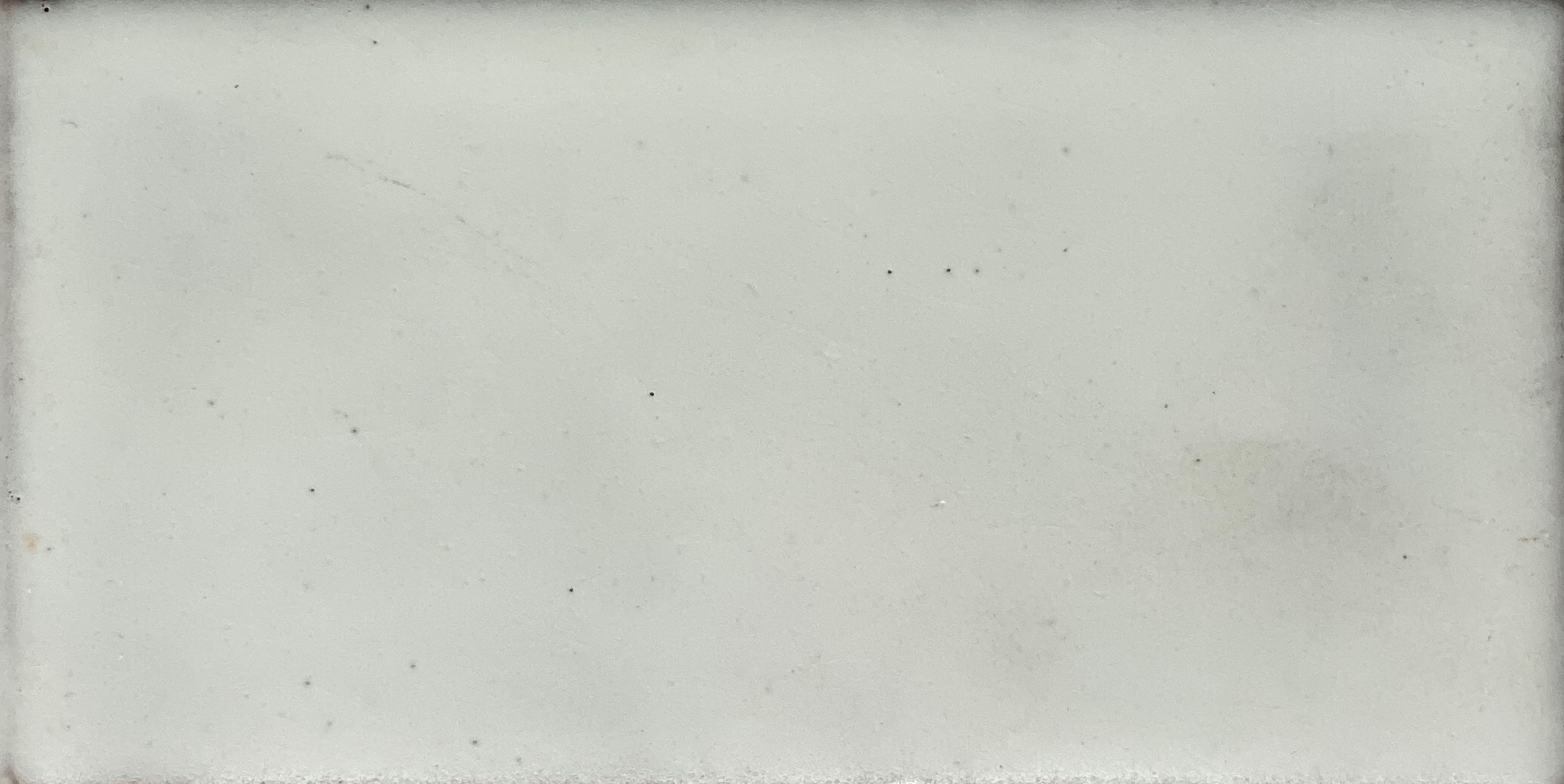

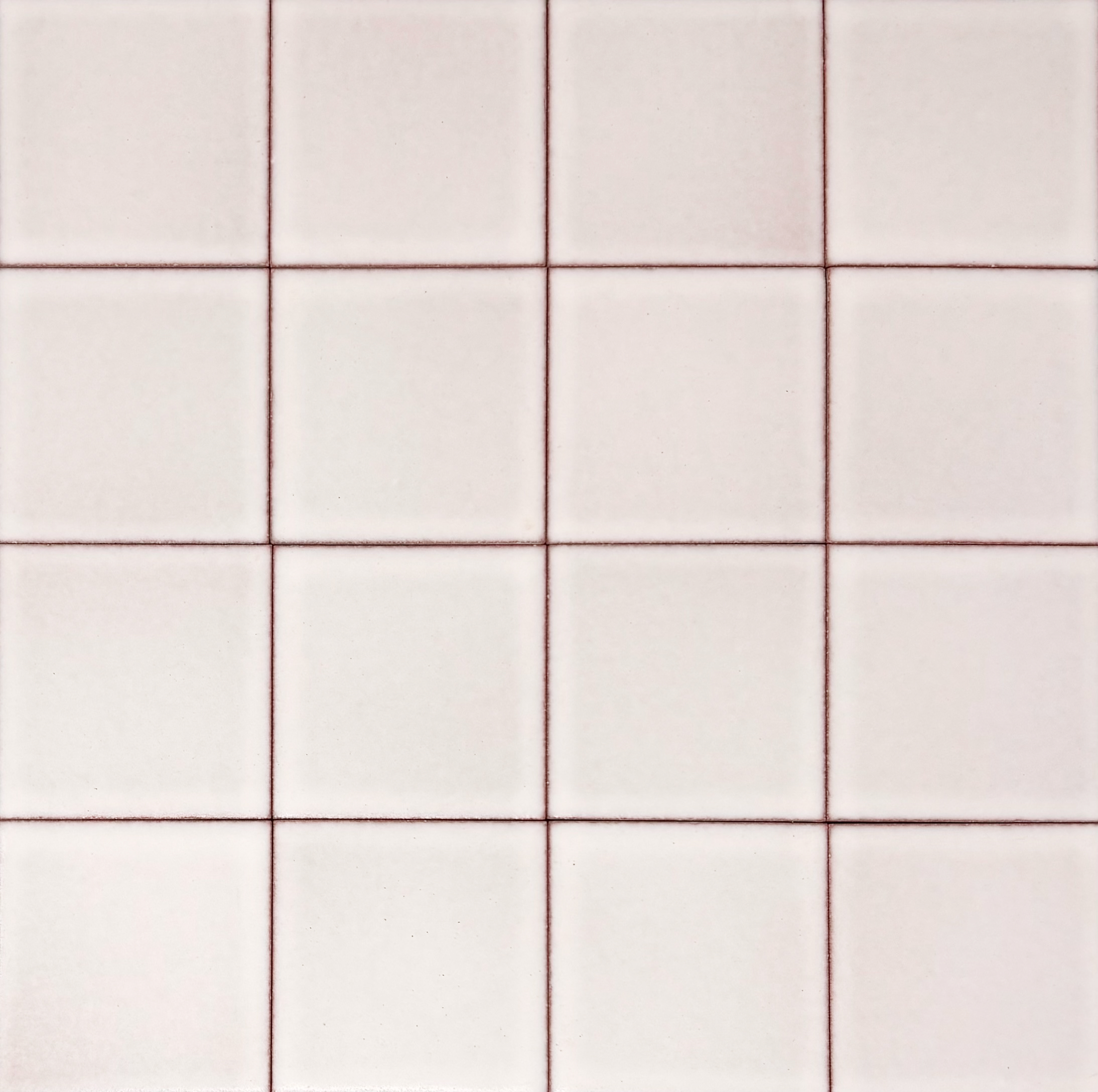

MT-75

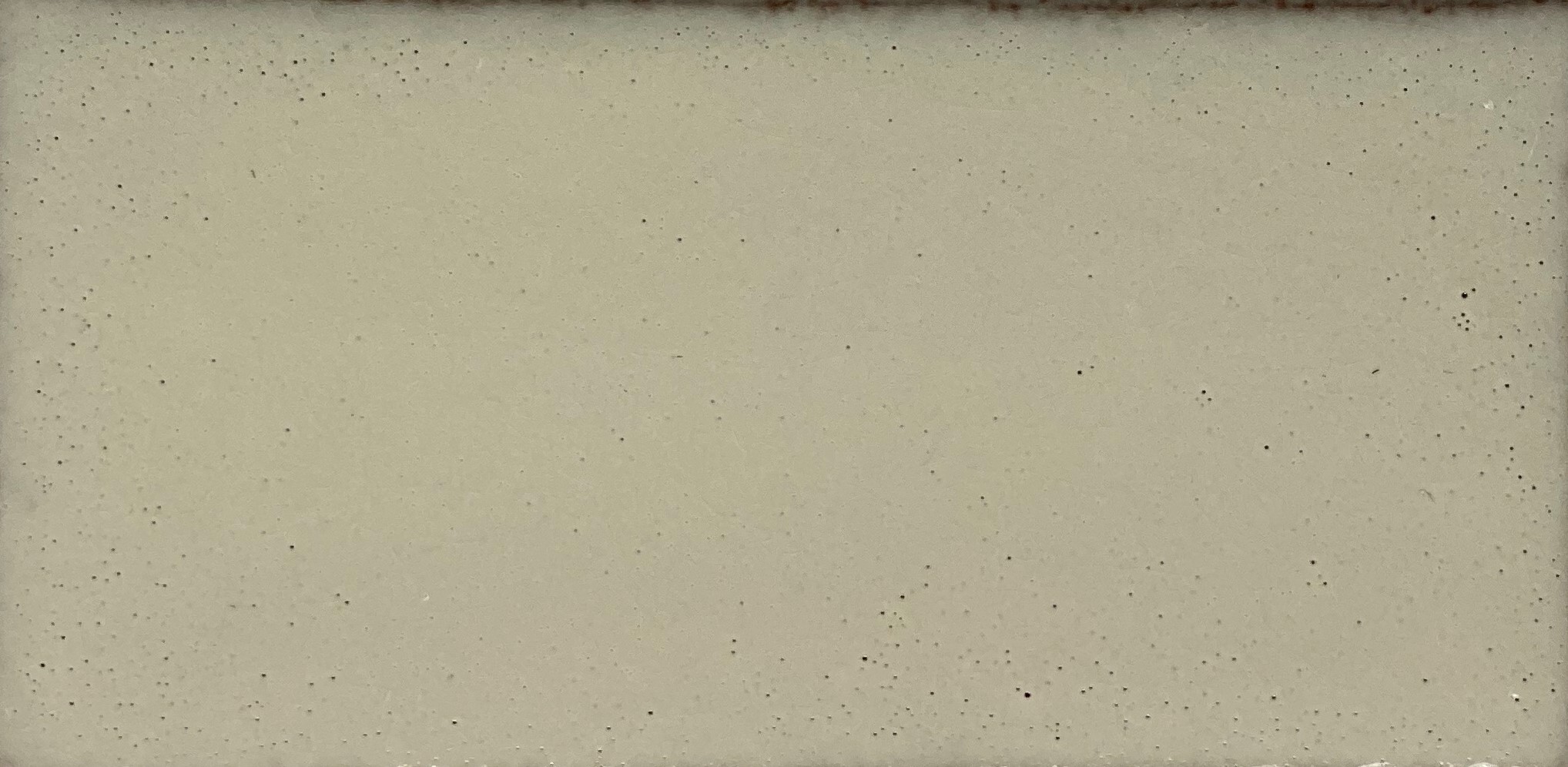

MT-76

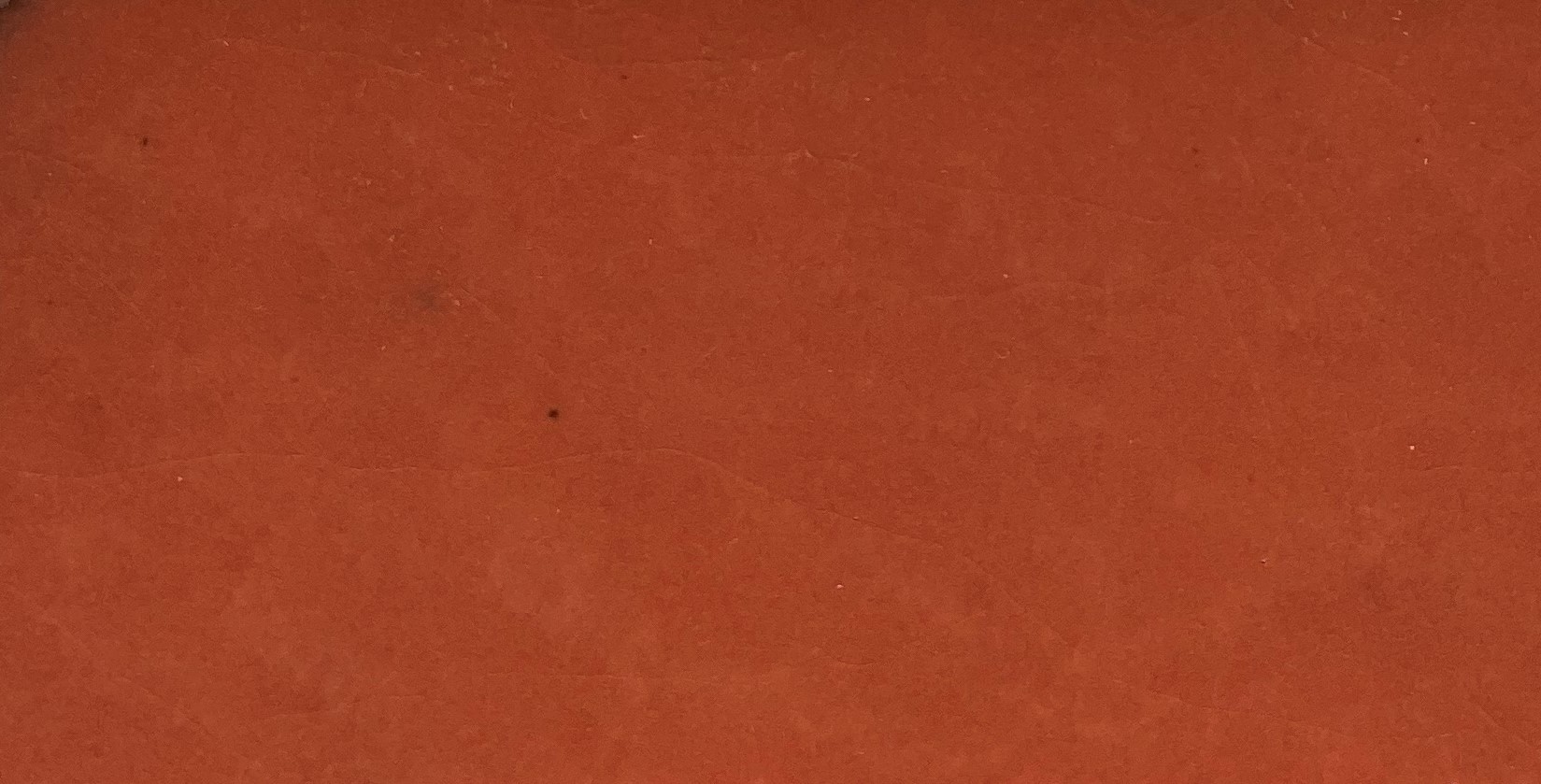

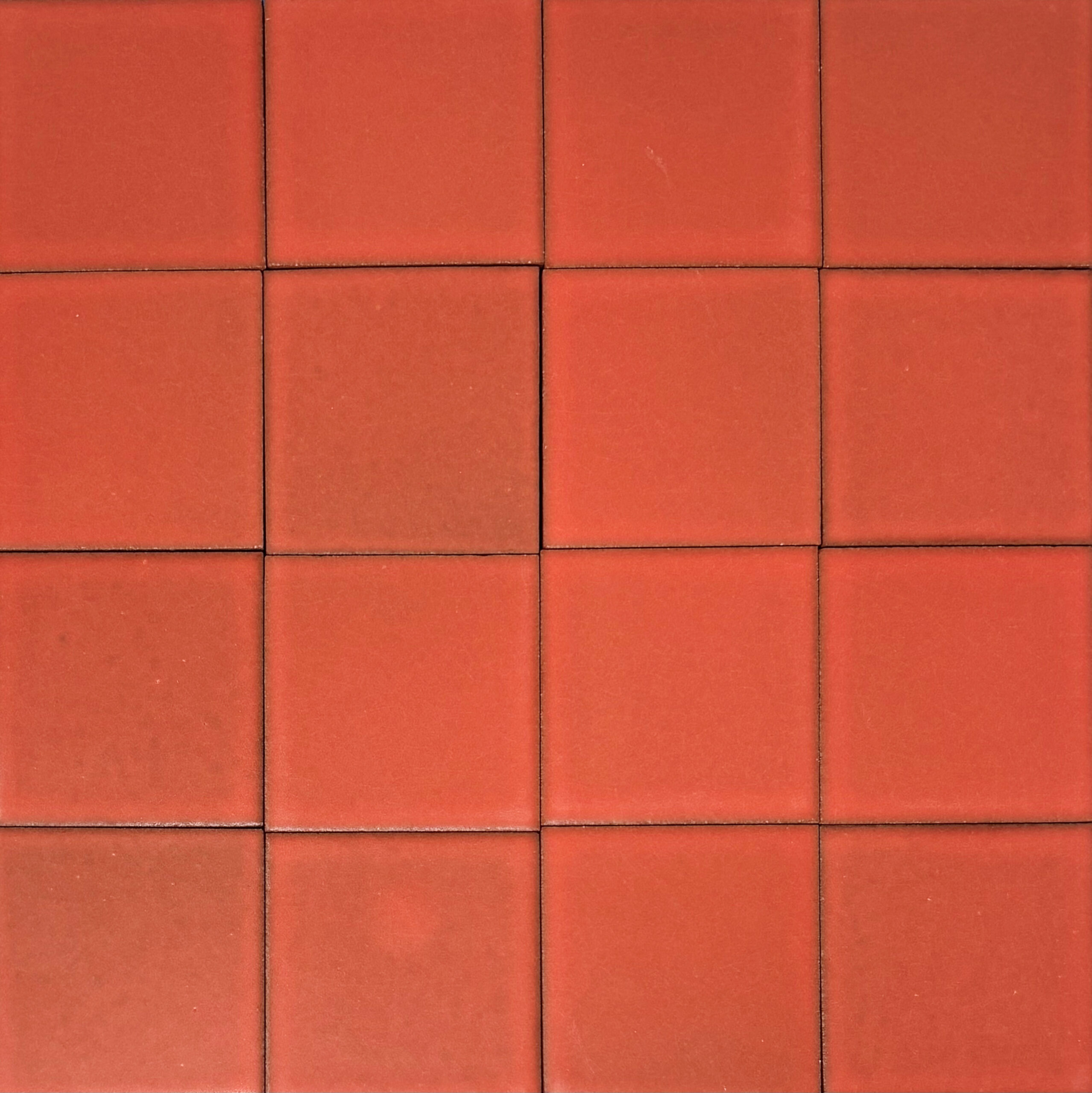

MT-77

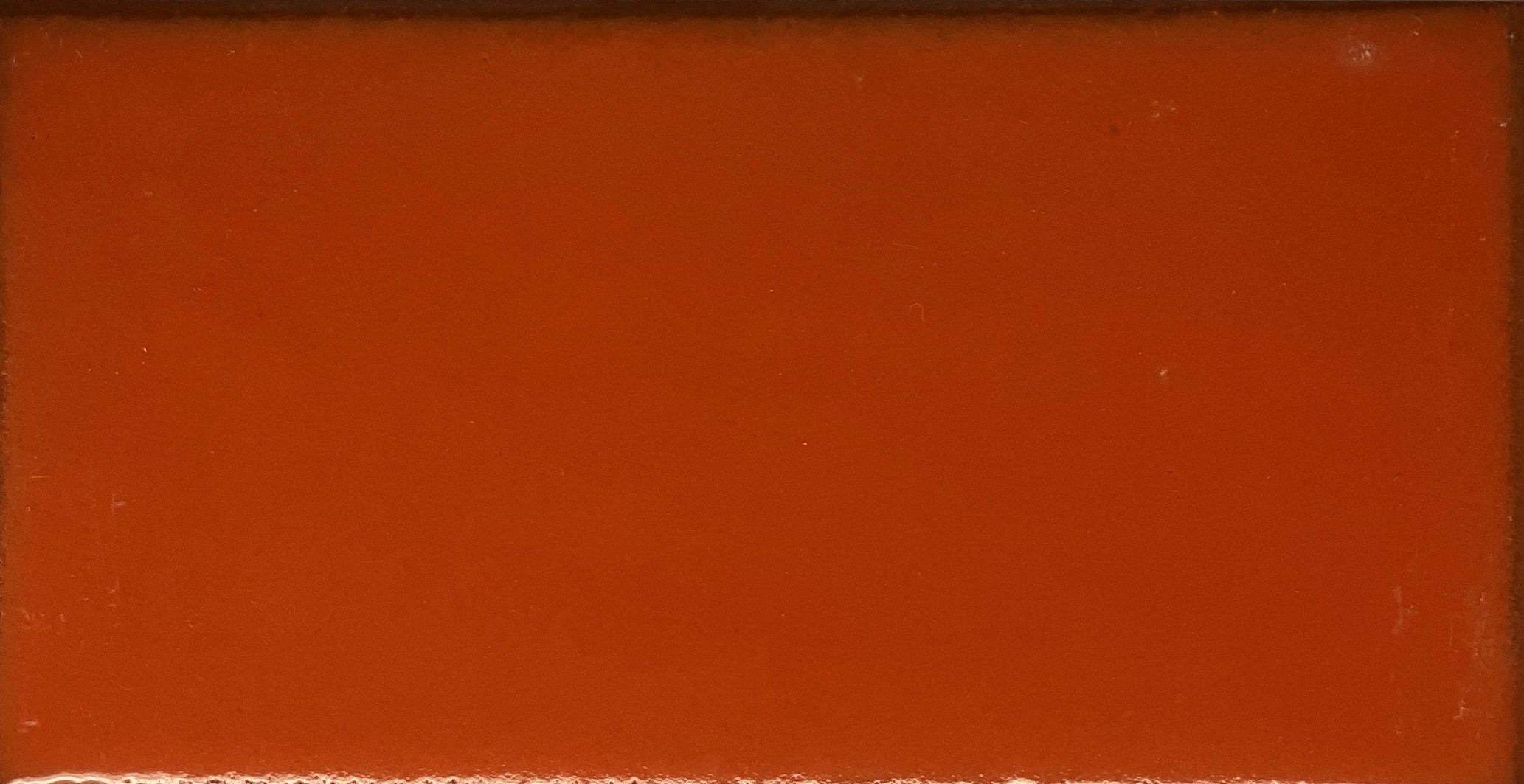

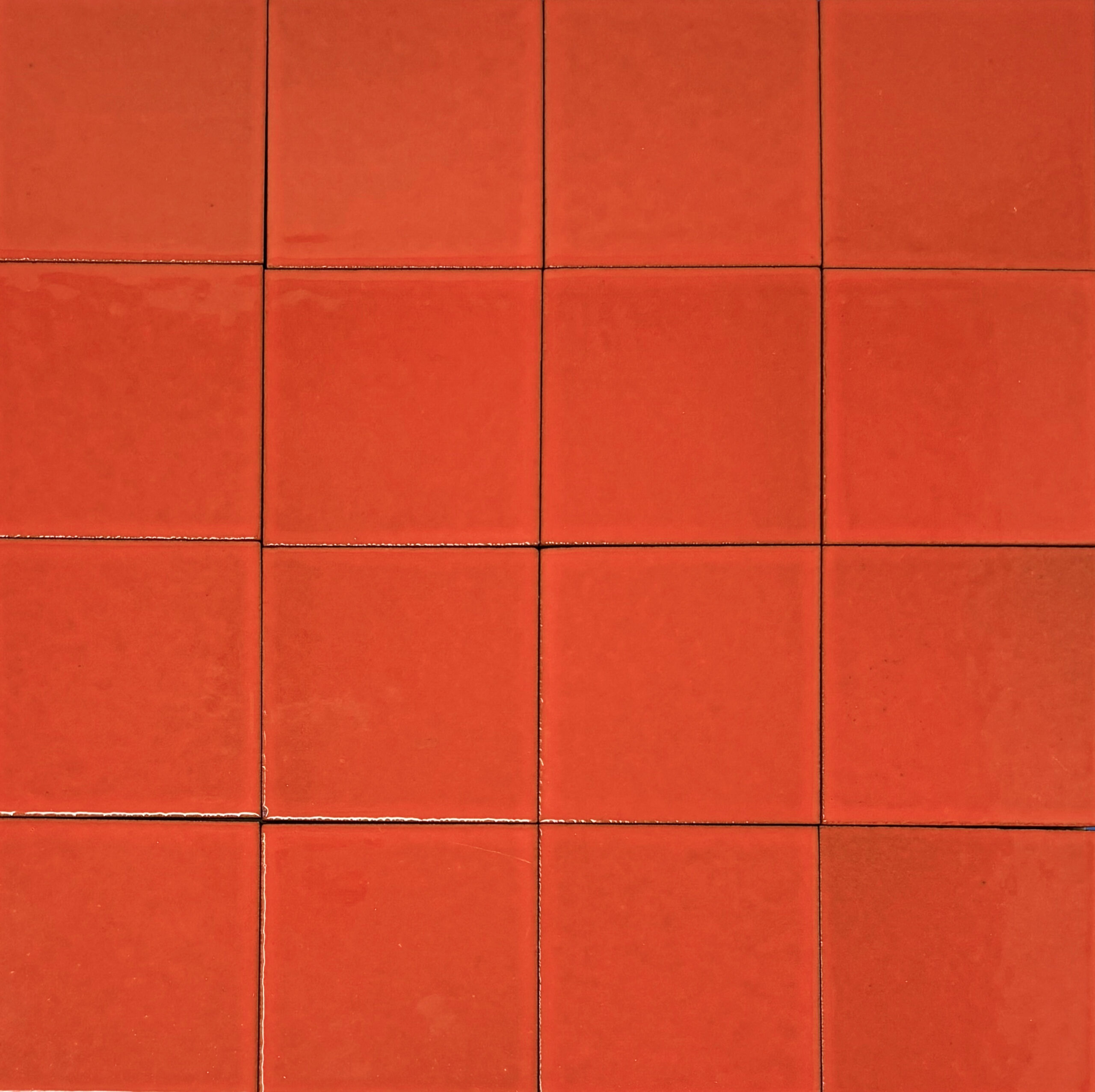

MT-78

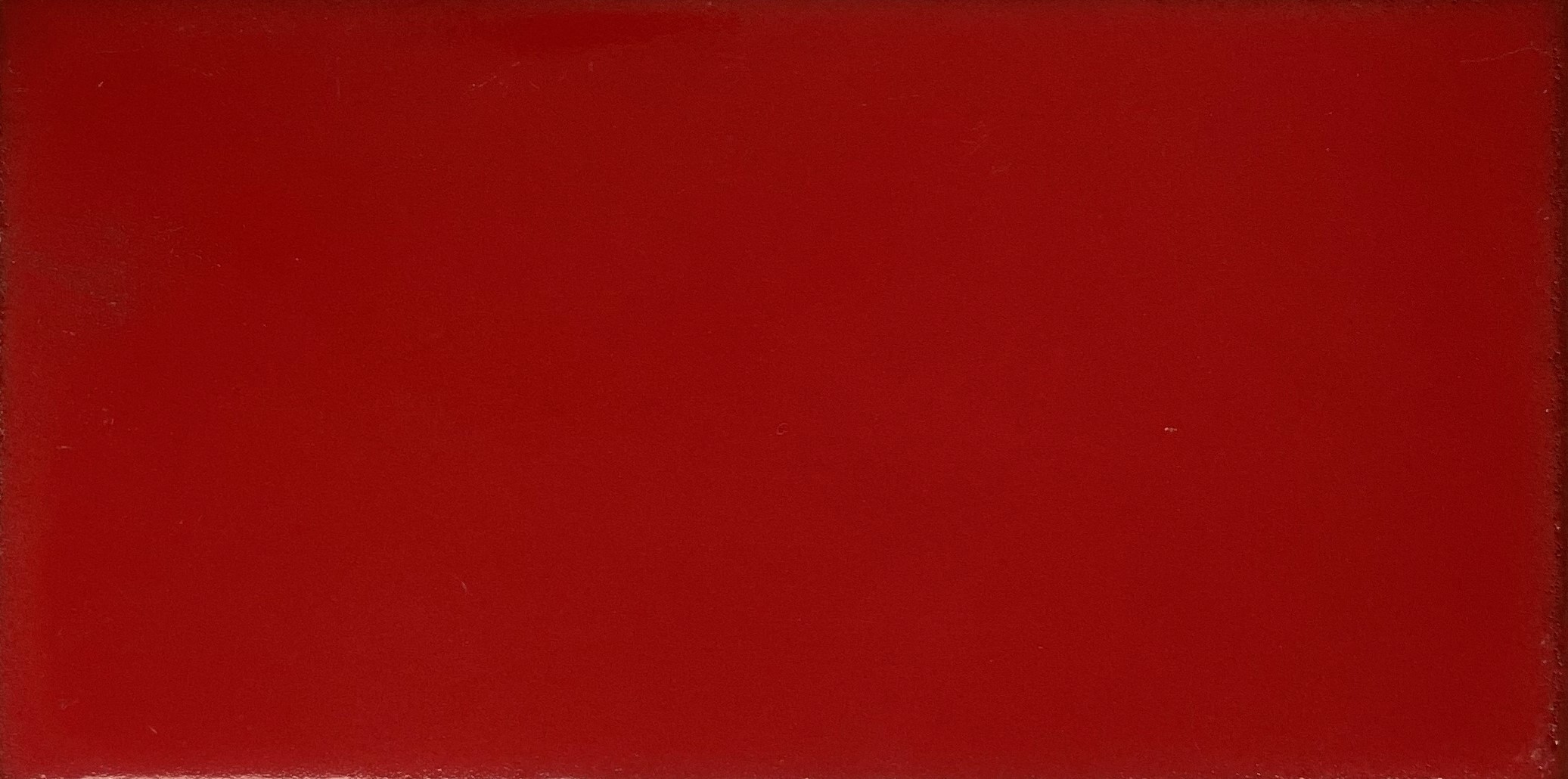

MT-79

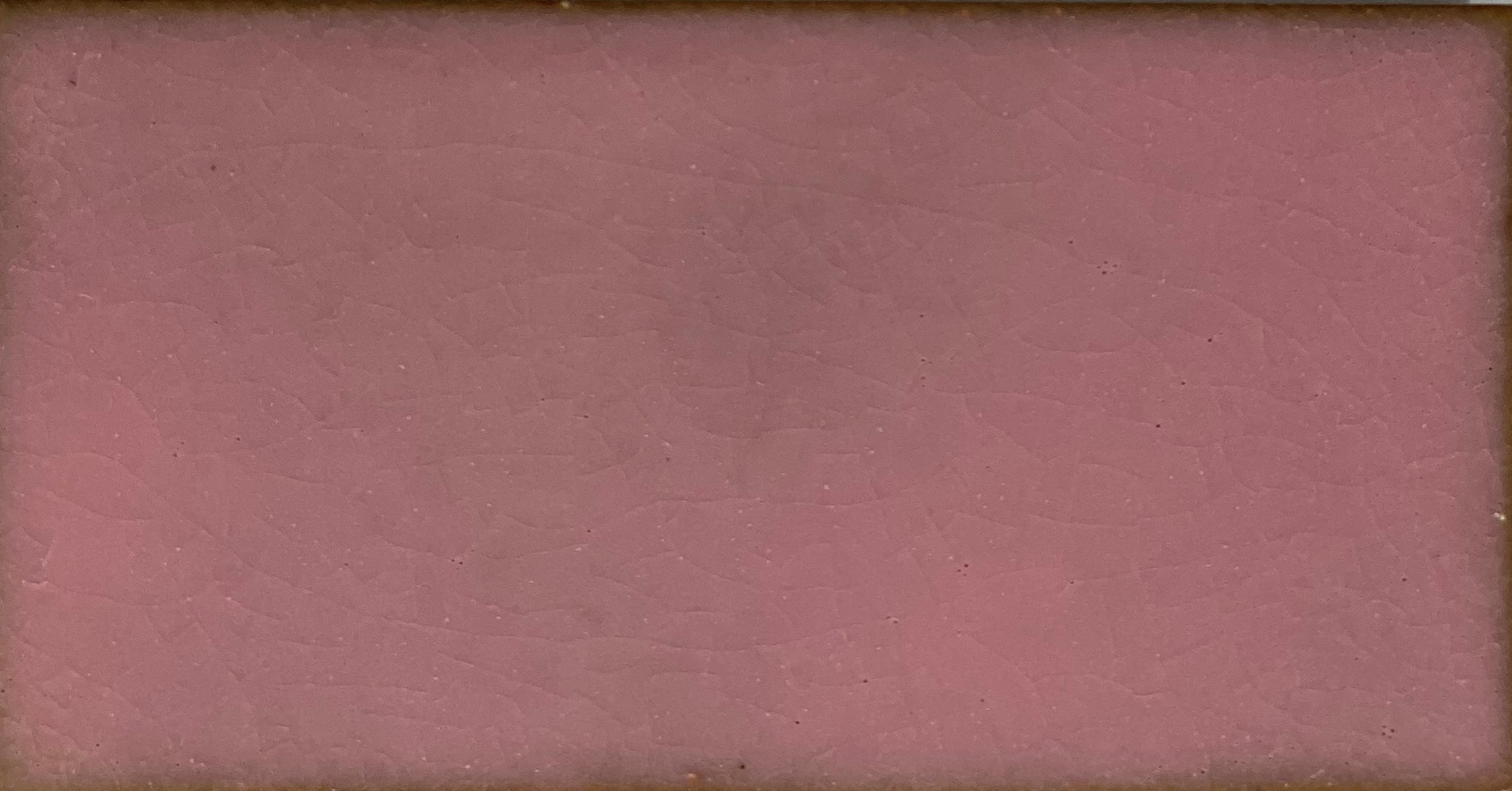

MT-80

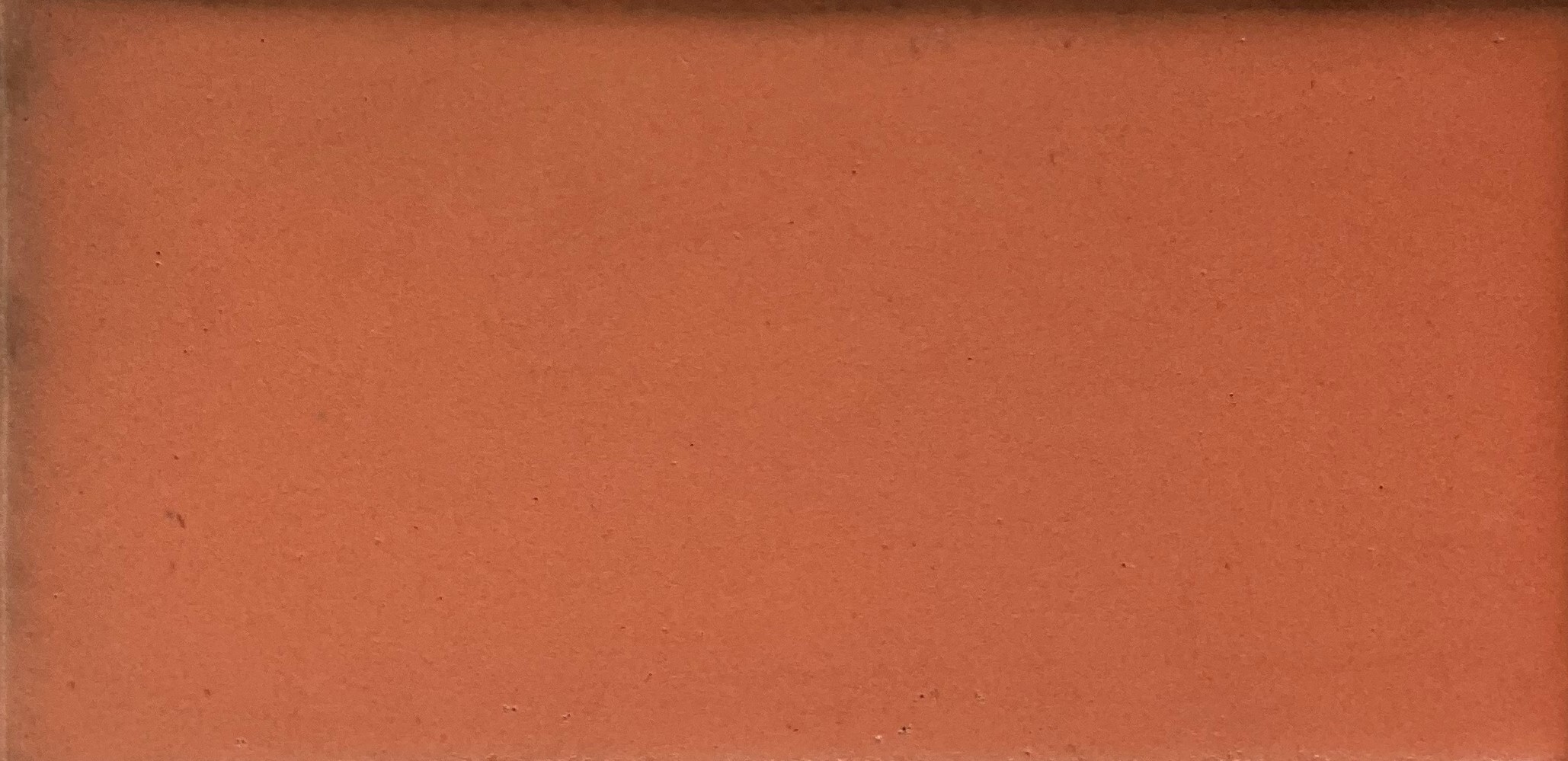

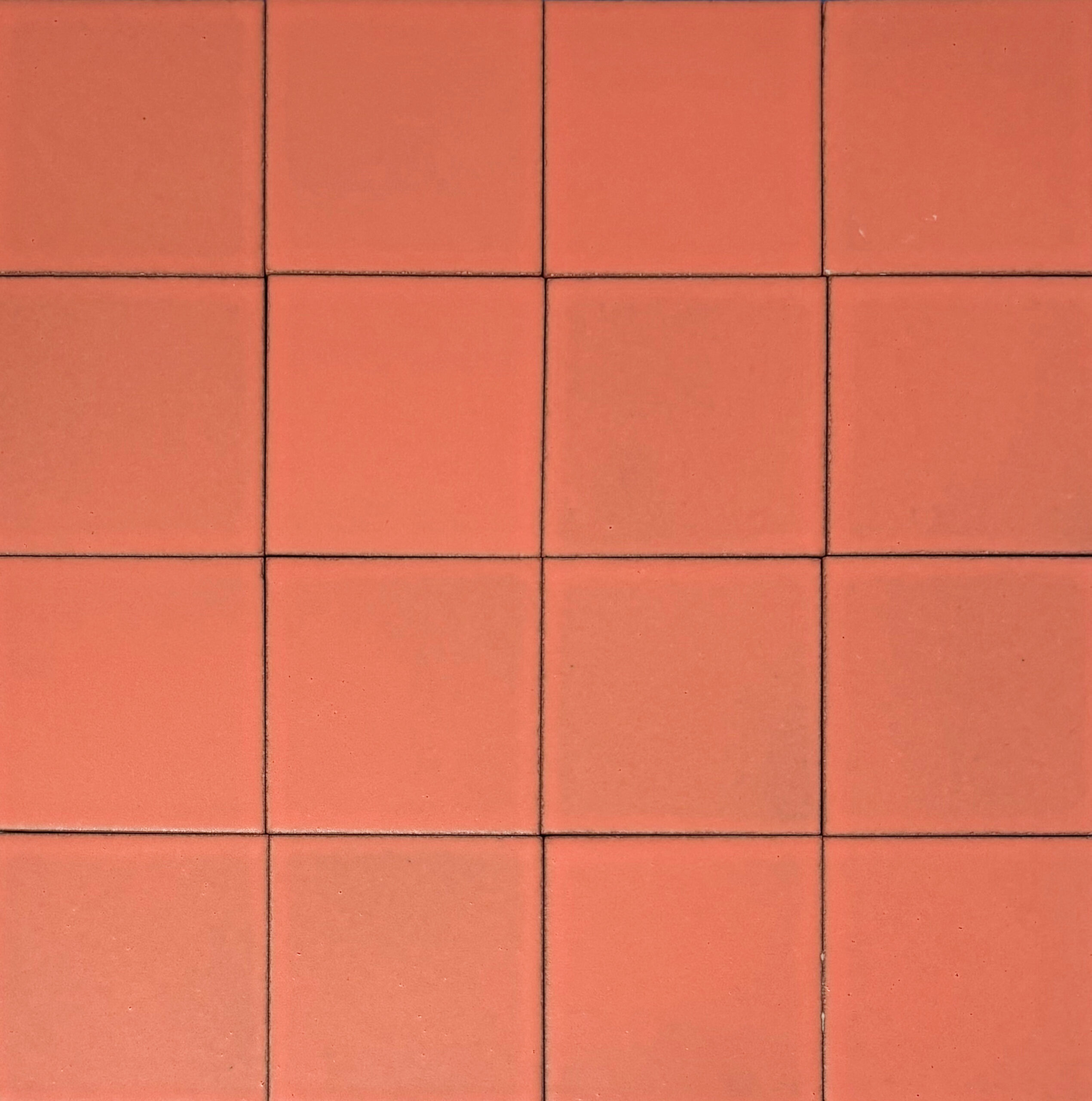

MT-81

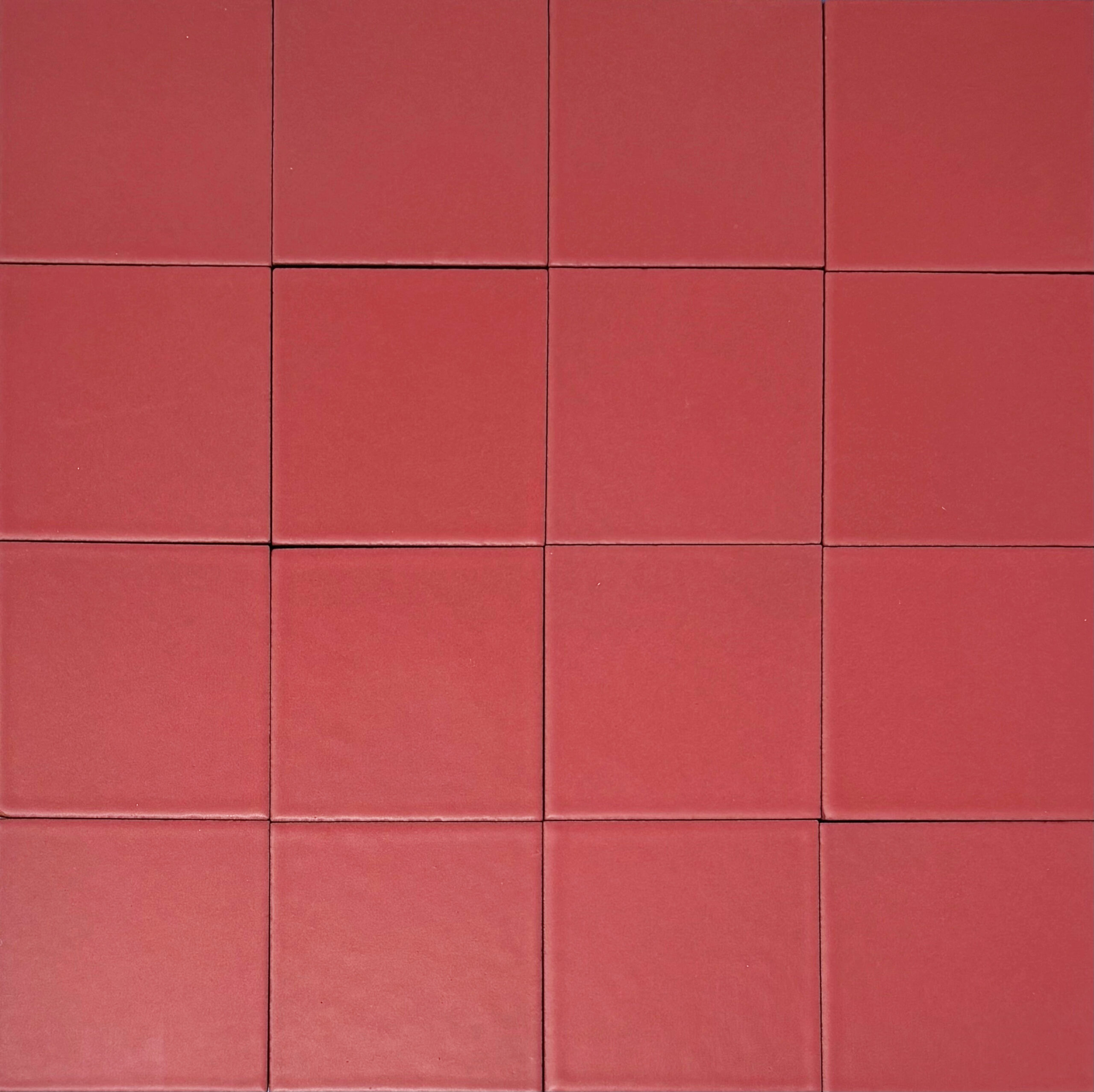

MT-82

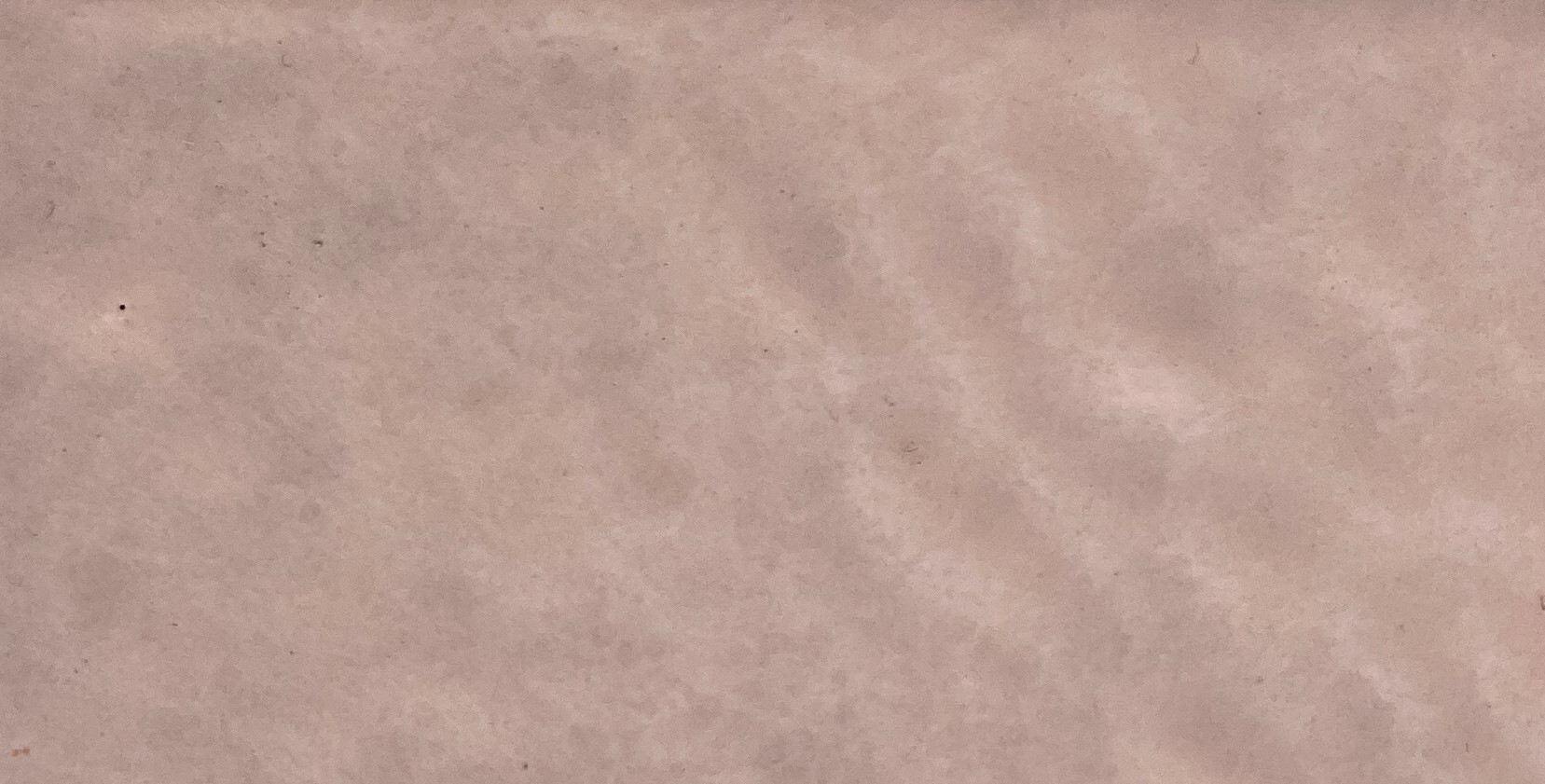

MT-83

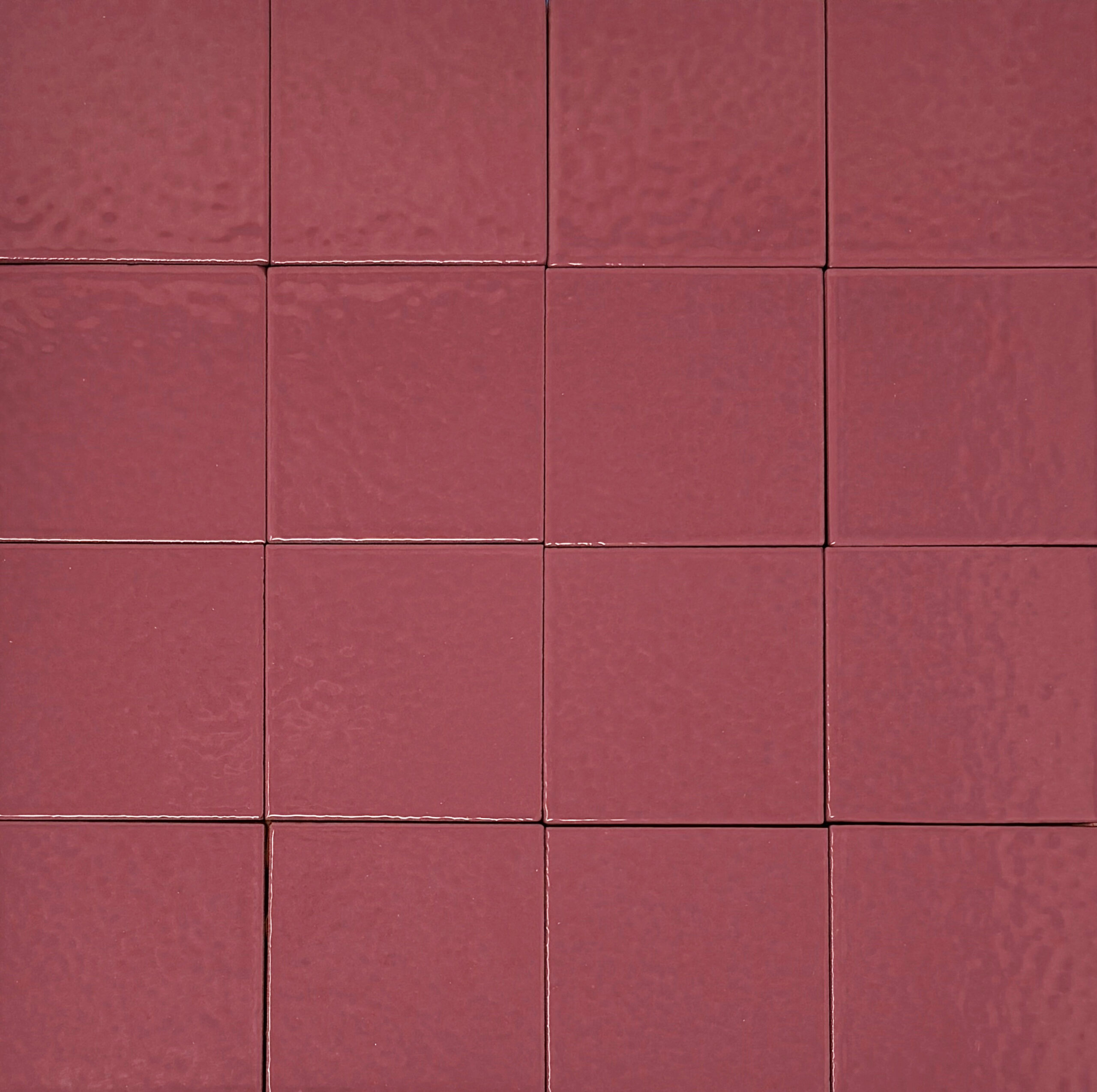

MT-84

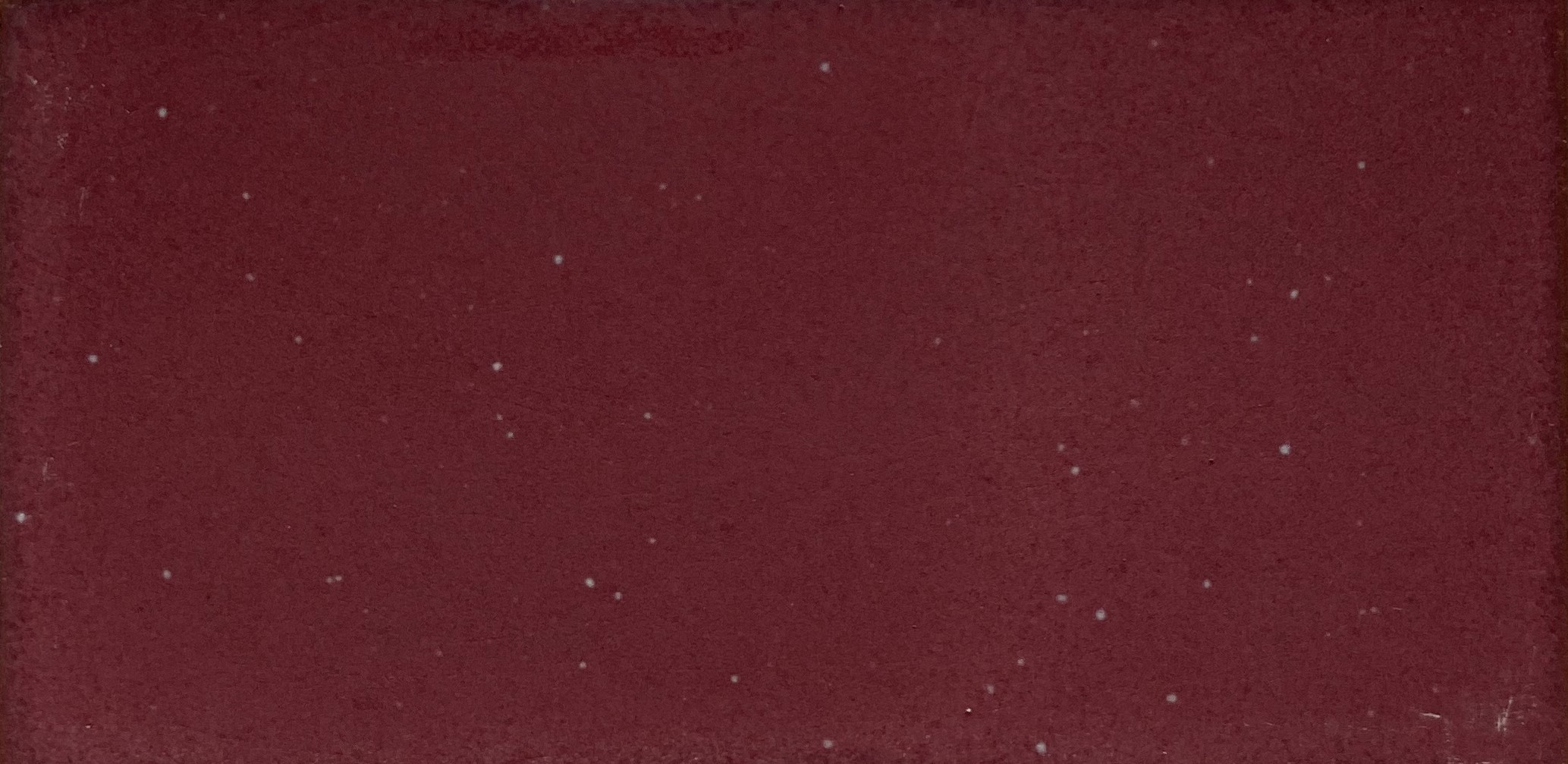

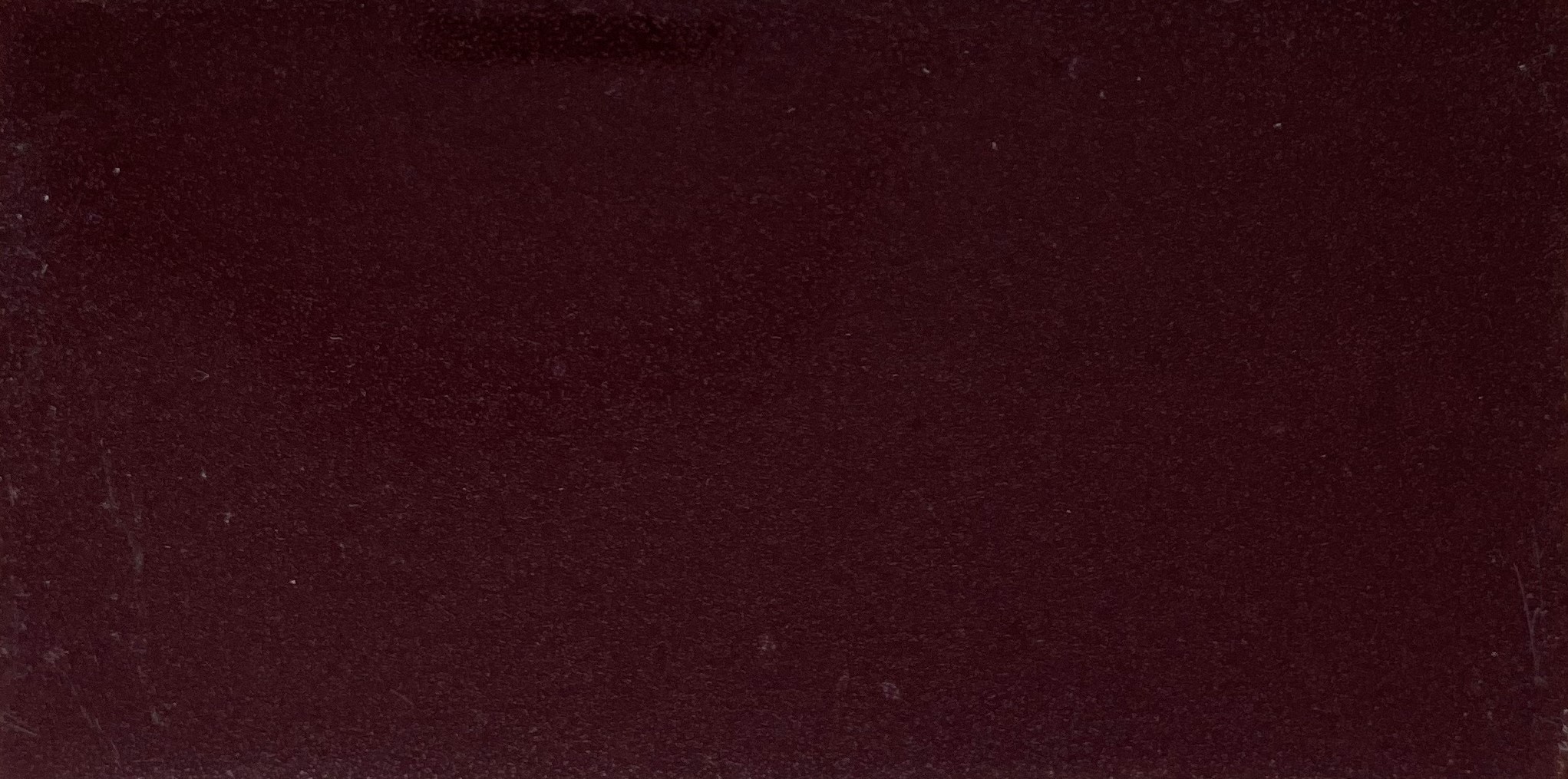

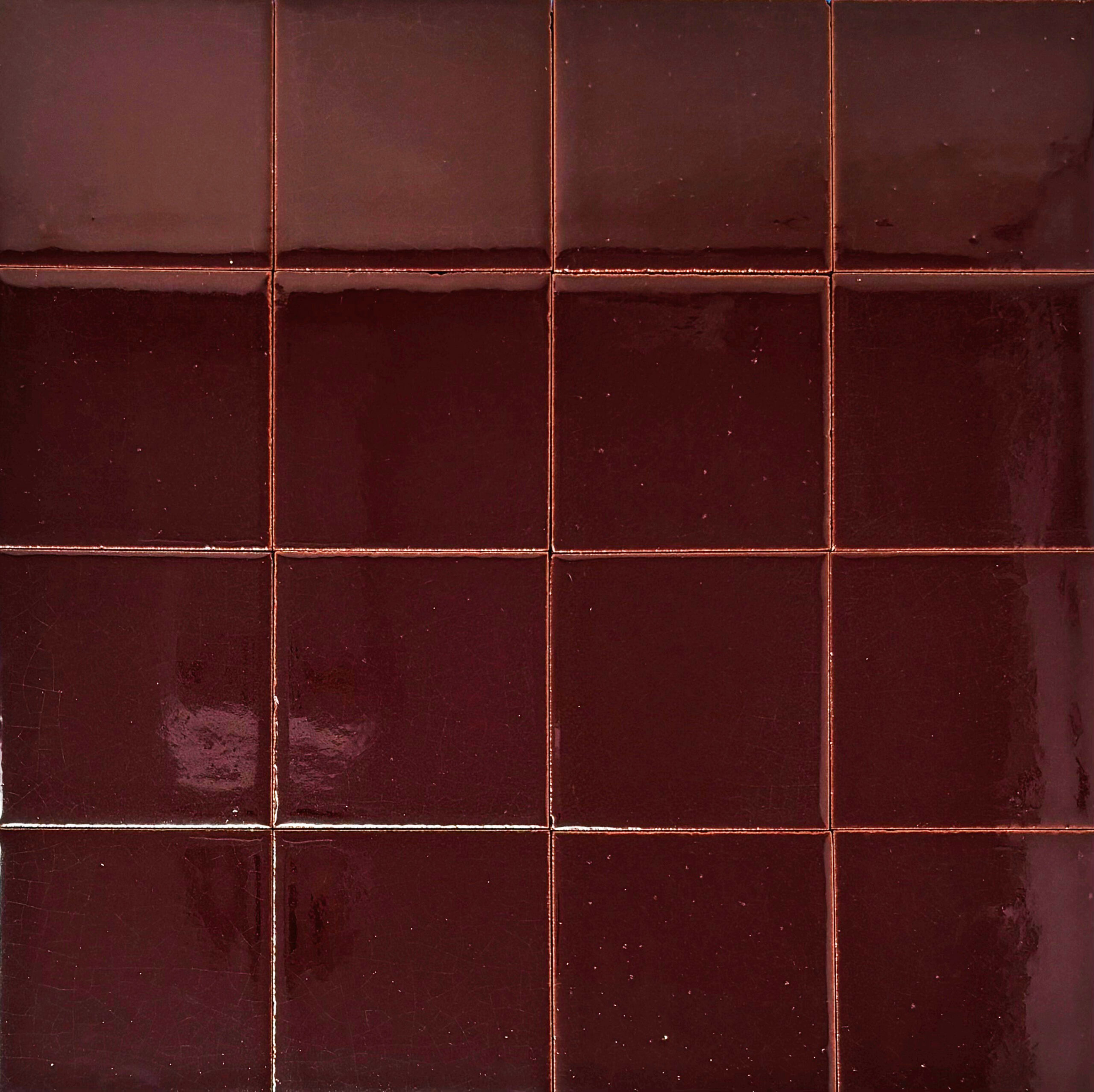

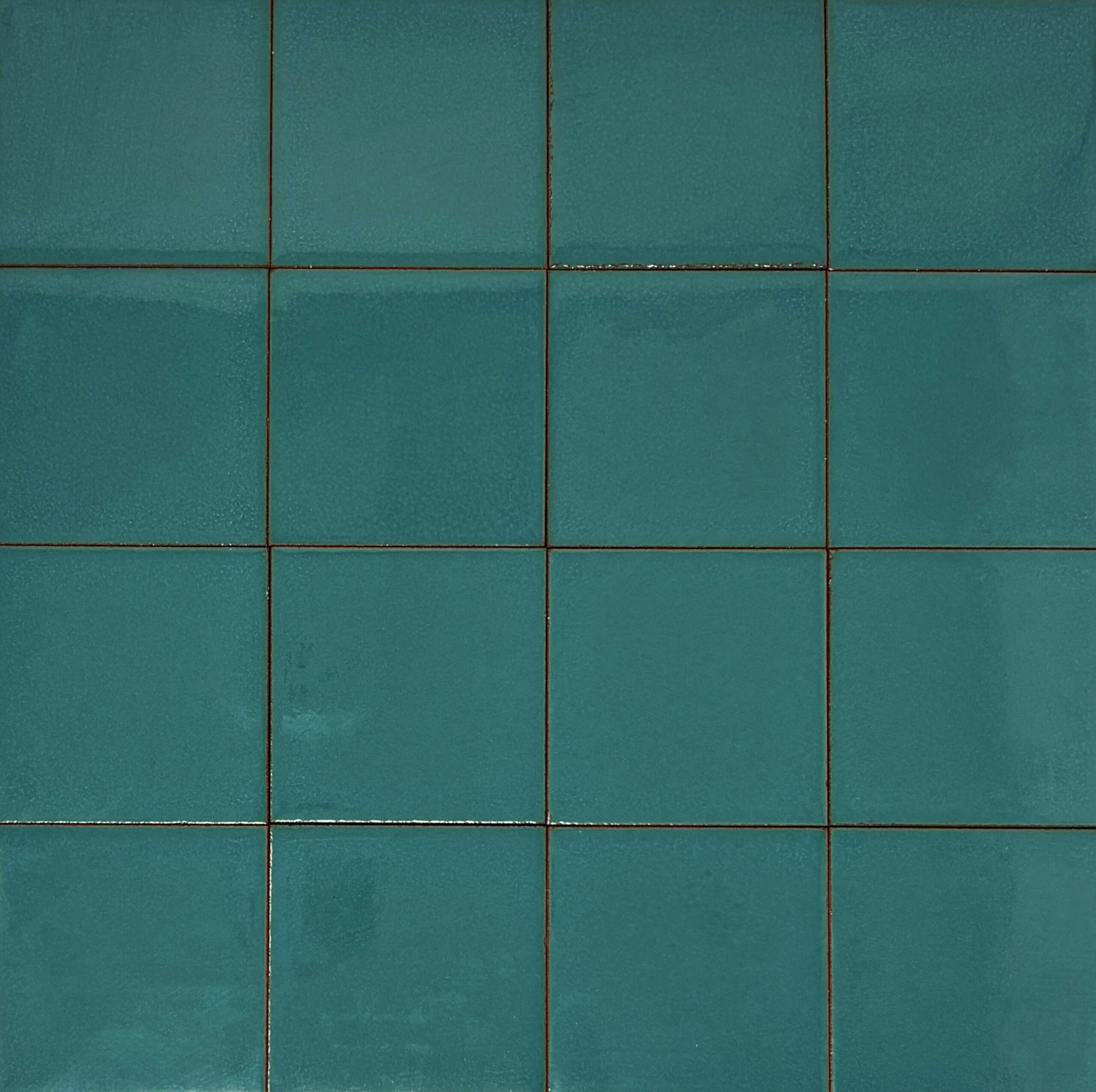

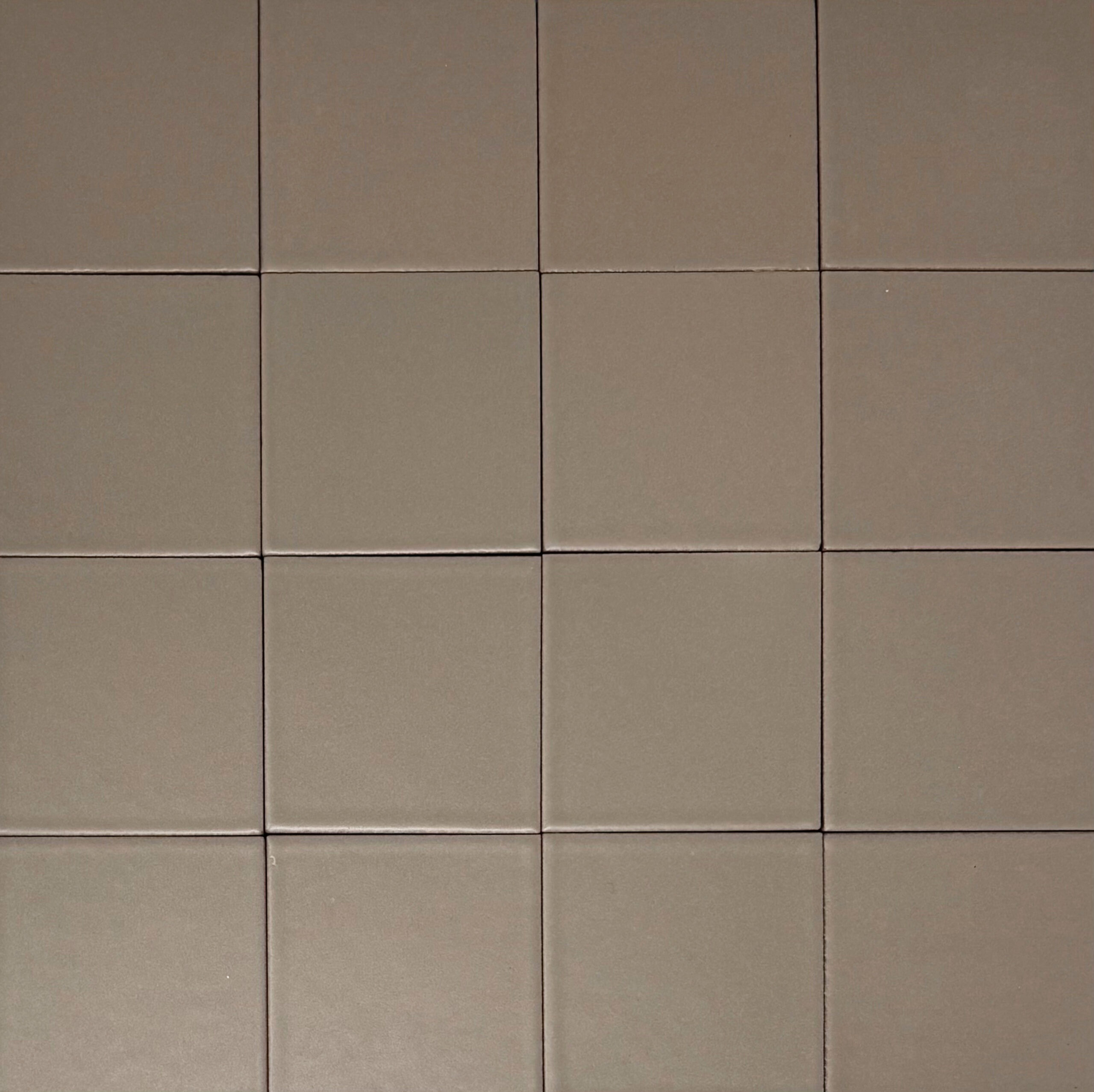

MT-85

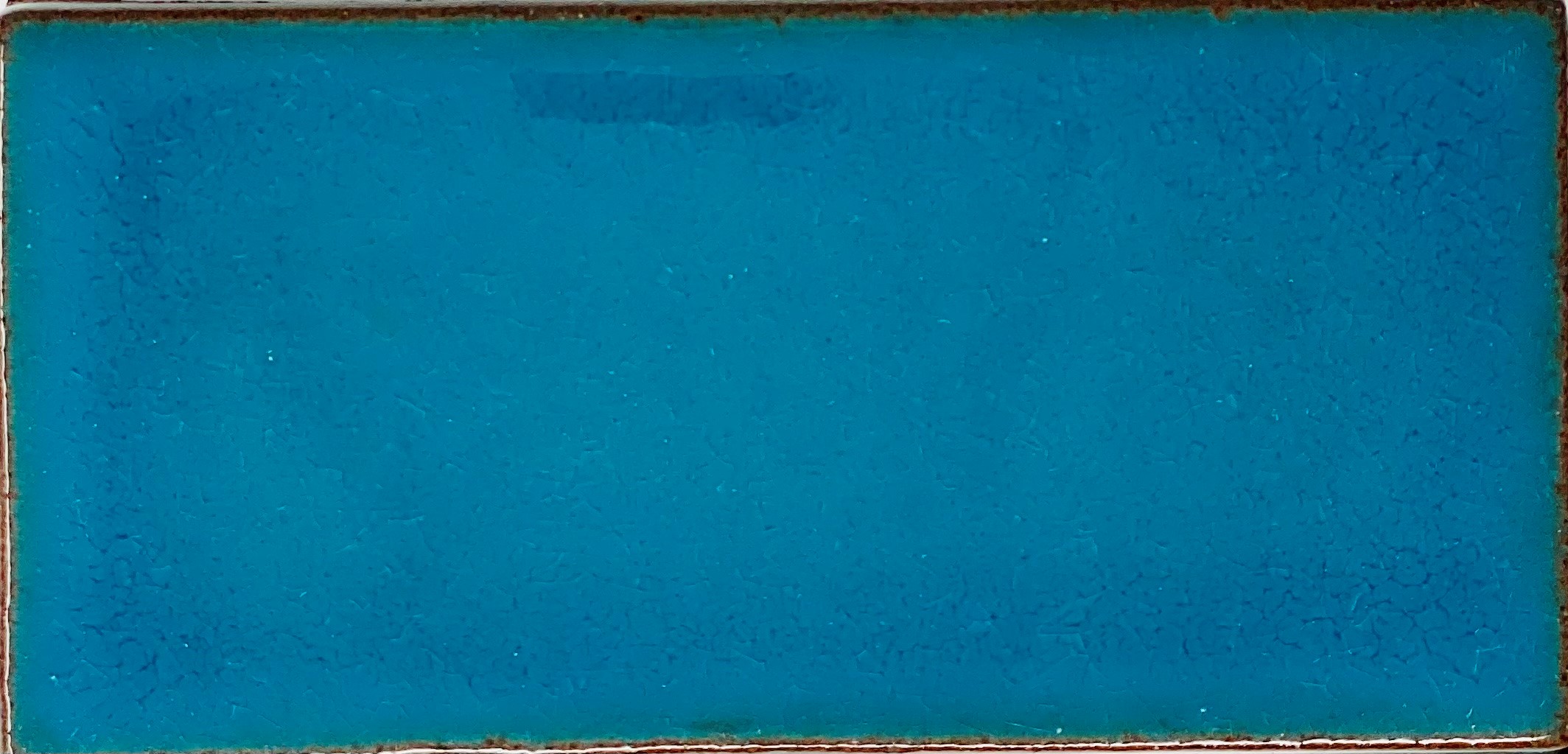

MT-86

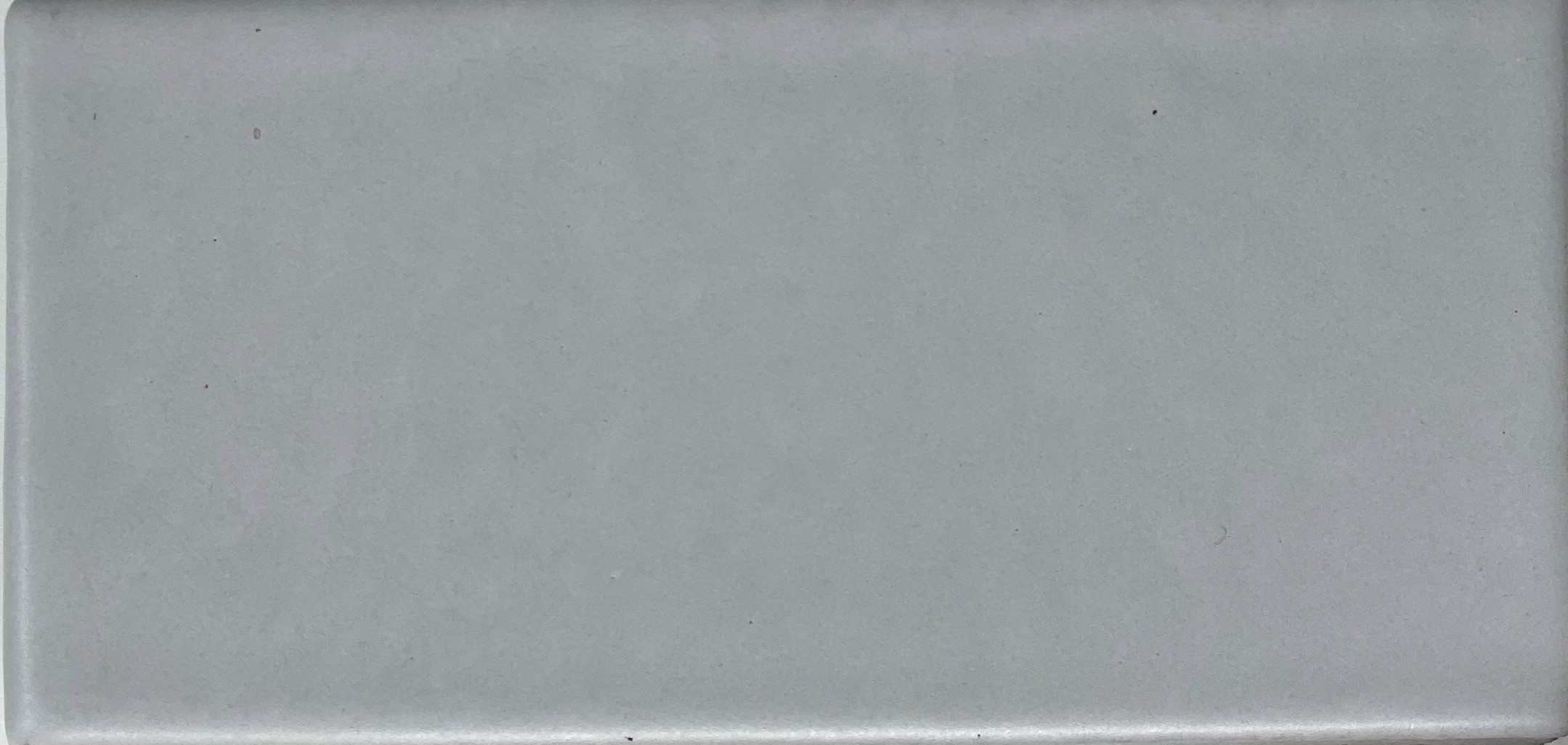

MT-87

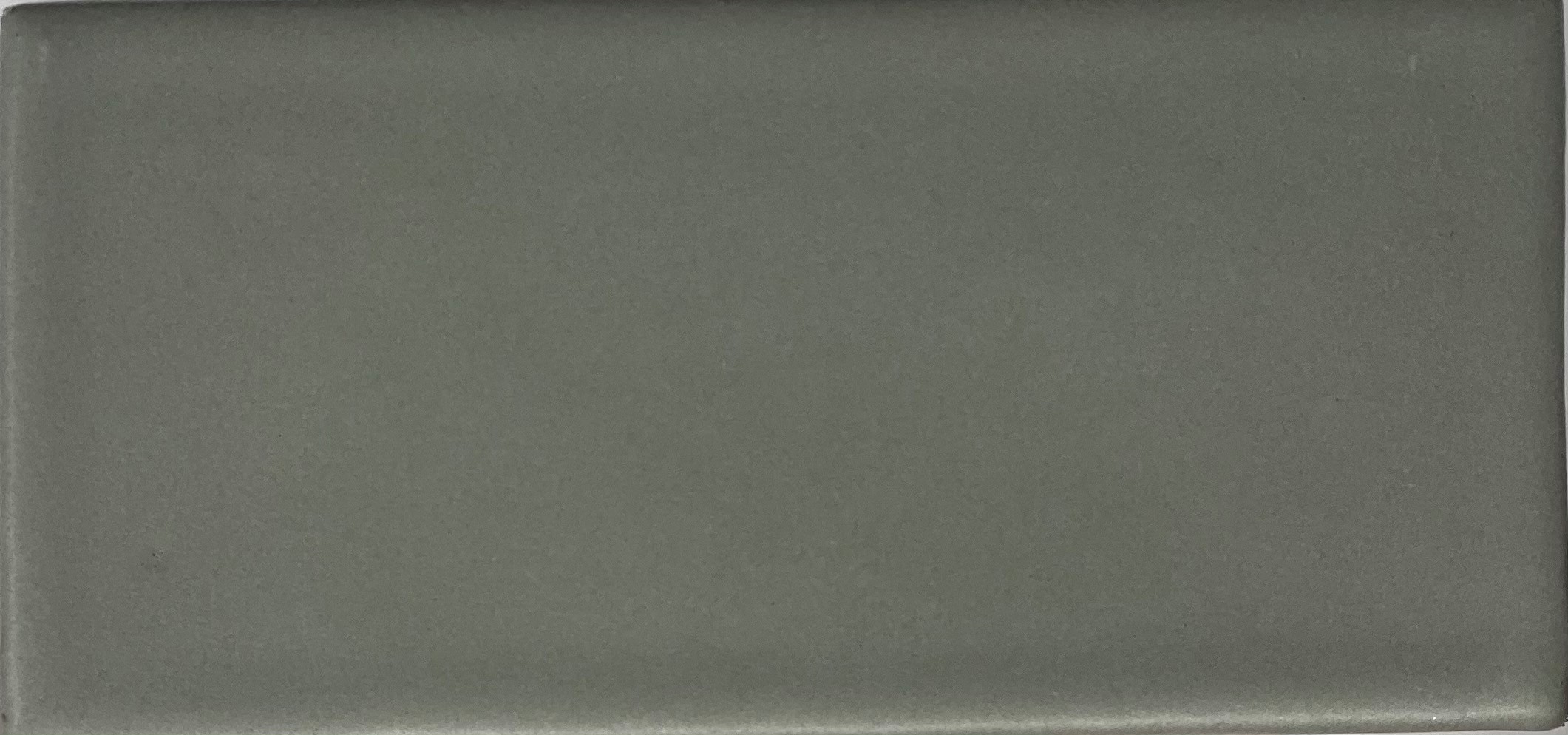

MT-88

Explore

Inspiration

In-Stock

Applications

Hand Cast (3/4″)

Interior Walls/Floors	Exterior Walls/Floors	Showers	Pools	Freeze/Thaw
Yes	Yes	Yes	Yes with a clear overglaze	Yes

Thin Pressed (1/2″)

Interior Walls/Floors	Exterior Walls/Floors	Showers	Pools	Freeze/Thaw
Yes	Yes	Yes	Yes with a clear overglaze	Yes

TCNA Technical Data

View Technical Data

Just so you know

^

Underlying crazing is normal with our Terra Bella line when it is glazed. Make sure to seal before and after grouting. Periodic maintenance is necessary to avoid moisture intrusion.

Unglazed & glazed tile will have variation in size, color, and thickness.

^

Crackle glazes require sealing before grouting and periodic maintenance to avoid moisture intrusion.

^

Matte glazes have a high resistance to abrasion, but may be prone to staining and smudging.

^

Test all dark grouts prior to installation.

For more information call Mission Tile West at 626-799-4595

Installation

Tiles must be mixed from all cartons during installation to ensure proper blending. An experienced tile installer will ensure an acceptable installation. Please inspect and approve tile prior to installation. Mission Tile West recommends the use of Custom Building Products MegaLite as a setting material and Dry Treat’s Stain-Proof impregnating sealer for all Terra Bella products. Installation of our tiles constitutes acceptance, and no claims will be considered thereafter.
